Elo TouchSystems ET2270L Manuel utilisateur
Elo Touch Solutions
ET2270L, ET2470L
Touch monitors
User Manual
USER MANUAL: <70 Series Monitor>
UM600633 Rev A
User Manual<70 Series Monitor>
UM600633
Rev A
2
Copyright reserved © 2022 Elo Touch Solutions, Inc. All rights reserved.
No part of this publication may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language or
computer language, in any form or by any means, including, but not limited to, electronic, magnetic, optical, chemical, manual, or
otherwise without prior written permission of Elo Touch Solutions, Inc.
Disclaimer
The information in this document is subject to change without notice. Elo Touch Solutions, Inc. and its Affiliates (collectively “Elo”) makes
no representations or warranties with respect to the contents herein, and specifically disclaims any implied warranties of merchantability
or fitness for a particular purpose. Elo reserves the right to revise this publication and to make changes from time to time in the content
hereof without obligation of Elo to notify any person of such revisions or changes.
Trademark Acknowledgments
Elo, Elo (trademark), Elo Touch, Elo Touch Solutions and InteliTouch are all the trademarks of Elo and its Affiliates.. Windows is the
trademark of Microsoft Corporation.
User Manual<70 Series Monitor>
UM600633
Rev A
3
Table of Contents
Section 1: Introduction 4
Section 2: Installation 5
Section 3: Mounting 8
Section 4: Operations 10
Section 5: Technical Support 18
Section 6: Safety and Maintenance 20
Section 7: Regulatory Information 21
Section 8: Warranty Information 29
User Manual <70 Series Monitor>
UM600634 Rev A 3
User Manual<70 Series Monitor>
UM600633 Rev A
4
Section 1: Introduction
Product Description
Your new touchscreen display combines Elo’s latest developments in touch technology and display design with the
reliability for use in high-traffic environment.
This touchscreen incorporates a 24-bit color, active matrix thin-film-transistor LCD panel to provide high quality display performance. The
70 Series offers sizes that range from 21.5’’ to 27’’ and support a full HD resolution of 1920x1080. The LED backlight significantly reduces
power consumption and eliminates mercury (compared to CCFL-backlit panels). Other features that enhance this LCD monitor’s display
performance are Plug & Play compatibility, interactive TOUCH OSD controls and flexible mounting options
Precautions
Follow all warnings, precautions and maintenance as recommended in this user manual to maximize the life of your unit and prevent risks
to user safety. See the Safety & Maintenance Section for more information.
This manual contains information that is important for the proper setup and maintenance of the unit. Before setting up and powering on
your new touchscreen, read through this manual, especially the Installation, Mounting, and Operation Sections
User Manual<70 Series Monitor>
UM600633 Rev A
5
Section 2: Installation
Unpacking the Touch Monitor
Open the carton and verify that the following items are present:
• Touch Monitor
• Quick installation guide
• HDMI cable
• USB touch cable
• Europe power cord
• North American power cord
• EEI label
• Tie wraps
• Replaceable plastic cover plates of feet
User Manual<70 Series Monitor>
UM600633
Rev A
6

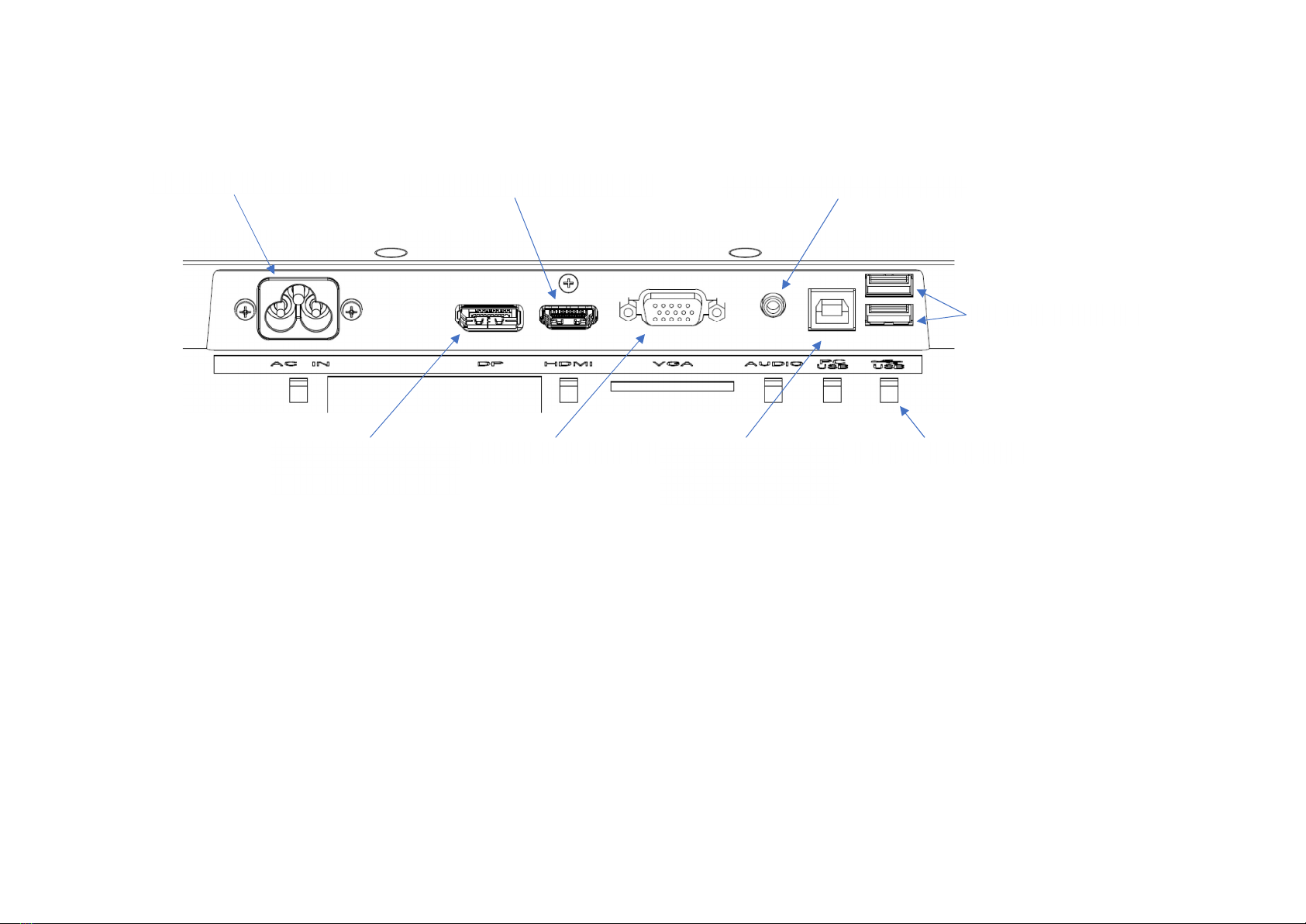

Connector panel
Note: the cable tie hole is the position through which the tie wrap passes to bind the cable. It just needs to pass the tie warp through
the hole and bind the cable to fix the cable connection.
Touch Monitor Connections
1.
Connect one end of the DP, HDMI or VGA video cable to the DP/HDMI/VGA input connector of the monitor and the other end to
the DP/HDMI/VGA video source. (Tighten the screws on the VGA cable connector for best performance.)
2.
Connect the USB touch line between the USB-B interface of the monitor and the USB-A port on your PC.
3.
Connect the audio cable between the audio out of the monitor and your audio source.
4.
Use the power cable to connect the power supply with the power input interface of the monitor.
5.
The touch monitor ships in an OFF status. Press the power button to switch it on.
AC power input
HDMI signal input
Audio input or output
DP signal input
VGA signal input
USB-B interface
USB-A interface
Cable tie hole
User Manual<70 Series Monitor>
UM600633 Rev A
7
Installing the Touch Technology Software Drivers
No additional drivers are required for your projected-capacitive touch monitor with Windows 7 or 10 operating systems, as it will use the
Windows HID drivers. If the monitor is used with the Windows XP operating system, follow the steps below to install the Windows XP
touch driver.
To download the latest touch-control driver:
1.
please visit https://www.elotouch.com/support/downloads#/
2.
Select an operating system from the drop-down menu “Operating System.”
3.
Select the technology from the drop-down menu “Technology.”
4.
Download the driver version necessary for your touch monitor.
User Manual<70 Series Monitor>
UM600633
Rev A
8
Section 3: Mounting
Kickstand
The Kickstand angle is manually adjustable in a range of “20° to
70°” by
pushing the machine or pull/push the kickstand by hand.
Note: 1. Once the kickstand leaves the table, the open angle will automatically rebound to the minimum angle. Close the kickstand
to prevent damage during moving the touch monitor.
2. Do not tamper the kickstand to avoid accidental damage.
3. Do not lift the kickstand when handling / moving the monitor to avoid the damage of touch monitor. This kickstand is not
designed for carrying the monitor.
Minimum angle 20°
Maximum angle 70°
User Manual<70 Series Monitor>
UM600633
Rev A
9
Rear VESA Mount
A 4-hole 100x100mm mounting interface for M4 screws is provided on the back of the monitor. Peel off the cover mylar, then use a cross
screwdriver to remove the screws so as to access the mounting interface. The interface is compatible with the stand of VESA MIS-D, 100,
C defined by VESA FDMI.
M4 screw, X4
Maximum thread depth = 8MM
Material: steel
User Manual<70 Series Monitor>
UM600633 Rev A
10
Section 4: Operations
Power supply
To power on or off the touch monitor, press the power button.
The power status LED on the back of the touch monitor functions as follows:
Touch monitor Status LED Status
Off Off
Sleep Pulsing
On Power-on (green)
The system consums minimum power when in Sleep or Off modes. For the detailed power consumption specification, refer to the
technical specifications on Elo website http://www.elotouch.com
Touching the screen will bring the connected host PC out of sleep mode (similar to moving mouse or pressing keyboard key).
In order to improve the reliability and decrease the useless power consumption, disconnect the AC power cable when the machine will be
unused for long time.
Touch control
No calibration is required for projected capacitive technology. The touch monitor can support up to 10 touches at once.
