Elo TouchSystems Z30POS Stand Manuel utilisateur

Revision B

P/N E236351

Assembly Guide

Z30POS Stand

Kit Contents

Z30 POS Stand (Qty 1)

150W DC Power Adapter and cables

M3x6mm screw for cable door (Qty 1)

M4x8mm screw for mounting plate (Qty 1)

M4x6mm at-head screw for display mounting (Qty 4)

Mounting bracket (Qty 1)

Tie-wraps (Qty 2)

USB-C (E483135 Only)

Cash Drawer

USB-A, x2

DC Power In

Powered USB

USB-A, x2

Ethernet

Elo Z30 POS Stand supports the I-Series 4 Slate display ordered separately. Remove screw on

cable lock bracket from the rear of the display and place screw and bracket aside for reinstallation

in step 6.

Power button

M3 Screws

bottom cover

M3 Screw

top cover

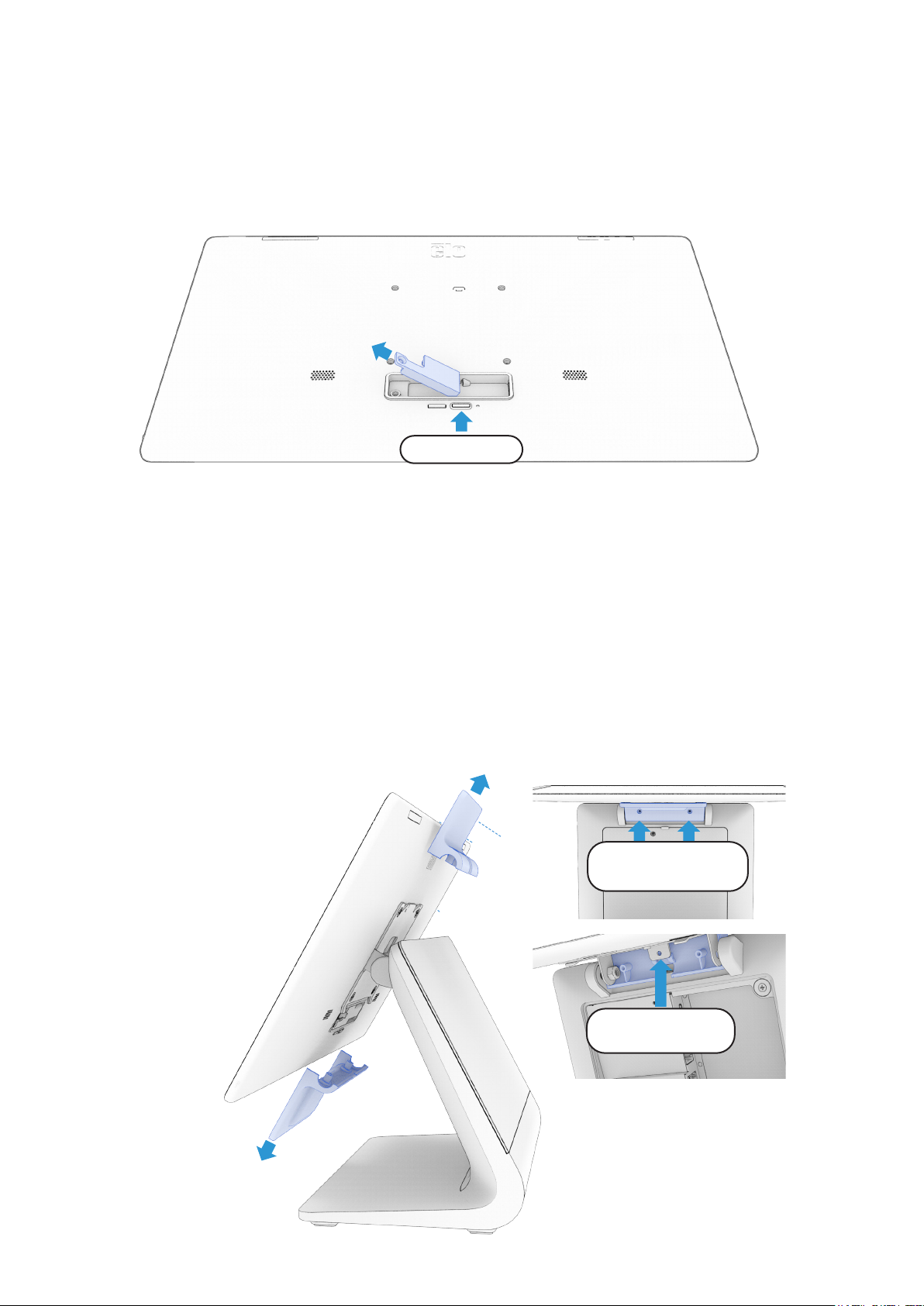

Remove the upper and lower VESA mount covers by removing the M3 screws noted below.

Install I-Series 4 Slate display on stand using included M4x6mm at-head screws.

4Mount the system to a table (optional). Skip to Step 6 if not mounting to a table.

Secure the mounting bracket to the table using appropriate screw type and length. Elo suggests M4

or #10 screw diameter.

6Secure the system to the bracket using the M4x8mm screw included in the accessory box.

5Lower the system onto the bracket and slide it back ensuring the bracket engages the screws on

the bottom side.

7Connect the USB-C cable located in the hinge of the stand to the I-Series 4 Slate display. Re-install

the cable lock bracket and screw from step 1.

M3 Screws

bottom cover

M3 Screw

top cover

Slide the upper VESA mount cover over the VESA mount bracket and install the M3x6mm screw

removed in step 2 to secure it in place. Install the lower VESA cover so it covers the USB-C cable

ensuring the cable routes freely. Install the M3x13mm screws removed in step 2 to secure the lower

VESA mount cover.

Route the DC power cable through the hole in the bottom of the stand and connect it as shown.

Connect other I/O cables as needed (see page 2) Make sure all cables route through the plastic

clip at the bottom and re-install cable cover door.

Clip

Power

9Remove the cable cover door to access the I/O connections.

The information in this document is subject to change without notice.Elo Touch Solutions,Inc.and its Afﬁliates (collectively “Elo”) makes no representations

or warranties with respect to the contents herein, and speciﬁcally disclaims any implied warranties of merchantability or ﬁtness for a particular purpose.

Elo reserves the right to revise this publication and to make changes from time to time in the content hereof without obligation of Elo to notify any person

of such revisions or changes.

No part of this publication may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language or computer

language, in any form or by any means, including, but not limited to, electronic, magnetic, optical, chemical, manual, or otherwise without prior written

permission of Elo Touch Solutions, Inc.

Elo and the Elo logo are either trademarks or registered trademarks of Elo Touch Solutions, Inc..

America

Tel +1 408 597 8000

[email protected]

Europe (EMEA)

Tel +32 16 930 136

[email protected]

Asia Paciﬁc

Tel +86 (21) 3329 1385

[email protected]

Learn more about Elo at EloTouch.com

Power

Button

Power on the system when installation is complete.
