Elo TouchSystems 63 Series Manuel utilisateur

Revision B

P/N E403930

www.EloTouch.com

Quick Installation Guide

63 Series

Open Frame Touchscreens

Flush Mount (3263L)

Please refer to the dimensional drawing located in the

resource section of the product page on elotouch.com.

2. Attach bracket “B” to bracket “A” with 2x M4 hex screws

(included), 2 brackets on each side of the display

(total 8 brackets).

3. Attach bracket “C” to bracket “B” loosely with 2x M4 hex

screws (included), 2 brackets on each side of the display

(total 8 brackets).

1. Attach bracket “A” to touchmonitor with 2x M4 hex

screws (included), 2 brackets on each side of the display

(total 8 brackets).

5. Place touchmonitor into enclosure opening from back side,

taking care not to damage the touchscreen glass edge.

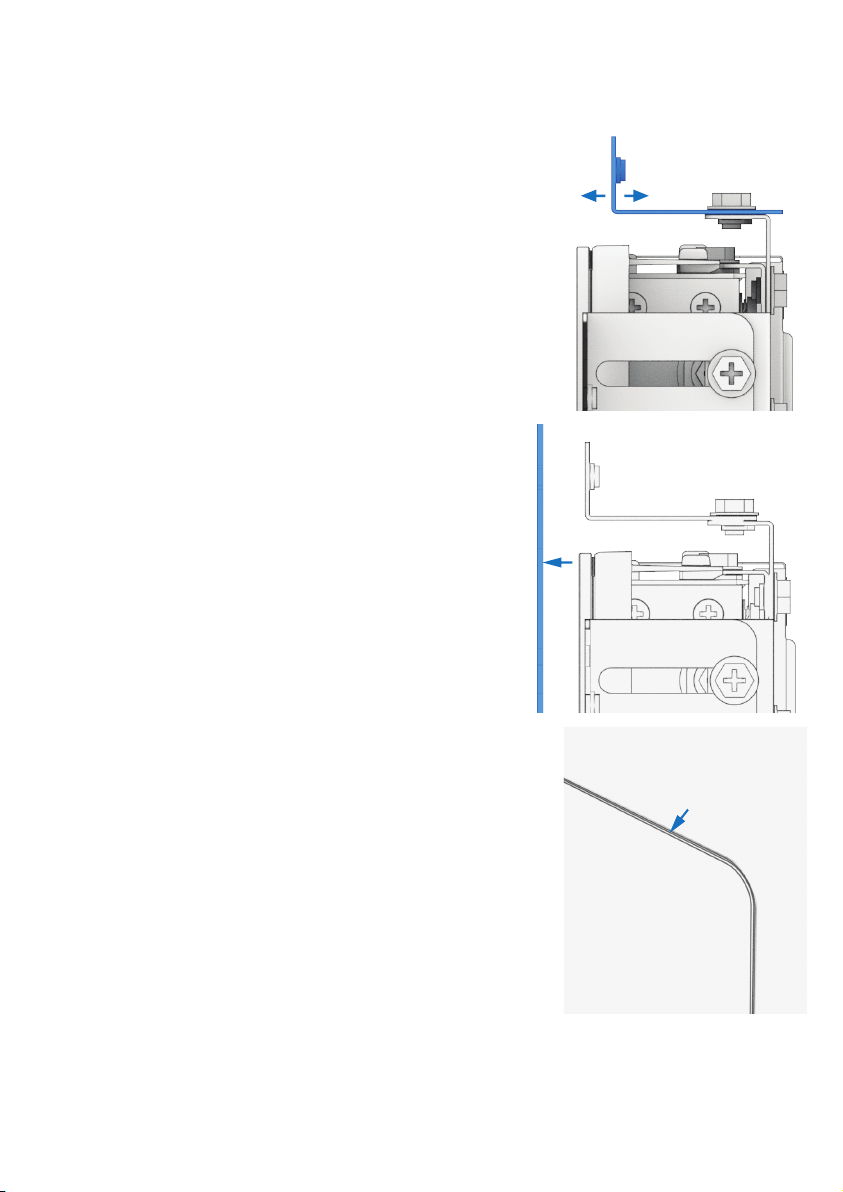

4. Adjust depth of brackets “C” such that the faces of the brackets sit below

the touchscreen surface approximately the same distance as the

enclosure thickness. Tighten the screws holding brackets “C”.

6. Secure touchmonitor to enclosure per dimensional drawing,

ensuring monitor is centered in opening. Adjust brackets “C” if glass

is not ﬂush to enclosure. Seal gap between touchscreen glass

and enclosure using silicone, masking off touchscreen to ensure

no silicone leaks onto front of glass.

Gap between touchscreen

and enclosure

Flush Mount (4363L)

Please refer to the dimensional drawing located in the

resource section of the product page on elotouch.com.

1. Install included sealing foam around perimeter of

touchmonitor.

a. Peel back 2-3” of release liner from foam seal.

b. Align exposed end of foam seal with black mylar on

touchmonitor.

c. Gently peel back additional release liner as tape is

pressed into place.

d. Foam seal should not extend off of the edge of black

mylar.

2. Attach bracket “A” to touchmonitor with 2x M4 hex

screws (included), 2 brackets on each side of the

display (total 8 brackets).

3. Attach bracket “C” to interior side of enclosure per

dimensional drawing, 2 brackets on each side of the

display (total 8 brackets).

Black mylar

Sealing foam

installed

Enclosure

(inside view)

Bracket C

6. Place touchmonitor into enclosure opening from

front side. Secure touchmonitor to bracket “B” from

rear with 2x M4 hex screws (included), 2 brackets

on each side of the display (total 8 brackets).

5. Adjust depth of brackets “B” such that the faces of the brackets

sit below the touchscreen surface the same distance as the

monitor mounting thickness. Tighten the screws holding

brackets “B”.

4. Attach bracket “B” to bracket “C” loosely with 2x M4

hex screws (included), 2 brackets on each side of the

display (total 8 brackets).

Rear VESA Mount

A VESA-compliant mounting pattern for M6 screws is provided on the rear of the monitor. Pattern varies for each model.

Drawing is for illustration purposes only. Please refer to the dimensional drawing located in the resource section of the

product page on elotouch.com.

The VESA FDMI-compliant mounting is coded VESA MIS-F.

Power Video Touch OSD

HDMI VGA

Cover Glass Installation

Elo Open Frame PCAP Touchscreens support protective cover

glass. Cover glass must be installed with no air gap to

the Touchscreen glass. Touch Thru mode must be

enabled to use cover glass.

To enable Touch Thru mode:

1. Press the Menu button on the unit’s tethered OSD

Remote.

2. Navigate to Miscellaneous -> Touch -> Touch Thru.

3. Set to “On”.

4. Add cover glass on top of touchscreen.

5. Power cycle the monitor.

If the cover glass is later removed, this feature should be

set to “Off” and the monitor power cycled for the

touchscreen to work correctly.

Problem

Troubleshooting

Monitor

display is dim

Enclosure

Open Frame

Touchscreen

Cover Glass

- Check that there are no loose cable connections.

Monitor image looks strange or is displaying

an "Out of Range" message

- Adjust your computer’s resolution/timing mode to be within the

allowable timing ranges speciﬁed for your touchscreen display.

- Use the Auto Adjust function in the OSD.

- Verify your PC has the latest Elo drivers installed.

- Perform the calibration routine provided with the Elo drivers.

- If the OSD buttons or power button does not respond, check to

see if the OSD lock or power lock functions is on.

Touch functionality doesn’t work

- Check to see if the OSD Touch on Sleep function is disabled.

Can’t wake on touch

- Check to see if the OSD Touch Thru function is on.

Only supports two touches at a time

- If the Power Status LED is blinking, the monitor or Computer

Module maybe in Sleep mode. Press any key / move the mouse

/ touch the touchscreen to see if the image reappears.

- Use the OSD to increase the brightness and/or contrast.

Monitor display is blank

The information in this document is subject to change without notice. Elo Touch Solutions, Inc. and its Afﬁliates (collectively “Elo”) makes no

representations or warranties with respect to the contents herein, and speciﬁcally disclaims any implied warranties of merchantability or ﬁtness for a

particular purpose. Elo reserves the right to revise this publication and to make changes from time to time in the content hereof without obligation

of Elo to notify any person ofsuch revisions or changes.

No part of this publication may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language or computer

language, in any form or by any means, including, but not limited to, electronic, magnetic, optical, chemical, manual, or otherwise without prior

written permission of Elo Touch Solutions, Inc.

Eloand the Elo logo are either trademarks or registered trademarks of Elo Touch Solutions,Inc..

Americas

Tel +1 408 597 8000

EloSales.NA@elotouch.com

Europe (EMEA)

Tel +32 16 930 136

EMEA.sales@elotouch.com

Asia Paciﬁc

Tel +86 (21) 3329 1385

[email protected]

Learn more about Elo at EloTouch.com.

Go to www.elotouch.com/support to download user manual.

请访问www.elotouch.com.cn 获取用户手册

请保留备用

In order to prevent image retention (aka: image sticking,

or image burn-in), please use a dynamically changing

screensaver or turn off the display when not in use.

Note: Image retention is not covered by your warranty.

No touch driver installation needed

Aucune installation de pilote nécessaire tactile

No hay instalaciones de controlador toque necesario

Kein Touch-Treiber-Installationen notwendig

Nessun driver installazioni tocco necessario
