Elo TouchSystems B1ET-1215L Manuel utilisateur

Touchmonitor User Guide

1215L 12¨ LCD Desktop Touchmonitor

1000 Series

User Guide

12"LCD Desktop

ET1215L Series

Revision B

P/N E378269

No part of this publication may be reproduced, transmitted, transcribed, stored in a retrieval

system, or translated into any language or computer language, in any form or by any means,

including, but not limited to, electronic, magnetic, optical, chemical, manual, or otherwise with-

out prior written permission of Elo TouchSystems.

Disclaimer

The information in this document is subject to change without notice. EloTouchSystems makes no

representations or warranties with respect to the contents hereof, and specifically disclaims any

implied warranties of merchantability or fitness for a particular purpose. Elo TouchSystems re-

serves the right to revise this publication and to make changes from time to time in the content

hereof without obligation of Elo TouchSystems to notify any person of such revisions or changes.

Trademark Acknowledgments

IntelliTouch, SecureTouch,AccuTouch, and MonitorMouse are trademarks of Elo TouchSystems.

Other product names mentioned herein may be trademarks or registered trademarks of their

respective companies. Elo TouchSystems claims no interest in trademarks other than its own.

iii

Table of Contents

Chapter1 Regulatory Information 33

Introduction 7 Warranty 37

Product Description ...................................................7

Precautions ................................................................7 Index 39

Chapter2

Installation and Setup .................................... 9

Unpacking Your Touchmonitor...................................9

Product Overview ......................................................10

Main Unit ..............................................................10

Rear View ............................................................10

Touch Interface Connection .......................................11

Installing the Driver Software .....................................12

Installing the Serial Touch Driver .........................13

Installing the Serial Touch Driver for Windows

XP, Windows 2000, Me, 95/98 and NT 4.0 .....13

Installing the Serial Touch Driver for MS-DOS

and Windows 3.1..................................................14

Installing the USB Touch Driver...........................15

Installing the USB Touch Driver for Windows

XP, Windows 2000, Me, 95/98 and NT 4.0 .....15

Chapter3

Operation 17

About Touchmonitor Adjustments ..............................17

Front Panel Controls ............................................18

Controls and Adjustment ............................................19

OSD Menu Functions ..........................................19

OSD Control Options ...........................................20

Preset Modes.......................................................21

Power Management System ................................22

Display Angle .............................................................22

Chapter4

Troubleshooting 23

Solutions to Common Problems .................................23

AppendixA.................................................... 25

AppendixB

Care and Handling of Your Touchmonitor ..................28

AppendixC

Touchmonitor Specifications ......................................30

AccuTouch Touchscreen Specifications .............31

12" LCD Touchmonitor (ET1215L-XXWA-1-G)

Dimensions .........................................................32

CHAPTER

INTRODUCTION

Product Description

Your new touchmonitor combines the reliable performance of touch technology with the latest

advances in LCDdisplay design.This combination of features creates a natural flow of information

between a user and your touchmonitor.

This LCD monitor incorporates 12” color active matrix thin-film-transistor (TFT) liquid crystal

display to provide superior display performance.Amaximum resolution of SVGA800x600 is ideal

for displaying graphics and images. Other outstanding designs that enhance this LCDmonitor’s

performance are Plug & Play compatibility, and OSD(On ScreenDisplay) controls.

NOTE Some monitors do not have the touchscreen capability.

Precautions

Follow all warnings, precautions and maintenance as recommended in this user’s manual to

maximize the life of your unit. SeeAppendix B for more information on touchmonitor safety.

1-7

About the Product

Your LCDDesktop Touchmonitor is a 12” SVGATFT color display with the following features:

• The internal microprocessor digitally controls auto-scanning. For horizontal scan frequencies

between 31.5 KHz and 48 KHz, and vertical scan frequencies between 56.3 Hz and 75.0 Hz. In

each frequency mode, the microprocessor-based circuitry allows the monitor to function at the

precision-of a fixed frequency.

• High contrast colorTFT LCDdisplay support resolution up to SVGA800x600. Compatible with

VGA, SVGA(non-interlaced) and most Macintosh compatible color video cards.

• Power management system conforms to VESADPMS standard.

• SupportsDDC1/2B for Plug & Play compatibility.

• Advanced OSDcontrol for picture quality adjustment.

• Detachable stand for wall-mounting application.

• Optional touch screen function.

For full Product Specifications refer toAppendix C.

1-8 UserGuide

CHAPTER

INSTALLATION AND SETUP

This chapter discusses how to install your LCDtouchmonitor and how to install the driver software.

Unpacking Your Touchmonitor

Check that the following 8 items are present and in good condition:

LCD monitor VGAcable USB cable

Serial Cable European power cable Power cable US/Canada

CDand Quick InstallGuide

2-9

Elo QuickStart

Software

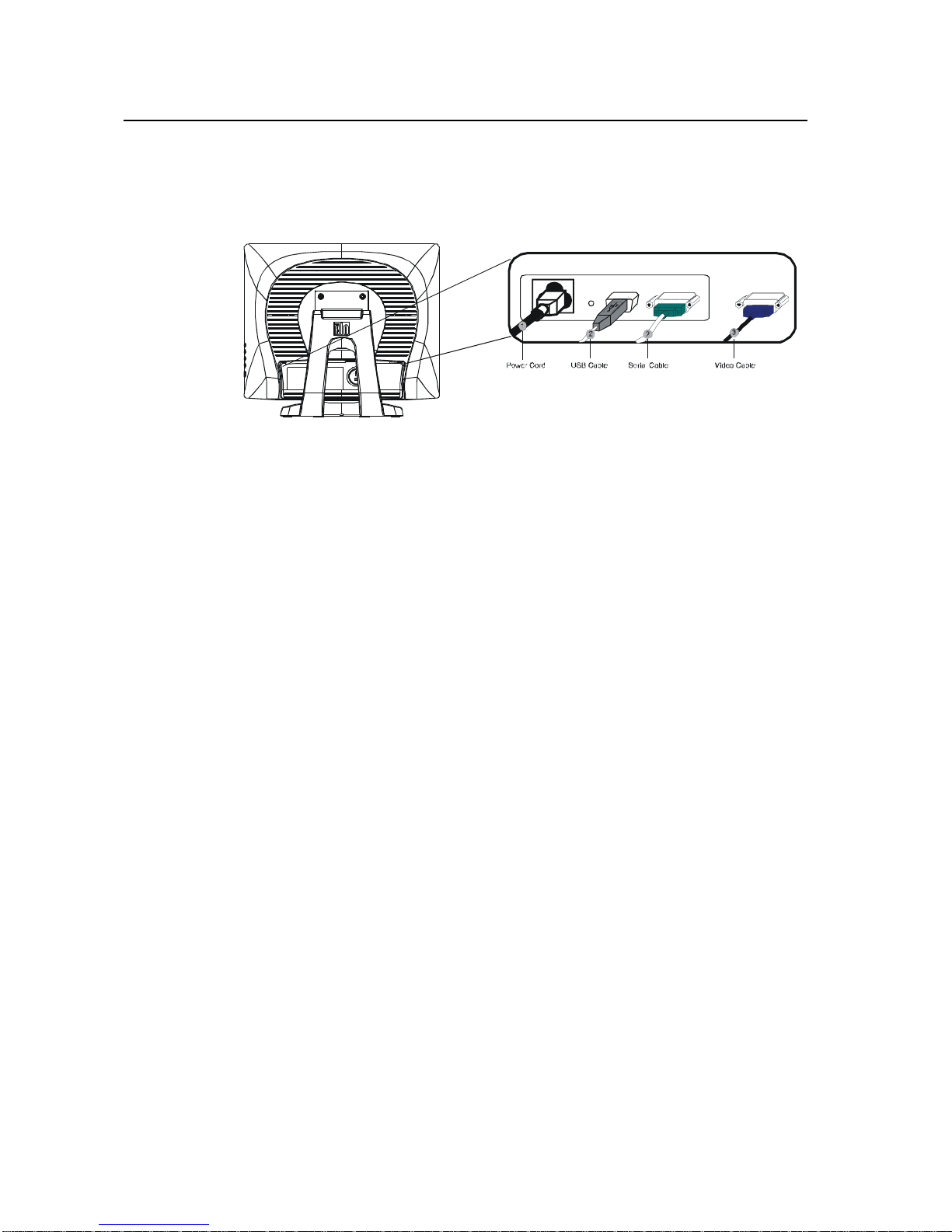

Touch Interface Connection

Note: Before connecting the cables to your touchmonitor and PC, be sure that the computer

and touchmonitor are turned off.

1. Connect one end of the power cord to the monitor and the other end to the outlet.

2. Connect one end of either the touchscreen serial(RS232) cable or the touch screen USB cable

(but not both) to the rear side of the computer and the other end to the LCDmonitor. Tighten by

turning the two thumb screws clockwise to ensure proper grounding(optional module USB cable

does not have thumb screws)

3. Connect one end of the video cable to the rear side of computer and the other to the LCDmonitor.

Tighten by turning the two thumb screws clockwise to ensure proper grounding.

4. Press the power button on the front panel to turn the monitor power on.

2-10 UserGuide

Product Overview

Main Unit

Rear View

2-11

Installing the Driver Software

Elo TouchSystems provides driver software that allows your touchmonitor to work with your

computer.Drivers are located on the enclosed CD-ROM for the following operating systems:

• WindowsXP

• Windows 2000

• Windows Me

• Windows 98

• Windows 95

• WindowsNT4.0

Additional drivers and driver information for other operating systems are available on the Elo

TouchSystems web site at www.elotouch.com.

Your Elo touchmonitor is plug-and-play compliant. Information on the video capabilities of your

touchmonitor is sent to your video display adapter when Windows starts. If Windows detects your

touchmonitor, follow the instructions on the screen to install a generic plug-and-play monitor.

Refer to the appropriate following section for driver installation instructions.

Depending upon whether you connected the serial communication cable or the USB

communication cable, you should install only the serial driver or the USB driver.

2-12 UserGuide
