DMP Electronics 9000 Series Guide d'installation

INSTALLATION AND PROGRAMMING GUIDE

9000 Series Wireless Keypads

TABLE OF CONTENTS

About the Keypad ...................................... 1

What is Included................................................... 1

Keypad Features.........................................2

Enter Characters.........................................3

Enter Alpha Characters..................................... 3

Enter Non-Alphanumeric Characters .......... 3

System Components ..................................4

Card Reader........................................................... 4

2-Button Panic Keys........................................... 4

Internal Speaker Operation ............................. 4

Backlighting........................................................... 5

Backlit Logo .......................................................... 5

User Options Menu ............................................. 6

Program the Keypad ..................................7

Install the Keypad.......................................9

Remove the Cover............................................... 9

Mount the Keypad..............................................10

Power the Keypad............................................... 11

Program the Keypad Options ................. 12

Keypad Options ..................................................12

Custom Card Format................................ 14

Additional Programming (9063 only)........21

Test the Keypad ........................................22

End User Training .................................... 24

Keypad Arming and Disarming....................25

Keypad Entry Delay.......................................... 27

Replace the Battery..........................................28

Public Card Formats ................................ 31

Readers and Credentials .........................32

Ordering Information.............................. 34

Keypads.................................................................34

Accessories..........................................................35

Batteries................................................................35

Compliance Speciﬁcations..................... 36

Certiﬁcations.............................................37

FCC Information .......................................38

Industry Canada Information..................39

Digital Monitoring Products, Inc | 9000 Series Installation and Programming Guide1

ABOUT THE KEYPAD

The 9060 and 9063 are fully functioning supervised wireless keypads. The wireless

keypads provide installation ﬂexibility while also oering codeless arming and disarming

capabilities.

Each keypad provides:

• Custom 32-character full LCD display

• Three 2-button panic keys

• Backlit keyboard with easy-to-read lettering

• Internal speaker

• Wall tamper protection

• Keyboard backlighting that turns red in alarm conditions

• Wireless Encryption (Keypad Version 300 and higher, Panel Version 183 and higher)

The 9063 keypad also provides a built-in proximity card reader designed to read proximity

credentials for codeless arming and disarming.

What is Included

• One wireless keypad mounted in a Thinline™ two-part housing (base and cover)

• One internal rechargeable 3.7V lithium battery

• One 12VDC DC Plug-in Power Supply

• Built-in proximity card reader (9063 only)

9000 Series Installation and Programming Guide | Digital Monitoring Products, Inc. 2

KEYPAD FEATURES

Keypad Display/

Status List

Select Keys

Panic Keys

Command

(CMD) Key

Back Arrow Key

Figure 1: 9000 Series LCD Keypad

1. Backlit Logo

2. Proximity

Credential

Reader

(9063 only)

Digital Monitoring Products, Inc | 9000 Series Installation and Programming Guide3

ENTER CHARACTERS

Enter Alpha Characters

To enter an alpha character, press the number

key that has the desired letter below it. The

keypad display shows the number on that key.

To change the number to a letter, press the top

row select key that corresponds to the letter

location under the key. See Figure 2.

Enter Non-Alphanumeric

Characters

Each key has a non-alpha special character that

is not shown on the keypad. Non-alphanumeric

characters are entered into the keypad the same

way as alphanumeric characters. See Figure 3.

First Letter

Second Letter

Third Letter

Special Character

(CBA

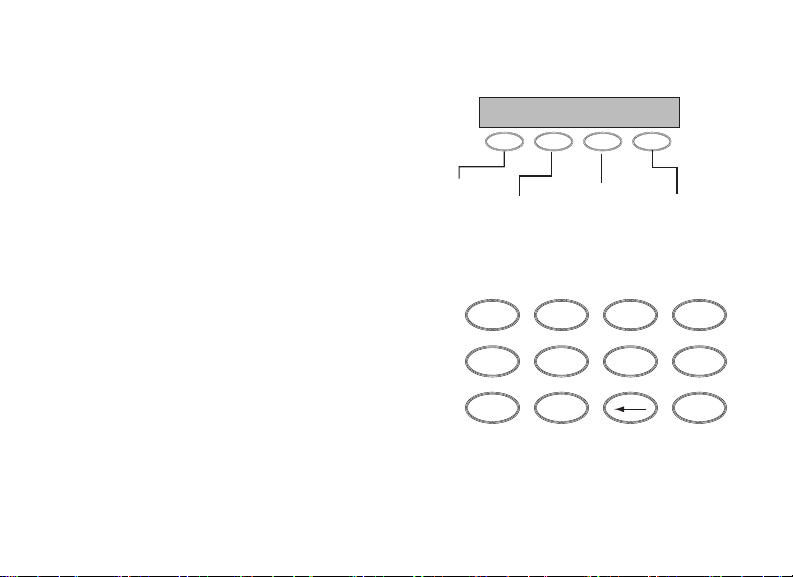

Figure 2: Entering Alpha Characters

1 2 3 4

9 0 CMD

5 6 7 8

(

)

(space)

Figure 3: Keys with Non-Alpha

Characters

9000 Series Installation and Programming Guide | Digital Monitoring Products, Inc. 4

SYSTEM COMPONENTS

Card Reader

When a proximity credential is presented to the 9063 internal reader, located behind

the backlit logo, a beep tone is emitted to provide an audible acknowledgment of the

credential read.

2-Button Panic Keys

All keypads oer a panic key function that allows users to send panic, emergency, or ﬁre

reports to the central station in an emergency. Enable the panic key function in the keypad

user menu. Place the supplied icon stickers below the top row select keys. The user must

press and hold the two select keys for two seconds until a beep is heard.

Panic (left two select keys)—Zone 19 + Device Address

Emergency Non-Medical (center two select keys)—Zone 29 + Device Address

Fire (right two select keys)—Zone 39 + Device Address

Internal Speaker Operation

All keypads emit standard tones for key presses, entry delay, and system alerts. The

speaker also provides distinct burglary, ﬁre, zone monitor, and prewarn cadences. The

keypads provide an alternate prewarn with alarm cadence that occurs when the status list

displays a zone alarm.

Digital Monitoring Products, Inc | 9000 Series Installation and Programming Guide5

Backlighting

The keyboard lights when a key is pressed or the speaker sounds. During an alarm

condition, the keyboard lighted area turns red. When all alarm conditions are cleared from

the display, the red display turns o and the lighted area returns to the user-selected

brightness.

Backlit Logo

The backlit logo indicates the armed status of the panel and the power and battery status

of the keypad. Depending on the status, the LED displays in Red or Green. See Table 1

COLOR AND

ACTIVITY

ARMED STATUS KEYPAD POWER STATUS

Green Steady Panel Disarmed Primary Power OK, Battery OK

Green Blinking Panel Disarmed Primary Power OK, Battery Fault

No Light Panel Disarmed Primary Power Fault, Battery OK

Red Steady Panel Armed Primary Power OK, Battery OK

Red/Green Alternate Panel Armed Primary Power OK, Battery Fault

Red Blinking Panel Armed Primary Power Fault, Battery OK

Table 1: Backlit Logo

9000 Series Installation and Programming Guide | Digital Monitoring Products, Inc. 6

User Options Menu

To access the Options menu, press and hold the back arrow and CMD keys for 2seconds.

Backlighting Brightness

Adjust the brightness, power and armed LEDs, green keyboard, and logo backlighting. At

SET BRIGHTNESS, use the left and right select keys to adjust the brightness. The

brightness reverts to maximum intensity whenever a key is pressed. If no keys are pressed

and the speaker has not sounded for 10seconds, the user-selected brightness restores.

Note: During primary power loss, the backlighting turns completely o after

10seconds of no activity to conserve the standby battery.

Internal Speaker Tone

Adjust the keypad internal speaker tone. At SET TONE, use the left and right select keys to

decrease and increase the tone.

Internal Volume Level

Adjust the keypad internal speaker volume for key presses and entry delay tone

conditions. During alarm and trouble conditions, the volume is always at maximum level.

At SET VOLUME LEVEL, use the left and right select keys to adjust the volume.

Model Number

Display the keypad model number, ﬁrmware version, and date.

Serial Number Display

Display the keypad serial number.
