DMP Electronics Thinline 7160 Manuel utilisateur

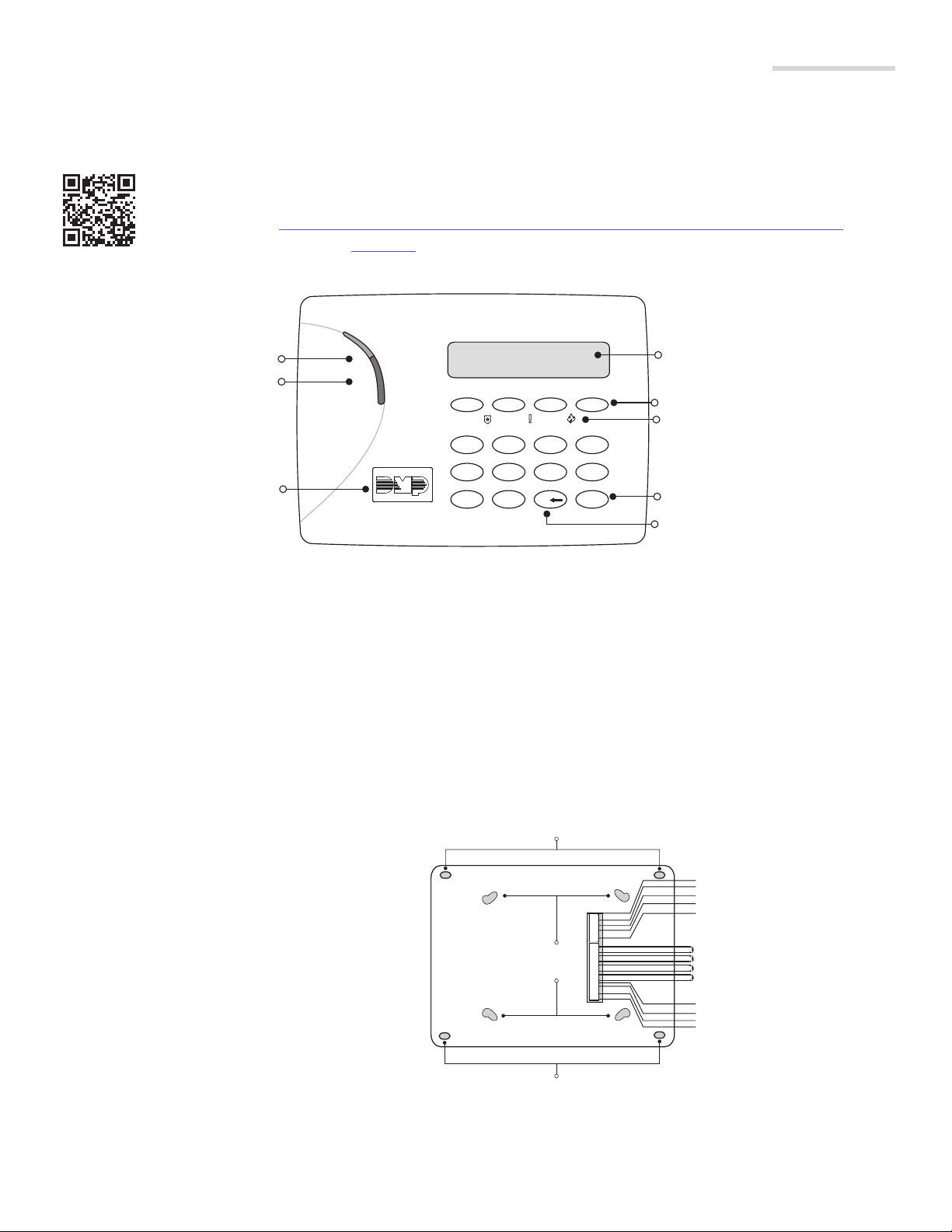

7000 Series Thinline™ and Aqualite™ Keypad

Quick Start Guide

Full Installation and Programming Guide

To view the full 7000 Series Thinline™ and Aqualite™ Keypad Installation and Programming Guide,

scan this QR code or visit DMP.com.

This quick start guide walks you through installing the keypad.

Step 1: Remove the Cover

Insert a slotted-tip screwdriver into one of the slots on the bottom of the keypad and lift the screwdriver upward. Repeat

with the other slot. Separate the cover from the base and set the cover containing the keypad components aside.

Step 2: Wire the Keypad

Use 1k Ohm EOL resistor on keypad zones 1-4.

1. Connect the harness to the keypad header.

2. Connect the red wire to panel terminal 7.

3. Connect the yellow wire to panel terminal 8.

4. Connect the green wire to panel terminal 9.

5. Connect the black wire to panel terminal 10.

Models 7060/A, 7063/A, 7160, and 7163

Supplied with a 4-wire harness for panel keypad bus

connection.

Models 7070/A, 7073/A, 7170, and 7173

Supplied with a 12-wire data bus/zone harness. Four

wires connect to the keypad bus. The remaining

eight wires are for the four zone inputs, four wires

for each zone.

Models 7073/A and 7173

Supplied with a 5-wire output/reader harness and a

12-wire data bus/zone harness.

ExternalReader/Door Strike

7073/7073A, 7173 Keypads

All Keypads

Zones 1-4

7070/7070A

7073/7073A

7170/7173 Keypads

All zones are supervised and suitable for ﬁre applications.

Maximum zone line impendence is 100 Ohms.

Ground fault detected at 1420 Ohms or less.

Surface and Backbox

Mounting Holes

Combined 4-square

and 3-gang switch box

Mounting Holes

Surface and Backbox

Mounting Holes

Violet - Door Strike, Normally Closed

Gray - Door Strike, Common

Orange - Door Strike, Normally Open

White/Green - Reader Data 0

White - Reader Data 1

Black - Ground

Green - Receive Data

Yellow - Send Data

Red - Power

White/Yellow - Zone 4

1k Ω

White/Orange - Zone 3

1k Ω

White/Red - Zone 2

1k Ω

White/Brown - Zone 1

1k Ω

FRI 2:52 PM

ALL RESET HOME

CHIME PERIM SLEEP

1 2 3 4

5 6 7 8

9 0

CMD

POWE

Panic Keys

Power LED

Armed LED

Proximity

Credential

Reader and

Backlit Logo

32-Character

Display

Select Keys

Command Key

Back Arrow Key

18205

LT-2584 22143

INTRUSION • FIRE• ACCESS• NETWORKS

2500 North Partnership Boulevard

Springﬁeld, Missouri 65803-8877

Domestic: 800.641.4282 | International: 417.831.9362

DMP.com

Step 3: Wire for Access Control (Optional)

For all wiring instructions, scan the QR code at the beginning of the document.

Step 4: Wire the Electronic Lock

The Form C relay on 7073/A and 7173 keypads draws up to 15 mA of current and the contacts are rated for 1 Amp at

30 VDC maximum, resistive. The wires marked NO C NC allow you to connect the device wiring to the relay for module

control. Use an additional power supply to power magnetic locks and door strikes.

Green/White – D0

White – D1

Orange – N/O

Gray – C

Violet – N/C

WHT

GRN

None

To Keypad

Magnetic Door Lock

Normally Closed

Normally Closed Normally Open

Common

Power Supply

Model 333

Supressor

WHT

GRN

None

To Keypad

Door Strike Relay

Normally Opem

Common

Power Supply

Model 333

Supressor

Step 5: Wire the 333 Suppressor

Use the included 333 suppressor with the keypad to suppress any surges caused by energizing a magnetic lock or door

strike. Install the 333 across the keypad C (common) and NO (normally open) or NC (normally closed).

If the device is being controlled by the relay is connected to the NO and C wires, install the suppressor on the NO and C

wires. Conversely, if the device is connected to the NC and C wires, install the 333 Suppressor on NC and C wires.

Step 7: Program the Panel and Keypad

For all programming instructions, scan the QR code at the beginning of the document.

Step 8: Test the Keypad

For all testing instructions, scan the QR code at the beginning of the document.

Step 6: Mounting the Keypad

All DMP keypad housings are designed to install on any 4” square box,

3-gang switch box, compatible backboxes, or directly on a ﬂat surface.

1. Ensure all cables are routed through the keypad base cut outs

before fully mounting the base to the wall.

2. Use #6 screws to secure the keypad base to the surface.

3. Place the keypad cover back onto the base and snap into place.

Backbox

mounting holes

Switchbox

mounting holes

CWiring cutouts

DCover latches
