INSTALLATION AND PROGRAMMING GUIDE

7000 Series

Thinline™ and Aqualite™ Keypad

7000 Series Installation and Programming Guide | Digital Monitoring Products b

CONTENTS

Get Started ......................................... 1

What’s Included.....................................................1

What You’ll Need ..................................................1

Procedure.................................................................1

Keypad Features ..................................................2

Enter Characters ................................................. 3

Panic Key Options .............................................. 3

User Options Menu............................................. 3

Install the Keypad............................. 4

Remove the Cover.............................................. 4

Wire the Keypad.................................................. 4

Wire for Access Control ................................... 5

Wire the Electronic Lock ................................. 5

Wire the 333 Suppressor ................................. 5

Program the Panel............................ 7

Program the Keypad ........................ 8

Keypad Options................................................... 8

Custom Card Format...................... 10

Additional Programming.................................13

Test the Keypad ...............................14

End User Training ............................15

Keypad Arming and Disarming ....................15

Keypad Access Control ...................................16

Keypad Entry Delay ..........................................16

Reference..........................................17

ULC Commercial Burglary .............................. 17

Keypad Bus Wiring Speciﬁcations.............. 17

Compatibility ....................................................... 17

Public Card Formats......................................... 17

Readers and Credentials.................................18

Speciﬁcations...................................19

Certiﬁcations....................................19

Underwriters Laboratory (UL) Listed ........19

FCC Information ................................................20

Industry Canada Information .......................20

7000 Series Installation and Programming Guide | Digital Monitoring Products 1

GET STARTED

Thinline™ Series and Aqualite™ Series LCD keypads oer ﬂexible features and functionality. Each keypad provides:

▶Custom 16-character home or business name in the display

▶Four 2-button panic keys

▶AC Power/Armed LED

▶32-character display

▶Backlit keyboard and DMP logo

▶Internal speaker

▶Red keyboard lighting in alarm conditions

▶Simple harness connection to 4-wire keypad bus

▶Optional backboxes for conduit or wall mount applications

Models 7070/A, 7073/A, 7170, and 7173

Provides four fully-programmable, Class B, Style A, supervised, power limited protection zones that can be

programmed for a variety of burglary and access control applications.

Models 7063/A, 7073/A, 7163, and 7173

Provides a built-in proximity card reader designed to read 125KHz proximity credentials.

Models 7073/A and 7173

Provides a door strike relay and allows Wiegand input from external card readers.

What’s Included

▶One 7000 Series Keypad

▶Icon Stickers

▶Four screws (#6 x 1”)

▶One Model 333 Suppressor

▶Four 1k Ohm EOL resistors

What You’ll Need

▶5/64” (2.0mm) drill bit

▶#2 Phillips screwdriver

Procedure

To install a 7000 Series Keypad, this guide walks you through these required steps:

1. Enter characters.

2. Install the keypad.

3. Program the panel.

4. Program the keypad.

5. Custom card format.

6. Test the keypad.

7. End user training.

7000 Series Installation and Programming Guide | Digital Monitoring Products 2

INSTALL THE KEYPAD

1 Remove the Cover

The keypad housing is made up of two parts: the cover, which contains the

circuit board and components, and the base. When removing the cover, refer

to Figure 1.

To separate the keypad cover from the base, insert the ﬂat tip of a slotted

screwdriver into one of the slots on the bottom of the keypad, then press

in slightly to disengage the tab and pry open. Repeat with the other slot.

Remove the cover from the base and set aside.

Wire the Keypad

To wire the keypad, make the connections shown in Figure 2. To wire external readers to the keypad, make the

connections shown in Figure 3 as required for your installation.

Caution: Disconnect all power before wiring. Failure to do so may result in equipment damage or injury.

Observe polarity when making power connections.

Each keypad model has speciﬁc wiring assignments. All zones are supervised and suitable for residential burglary

or ﬁre applications. The maximum zone line impedance is 100 Ohms. The ground fault is detected at 1420 Ohms

or less. See “Keypad Bus Wiring Speciﬁcations” in this document for additional wiring information.

Use 1kOhm EOL resistors, DMP Model 311 on keypad zones 1-4.

1. Connect the harness to the keypad header.

2. Connect red wire to panel terminal 7.

3. Connect yellow wire to panel terminal 8.

4. Connect green wire to panel terminal 9.

5. Connect black wire to panel terminal 10.

Models 7060/A, 7063/A, 7160, and 7163

Supplied with a 4-wire harness for panel keypad bus connection.

Models 7070/A, 7073/A, 7170, and 7173

Supplied with a 12-wire data bus/zone harness. Four wires connect to the keypad bus. The remaining eight wires

are for the four zone inputs, four wires for each zone.

Models 7073/A and 7173

Supplied with a 5-wire output/reader harness and a 12-wire data bus/zone harness.

Cover

Base

Figure 1: Separate the Keypad Housing

7000 Series Installation and Programming Guide | Digital Monitoring Products 3

ExternalReader/Door Strike

7073/7073A, 7173 Keypads

All Keypads

Zones 1-4

7070/7070A

7073/7073A

7170/7173 Keypads

All zones are supervised and suitable for ﬁre applications.

Maximum zone line impendence is 100 Ohms.

Ground fault detected at 1420 Ohms or less.

Surface and Backbox

Mounting Holes

Combined 4-square

and 3-gang switch box

Mounting Holes

Surface and Backbox

Mounting Holes

Violet - Door Strike, Normally Closed

Gray - Door Strike, Common

Orange - Door Strike, Normally Open

White/Green - Reader Data 0

White - Reader Data 1

Black - Ground

Green - Receive Data

Yellow - Send Data

Red - Power

White/Yellow - Zone 4

1k Ω

White/Orange - Zone 3

1k Ω

White/Red - Zone 2

1k Ω

White/Brown - Zone 1

1k Ω

Figure 2: Keypad Back Showing Wiring Harness Assignments

WIRE COLOR PURPOSE WIRE COLOR PURPOSE

Black Ground from Panel* Violet Door Strike, NC

Green Receive Data from Panel* Gray Door Strike, C

Yellow Send Data from Panel* Orange Door Strike, NO

Red Power from Panel* White/Brown Zone 1

Black Ground to Reader White/Red Zone 2

Red Power to Reader White/Orange Zone 3

White Reader Data 1 White/Yellow Zone 4

White/Green Reader Data 0

*Required connections

Additional Power Supply

If the current draw for all keypads exceeds the panel output, provide additional current by adding a Model 505-12

auxiliary power supply.

1. Connect all keypad black ground wires to the power supply negative terminal.

2. Run a jumper wire from the power supply negative terminal to the panel common ground terminal.

3. Connect all keypad power (+12VDC) wires to the power supply positive terminal.

Caution: Do not connect the power supply positive terminal to any panel terminal. Refer to the 505-12 Power

Supply Installation Guide (LT-0453) if needed.

Keypad Bus Monitor

For listed ﬁre protective systems, the 893A Module or 277 Trouble Sounder must be installed on the XR150/XR550

Series panel to monitor the keypad bus. It should be programmed to sound when the keypad bus fails to operate.

7000 Series Installation and Programming Guide | Digital Monitoring Products 4

3 Wire for Access Control (Optional)

Internal Access Control Reader

The 7063/A, 7073/A, 7163, and 7173 keypads provide a built-in proximity card reader that is compatible with most

standard 125kHz proximity credentials. An external 13.56 MHZ proximity reader can be connected and will be

compatible with 13.56 MHz proximity credentials. For a list of publicly supported card formats, see Public Card

Formats.

Note: Some proximity credentials are not compatible with DMP proximity keypads. Test the intended

proximity credentials with the application before installation. DMP does not guarantee compatibility with

credentials not purchased from DMP.

External Access Control Reader

To accept Wiegand data input from other external card readers, connect a 12VDC external reader to a 7073/A or

7173 keypad. Connect the red and black power wires from the reader to the power wires from the panel. These

connect in parallel with the keypad power wires. Connect the reader (Data 1) wire to the white wire on the 5–wire

keypad cable. Connect the reader (Data 0) wire to the green/white wire on the 5–wire keypad cable. See Figure 2.

Violet - Door Strike, Normally Closed

Gray - Door Strike, Common

Orange - Door Strike, Normally Open

White/Green - Reader Data 0

White - Reader Data 1

Black - Ground

Green - Receive Data

Yellow - Send Data

Red - Keypad Power

White/Yellow - Zone 4

1k Ω

White/Orange - Zone 3 Request to Exit (option)

1k Ω

White/Red - Zone 2 Door Contact (option)

1k Ω

White/Brown - Zone 1 7/0 Panic (option)

1k Ω

External Card

Reader

To Keypad Bus

Figure 3: Access Control Wiring

Wire the Electronic Lock

The 7073/A and 7173 keypads provide a Form C (SPDT) relay for controlling locks and other electronically-

controlled barriers. The Form C relay draws up to 15 mA of current and the contacts are rated for 1 Amp at 30

VDC maximum, resistive. The wires marked NO C NC allow you to connect the device wiring to the relay for

module control. Use an additional power supply to power magnetic locks and door strikes. See Figure 6.

Wire the 333 Suppressor

Use the included 333 suppressor with the keypad to suppress any surges cause by energizing a magnetic lock or

door strike. Install the 333 across the keypad C (common and NO (normally open) or NC (normally closed wires.

If the device being controlled by the relay is connected to the NO and C wires, install the suppressor on the NO

and C wires. Conversely, if the devices is connected to the NC and C wires, install the 333 suppressor on NC and C

wires. See Figure 6.

7000 Series Installation and Programming Guide | Digital Monitoring Products 5

Green/White – D0

White – D1

Orange – N/O

Gray – C

Violet – N/C

WHT

GRN

None

To Keypad

Magnetic Door Lock

Normally Closed

Normally Closed Normally Open

Common

Power Supply

Model 333

Supressor

WHT

GRN

None

To Keypad

Door Strike Relay

Normally Opem

Common

Power Supply

Model 333

Supressor

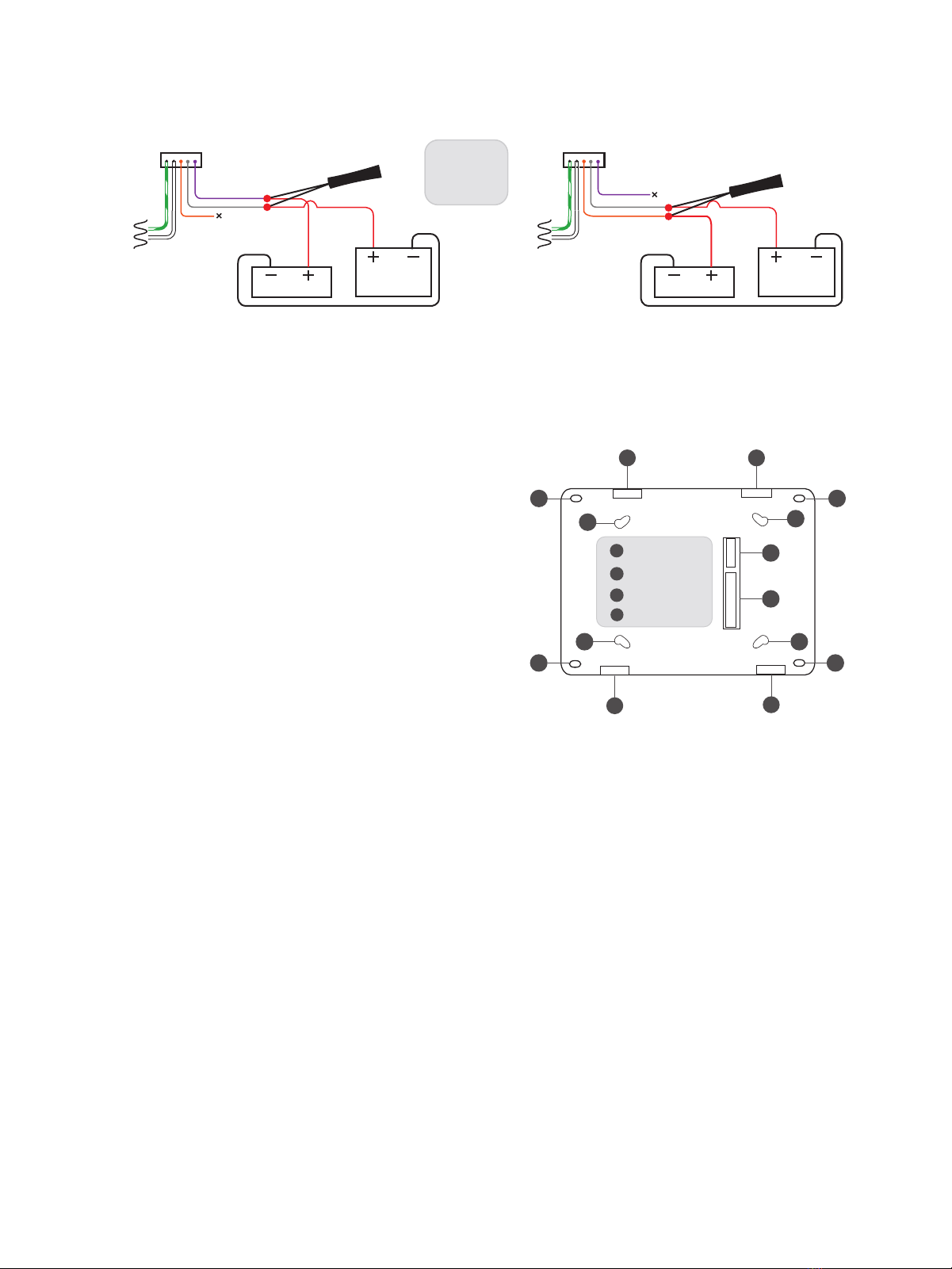

Figure 4: 5-Wire Harness and 333 Suppressor Installation

Mount the Keypad

All DMP keypad housings are designed to install on any 4” square box, 3-gang switch box, compatible backboxes,

or directly on a ﬂat surface.

1. Route the keypad wires through the cutouts in the

base. See Figure 7.

2. Use the keypad base to mark the holes for the

screws on the mounting surface.

3. Set the base aside and drill the holes.

4. Use the included screws to secure the keypad

base to the surface. Do not overtighten.

5. When all wire connections have been completed,

place the keypad cover back onto the base and

snap it into place.

Backbox

mounting holes

Switchbox

mounting holes

CWiring cutouts

DCover latches

Figure 5: Mounting Hole Locations

Door Strike Relay Operation

When the user code sent from the reader is veriﬁed by the panel, the keypad door strike relay activates for ﬁve

seconds. During this time, the access door connected to Zone 2 must be opened to start the programmed entry/exit

timer and Zone Bypass if programmed and used. The ﬁve second door strike is panel programmable when the keypad

is used on an XR150/XR550 Series panel.

Zone 2 Door Contact with Bypass

If the door being released by the 7073/A and 7173 keypad is protected, you can provide a programmed bypass time

by connecting its contact to Zone 2 (white/red pair) on the keypad and enabling the bypass feature. Door contacts

may be N/C or N/O.

Zone 3 Request to Exit

You can also connect a N/O PIR (or other motion sensing device) or a mechanical switch to Zone 3 (white/orange

pair) on the 7073/A and 7173 keypad to provide Request to Exit (REX) capability. When Zone 3 shorts, the keypad

relay activates for 5 seconds. During this time, the user can open the protected door to start the programmed Bypass

entry/exit timer. If the door is not opened within ﬁve seconds, the relay restores to its locked state.

A Zone 3 REX is inhibited for three seconds after the keypad reads a card and a door strike occurs. This is to allow

area entry and pass under a REX PIR. For zone 3 REX when shorted, the lock relay will not activate and the zone 2

bypass begins (normally with electric strikes). If Zone 3 goes open, the lock relay will activate for the programmed

REX time and the zone 2 bypass begins (standard with magnetic locks).

7000 Series Installation and Programming Guide | Digital Monitoring Products 6

Keypad Features

FRI 2:52 PM

ALL RESET HOME

CHIME PERIM SLEEP

1 2 3 4

5 6 7 8

9 0

CMD

POWE

Panic Keys

Power LED

Armed LED

Proximity

Credential

Reader and

Backlit Logo

32-Character

Display

Select Keys

Command Key

Back Arrow Key

Figure 6: 7000 Series LCD Keypad

1 2 3 4

5 6 7 8

9 0

CMD

ABC SECURITY

FRI 2: 52 PM

POWER

ARMED

Command Key

Select Keys

32-Character

Display

Power LED

Armed LED

Back Arrow Key

Proximity

Credential

Reader and

Backlit Logo

Panic Keys

Figure 7: 7100 Series LCD Keypad

7000 Series Installation and Programming Guide | Digital Monitoring Products 7

Enter Characters

Number Pad

1. Choose a character from the table. Use the Greek Characters table if Greek was selected as the keypad

language setting.

2. Identify the Number the character correlates with and press that number on the number pad.

3. Identify the Select Key for the character and press that select key on the keypad. Press that select key again for

the lowercase letter (Latin characters only).

4. When the desired character displays on the keypad, return to step 1 to enter another character or press CMD if

ﬁnished.

Table 1: Latin Characters

NUMBER SELECT KEY

1 2 3 4

1 A B C ( [ {

2 D E F ) ] }

3 G H I ! ^ ~

4 J K L ? “ |

5 M N O / \ `

6 P Q R & $

7 S T U @ %

8 V W X , =

9 Y Z Space : _ ;

0 - + . ‘ * < # >

NUMBER SELECT KEY

1 2 3 4

1 Α Β Γ ( [ {

2 Δ Ε Ζ ) ] }

3 Η Θ Ι ! ^ ~

4 Κ Λ Μ ? “ |

5 Ν Ξ Ο / \ `

6 Π Ρ Σ & $

7 Τ Υ Φ @ %

8 Χ Ψ Ω , =

9 Space Space Space : _ ;

0 - + . ‘ * < # >

Table 2: Greek Characters

7000 Series Installation and Programming Guide | Digital Monitoring Products 8

Panic Key Options

2-Button Panic Keys

All keypads oer a panic key function that allows users to send panic, emergency, or ﬁre reports to the central station

in an emergency. Enable the panic key function in the keypad user menu. Place the supplied icon stickers below the

top row select keys. The user must press and hold the two select keys for two seconds until a beep is heard.

▶Panic (left two select keys)—Zone 19 + Device Address

▶Emergency Non-Medical (center two select keys)—Zone 29 + Device Address

▶Fire (right two select keys)—Zone 39 + Device Address

User Options Menu

To access the Options menu, press and hold the back arrow and CMD keys for 2 seconds.

Backlighting Brightness

Adjust the LCD display brightness level, power and armed LEDs, the keyboard, and the logo backlighting. At SET

BRIGHTNESS, use the left select key to decrease the brightness and the right select key to increase the brightness. If

the brightness level is lowered, it reverts to maximum intensity whenever a key is pressed. If no keys are pressed, and

the speaker has not sounded for 30 seconds, the user-selected brightness level restores.

Internal Speaker Tone

Adjust the keypad internal speaker tone. At SET TONE, use the left select key to decrease the tone and the right

select key to increase the tone.

Internal Volume Level

Adjust the keypad internal speaker volume for key presses and entry delay tone conditions. During alarm and trouble

conditions, the volume is always at maximum level. At SET VOLUME LEVEL, use the left select key to decrease the

volume and the right select key to increase the volume.

Model Number

Displays the keypad model number, ﬁrmware version, and date.

Keypad Address

Displays the current keypad address.

Autres manuels pour Thinline Series

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels DMP Electronics Clavier

DMP Electronics

DMP Electronics Thinline 7300 Series Guide d'installation

DMP Electronics

DMP Electronics 7800 Series Guide d'installation

DMP Electronics

DMP Electronics XTL Series Manuel utilisateur

DMP Electronics

DMP Electronics 7872 Manuel utilisateur

DMP Electronics

DMP Electronics Easy Entry 693 Instructions de montage

DMP Electronics

DMP Electronics Security Command 670 Manuel utilisateur

DMP Electronics

DMP Electronics 9000 Series Guide d'installation

DMP Electronics

DMP Electronics 9800INT Series Guide d'installation

DMP Electronics

DMP Electronics 7800 Series Guide d'installation

DMP Electronics

DMP Electronics Security Command 690 Manuel utilisateur

DMP Electronics

DMP Electronics 781 Manuel utilisateur

DMP Electronics

DMP Electronics 7872 Manuel utilisateur

DMP Electronics

DMP Electronics Security Command 670-A Manuel utilisateur

DMP Electronics

DMP Electronics 9800 Series Manuel utilisateur

DMP Electronics

DMP Electronics 9800 Series Guide d'installation

DMP Electronics

DMP Electronics Thinline Series Guide d'installation

DMP Electronics

DMP Electronics 9863 Manuel utilisateur

DMP Electronics

DMP Electronics Thinline Series Manuel utilisateur

DMP Electronics

DMP Electronics 9000 Series Guide d'installation

DMP Electronics

DMP Electronics 791 Easy Entry Instructions de montage

DMP Electronics

DMP Electronics 691 Manuel utilisateur

DMP Electronics

DMP Electronics Thinline 7060 Instructions de montage

DMP Electronics

DMP Electronics easy entry 791 Manuel utilisateur

DMP Electronics

DMP Electronics 7872 Manuel utilisateur

Manuels Clavier populaires d'autres marques

BFT

BFT SELETTO Manuel utilisateur

Micro Id

Micro Id MP7G3BL Manuel d'instructions

WindowMaster

WindowMaster WLI 130 Manuel utilisateur

ACT

ACT ACT PRO 1030 Manuel utilisateur

Cardin

Cardin SSB Series Manuel utilisateur

Harman Kardon

Harman Kardon KP 1 Manuel utilisateur

Chamberlain

Chamberlain KPR2000 Guide de l'utilisateur

CYP

CYP CR-KP1 Manuel utilisateur

Aeware

Aeware k-35 Series Guide de référence

Aritech

Aritech CS-175 Series Manuel utilisateur

GE NetworX NX-1600E Series Manuel utilisateur

Lenze AC Tech

Lenze AC Tech MC SERIES Manuel utilisateur

Burg Wächter

Burg Wächter secuENTRY 7711 Manuel utilisateur

Aeware

Aeware in.k450 Manuel utilisateur

Lenze

Lenze EPM-H410 Manuel utilisateur

Toshiba

Toshiba RKP007Z Manuel utilisateur

Gemini

Gemini GEM-DXK1 KEYPAD Manuel utilisateur

Russound

Russound MDK-C5 Manuel d'utilisation
