Dinstar MTG1000-4E1/T1 Manuel utilisateur

Thanks for Choosing Dinstar’s MTG1000 Trunk Gateway!

Please read this installation guide carefully before install the gateway. If you need any technical

support, please contact us.

Tel: 0755-61919966.

Mail: [email protected]m

Website: www.dinstar.com

MTG1000Appearance

MTG1000-4E1/T1

MTG1000-8E1/T1

Number of Ports

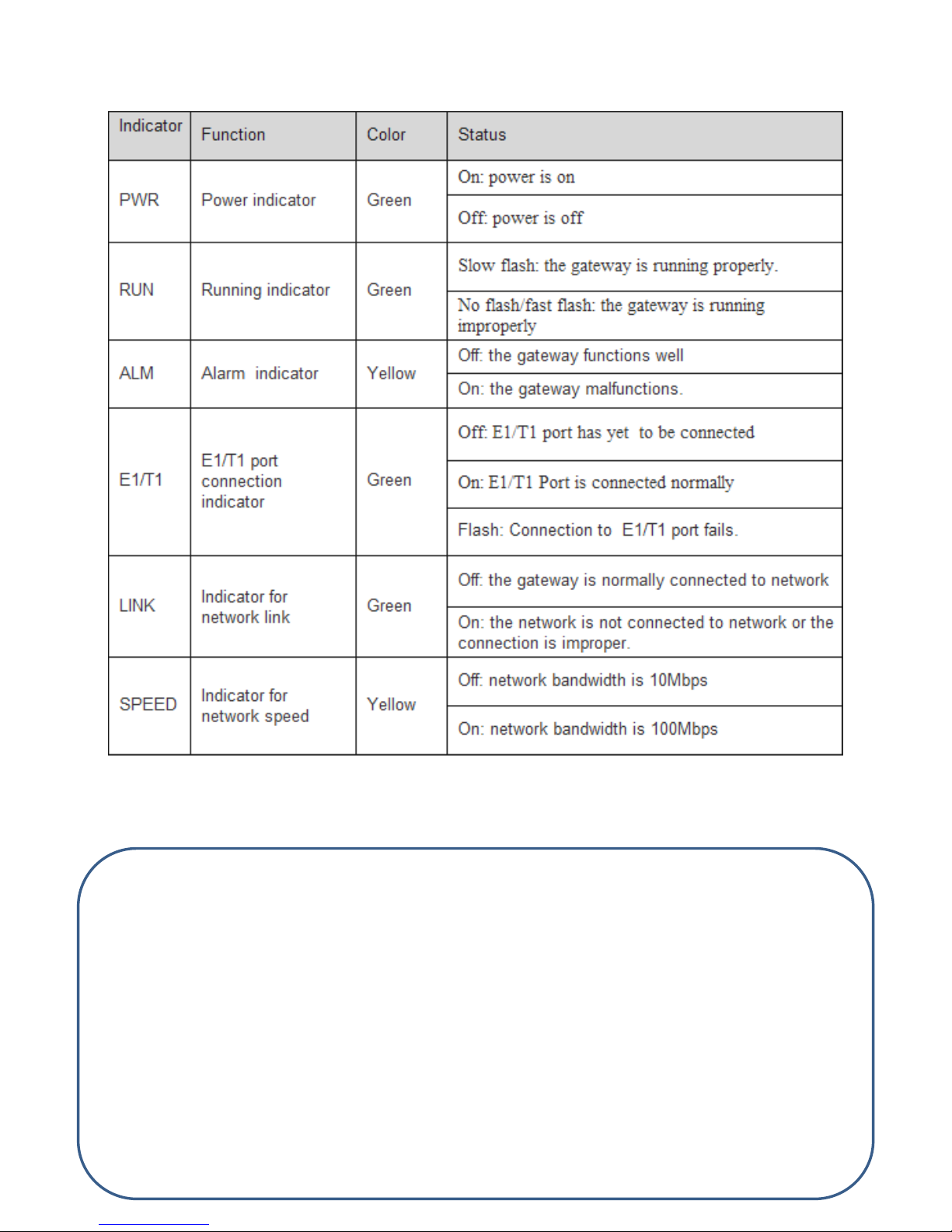

Description of Indicators

客户至上贴心服务

十年专注铸就品质

1. Ensure the cabinet to accommodate MTG1000 is well-ventilated and strong enough to bear the

weight of MTG1000. It’s required that the width of the cabinet should be 482.6mm (19 inches);

2. Please wear anti-static wrist strap when installing MTG1000;

3. Power supply of MTG1000 should be 100 ~240V AC, and its socket is a three-pin socket which

should be grounded well;

4. To guarantee MTG1000 works normally and to lengthen the service life of the device, the humidity

and temperature of the equipment room where MTG1000 is installed should be maintained at an

appropriate scope.

5. Please keep MTG1000 away from high-powered transmitter, radar transmitting station and large-

current devices which may interfere to the running of MTG1000.

InstallationAttentions

Connection Instruction

Network Connection

E1/T1 Port Connection

客户至上贴心服务

十年专注铸就品质

Power Connection

Wire Sequence of RJ48 (E1/T1) Cable

The E1/T1 ports of MTG1000 trunk gateway are connected with RJ48 cables. A RJ48 cable has two

PINs, and the wire sequence of each PIN is shown as follows:

1 2 3 4 56 7 8

PIN 1

1 2 3 4 56 7 8

PIN 2

PIN1: orange & white, orange, green & white, blue, blue & white, green, brown & white, brown.

PIN2: blue, blue & white, green & white, orange & white, orange, green, brown & white, brown.

Modify PC’s IP Address

On the PC, add an IP address of 192.168.1.XXX, to make the PC at the same network segment with

MTG1000, since the default IP address of FE0 of the trunk gateway is 192.168.1.111.

(1) On the PC, click “Network Properties”. (2) Double-click “Internet Protocol (TCP/IPv4)”.

(3) Enter an available IP address which is at the same network segment with “192.168.1.111”.

Open a web browser and enter the IP address of MTG1000 (the default IP of FE0is 192.168.1.111,

while the default IP of FE1is 192.168.11.1 ). Then the login GUI will be displayed. Both the default

username and password are admin.

Log into MTG1000

Modify IPAddress of FE1

After logging into MTG1000, user needs to modify the IP address of FE1 which is the network port for

services.

If user has a public static IP address, please configure the IP address of FE1 into this public static IP

address; If SIP server is connected to a private network, FE1 should be at the same network segment

with the SIP server. After that, please restart the gateway for the configurations to take effect.

FE0is only used for local management or maintenance, while FE1is used for voice and signaling

interacting.

Configure PRI or SS7 Trunk

On the PRI Config PRI Trunk interface, add a PRI trunk. ‘Channel ID’ of the PRI trunk should be

the same with that of the peer switch.

As for the ‘Switch Side’ parameter, if the peer switch is configured as ‘User Side’, the PRI trunk

should be configured as ‘Network Side’;if the peer switch is configured as ‘Network Side’, the PRI

trunk should be configured as ‘User Side’.

(1) Configure PRI Trunk

(2) Configure SS7 Trunk

1. On the SS7 Config SS7 Trunk interface, add an SS7 trunk. Please consult local service provider

about the information of Protocol Type (TUP/ISUP) , OPC and DPC.

2. On the SS7 Config SS7 MTP Link interface, add an SS7 signaling link for the trunk. Please

consult local service provider about the information of E1/T1 Port No. and Channel No. of the SS7

signaling link, as well as caller type.

3. On the SS7 Config SS7 CIC interface, add an SS7 circuit for the SS7 trunk. Generally, an E1 port

contains 32 channels, while a T1 port has 24 channels. Please consult local service provider about the

information of CIC.

Configure E1/T1 Frame Mode

2. On the PSTN Group Config E1/T1 Parameter interface, modify the frame mode of E1/T1 port to

make it the same with that of the peer device.

Configure SIP Trunk

On the SIP Config SIP Trunk interface, add a SIP trunk. User needs to fill in the IP address of the

peer device (remote address) and remote port. Other parameters can be retained as default settings .

Configure Outbound and Inbound Routes

(1) Configure Outbound Route

On the Call Routing IP >PSTN Routing interface, add an outbound route. Select a source type and

a destination type. If ‘.’is filled in for Caller Prefix and Callee Prefix, it means any number can be

caller number and callee number.

(2) Configure Inbound Route

On the Call Routing PSTN >IP Routing interface, add an inbound route. Select a source type and a

destination type. If ‘.’is filled in for Caller Prefix and Callee Prefix, it means any number can be caller

number and callee number.

This document only provides instructions for quick installation and basic configuration. For

detailed explanation of functions and parameters, please make reference to MTG1000 Trunk

Gateway User Manual, or ask for online technical support.

Detailed Configuration & Parameter Explanation
