Dinstar UC350 Manuel utilisateur

Quick Installation Guide

UC350

Thanks for Choosing Dinstar’s VoIP Gateway!

Please read this guide carefully before installing the gateway. If you need any

technical support, .please contact us

Tel: +86 755 61919966

Email: support@dinstar.com

Website: www.dinstar.com

Model and Interfaces

Description of Indicators

Indicators Deﬁnition Status Description

Power Indicator

Running Indicator

Line status

Indicator

OFF

The device is switched on

The power is switched off or there

is no power supply

ON/OFF

Blinking slowly

Blinking fastly

Network

Link Indicator

Network Speed

Indicator

PWR

RUN

FXS/FXO

The device is running properly

The device is initializing

The device goes wrong

FXS/FXO Port busy

FXS/FXO port idle

The gateway is properly connected

to network

The gateway is not connected to network

or network connection is improper

Work at 1000Mbps

Network speed lower than 1000Mbps

Blinking fastly

Model

Interface

UC350

MCU Board User board slots

(optional）

RST

2*100/1000M, Base-T, RJ45

1* USB 2.0

1* Console port

FXS Board:

2* RJ45 with 8 FXS

FXO Board:

2* RJ45 with 8 FXO

E1/T1 Board:

4* E1/T1 Ports

The button is used to restart device

Note: The above table does not contain all the indicator information. For more

information, please refer to the user manual or contact technical support.

Indicators and Ports

UC350

Main Control Board

USB LAN Ports

Power Indicator

Running Indicator

MCU 0

MCU 1

SLOT0

SLOT2

SLOT1

SLOT3

PORT 0 PORT 1 PORT 2 PORT 3

Console Ports

Reset Ports

User Board Slot

Expandable E1 / FXS / FXO ports

/ /

Welcome!

Ground Point Power Switch Power Jack Power Switch Power Jack Display Screen

Attentions before Installing

To guarantee device works normally and to lengthen the service life of the

device, the humidity of the equipment room where device is installed in

temperature should be 0 ℃~ 45 ℃;

Power supply of device should be 100 ~ 240V AC, and its socket is a three-

pin socket which should be grounded well;

To reduce the interference with telephone calls, it's highly recommended

that telephone lines connected to the gateway should be placed away from

power cables;

Installation Instruction

Network connection

Connect gateway with network via a switch

Router/Switch

192.168.12.1

Network Cable

192.168.11.1

Network Cable

MCU 0

MCU 1

SLOT0

SLOT2

SLOT1

SLOT3

PORT 0 PORT 1 PORT 2 PORT 3

192.168.11.XXX

IP Network

Switch

/ /

Welcome!

Ground Point

Grounding Cable

100-240V AC

Connect the power cord to power jack

Connect gateway with power input and ground point

The username is admin and password is admin@123#.

Check Network Status

Check GE0 and GE1 network status on the "Status → Overview" page.

Open the GUI in browser through IP HTTPS: XX.XX.XX.XX .The GE0 default is

192.168.12.1 and GE1 default is 192.168.11.1.

Modify Network Conﬁguration

Log into the device and click "Network → Settings" at the top menu bar to conﬁgure

IP addresses of GE0 and GE1 ports.

Click “Save” and "reset" to make the settings take effect.

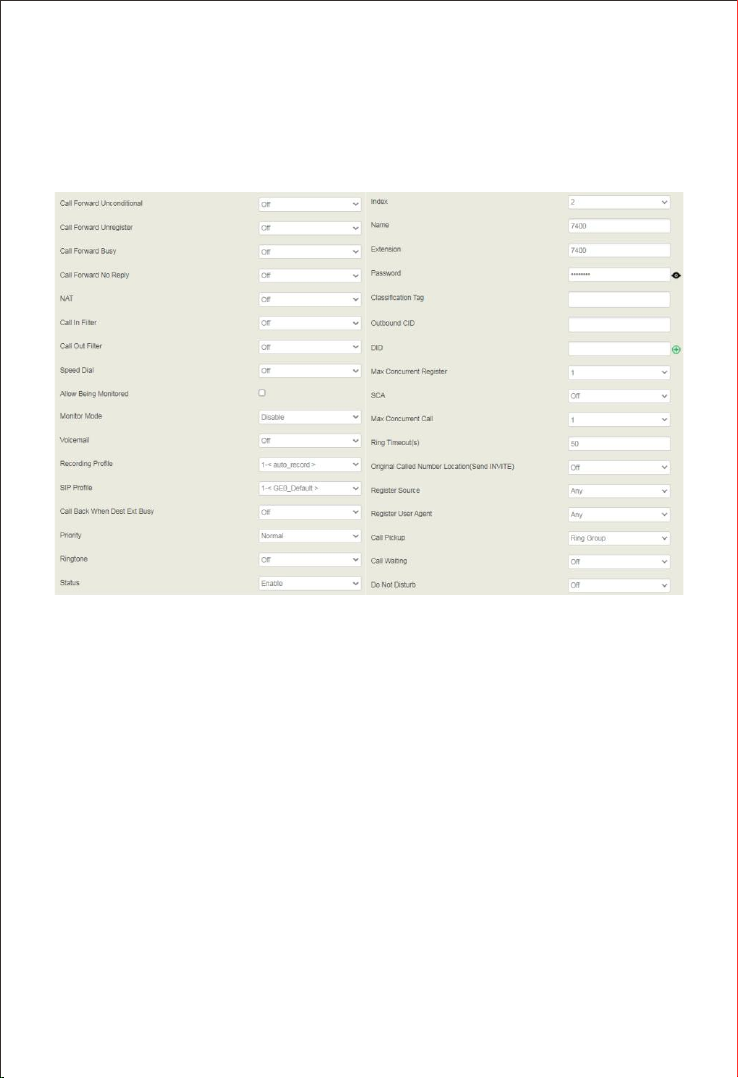

Create SIP Extensions

Click "Extension→ SIP" to create the SIP extension: add/delete/disable/enable, etc.

UC350 supports batch add or import account ﬁles.

Note: when add the extension, the proﬁle should choose the corresponding one.

After setting, you need to click "apply" to make the settings take effect.

The registration status of SIP extension and SIP trunk can be checked on the

"Status → SIP" page.

If the status of the SIP account is "unregistered", it means that the device rejects

to register the extension.

If the status of a newly added SIP account is "registered", it means that the device

accepts the registration of the extension.

Add Trunk

SIP trunk

SIP trunks are used to connect other SIP terminals or service providers. When add

a SIP trunk, you should choose corresponding SIP proﬁle based on your current

network. The SIP trunk supports UDP/TCP/TLS.

Also, SIP trunk status can be checked under Status → SIP page.

You can also create Trunk/FXO. It is an alternative to support calls through or from

PSTN.

FXO

E1/T1

You can set up ISDN PRI/SS7/R2 connections via digital E1/T1 ports. Please be

sure the E1/T1 physical connection is well connected, and PRI status is up and

active before conﬁguring the call routing.
