Dinstar MTG200 Manuel utilisateur

MTG200

MTG600

MTG1000

MTG1000B

MTG2000

Quick Installation Guide

Thanks for Choosing Dinstar’s Trunk Gateway!

Please read this guide carefully before installing the gateway. If you need any technical

support, . please contact us

Tel: +86 755 61919966

Email: support@dinstar.com

Website: www.dinstar.com

Network Link

Indicator

Network Speed

Indicator

E1/T1 port is connected properly.

The gateway is properly connected to network

network speed lower than 1000Mbps

E1/T1 port is faulty or not connected

Indicator Deﬁnition Status Description

Power Indicator

Running Indicator

E1/T1 In-use

Indicator

Off

The gateway is powered on

The gateway has no power input

or power supply is abnormal

Slow Flashing

Flashing

PWR

RUN

E1/T1

The gateway is running properly

Off The gateway is initiated improperly

The gateway is not connected to network

or network connection is improper

Work at 100Mbps

Work at 10Mbps

Fast Flashing

Network Link

Indicator

Network Speed

Indicator

The gateway is properly connected to network

Off

The gateway is not connected to network

or network connection is improper

Work at 1000Mbps

Fast Flashing

Physical connection of E1/T1 is abnormal

or there are error codes in E1/T1 circuit.

Product Model & Number of E1/T1 Ports

Description of Indicators

Model

E1/T1 Port

MTG200

MTG600

MTG1000B

MTG1000

MTG2000

1 2 4 8 12 16 20

Note: the number of E1/T1 ports of MTG2000 is determined by the number of inserted DTU boards.

Each DTU board has four E1/T1 ports.

Indicators & Interfaces

MTG200/MTG600

MTG1000B

Power Indicator

Power Switch

Switch for Master

& Slave Power E1/T1 Ports

Network Port

for Services

Network Port

for Management Ground Point

Power Jack

Console Port

Alarm Indicator

Reset Button

Power Jack

Network Port for

Services

Network Port for

Management

E1/T1 Ports

Console Port

E1/T1 In-use

Indicator

E1/T1 In-use

Indicator

Network Link Indicator

Network Speed Indicator

Network Link Indicator

Network Speed Indicator Cooling Fan

Running Indicator

MTG1000

MTG2000

Power Indicator

Console Port

Alarm Indicator

Reset Button

Running Indicator

E1/T1 In-use

Indicators

Network Link Indicator

Network Speed Indicator

Cooling Fan

Power Switch

DTU (Digit Trunk Unit)

Ground Point

Power Switch

Power Jack Switch for Master & Slave Power

MCU (Main Control Unit)

Switch for Master

&Slave Power E1/T1 Ports

Network Port for

Services

Network Port for

Management

Ground Point

Power Jack

Note: MTG1000 supports four or eight E1/T1 ports. The ﬁgure above shows MTG1000-8E1/T1.

DTU(Digit Control Unit) MCU(Main Control Unit)

Power Indicator

Screw

Running Indicator

USB Interface

Reset Button

Console Port

Network Port

for Services

Network Port for Management

E1/T1 In-use

Indicator E1/T1Ports

Power Indicator

Installation Instructions

Network Port for Services

192.168.1.111

192.168.11.XXX

Internet/

Ethernet

Network Port for

Management

192.168.11.1

DC 12V

E1/T1 Cable

PBX or E1/T1 Board

with RJ48 Interface

RJ48

BNC

PSTN

Operator

Installation Instructions

Connection Diagram for MTG200/MTG600

Connect Gateway with Ethernet

Connect E1/T1 Port with PSTN/PBX

Connect Gateway with Power

Converter

Coaxial Line Coaxial Line

Cabinet requirement: ensure the cabinet to accommodate MTG1000/MTG1000B/MTG2000 is well-

ventilated and strong enough to bear the weight of the device. It’s required that the width of the cabinet

be 482.6mm (19 inches);

ESD protection: please wear anti-static wrist strap when installing MTG1000/MTG1000B/MTG2000;

Power supply: MTG200 accepts DC 12V power input, while other MTG models accept AC voltage of

100-240 V. It’s recommended that users use UPS (uninterruptible power system) .

Device grounding: please ensure the gateway is properly grounded. To avoid interference with

power source, it’s recommended that the earth resistance be less than 2Ω;

Temperature and humidity: to avoid any accident that might cause malfunction, it’s advised to install the

gateway in an equipment room where temperature and humidity are appropriate; the equipment room

should be clean and ventilated enough to facilitate heat dissipation;

Anti-jamming: to reduce interference, please keep MTG devices away from high-powered transmitter,

radar transmitting station and large-current devices .

Connection Diagram for MTG1000B

Connect Gateway with Ethernet

Connect E1/T1 Port with PSTN/PBX

Connect gateway with power input and ground point

Network Port for Services

192.168.1.111

192.168.11.XXX

Internet/

Ethernet

Network Port for Management

192.168.11.1

E1/T1 Cable

AC 100-240V

Grounding Cable

Ground Point

RJ48

BNC

Coaxial Line

Operator

PSTN

PBX or E1/T1

with RJ48 Interface

Converter

Coaxial Line

Connection Diagram for MTG1000

Conenct Gateway with Ethernet

Connect E1/T1 Port with PSTN/PBX

Network Port for Services

192.168.11.1

192.168.1.XXX

Network Port for Management

192.168.1.111

Internet/

Ethernet

E1/T1 Cable

RJ48

BNC

Operator

PSTN

E1/T1 Cable

PBX or E1/T1 Board

with RJ48 Interface

AC100-240V

Grounding Cable

Ground Point

Converter

Coaxial Line Coaxial Line

Connect gateway with power input and ground point

Connection Diagram for MTG2000

Connect Gateway with Ethernet

Connect E1/T1 Port with PSTN/PBX

Connect gateway with power input and ground point

Network Port for Services

192.168.1.111

192.168.11.XXX

Network Port for Management

192.168.11.1

Internet/

Ethernet

E1/T1 Cable

TB16 Distribution Frame

Operator ’s Digital Distribution Frame

Operator

RJ48

BNC

Rx Tx

E1/T1 Cable

PBX or E1/T1 Board

with RJ48 Interface

AC 100-240V

Grounding Cable

Ground Point

Modify PC’s IP Address

On the PC, click ‘Network (or Ethernet)→Properties’. Double-click ‘Internet Protocol Version 4 (TCP/IPv4)’.

Select ‘Use the following IP address’, and then enter an available IP address

‘192.168.11.XXX’ or ‘192.168.1.XXX’ .

The E1/T1 ports of MTG trunk gateway are connected with RJ48 cables.

An RJ48 cable has two PINs, and the wire sequence of each PIN is shown as follows:

PIN1

1 1

2 2

3 34 45 56 67 78 8

PIN2

Wire Sequence of RJ48(E1/T1) Cable

To log in the Web Management System of the trunk gateway, you need to modify the IP

address of PC first to make it at the same network segment with the gateway. Connect

PC with the gateway, and then add an IP of 192.168.1.XXX or 192.168.11.XXX on the

PIN1: orange & white, orange, green & white, blue, blue & white, green,

brown & white, brown.

PIN2: blue, blue & white, green & white, orange & white, orange, green,

brown & white, brown.

Modify IP Address of Network Port for Services

Conﬁgure PRI/SS7 Trunk

Enter username and password in the displayed login GUI. Both the default username

and password are admin.

Model FE0 IP / GE0 IP FE1 IP / GE1 IP

MTG200 192.168.1.111 (for services)

192.168.1.111 (for services)

192.168.11.1 (for services)

192.168.1.111 (for management)

192.168.11.1 (for management)

MTG1000B

MTG1000

MTG2000

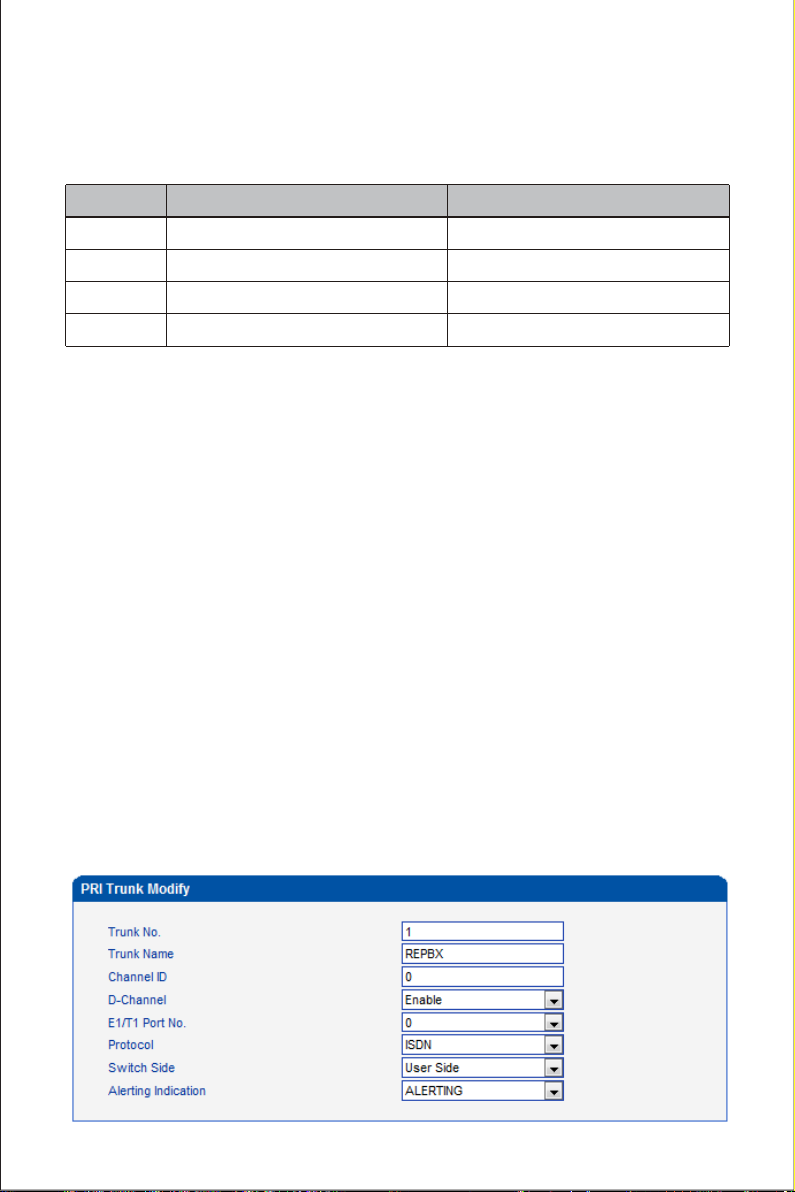

(1) Conﬁgure PRI Trunk

Note: PC and the connected network port must be at the same network segment.

Open a web browser and enter the IP address of the trunk gateway, and then input the

IP address of FE0/GE0 or FE1/GE1 which is connected to the PC. Press Enter, and the

After logging in the trunk gateway, user needs to modify the IP address of the network

port for services. If there’s a public static IP address, please configure the IP address of

the network port into this static IP address. If SIP server is connected to a private

network, the network port for services should be at the same network segment with the

SIP server. After that, please restart the gateway for the configurations to take effect.

The network port for management is only used for local management, while the network

port for services is used for voice and signaling interacting.

On the interface, add a PRI trunk. ‘Channel ID’ of the PRI trunk PRI Config → PRITrunk

should be the same with that of the peer switch.

As for the ‘Switch Side’ parameter, if the peer switch is configured as ‘User Side’, the

PRI trunk should be configured as ‘Network Side’; If the peer switch is configured as

‘Network Side’, the PRI trunk should be configured as ‘User Side’.
