Dinstar DAG1000-4S Manuel utilisateur

Thanks for Choosing Dinstar’s DAG1000-4S VoIP Gateway!

Please read this installation guide carefully before install the gateway. If you need any technical

support, please contact us.

Tel: +86-755-61919966.

Email: support@dinstar.com

Website: www.dinstar.com

DAG1000-4SAppearance

Number of Ports

Description of Indicators

1

2

3

客户至上贴心服务

十年专注铸就品质

1. Please separate power cables with telephone lines so as to reduce the

interference with telephone calls.

2. The adapter of DAG1000-4S accepts DC input voltage of 12V. Please ensure stable and safe

power supply.

3. To guarantee stabilized running of DAG1000-4S, please ensure there is enough network

bandwidth.

4. To ensure the gateway can work normally, you’d better install the gateway in a device room

where temperature and humidity are appropriate.

5. You’d better place the gateway on a flat surface or a device cabinet. To effectively maximize

heat dissipation, do not pile up the gateway with other devices .

InstallationAttentions

Connection Instruction

Network Connection

Telephone Connection

Power Connection

4

5

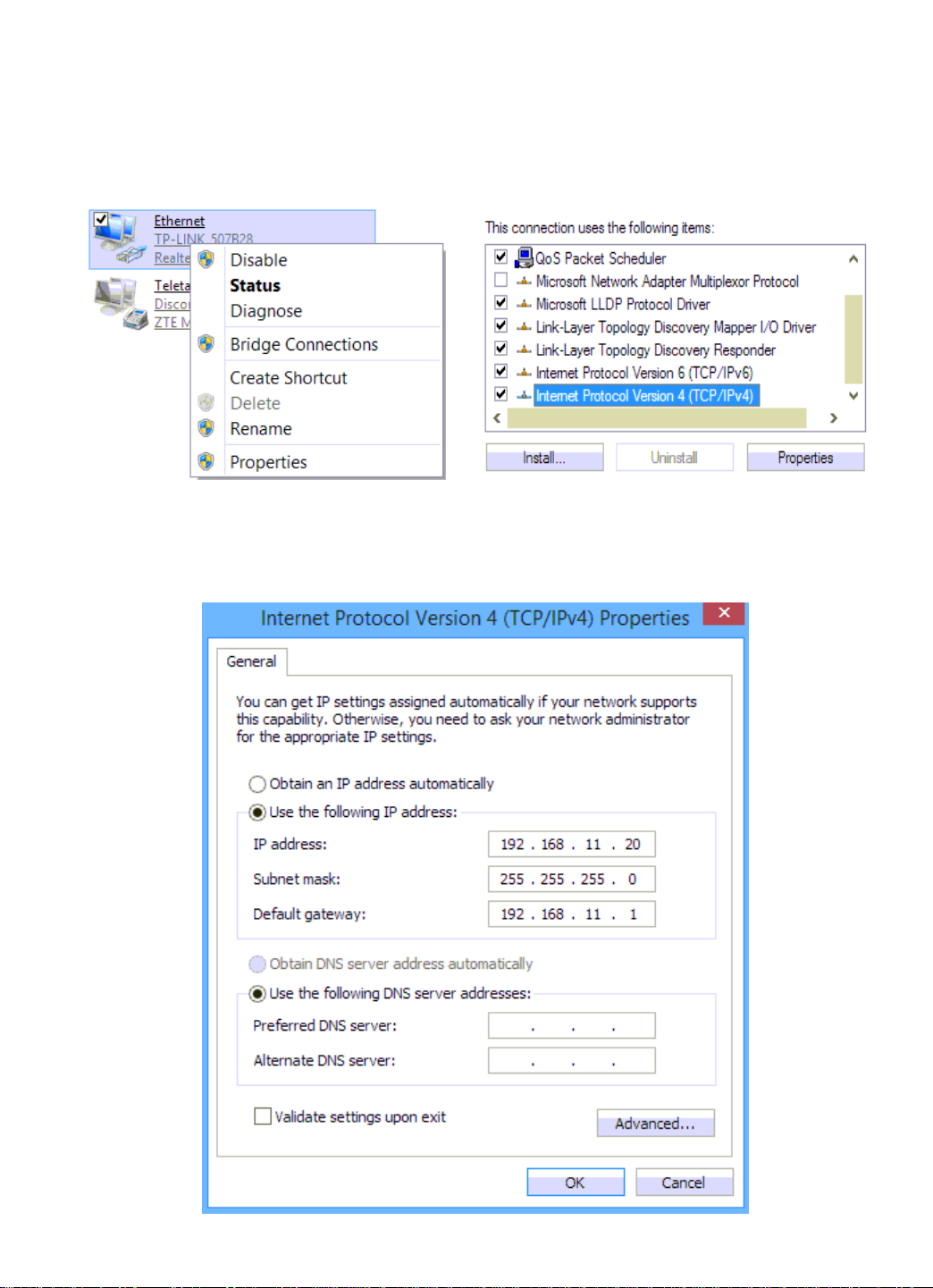

Modify PC’s IP Address

Modify the IP address of PC to make it at the same network segment with the DAG1000-4S gateway,

since the default IP address of the gateway is 192.168.11.1.

(1) On the PC, click “Network Properties”.(2) Double-click “Internet Protocol (TCP/IPv4)”.

(3) Select “Use following IP address”, and then enter an available IP address which is at the same

network segment with “192.168.11.1”.

6

十年专注铸就品质

Configure SIPServer Information

Log into DAG1000-4S, and then click SIP Server in the navigation tree and then enter the address of

the SIP server which is to be registered. Click Save in the last.

Click Port in the navigation tree on the left, and then click Add. Input the SIP account and

authentication password assigned by the SIP server.

Click Save and then restart the DAG1000-4S gateway for the new configurations to take effect.

If you want to modify the IP address of DAG1000-4S, please click “Network Local Network” in

the navigation tree on the left, and then input new IP address and DNS server address on the

displayed interface.

Modify IPAddress of DAG1000-4S

Open a web browser and enter the IP address of DAG1000-4S (the default IP is 192.168.11.1). Then

the login GUI will be displayed. Both the default username and password are admin.

Log into DAG1000-4S

7

8

9

Honest , Concentrated, Innovative , Open

Website: http://www.dinstar.com

Facebook:https://www.facebook.com/dinstarvoip/

Basic Operations

•Dial *158# to query the IP address of LAN port of DAG1000-4S;

•Dial *159# to query the IP address of WAN port of DAG1000-4S;

•Dial *114# to query the telephone number of a FXS port;

•Dial *165*000000# to restore default IP address, username and password;

•Restore factory default settings:（1）dial *166*000000#; （2）Press the RST button for 7 seconds;

（3）Log into the gateway and then click “Tools Factory Reset”. Then click Apply, and restart

the gateway.

•Dial *111# to restart DAG1000-4S.

This document only provides instructions for quick installation and basic configuration. For

detailed explanation of functions and parameters, please make reference to DAG1000-4S VoIP

Gateway User Manual, or ask for online technical support.

Detailed Configuration & Parameter Explanation

10

11
