Digitus DN-80069 Manuel utilisateur

8-Port 10/100Mbps

Ethernet Unmanaged Switch

Quick Installation Guide

DN-80069

Our company reserves all copyrights of this document. Any

reproduction, excerption, backup, modification, transmission,

translation or commercial use of this document or any portion of

this document, in any form or by any means, without the prior

written consent of our company is prohibited.

Exemption Statement

This document is provided "as is". The contents of this document

are subject to change without any notice. Please obtain the latest

information through our company website. Our company

endeavors to ensure content accuracy and will not shoulder any

responsibility for losses and damages caused due to content

omissions, inaccuracies or errors

1. Product Introduction

The 8-Port 10/100 Mbps Network switch from DIGITUS® provides

5 x RJ45 ports with 10/100Mbps bandwidth each. Easily expand

the existing network. No configuration is required on the switch

itself; thanks to auto-negotiation and Auto MDI/MDI-X, cables

and speeds are also automatically detected. The switch can be

used as a desktop variant or mounted on a wall. Thanks to the

external power supply, the switch does not need a fan at all. Ideal

for expanding / setting up small home or company network.

1.1 Features

8 x RJ45 ports 10/100 Mbps

All ports support 10/100 Mbps bandwidth

Network standards: IEEE 802.3i, IEEE 802.3u,

IEEE802.3x, IEEE802.3az

Full-duplex flow control IEEE802.3x

Store and forward mode operates

Auto-negotiation / Auto-MDI/MDI-X

No configuration necessary

LED indicators for monitoring power, link/activity

1.2 Package Contents

Before installing the Switch, make sure that the following the

"packing list" listed OK. If any part is lost and damaged, please

contact your local agent immediately. In addition, make sure that

you have the tools install switches and cables by your hands.

1 x 8-Port Fast Ethernet Network Switch



1 x Power Supply

1 x Quick Start Guide

1.3 Hardware Specifications

Standards

IEEE802.3i, IEEE802.3u, IEEE802.3x,

IEEE802.3az

Interface

8 x 10/100Mbps

Auto-Negotiation ports

Network Media

10BASE-T: UTP category 3,4,5 cable

(maximum 100m)

100BASE-T: UTP category 5, 5e cable

(maximum 100m)

MAC Address Table

Indicators

Per Device

Power: Green

Per Port

10/100Mbps Link / Act: Green

Switching Capacity

1.6Gbps

Packet Buffer

448Mbit

Packet Forwarding Rate

745Kpps

Jumbo Frame

1552Bytes

Power Supply

DC 5V/550mA

(External power adapter supply)

Power Consumption

Maximum: 1.40W(5V DC)

Dimensions (W x D x H)

140*67*26mm

Environment



Operating Temperature: 0°C - 40°C

Storage Temperature: -40°C - 70°C

Operating Humidity:

10%~90% non-condensing

Storage humidity:

5%~90% non-condensing

1.4 External Component Description

Upper Panel

The upper panel of the Switch consists of a series of LED

indicators

LED indicators:

The LED Indicators will allow you to monitor, diagnose and

troubleshoot any potential problem with the Switch, connection

or attached devices.

The following chart shows the LED indicators of the Switch along

with explanation of each indicator.

LED Indicator

Faceplate

Marker

Status Indication

Power Indicator Power

Off Power Off.

Solid

green

Power On.

10/100 BASE-T

adaptive

Ethernet port

indicators

(1-8)

Link/Act

Off Power Off.

Solid

green

Power On.

Blinking

The port is

transmitting or

receiving data.

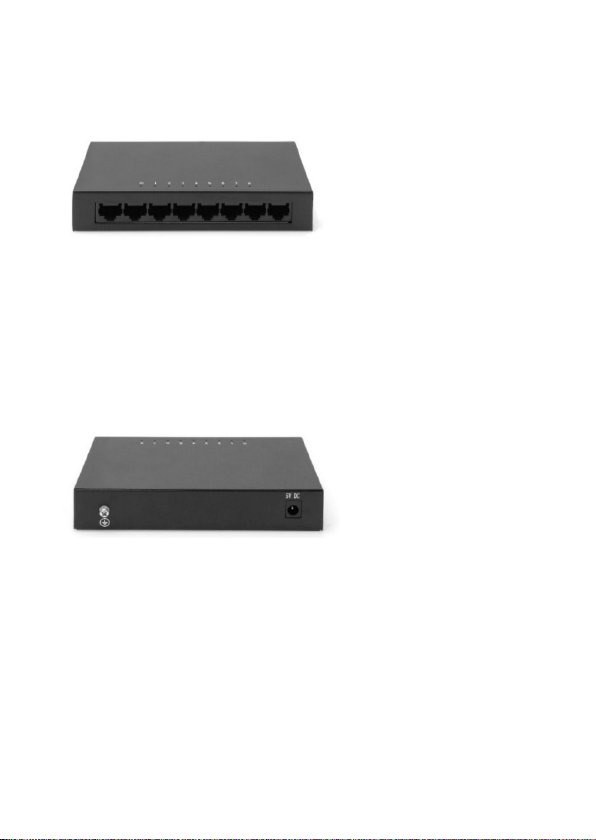

Front Panel

The front panel of the Switch, contains of 8 x

10/100Mbps RJ-45 ports

10/100 Mbps RJ-45 ports (1~8):

Designed to connect to the device with a bandwidth of 10Mbps,

100Mbps. Each has a corresponding Link/Act indicator.

Rear Panel

The rear panel of the Switch consists of one Grounding Terminal

and a 5V DC power adapter interface

Grounding Terminal:

Located on the left side of the rear panel, use wire grounding to

lightning protection.

DC Power Connector:

Located on the right side of the rear panel, power supply via

external power adapter, using 5V/550mA external power supply.

2. Installing and Connecting the Switch

This part describes how to install your Ethernet Switch and make

connections to it. Please read the following topics and perform

the procedures in the order being presented.

2.1 Installation

Please follow the following instructions in avoid of incorrect

installation causing device damage and security threat.

Put the Switch on stable place or desktop in case of

falling damage.

Make sure the Switch works in the proper DC input range

and matches the voltage labeled on the Switch.

To keep the Switch free from lightning, do not open the

Switch's shell even in power failure.

Make sure that there is proper heat dissipation from and

adequate ventilation around the Switch.

Make sure the cabinet to enough back up the weight of

the Switch and its accessories.

2.2 Desktop Installation

Sometimes users are not equipped with the 19-inch standard

cabinet. So when installing the Switch on a desktop, please attach

these cushioning rubber feet provided on the bottom at each

corner of the Switch in case of the external vibration. Allow

adequate space for ventilation between the device and the

objects around it.

2.3 Wall Installation

The Switch can also be installed on a wall. Two installing slots are

provided on the bottom of the Switch for this purpose. Please

make sure that the front panel is exposed in order to view the

LEDs. Please refer to the illustration below:

Step one:

Please drill two suitable

holes, press two expansion

tubes into the two holes

respectively.

Step two:

Insert the screw into the

expansion tube.

Step three:

Hang the switch on the two

screws.

Step four:

Installation is completed.

2.4 Power on the Switch

The Switch is powered on by the External DC adapter 5V/500mA

power supply.

Please follow the next tips to connect:

Use the standard DC adapter to connect one end of the power

socket to the power DC interface of the back panel of the switch.

And check the power indicator is ON or not. When it is ON, it

indicates the power connection is OK.

2.5 Connect Computer (NIC) to the Switch

Please insert the NIC into the computer, after installing network

card driver, please connect one end of the twisted pair to RJ-45

jack of your computer, the other end will be connected to any RJ-

45 port of the Switch, the distance between Switch and computer

is around 100 meters. Once the connection is OK and the devices

are power on normally, the LINK/ACT status indicator lights

corresponding ports of the Switch.

Hereby Assmann Electronic GmbH, declares that the Declaration

of Conformity is part of the shipping content. If the Declaration of

Conformity is missing, you can request it by post under the below

mentioned manufacturer address.

www.assmann.com

Assmann Electronic GmbH

Auf dem Schüffel 3

58513 Lüdenscheid

Germany
