Digitus DS-55500 Manuel utilisateur

4K HDMI Extender Set,

HDBaseT™, 4K/30Hz, 70 m

Quick Installation Guide

DS-55500 Rev.3

Table of Contents

1. Introduction......................................................................... 3

2. Product Features ................................................................. 3

3. Package Content.................................................................. 3

4. Specification ........................................................................ 4

5. Penal Description................................................................. 5

6. Connection........................................................................... 6

7. Installation Requirements ................................................... 7

8. Troubleshooting................................................................... 7

Important Safety Instructions:

Please read below safety instructions carefully before

installation and operation:

•Please pay attention to all the warnings and hints on this

device.

•Do not expose this unit to rain, moisture and liquid.

•Do not put any stuff into the device.

•Do not repair or open this device without professional

people's guidance.

•Make sure good ventilation openings to avoid product

overheating damage.

•Shut off power and make sure environment is safe before

installation.

•Do not plug-in/out the connected cables when it is in using.

•Make sure the specification matched if using 3rd party DC

adapters.

1. Introduction

The DIGITUS 4K extender set, HDBaseT™ offers an extender

solution up to 70m for the highest demands - for both high-

definition graphic display and also for absolutely fluent video

playback. It transmits digital and audio signals up to a maximum

distance of up to 70m. 4K content can be transmitted over up to

40m using a CAT 6 network cable. It consists of a transmitter as

well as a receiver unit. Two bi-directional infrared units (sender,

receiver) are also supplied, by means of which the remote

control of the connected input source can be used.

2. Product Features

•Extends the maximum length for HDMI cables to up to 70m

whereby only a simple network cable is used between a

sender and a receiver unit

•Extends 4K video contents to up to 40m with a CAT 6 cable

•Offers simple and quick distribution for HDMI video signals

- position your monitors wherever you wish

•Supports 4K Ultra HD (30Hz), 4096 x 2160p resolution

•Uses HDBaseT™ 1.0 technology

3. Package Content

•1x HDMI Extender transmitter unit

•1x HDMI Extender receiver unit

•2x Power supply unit: DC 12V/2A

•1x IR transmitter unit

•1x IR receiver unit

•2x Mounting Sets & Screws

•1x Instruction manual

4. Specification

Items

Specifications

70m HDBaseT™ Extender

HDMI signal

4Kx2K, compatible with HDCP, support CEC and

24bits deep color

Resolution

Supported

480i/480P/576i/576P/720P/1080i/1080P/

3D/4Kx2K

Audio

LPCM, DTS Digital, Dolby Digital

Network cable

CAT5E/CAT6/CAT6A/CAT7

Transmission

length

CAT5E/

CAT6

60m UP to 1080P@60Hz 36bpp

35m

1080p@60Hz 48bpp,

1080p@60Hz 3D, 4Kx2K@

30Hz/60Hz video formats

CAT6A/

CAT7

70m UP to 1080P@60Hz 36bpp

40m

1080p@60Hz 48bpp,

1080p@60Hz 3D, 4Kx2K@

30Hz/60Hz video formats

Infrared back

Support 20~60kHz wide frequency devices and

Bi-directional IR transmission

Power supply

DC12V/1A x 2pcs

Power

consumption

< 8W

Product

dimension

98.5 (L) x 66.5 (W) x 23 (H) mm x 2pcs

Enclosure

material

Metal

Color

black

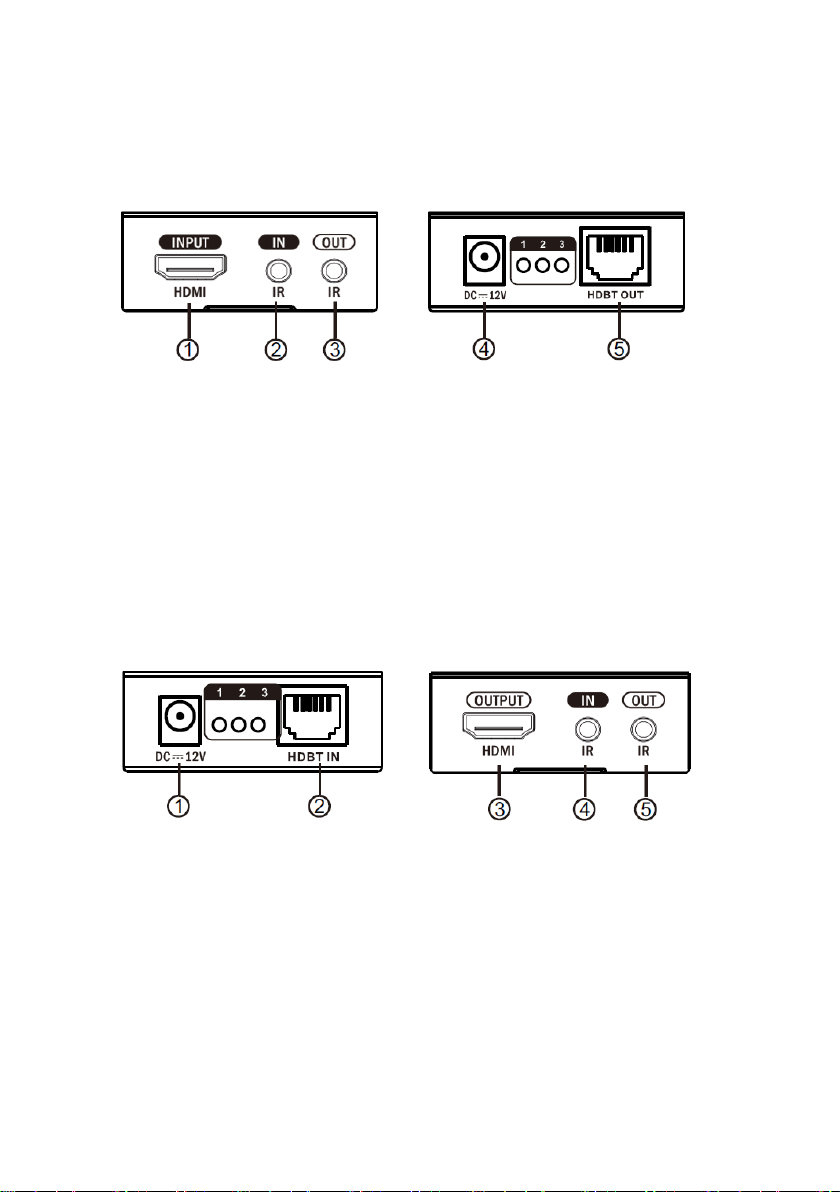

5. Penal Description

HDMI to HDBaseT™ TX Sender

①HDMI IN: HDMI signal input to connect with HDMI source

device.

②IR IN: IR signal input to connect with IR receiver extension

cable.

③IR OUT: IR signal output to connect with IR blaster

extension cable.

④DC12V: Power input

⑤HDBT OUT: HDBaseT™signal output

HDBaseT™ to HDMI RX Receiver

①DC12V: Power input

②HDBT IN: HDBaseT™signal input

③HDMI OUT: HDMI signal output to connect with HDMI

display device.

④IR IN: IR signal input to connect with IR receiver extension

cable.

⑤IR OUT: IR signal output to connect with IR blaster

extension cable.

LED indicators working status

①It is lighting on with power on.

②It is lighting on when TX and RX are well connected.

③It is lighting on when RX's HDMI OUT connects with HDMI

display device and has HDMI signal output.

6. Connection

Source

Sender

IR OUT

Receiver

IR IN

6.1 Bi-directional IR pass back

•It supports bi-directional IR pass back. User cans control

DVD at TX end and control TV at RX end.

•If control at RX end, please connect IR blaster extension

cable with IR OUT of TX and connect IR receiver extension

cable with IR IN of RX. If control at TX end, please connect

IR receiver extension cable with IR IN of TX and connect IR

blaster extension cable with IR OUT of RX.

7. Installation Requirements

1. HDMI source device

2. HDMI display

3. Network cables:

UTP/STP Cat5e/Cat6/Cat6A/Cat7 network cables are

following the standard of

8. Troubleshooting

Problems Causes Solutions

Non-power-

connected/

all LED off

Maybe the power

supply is not

connecting well

or use the wrong

power adapter

Please check if the

power supply is

connecting well and the

output voltage value is

correct as recommended

No sound or

sound issues

Maybe the HDMI

connection is not

well; the audio

format is not

supported by the

displays; the

source player set

another port to

output audio

Please check if the HDMI

cables are connecting

well; if the audio format

is supported by the

displays, customers can

change to the supported

audio format or the

player`s audio output is

setting HDMI audio

output or not

No picture or

picture flicker

Maybe the HDMI

cable quality and

UTP cable quality

Please check if the HDMI

and UTP connection is

well or change another

is not good

enough or not

connecting well

good quality HDMI 1.4

standard HDMI cable or

UTP (CAT5e/CAT6 or

higher is recommended)

cable will solve the issue.

This is a Class A product. In home environment, this product may

cause radio interference. In this case, the user may be required

to take appropriate measures.

Hereby ASSMANN Electronic GmbH declares that the

Declaration of Conformity is part of the shipping content. If the

Declaration of Conformity is missing, you can request it by post

under the below mentioned manufacturer address.

www.assmann.com

Assmann Electronic GmbH

Auf dem Schüffel 3

58513 Lüdenscheid

Germany
