Digitus DS-55200 Manuel utilisateur

HDMI over IP EXTENDER

Manual

DS-55200 • DS-55201

1. Introduction

Thanks for purchasing the DS-55200 HDMI over IP Extender (DS-55201 receiver

only). We recommend that you read this manual thoroughly and retain for future

reference.

Features

The HDMI over IP Extender allows you to extend video and audio up to 100 meters

distance between source or computer and monitor or projector. With the built-in video

and audio signals enhancement, you can gain the best video resolution quality and

audio stereo sound while listening, and no any additional software needed.

Furthermore, the installation and operation are easily more than expected. With using

in extension facilities of video and audio, this product, The HDMI over IP Extender,

delivers worthy of performing efficiency and value-added.

With Expandable Receiver, each Receiver Unit with cascade function enables to

link two other (2) Receiver Units consecutively extending another 100m distance, and

continue expanding corresponding to custom demand as likely Cascade/Tree Chain

web architecture spread.

•Uses easy to install, inexpensive CAT. 5e/6 cables

•Each pair (TX & RX) extends the signals up to 100m (330 feet) using 1-to-1

connection

•Uses network environment for transmission

•Supports video high resolution up to 1920x1080@60Hz, Full HD 1080p

•HDTV compatible (720p, 1080i, 1080p)

•Supports Stereo 2.0

•Cascaded-chainable receiver up to 10 layers

•Supports RS-232 (Serial)

•IR (Infrared remote) enabled

•Support local HDMI monitoring port

•Each receiver (remote) links cascade-chainable 2 receivers

•Rack mountable

Package Contents

DS-55200

HDMI Extender Transmitter x 1

HDMI Extender Receiver x 1

Power Adaptor DC 5V x 2

User Manual x 1

DS-55201

HDMI Extender Receiver x 1

Power Adaptor DC 5V x 2

User Manual x 1

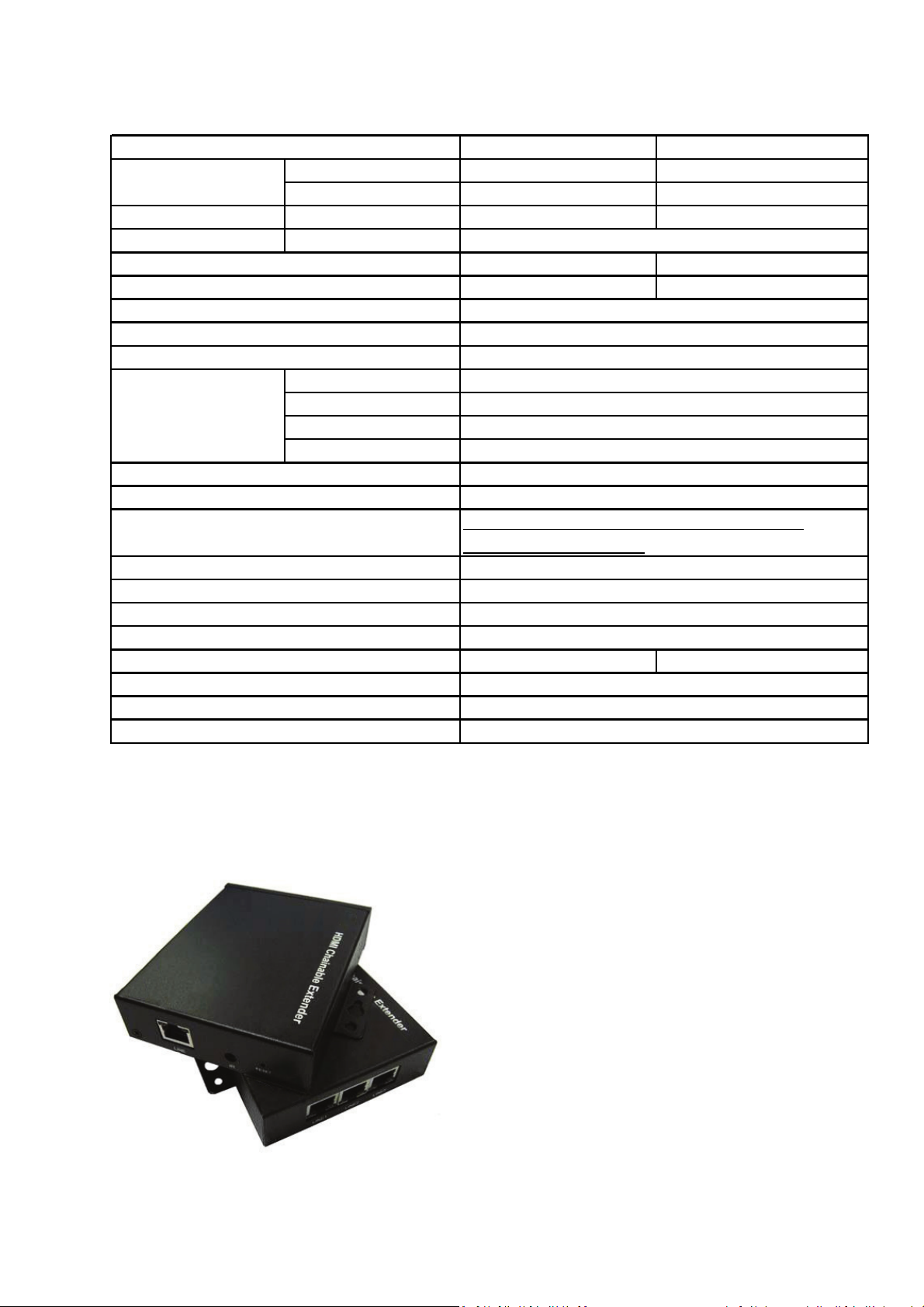

Specification

Transmitter Receiver

HDMI Output HDMI (Female) HDMI (Female)

RS-232 Control Port Phone Jack Phone Jack

PC Connectors DisplayPort Input HDMI (Male) N/A

Extension Port RJ-45

1 (Line Out) 3 (Line In or Line Out)

N/A up to 10 layers

Local Power

Local Link

Remote Power

Remote Link

340 g 380 g

Console Connectors

Full HD Video / Audio Extension

RJ-45 Ports

Cascaded-Chainable

Audio Supports Stereo 2.0

IR Uni-directional (from RX to TX)

RS-232 Bi-directional

LED Indicators

Red LED

Green LED

Red LED

Green LED

DDC supported Yes

Extension Cable Type & Length Cat.5e / Cat.6, max. length: 100m

Video resolution

HDMI:1920x1080@60Hz, Full HD 1080p, 48-bit

VGA: 1600 x 1200@60Hz

Wide screen supported Yes

OS compatibility OS independent

Power supply External DC 5V / 2A power adapter

Humidity 0% - 80% RH

Dimensions (L x W x H) 115 x 91 x 28 mm

Weight

Housing material Metal

Operating temperature 0 - 50°C

2. Detail and Diagram

Detail Picture

Transmitter (TX)-Front Transmitter (TX)-Rear

1: Connected to Power Adapter DC 5V/2A

2: Power LED (Solid Red when power present)

3: Link LED (Solid Green when link present)

4: RS-232 control port

5: HDMI IN, connected to HDMI source

6: HDMI OUT, connected to display

7: Cat.5e/6 cable connected for data out

8: IR Blaster /Emitter

9: Reset Button

Receiver (RX)-Front Receiver (RX)-Rear

1: CAT.5e/6 cable connected for data in or out

2: CAT.5e/6 cable connected for data in or out

3: CAT.5e/6 cable connected for data in or out

4: Connected to Power Adapter DC 5V/2A

5: IR Receiver

6: Reset Button

7: Power LED (Solid Red when power present)

8: Link LED (Solid Green when link present)

9: RS-232 control port

10: HDMI OUT, connected to display

Appli

1-to-1

Usin

ation D

conne

networ

iagram

tion

enviro

ment

Transmitter Installation

•Connect UTP Cable to Transmitter, please use CAT.5e/6 Cable

•Connect the IR Blaster Emitter cable or RS-232 to 3.5mm adapter to the

Transmitter Unit IR Port or RS-232 control port if necessary.

•Connect Transmitter with HDMI cable to HDMI connector of HDMI source

•Connects Transmitter with HDMI cable to HDMI connector of Display Monitor if

necessary

•Plug DC 5V/2A power adapter

Receiver Installation

•Connect UTP Cable to Receiver, please use CAT.5e/6 Cable

•Connect the IR Receiver cable or RS-232 to 3.5mm adapter to the Receiver

Unit IR Port or RS-232 port if necessary

•Connect Receiver with HDMI cable to HDMI connector of Display Monitor

•Plug DC 5V/2A power adapter

Casc

Use U

conse

conne

is not

as likel

Each

two ar

as sou

next ti

Netw

The m

could

extend

The m

Switch

Singl

de Cha

P Cable

utively to

t to Recei

ccupied,

y Cascad

eceiver w

used for

ce input

r receiver

rk Swit

ximum di

e extend

another 1

re Netwo

s is as m

Sourc

n Conn

onnected

xtend an

er LINE1

nd user c

/Tree Ch

ith three (

xpanding

t random,

as long a

h Exte

tance bet

d through

00 meters

k Switche

ny as us

Extens

ction

with Rece

ther 100

LINE2

n continu

in web ar

) Line po

source to

and use t

the LINE

ding

een eac

Network

, the lon

r want.

iver to lin

distance

r LINE3

e expandi

hitecture

t, one is u

other rec

e other t

port is no

tier coul

witch. Us

er distanc

the other

the cable

ort (RJ45

)

g corres

pread.

ed for so

ivers. Us

o LINE p

occupied

be up to

r can add

e extende

two (2) R

connecto

)

, as long

onding to

rce input,

r can cho

rt for exp

00 meter

one Net

. The nu

ceiver Un

node is t

s the LIN

custom d

and the o

se any LI

nding so

long, wh

ork Switc

ber of N

its

port

mand

her

NE port

rce to

ile this

twork

Singl

Sourc

Extens

with M

on and

ltiple R

Receive

ceiver

s Casc

Cascad

de Chai

ning

Cascaded and mixed with VGA / HDMI / DisplayPort

IR Bypass Function Connection

•Connect the IR Transmitter (or Emitter) cable to the IR Connector on the

DisplayPort

Transmitter Unit (TX)

•Connect the IR Receiver cable to the IR Connector on the DisplayPort

Receiver Unit (RX)

•Place the IR Eye of the IR Receiver cable near the Remote Controller

•Place the IR Blaster of the IR Transmitter cable near the device that intend to

be controlled by the Remoter controller

RS-232 Bypass Function Connection

•Connect the device, such as a PC, projector…etc, to the RS-232 port of the

DisplayPort Transmitter Unit or DisplayPort Receiver Unit via a RS-232 to

3.5mm adatper

•Connect the controlling device to the RS-232 port of the HDMI Receiver Unit

or HDMI Receiver Unit via a RS-232 to 3.5mm adapter
