Digitus DS-55501 Manuel utilisateur

4K HDMI Extender Set, HDBaseT™

Manual

DS-55501 Rev. 2

The Digitus 4K Extender Set, HDBaseT™ offers an extender solution up to 100 m for

the highest demands - for both high definition graphic display and also for absolutely

fluent video playback. It is used to transmit digital and audio signals to a maximum

distance of up to 100 m. 4K content can be transmitted to up to 70 m using a

CAT 5e/6/6a/7 network cable. It consists of a transmitter as well as a receiver unit.

The package also includes two bidirectional infrared units (sender, receiver), which

can be used for the remote control of the connected input source.

Please read below safety instructions carefully before installation and operation:

Please pay attention to all the warnings and hints on this device.

Do not expose this unit to rain, moisture and liquid.

Do not put any stuff into the device.

Do not repair or open this device without professional people’s guidance.

Make sure good ventilation openings to avoid product overheating damage.

Shut off power and make sure environment is safe before installation.

Do not plug-in/out the connected cables when it is in using.

Make sure the specification matched if using 3rd party DC adapters.

Features

1Apply HDBaseT™ extend technology

2Uncompressed HDMI video signal

3Support full HD 1080P@60Hz, 3d, 4kx2k@60Hz

4Extend 1080p signal over cat6a up to 100 meters

5Support bi-directional IR pass back

6support HDCP, CEC, 24 deep color

7Support uncompressed LPCM audio and compressed DTS-HD, Dolby True HD

Specification

Items

Specifications

HDMI signal

4Kx2K, compatible with HDCP, support CEC and 24bits

deep color

Resolution Supported

480i/480P/576i/576P/720P/1080i/1080P/3D/4Kx2K

Audio

LPCM, DTS Digital, Dolby Digital

Network cable

CAT5E, CAT6, CAT6A, CAT7

Transmission length

CAT5E/CAT6

100m

UP to 1080P@60Hz 36bpp

70m

1080p@60Hz 48bpp

1080p@60Hz 3D,

4Kx2K 30Hz/60Hz

CAT6A/CAT7

100m

Infrared back

Support 20~60kHz wide frequency devices and

Bi-directional IR transmission

Power supply

DC12V/1A *2pcs

Power consumption

Product dimension

98.5(L)x66.5(W)x23(H)mm *2pcs

Enclosure material

Metal

Weight

TX: 79g

RX: 107g

Color

black

Package contents

HDMI to HDBaseT™ TX sender*1pcs

HDBaseT™ to HDMI RX Receiver

*1pcs

DC12V/1A *2pcs

IR blaster extension cable*1pcs

IR receiver extension cable*1pcs

User manual*1pcs

Installation Requirements

HDMI source devices: with HDMI OUTPUT interface, DVD, PS3, STB, PC etc.

Display devices: With HDMI INPUT port, SDTV, HDTV, projector

Network cables:

UTP/STP Cat5e/Cat6/Cat6A/Cat7 network cables, which following the standard of

IEEE-568B.

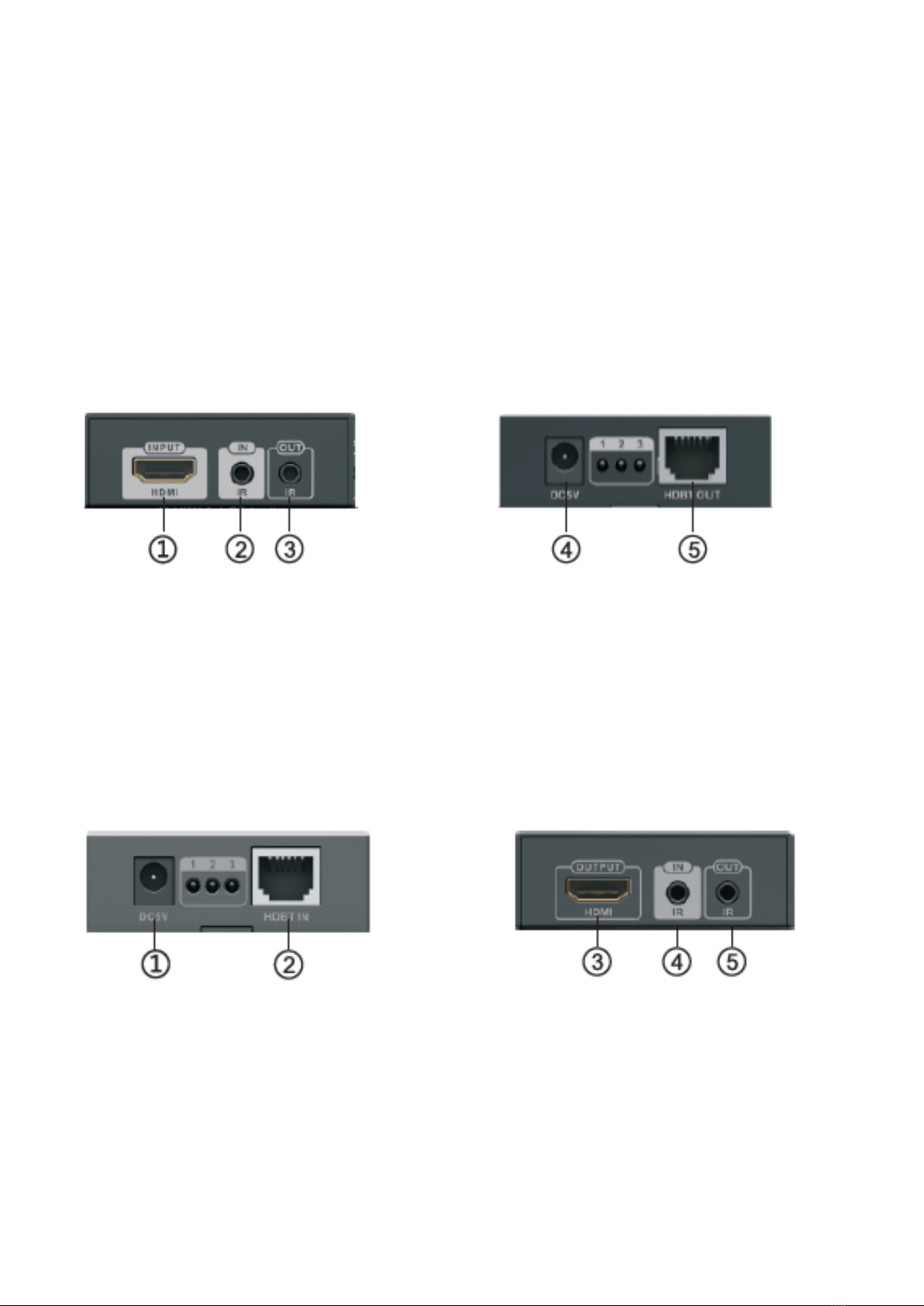

Panel description

1. HDMI to HDBaseT™ TX Sender

1. HDMI IN:

HDMI signal input to connect with HDMI source device

2. IR IN:

IR signal input to connect with IR receiver extension cable

3. IR OUT:

IR signal output to connect with IR blaster extension cable

4. DC12V:

Power input

5. HDBT OUT:

HDBaseT™ signal output

2. HDBaseT™ to HDMI RX Receiver

1DC12V:

Power input

2HDBT IN:

HDBaseT™ signal input

3HDMI OUT:

HDMI signal output to connect with HDMI display device

4IR IN:

IR signal input to connect with IR receiver extension cable

5IR OUT:

IR signal output to connect with IR blaster extension cable

3. LED indicators working status

It is lighting on with power on

1) When the sender connect the receiver working normal, the No2 lamp flashing

status, and when input signal transmission normal the lighting keeps on.

2) It is lighting on when RX and display are well connected.

Installation procedures

1. To make a Cat5e/6 network cable

Follow the standard of IEEE-568B:

white and orange

blue

white and brown

orange

white and blue

brown

white and green

green

2. Connections

[NOTE]: It is recommended to power from the receiver unit.

DVD

Sender

Receiver

IR OUT

IR IN

IR OUT

IR IN

3. Bi-directional IR pass back

1) It supports bi-directional IR pass back. User can control DVD at TX end and

control TV at RX end.

2) If control at RX end, please connect IR blaster extension cable with IR OUT of TX

and connect IR receiver extension cable with IR IN of RX. If control at TX end,

please connect IR receiver extension cable with IR IN of TX and connect IR

blaster extension cable with IR OUT of RX.

FAQ

Q1:

No image output?

A1:

Check the led indicator status to make sure all connections are good and

stable.

Q2:

Signal led”3” is flashing but no image output?

A2:

Check if the HDMI display device has been switched to the right HDMI input

channel.

Q3:

Signal led “2” is flashing but “3” light is off?

A3:

Check whether the TX’s HDMI IN has a signal input and make sure RX’s HDMI

OUT is well connected with HDMI display.

Q4:

Output image has flashing points or disturbance points?

A4:

Change TX’s HDMI signal input cable or use shorter HDMI cable.

Disclaimer

The product name and brand name may be registered trademark of related manufacturers.

TM and ® may be omitted on the user manual. The pictures on the user manual are just for

reference, and there may be some slight difference with the real products. We reserve the rights to

make changes without further notice to a product or system described herein to improve reliability,

function or design.

This is a Class A product. In home environment, this product may cause radio interference. In this case, the

user may be required to take appropriate measures.

Hereby Assmann Electronic GmbH, declares that the Declaration of Conformity is part of the shipping

content. If the Declaration of Conformity is missing, you can request it by post under the below mentioned

manufacturer address.

www.assmann.com

Assmann Electronic GmbH

Auf dem Schüffel 3

58513 Lüdenscheid

Germany
