Digitus DA-71540-1 Manuel utilisateur

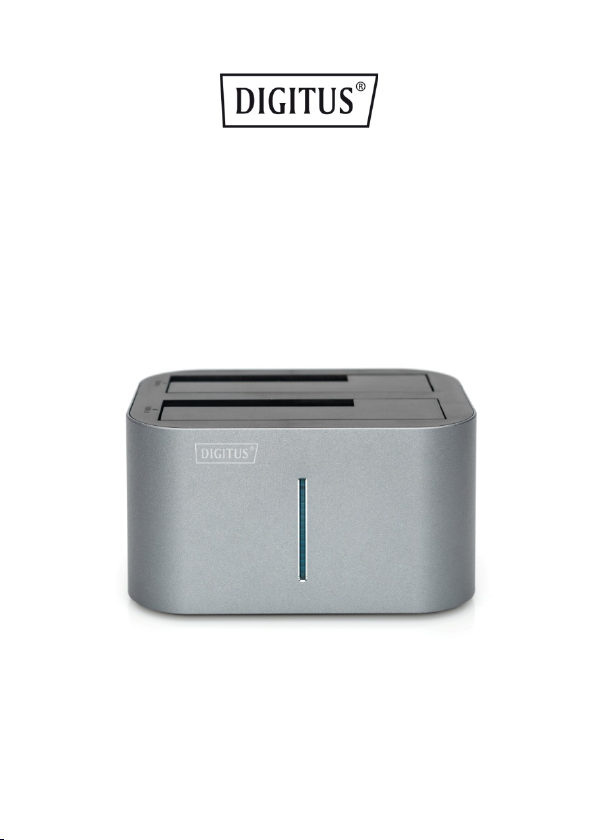

2.5"/3.5" USB 3.0 DUAL

SATA HDD DOCKING STATION

User Manual

DA-71540-1

1. Introduction

The DIGITUS® 2.5"/3.5" USB 3.0 Dual SATA HDD Docking

Station reads and writes 2.5" and 3.5" HDD SATA hard drives

simultaneously without the need for a PC or notebook. The

USB 3.0 technology enables data transfer, backups, and

conversions at transfer speeds of up to 5 Gbps. The DIGITUS

USB 3.0 Dual SATA HDD Docking Station is downward

compatible to USB 1.1, meaning that you can work with older

SATA hard drives with no problem. The clone function can

also be used to transfer data 1:1 to another hard drive. Start

the process at the touch of a button and follow the progress

using the LED display. The perfect solution for backups, data

archiving, and hard drive cloning.

Please read this manual carefully before using this device.

2. Features / Specifications

•Supports All 2.5 inch & 3.5 inch SATAI/II HDDs up to

1TB/4TB or more

•Standable Convenient and Trendy Design

•Support USB 3.0 super-speed (5Gbps)

•Complies with USB 2.0 high speed (480Mbps),

USB 1.1(12Mbps), USB 1.0 (1.5Mbps)

•Easy installation plug & play and hot-swappable

•LED progress indicator

•Supports One Touch Backup or Duplicate

•Functions as a stand alone HDD duplicator

•Delivers a 1-to-1 clone equal to or greater in size than

original

•Dimensions: 129 (L) x 96(W) x 72(H)

3. System Requirement

PC Requirements

•Minimum Intel Processor Pentium II/50MHz, 64MB RAM

•Windows 2000 / XP / VISTA/ 7/8/10

•Active USB port

MAC Requirements

•Minimum Apple G processor, 64MB RAM

•Mac OS 9.1, 9.2, 10.1.5, 10.2, 10.3 or above

•Active USB port

4. Package Contents

•DA-71540-1 HDD Docking Station

•Power Adapter

•User manual

•USB 3.0 cable

5. Hardware Setup

Device Mode (USB3.0 to SATA External Dual Hard Drive)

•Install your SATA hard drive properly to the port

connector on the docking station

•Connect the docking station to your computer

by USB cable

•Connect the power adapter to the enclosure and

power up the docking station

•The computer should now detect the new hardware.

For Windows2000/XP/VISTA/7/8/10, no driver setup is

necessary.

•Please Proceed to step 6.0 to format your drive.

Duplication Mode

•Install 2 hard drives into the dock. Make sure to place the

drive with the data you want copied (Source) into the

“Source” bay. The target disk (Target) should be equal or

larger in capacity than the source disk.

•Connect the power adapter to the enclosure and press

the POWER button to power up the docking station.

•After about 10 seconds, keep pushing the CLONE button

for 3 seconds to begin duplication.

Clone Progress indicator (25%, 50%, 75% and 100%, 4

status) would be acted.

Show as below:

Note:

Can’t connect the docking station to your computer by USB

cable for duplicator mode.

A cloned drive also takes over the disk ID from the master

drive. This causes Windows 7/8/10 to shut down one of

the drives if both drives are placed into the HDD docking

after cloning. The disk can be switched online again in the

windows option “Disk Management”.

LED Status

Silkscreen

25%

50% 75% 100%

LED Color

Green

Red Yellow Orange

Duplication started

Solid LED for every 25% done

incrementally

Duplication in progress

LED moving back and forth

Duplication Complete

All LED remain constantly on

6. Format your Hard Drive

(If the drive already appears in “My Computer”,

Please skip to 6.2)

6.1 For an un-partitioned or un-formatted new drive, it

normally does not automatically appear in “My

Computer” the first time. Please follow these steps:

Windows 2000/XP/VISTA/7/8/10

•Right key of Mouse select ”My computer”, choose

“Manager” choose “disk manager” of the list

•The operating interface will show on the computer,

Subarea Format following the operating interface.

Attention: About Windows2000/XP/VISTA/7/8/10,

please choose NTFS Format, when the

capacity is below 32GB, you can choose

FAT32 format.

6.2 Go to “My Computer”, locate the removable disk, right

click on it, and select “format” from the drop-down list,

follow the instructions to complete the formatting

process.

Note:

By this method to format your drive it will result in a single

partition in largest drive capacity, which is also highly

recommended.

7. FAQs:

Q: I can't find the drive under my computer, why?

A: Please make sure your new hard disk has been

partitioned.

Q: After installing the drive. Why it is still recognized as

“Unknown device”

A: This means the driver installation is not successful, please

install the driver one more time

Q: Can I use external USB hub?

A: Yes, USB hub works in the same way as the computer

USB ports

Q: My computer doesn't have USB 3.0 port, Can I use USB

3.0 host adapter?

A: USB 3.0 host adapter works in the same way as the built-

in USB ports.

Hereby Assmann Electronic GmbH declares that the Declaration of Conformity

is part of the shipping content. If the Declaration of Conformity is missing, you

can request it by post under the below mentioned manufacturer address.

www.assmann.com

Assmann Electronic GmbH

Auf dem Schüffel 3

58513 Lüdenscheid

Germany
