Danfoss TP9 Manuel utilisateur

Fig.1

Space for additional

logo if required TP9

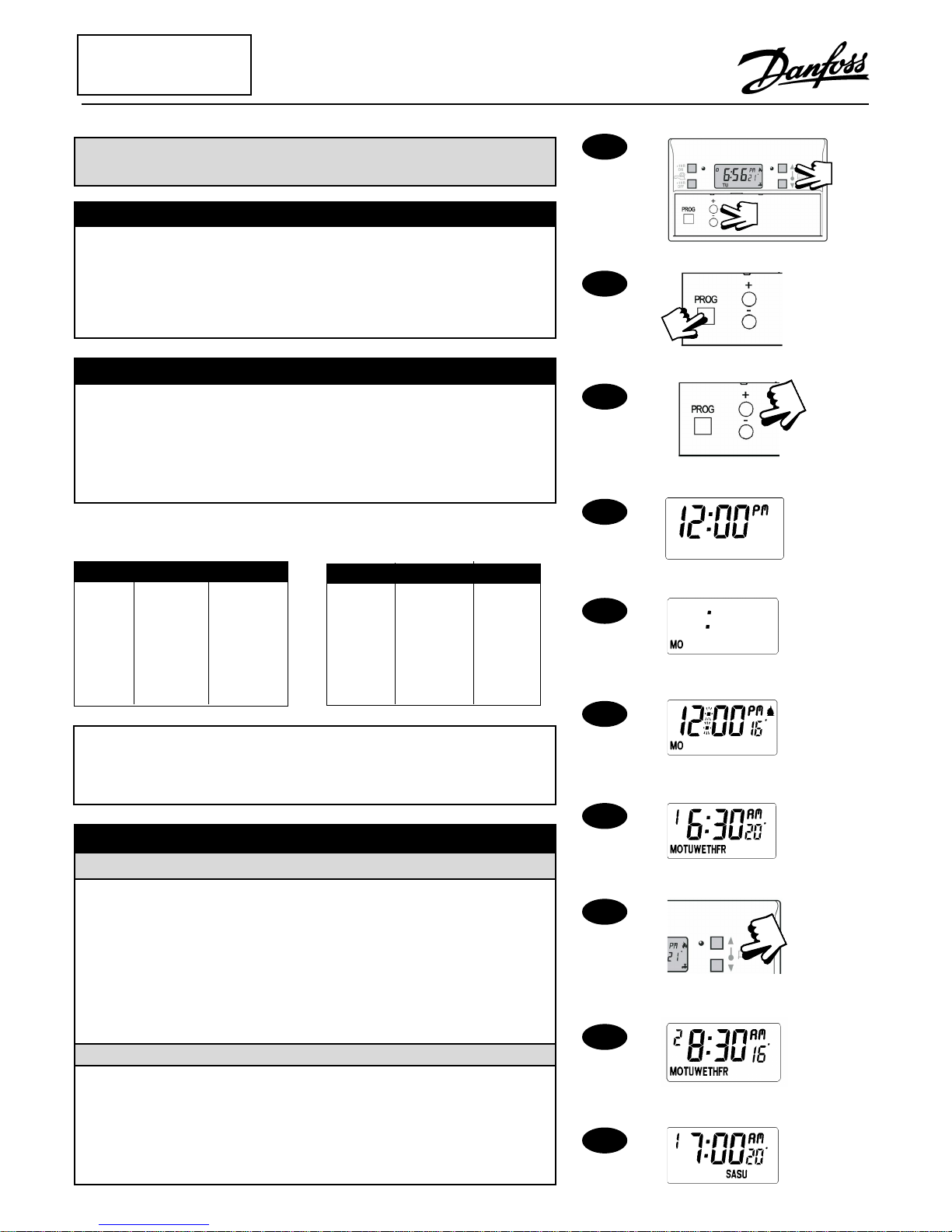

User Instructions

Fig.2

Before programming the thermostat press the + & – AND ▲&

▼ buttons

simultaneously to reset the unit (Fig.1)

Setting the Clock and Day

1) CLOCK - Press PROG (Fig.2) to begin programming

Use + or – buttons (Fig.3) to adjust the TIME (Fig.4)

2) DAY - Press PROG again(Fig.2)

Use + or – buttons (Fig.3) until correct DAY is shown (MO = Monday) (Fig.5)

Accepting the Factory Pre-settings

The TP9 has pre-set times already programmed in for controlling the heating

and hot water, which often suit most people (see Table below & Fig.12 over).

To accept these settings press the PROG button until the time appears in the

display and colon begins to flash - the unit is now in RUN mode (Fig.6).

If you wish to alter these settings follow instructions below.

Your installer will have set your unit to operate in one of the following modes:

5/2 day -one set of programmes for weekdays and another for weekends

24 hour - one set of programmes for the whole week

ProgrammingyourCENTRALHEATING

For Days 1-5 (weekdays)

a) Press PROG (Fig.2) 3 times to show the 1st pre-set time and temperature

(Event 1 Days 1,2,3,4,5) (Fig.7)

b) Use + or – buttons to adjust the TIME (press and hold to change in 10 min

increments)

c) Use ▲or ▼buttons to adjust the TEMPERATURE (Fig.8)

d) Press PROG (Fig.2) to move to next preset time & temp (Event 2) (Fig.9)

e) Repeat steps b, c & d for programming Events 3, 4 5 & 6

For Days 6-7 (weekends)

●Press PROG (Fig.2) to show 1st pre-set time and temperature (Event 1 Days

6-7) (Fig.10)

●Repeat steps b, c and d above to programme time and temperatyure

events for the weekend

NB. Left hand LED will be lit when the Central Heating programme is running

Fig.7

Fig.5

Fig.3

Fig.4

Fig.8

Mon-Sun (24 hour mode)

Mon-Fri (5/2 day mode) Sat-Sun (5/2 day mode)

Event Time Temp°C Event Time Temp°C

1 06.30 20 1 07.00 20

2 08.30 16 2 10.00 16

3 12.30 19 3 12.00 19

4 13.30 16 4 14.00 16

5 17.30 21 5 17.00 21

6 22.30 16 6 22.30 16 Fig.6

Fig.9

Fig.10

Danfoss Randall Ltd

Ampthill Road

Bedford, MK42 9ER

Tel: 01234 364621

Fax: 01234 219705

Email: [email protected]

Website: www.danfoss-randall.co.uk

Fig.15

Fig.12

Fig.13

Fig.11

For 24 hour mode (same set of programmes for each day of the week)

a) Press PROG (Fig 2) 3 times to show the 1st pre-set time and temperature

(Event 1) (Fig.11)

b) Use + or – buttons (Fig.3) to adjust the TIME (press and hold to change in

10 min increments)

c) Use ▲or ▼buttons (Fig.8) to adjust the TEMPERATURE

d) Press PROG (Fig.2) to move to next preset time & temperature (Event 2)

e) Repeat steps b, c & d for programming Events 3, 4 5 & 6

Programmingyour HOTWATER

To set the hot water programme press the PROG button (Fig.2) until Event A (1st

ON) appears on the display (Fig.13).

b) Use + or – buttons (Fig.3) to adjust the TIME (press and hold to change in 10

minute increments)

c) Use ▲or ▼buttons (Fig.8) to adjust the TEMPERATURE

d) Press PROG (Fig.2) to move to Event b - 1st OFF

e) Repeat steps b, c & d for programming Events C & d (2nd ON & 2nd OFF)

NB. Right hand LED will be lit when the Water programme is running

Returning to RUN mode

Press PROG until the colon in the LCD display starts to flash (Fig.14)

Temporary User Overrides

The TP9 has several useful overrides which can be selected without affecting

the thermostat programming

•Temporary override of programmed temperature – press ▲ or ▼ (Fig.8)

until required temperature is displayed (override will automatically cancel at

beginning of next programmed event)

•+1HR = if pressed while the programme is on, the hot water will remain on

for an extra hour. If it is pressed whilst the programme is off, the hot water

will come on immediately for 1 hour then go off (Fig.15)

•Frost Protection – a constant low temperature can be selected whilst away

from home - press ▲ ▲

▲ ▲

▲ & ▼ ▼

▼ ▼

▼ together (Fig.16) until display resembles (Fig.17)

•Hot Water only (during summer) - press ▲ ▲

▲ ▲

▲ & ▼ ▼

▼ ▼

▼ together (Fig.16) until

display resembles (Fig.18)

Summer Time / Winter Time Clock

•To change from Summer to Winter (clocks back) - press and hold - (Fig.19)

•Tochange fromWinter toSummer(clocks forward)- press andhold + (Fig.19)

Low Battery

If the unit is disconnected from the mains supply a low battery symbol will flash

in the LCD display (Fig.20). Programmes will be retained for 15 days. On the

16th day of continuous disconnection the display will show just a colon. When

powere is eventually restored your programmes will be remebered - you will

only need to reset the time and the day of the week.

Domestic Hot Water Times

Setting Function Pre-set

A On 6:30AM

b Off 8:30AM

C On 5:30PM

d Off 10:30PM

Fig.14

Fig.17

Fig.18

Fig.19

Fig.20

Clocksback

(Autumn)

Clocksforward

(Spring)

Fig.16
