Electronic modulating room thermostat for

OpenTherm appliances

Installation and User Guide

Speciﬁcation.................................................................................... 3-4

Positioning and installation ............................................................5

Wiring ............................................................................................... 6-7

Mounting .............................................................................................8

Locking & Limiting.................................................................................9

User Instructions............................................................................ 10-11

Index

Technische Speciﬁcaties............................................................12-13

Positionering / Installatie............................................................... 14

Bedrading ....................................................................................15-16

Montage............................................................................................ 17

Blokkeren & Begrenzen..................................................................... 18

Gebruikers handleiding .............................................................. 19-20

Specication

Code Number 087N774300

Temperature range 8-30°C

Maximum ambient temperature 45°C

Control type P + I

OpenTherm software version 2.3

Domestic hot water keep hot feature •

Holiday mode •

ID 14 low load control •

Thermostat output Data

Construction EN60730-2-9

IP rating IP20

Supply voltage 24V DC from boiler

Wiring, non-polarised 2 wire bus •

Control pollution situation Degree 2

Ball hardness test 75°C

Dimensions (mm) 86 high x 85 wide x 42 deep

Specication

NLNLGB

Specication

NLNLGB

ERP Class

The products represented within this document are classied according

to, and allow completion of, the Energy Related Product (ErP) Directive

System Package che and the ErP system data label. ErP Labelling

obligation is applicable from 26th September 2015.

ErP Class Product Function and ErP Description

Additional

eciency

gain

Modulating Room Thermostat, for use

with modulating heaters

An electronic room thermostat that varies

the ow temperature of the water leaving

the heater dependent upon measured

room temperature deviation from room

thermostat set point. Control is achieved

by modulating the output of the heater.

ErP

Product

Class

(5FT) ORT-01

Positioning and Installation

NLNLGB

Wiring

NLNLGB



For surface mounted wiring,

cutouts are provided on the

backplate to enable correct

positioning of the cable.

For recessed wiring, cabling can

be connected as in diagram 2.

ORT-01

Wiring

NLNLGB

Important - To avoid damage to Boiler and Thermostat, connect

only to OpenTherm connections on boiler, do not connect to any

other power source.

OpenTherm

connections

in ORT- 01

Wires can be

crossed

OpenTherm

connections

in boiler

Mounting

NLNLGB

Locking and Limiting

NLNLGB

1. 2.

1. Before removing dial, turn until setting 10 aligns with reference

mark on front case.

2. Remove dial, lock or limit as required (see note below).

3. Replace dial, ensuring setting 10 aligns with reference mark

on case.

Important Note:

If Holiday Function is required DO NOT adjust lower limit.

User Instructions

NLNLGB

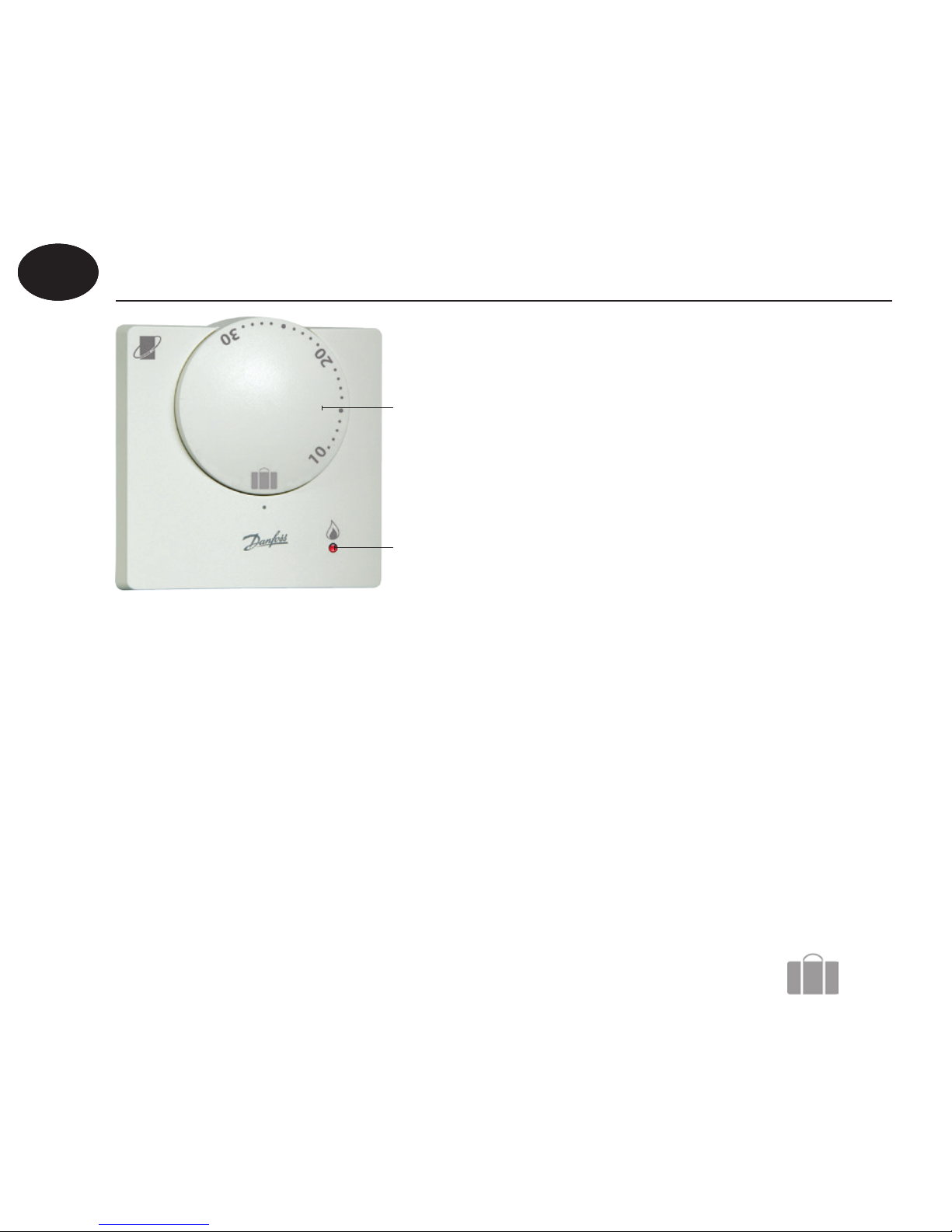

Setting Dial

Indicator

Unlike normal room

thermostats, the ORT-01

varies the heat output of the

Opentherm condensing boiler

to which it is connected. This

adds signicantly to the boiler

eciency by ensuring that the

boiler keeps in economical

condensing mode whenever

possible.

Daily use is as easy as setting the thermostat dial to the

required setting, the advanced electronics and software within

the thermostat establish two-way communication with the

Opentherm boiler to ensure optimal operation.

In addition to the room temperature control, the ORT-01 also

incorporates a feature which, dependant on boiler type, allows

the domestic hot water store in the boiler to be kept hot or to be

turned o, for example when on holiday. To select hot water o,

simply turn the thermostat knob to the holiday position .
