CYP PU-USBX Manuel utilisateur

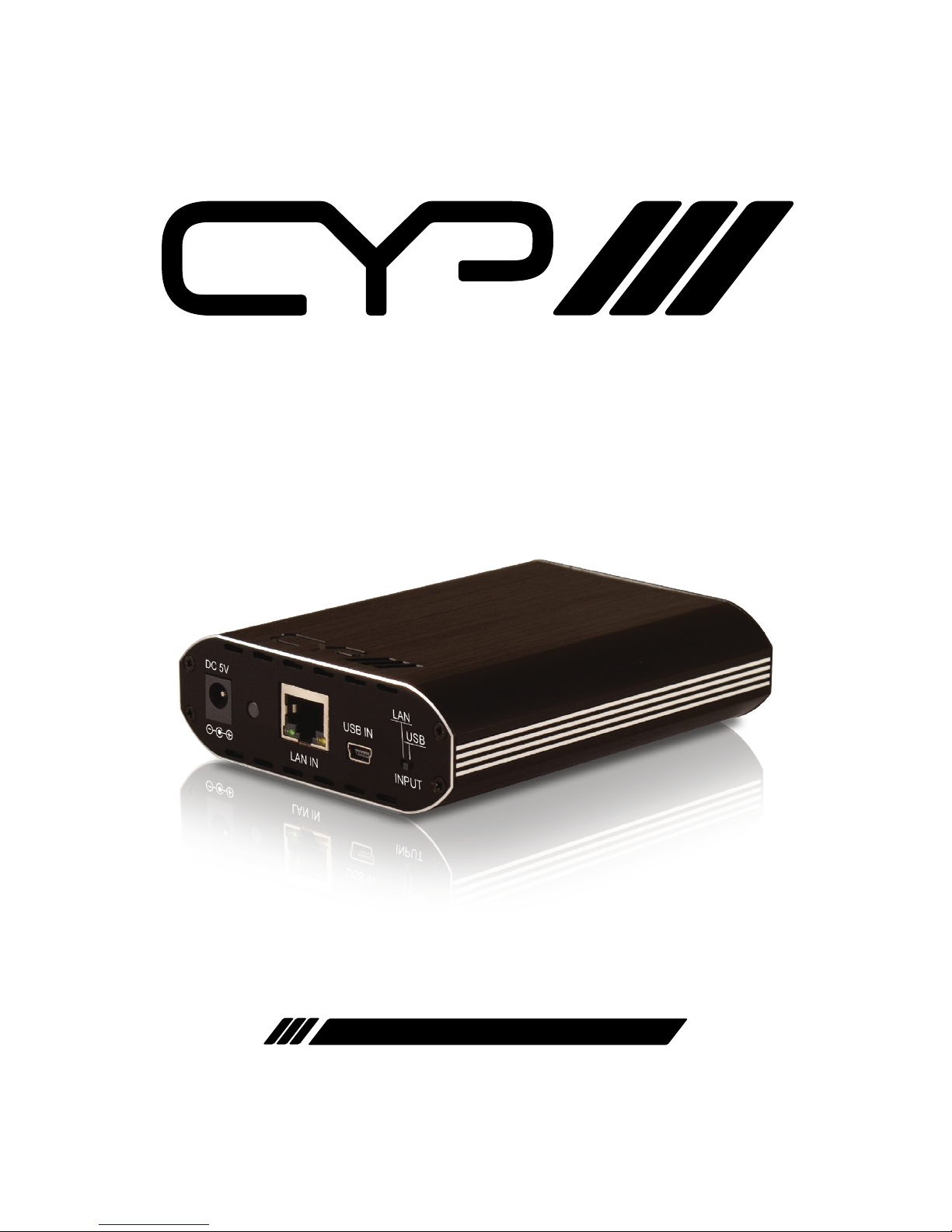

PU-USBX

USB 2.0 over Ethernet Extender

OPERATION MANUAL

DISCLAIMERS

The information in this manual has been carefully checked and is

believed to be accurate. CYP (UK) Ltd assumes no responsibility for any

infringements of patents or other rights of third parties which may result

from its use.

CYP (UK) Ltd assumes no responsibility for any inaccuracies that may be

contained in this document. CYP (UK) Ltd also makes no commitment to

update or to keep current the information contained in this document.

CYP (UK) Ltd reserves the right to make improvements to this document

and/or product at any time and without notice.

No part of this document may be reproduced, transmitted, transcribed,

stored in a retrieval system, or any of its part translated into any language

or computer le, in any form or by any means—electronic, mechanical,

magnetic, optical, chemical, manual, or otherwise—without express

written permission and consent from CYP (UK) Ltd.

Version 1.1 August 2011

TRADEMARK ACKNOWLEDGMENTS

All products or service names mentioned in this document may be

trademarks of the companies with which they are associated.

SAFETY PRECAUTIONS

Please read all instructions before attempting to unpack, install or operate

this equipment and before connecting the power supply.

Please keep the following in mind as you unpack and install this

equipment:

• Always follow basic safety precautions to reduce the risk of re,

electrical shock and injury to persons.

• To prevent re or shock hazard, do not expose the unit to rain,

moisture or install this product near water.

• Never spill liquid of any kind on or into this product.

• Never push an object of any kind into this product through any

openings or empty slots in the unit, as you may damage parts inside

the unit.

• Do not attach the power supply cabling to building surfaces.

• Use only the supplied power supply unit (PSU). Do not use the PSU if

it is damaged.

• Do not allow anything to rest on the power cabling or allow any

weight to be placed upon it or any person walk on it.

• To protect the unit from overheating, do not block any vents or

openings in the unit housing that provide ventilation and allow for

sucient space for air to circulate around the unit.

REVISION HISTORY

VERSION NO. DATE SUMMARY OF CHANGE

v1.01 25/07/14 Updated format/diagrams

Added 64-bit support

CONTENTS

1. Introduction...........................................6

2. Applications ...........................................6

3. Package Contents ..................................6

4. System Requirements ...........................6

5. Features..................................................7

6. Operation Controls and Functions.......8

6.1 Front Panel................................................... 8

6.2 Rear Panel..................................................... 9

6.3 Driver Installation....................................10

6.4 Driver Uninstallation ..............................12

7. Connection Diagram .......................... 13

8. Specications...................................... 14

9. Acronyms............................................. 14

1. INTRODUCTION

The PU-USBX USB over Ethernet Extender is allows you to extend up

to four USB devices over an existing LAN network (100m) or direct

connection via a USB cable. Acting as a USB hub, this extender will allow

four USB devices to be connected to your PC using a single USB port.

2. APPLICATIONS

Share USB devices over a network

Meeting room USB control of remote PCs

Transfer of USB data over a network

External USB hub

USB display control (with USB to HDMI converter)

3. PACKAGE CONTENTS

USB over Ethernet Extender

Software CD-ROM (includes Drivers)

5 V/2.6 A Power Adaptor

Operation Manual

4. SYSTEM REQUIREMENTS

PC/laptop with USB or RJ45 cable (direct connection or through an

existing network) and USB devices such as printers, scanners, ash

drives, HDD and digital cameras.

Computer System Requirements: 2.4GHz single core CPU with at least

1GB RAM for optimal performance

Operating Systems:

-Windows XP Home or Professional SP2 (32-bit)

-Windows Vista (32-bit & 64-bit)

-Window 7 (32-bit & 64-bit)

5. FEATURES

Control up to 4 four USB devices

Supports high-speed (480 Mbps), full-speed (12 Mbps) and low-

speed(1.5 Mbps) transaction (speed in the LAN Mode might be limited

by the bandwidth of the network)

Works up to 100m away (in the Extender Mode)

Connect with existing Ethernet cable or directly to a PC with RJ-45 cable

Compliant with USB 2.0 (Hi-speed) specication

Support Ethernet protocols TCP/IP

Supports 10/100/1000 Mbps Ethernet speed

Supports Windows XP (SP2), Vista (32/64-Bit), & 7 (32/64-bit)

6. OPERATION CONTROLS AND FUNCTIONS

6.1 Front Panel

1 2 3 4 5

1DC 5V: Plug the 5V DC power supply included in the package into the

unit and connect the adaptor to AC wall outlet.

2Power LED: LED will illuminate green when the device is connected

to a power supply.

3LAN IN: Connect with a RJ45 terminated CAT5e/6 cable to your

existing network system or directly to a PC or laptop.

4USB IN: Connect with a mini-USB to USB cable from your PC/laptop.

5INPUT switch: Switches the input mode between LAN (network) and

direct USB Connection

6.2 Rear Panel

1USB 1~4: Use to connect to USB devices such as ash drives, external

HDDs, digital cameras, printers, and etc.

The USB over Ethernet Extender is a multi-function USB HUB which

allows you to:

A. LAN Mode: Allows PC/Laptops to access USB devices over an

existing Intranet network. The LAN Mode can be used in a home or

oce environment that has its own congured network infrastructure,

as the device will allow users connected to the LAN (Local Area

Network) to access up to four USB devices.

B. Extender Mode: Extend the USB operating distance over a single

RJ45 terminated CAT5e/6 cable up to 100 meters this allows the use of

USB devices in remote locations in an installation.

C. HUB Mode: Use it as a regular 4 port USB Hub. Where no signal

extension is needed, the device can be used as a 4 port USB Hub and

can be directly connected to a PC/Laptop.

For the LAN mode or Extender Mode to function, the software

application and driver (provided on the supplied CD-ROM) are

required to be installed on any connected PCs/Laptops for them to

identify and hook up with the unit in the same network using TCP/IP

protocol.

In all 3 modes, USB 2.0 (data rates up to 480Mbps) and USB 1.1

protocols (data rates up to 12 Mbps) are both supported.

Role of USB devices in a setup with this unit:

-Host Devices (PC / Laptop): Can Control this unit and any USB devices

connected to it.

-Storage Devices (USB Flash Drive, USB Hard Drive, etc.): Provide bi-

directional data transfer between the Storage Device and the Host

Device.

-Peripheral Devices (USB Printer, USB Scanner, etc.): Provide bi-

directional data transfer between the Peripheral Device and the Host

Device.

-Input Devices (USB Keyboard, USB Mouse, etc.): Can be used to

control the Host Device remotely.

6.3 Driver Installation

The following sections list the procedures to follow when installing the

USB device drivers. Insert the supplied CD-ROM into your CD-ROM drive,

run the USB Install Disc and follow the below steps to install the driver.

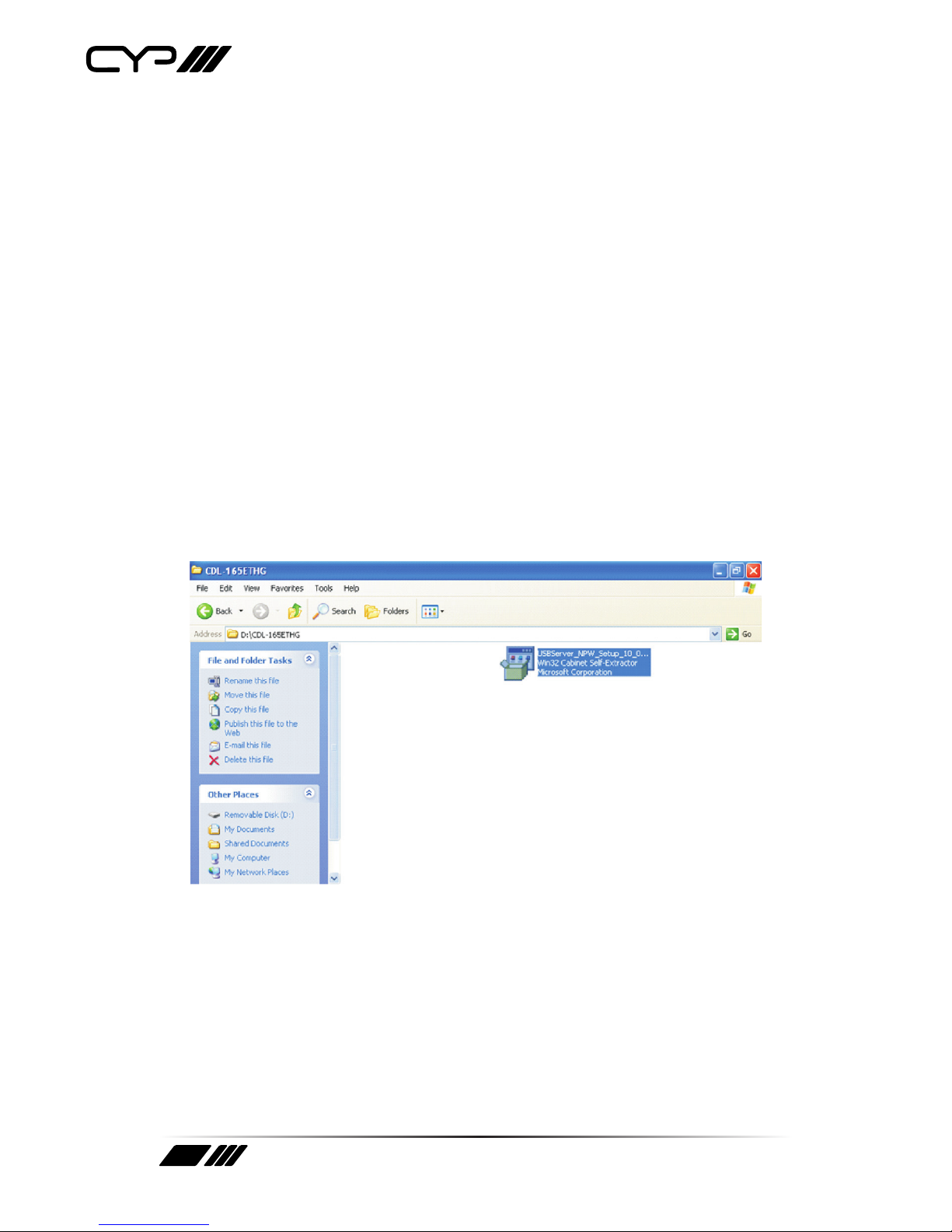

1. Installs the USB Server Software

Double click on the USB Server Setup icon to start the set up software and

click nish when the setup is complete.
