CYP PU-USB-KIT Manuel utilisateur
PU-USB-KIT
USB extender USB 2.0 over Single CAT5e/CAT6 (100m) Kit
OPERATION MANUAL
DISCLAIMERS
The information in this manual has been carefully checked and is
believed to be accurate. CYP (UK) Ltd assumes no responsibility for any
infringements of patents or other rights of third parties which may result
from its use.
CYP (UK) Ltd assumes no responsibility for any inaccuracies that may be
contained in this document. CYP (UK) Ltd also makes no commitment to
update or to keep current the information contained in this document.
CYP (UK) Ltd reserves the right to make improvements to this document
and/or product at any time and without notice.
COPYRIGHT NOTICE
No part of this document may be reproduced, transmitted, transcribed,
stored in a retrieval system, or any of its part translated into any language
or computer le, in any form or by any means—electronic, mechanical,
magnetic, optical, chemical, manual, or otherwise—without express
written permission and consent from CYP (UK) Ltd.
© Copyright 2011 by CYP (UK) Ltd.
All Rights Reserved.
Version 1.1 August 2011
TRADEMARK ACKNOWLEDGMENTS
All products or service names mentioned in this document may be
trademarks of the companies with which they are associated.
SAFETY PRECAUTIONS
Please read all instructions before attempting to unpack, install or operate
this equipment and before connecting the power supply.
Please keep the following in mind as you unpack and install this
equipment:
• Always follow basic safety precautions to reduce the risk of re,
electrical shock and injury to persons.
• To prevent re or shock hazard, do not expose the unit to rain,
moisture or install this product near water.
• Never spill liquid of any kind on or into this product.
• Never push an object of any kind into this product through any
openings or empty slots in the unit, as you may damage parts inside
the unit.
• Do not attach the power supply cabling to building surfaces.
• Use only the supplied power supply unit (PSU). Do not use the PSU if
it is damaged.
• Do not allow anything to rest on the power cabling or allow any
weight to be placed upon it or any person walk on it.
• To protect the unit from overheating, do not block any vents or
openings in the unit housing that provide ventilation and allow for
sucient space for air to circulate around the unit.
REVISION HISTORY
VERSION NO. DATE SUMMARY OF CHANGE
VS1 04/02/12 First release
VR2 10/10/2012 New Format/Diagrams
CONTENTS
1. Introduction ...........................................6
2. Applications ...........................................6
3. Package Contents ..................................6
4. System Requirements ...........................6
5. Features ..................................................6
6. Operation Controls and Functions .......7
6.1 Transmitter Front & Rear Panels ........... 7
6.2 Receiver Front & Rear Panels ................. 8
7. Connection and Installation .................9
8. Specications ...................................... 11
6
1. INTRODUCTION
The PU-USB-KIT is a USB over CAT5/6 transmitter and receiver that has
been developed to extend USB devices over long distances via CAT5e/6
cable infrastructure. This kit allows any USB host to send data within a
100m range while oering up to 4 USB outputs, giving this product the
ability to act like a USB hub.
2. APPLICATIONS
USB Extension over CAT5/6 up to 100M or 200M through Hub
Control devices from far away
Host device information sharing and control
3. PACKAGE CONTENTS
USB over CAT5e/6 Transmitter x 1
USB over CAT5e/6 Receiver x 1
5V / 3A DC Power Supply x 2
Operation Manual x 1
4. SYSTEM REQUIREMENTS
PC or laptop with USB and CAT5e/6 cables and USB devices.
5. FEATURES
Supports all major operating systems including Windows®, MAC OS®,
and Linux
Supports USB 2.0 high-speed and USB 1.1 (full-speed, low-speed)
devices
True plug and play without the need to install drivers
Display or control the host device
Proven up to 100m CAT5 cable distance without lag
Each USB port carries 500mA of power
Total transmission frequency 1 GHz
7
6. OPERATION CONTROLS AND FUNCTIONS

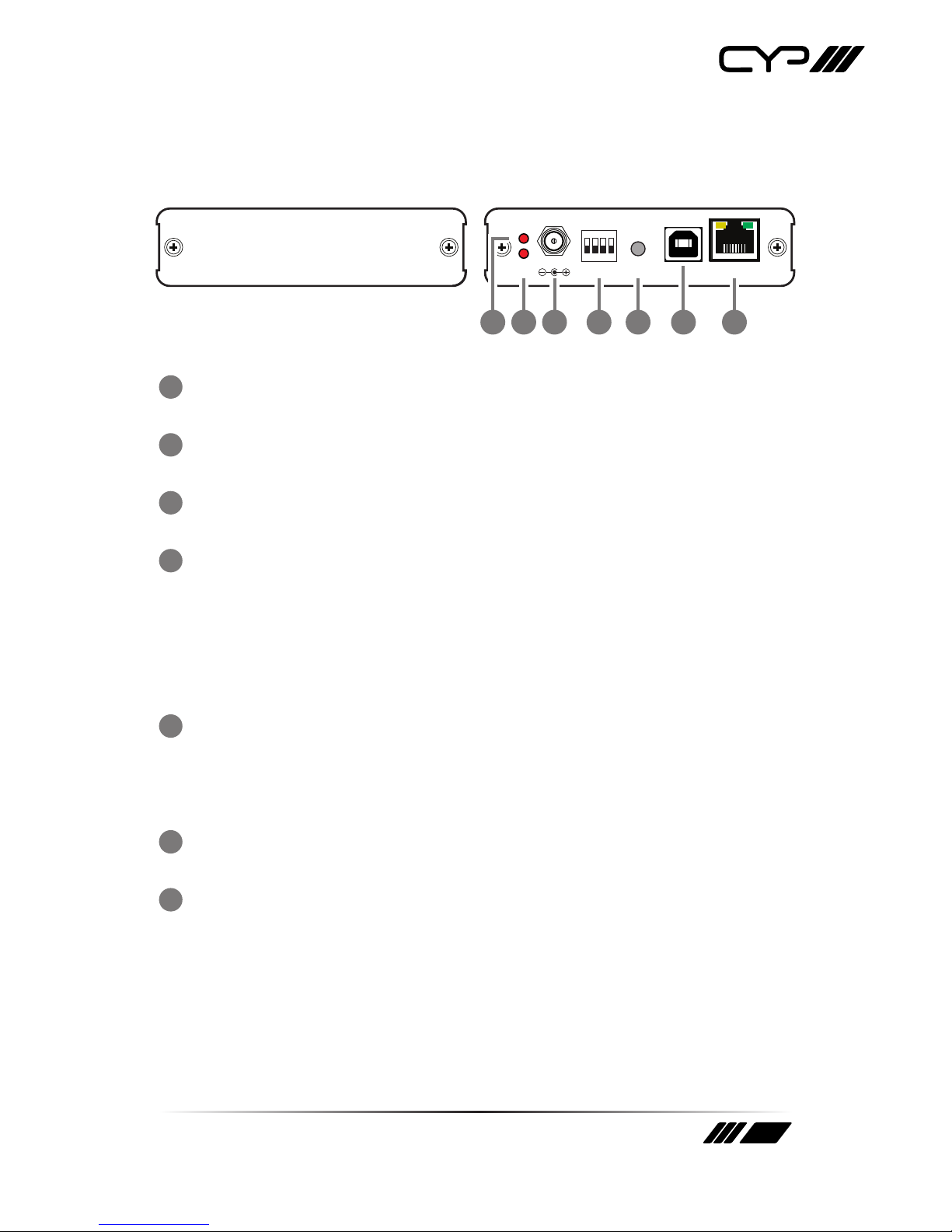

6.1 Transmitter Front & Rear Panels
USB to CAT 5e/6 Transmitter
DC 5V Link Pair
Select CAT 5e/6 Out
Power
Link
On/Off
USB In
USB
Link
Transmitter
1 2
On
3 4
2 3 4 5 6 71
1 USB Link: This LED will illuminate when the transmitter has linked
with receiver’s USB signal.
2 Power LED: This LED will illuminate when the device is plugged with
power supply.
3 DC 5V: Plug the 5V DC power supply into the unit and connect the
adaptor to an AC outlet.
4 Link Pair Select: This dip switch allows user with multi-pairs setting
for link up to 16 pairs of the devices with single IP router. Each pair
must have the same dip switch setting in order to pair to the right
device setting. The factory default setting is at 0000.
Note: To activate the setting a re-power on is required after each new
setting.
5 Link On/O button: Press this button to allow the receiver to be link
up or unlink with the transmitter’s USB input.
Note: To activate the link a re-power on is required after each button
pressed.
6 USB In: This slot is to connect with PC/Laptop for input source signal
with USB B type cable.
7 CAT5e/6 Out: This slot is to connect with CAT5e/6 cable with receiver
side’s CAT5e/6 input. When both transmitter and receiver is connected
the green LED will illuminate. When the data is sending the yellow
LED will be blinking.
8
6.2 Receiver Front & Rear Panels
USB 42 3
1
CAT 5e/6 to USB Receiver
DC 5V Link Pair
Select USB Link CAT 5e/6 In
Power
USB
Link
Receiver
1 2
On
3 4
2 3 4 5 6 71
1 USB Link: This LED will illuminate when the transmitter has linked
with receiver’s USB signal. User are only able to control the USB in (the
source device) when this LED is not illuminated.
2 Power LED: This LED will illuminate when the device is plugged with
power supply.
3 DC 5V: Plug the 5V DC power supply into the unit and connect the
adaptor to an AC outlet.
4 Link Pair Select: This dip switch allows user with multi-pair setting for
link up to 16 pairs of the devices with single IP router. Each pair must
have the same dip switch setting in order to pair to the right device
setting. The factory default setting is at 0000. (This function is not
available yet with the rst generation of the product)
Note: To activate the setting a re-power on is required after each new
setting.
5 USB Link button:Press this button to allow the receiver to be link up
or unlink with the transmitter’s USB input.
Note: To activate the link a re-power on is required after each button
pressed.
6 CAT5e/6 Out: This slot is to connect with CAT5e/6 cable with receiver
side’s CAT5e/6 input. When both transmitter and receiver is connected
the green LED will illuminate. When the data is sending the yellow
LED will be blinking.
7 USB 1~4: These slots are where you connect your devices, such as
keyboard, mouse, USB storage device or etc with USB cables.
9
7. CONNECTION AND INSTALLATION
Example 1
USB to CAT 5e/6 Transmitter
USB 42 3
1
CAT 5e/6 to USB Receiver
DC 5V Link Pair
Select USB Link CAT 5e/6 In
Power
USB
Link
Receiver
1 2
On
3 4
DC 5V Link Pair
Select CAT 5e/6 Out
Power
Link
On/Off
USB In
USB
Link
Transmitter
1 2
On
3 4
OR
CAT5e/6100m
Power
Supply
Power
Supply
Network
Hub
TX
RX
USB
Output
USB
Input
FlashDrive
HardDrive
USBKey-
board
USBMouse
In this example, a single Transmitter and Receiver set can be used over a
network or connected directly via a single CAT5e/6 cable
10
Example 2
USB 42 3
1
CAT 5e/6 to USB Receiver
USB 42 3
1
CAT 5e/6 to USB Receiver
USB 42 3
1
CAT 5e/6 to USB Receiver
USB to CAT 5e/6 Transmitter USB to CAT 5e/6 Transmitter USB to CAT 5e/6 Transmitter USB to CAT 5e/6 Transmitter
USB 42 3
1
CAT 5e/6 to USB Receiver
1234
1234
USBUSB
PC PC PC PC
Hub
USB USB
USB USB USB
CAT5e/6100m
CAT5e/6100m
In this example, up to 16 Transmitters and Receivers can be paired using
the DIP switch setting on the units and used over the network
