CYP CH-501TX Manuel utilisateur

CH-501TX & RX

HDMI over Single CAT5e/CAT6 with IR

Operation Manual

DISCLAIMERS

The information in this manual has been carefully checked and

is believed to be accurate. Cypress Technology assumes no

responsibility for any infringements of patents or other rights of third

parties which may result from its use.

Cypress Technology assumes no responsibility for any inaccuracies

that may be contained in this document. Cypress also makes no

commitment to update or to keep current the information contained

in this document.

Cypress Technology reserves the right to make improvements to this

document and/or product at any time and without notice.

No part of this document may be reproduced, transmitted,

transcribed, stored in a retrieval system, or any of its part translated

into any language or computer le, in any form or by any means—

electronic, mechanical, magnetic, optical, chemical, manual, or

otherwise—without express written permission and consent from

Cypress Technology.

Version 1.1 August 2011

TRADEMARK ACKNOWLEDGMENTS

All products or service names mentioned in this document may be

trademarks of the companies with which they are associated.

SAFETY PRECAUTIONS

Please read all instructions before attempting to unpack, install or

operate this equipment and before connecting the power supply.

Please keep the following in mind as you unpack and install this

equipment:

• Always follow basic safety precautions to reduce the risk of re,

electrical shock and injury to persons.

• To prevent re or shock hazard, do not expose the unit to rain,

moisture or install this product near water.

• Never spill liquid of any kind on or into this product.

• Never push an object of any kind into this product through any

openings or empty slots in the unit, as you may damage parts

inside the unit.

• Do not attach the power supply cabling to building surfaces.

• Use only the supplied power supply unit (PSU). Do not use the PSU

if it is damaged.

• Do not allow anything to rest on the power cabling or allow any

weight to be placed upon it or any person walk on it.

• To protect the unit from overheating, do not block any vents or

openings in the unit housing that provide ventilation and allow for

sufcient space for air to circulate around the unit.

REVISION HISTORY

VERSION NO. DATE DD/MM/YY SUMMARY OF CHANGE

VS1 08/12/11 First Release

VR2 16/04/12 Add IR Distance

CONTENTS

1. Introduction............................................ 1

2. Applications........................................... 1

3. Package Contents ................................ 1

4. System Requirements............................ 1

5. Features.................................................. 2

6. Operation Controls and Functions....... 3

6.1 Transmitter Front and Rear Panels..3

6.2 Reciever Front and Rear Panels .....5

7. D-Sub 9 Pin Denitions........................... 6

8. IR CABLE PIN ASSIGNMENT.................... 6

9. Connection Diagram ............................ 7

10. Specications ...................................... 8

11. Acronyms ............................................. 9

1. INTRODUCTION

The HDMI over Single CAT5e/CAT6 with IR transmitter and receiver

set can make your home or ofce set-up more efcient and easy to

use. Uncompressed HDMI video and audio can be transmitted over

a single CAT5e/CAT6 with the added benet of control through the

built-in RS-232 and IR ports up to 100m. It also features a HDMI bypass

function that allows for local testing of the HDMI source.

2. APPLICATIONS

• Home entertainment sharing and control

• Lecture room display and control

• Showroom display and control

• Meeting room presentation and control

• Classroom display and control

• Any Smart AV Installation System

3. PACKAGE CONTENTS

• 1× HDMI over Single CAT5e/CAT6 Transmitter

• 1×HDMI over Single CAT5e/CAT6 Receiver

• 1× IR Blaster

• 1× IR Receiver

• 2× 5 V 2.6 A DC Power Adaptor

• Operation Manual

4. SYSTEM REQUIREMENTS

• Input HDMI source equipment such as DVD/Blu-ray player

and output display with HDMI connection.

5. FEATURES

• Supports HDMI v1.4 with 3D, 4k x 2k support, HDCP and DVI

Compliant

• Supports CEC bypass function

• Simultaneous transmisson of uncompressed data up to 100 m/328 ft

for CAT5e or CAT6 cable

Note: This system was tested with CAT6/23AWG cables, so if using

cables of another type, results may vary.

• Uncompressed video 1080p, 60 Hz, 36-bit

• Audio support up to 7.1CH & Dolby TrueHD, DTS-HD

• arious controls over HDMI, CEC, RS232 and IR

• 3Play™ convergence: HD video, audio & Control (IR & RS232)

• Installation Friendly

6. OPERATION CONTROLS AND FUNCTIONS

6.1 Transmitter Front and Rear Panels

Power DC 5V IR 1

Blaster

IR 2

Extender

HDCP

Link

Mode

CAT5e/6 Out

RearFront

HDMI Bypass HDMI In RS 232 In

TransmitterHDMI to CAT5e/6 with IR CH-501TX

1 2 3 4 5 6 7 8 10

1HDMI Bypass

Connect to a HDMI TV/monitor to test the HDMI input source signal.

When the HDMI bypass is connected, signal transmission from the

the CAT5e/6 output is disabled. Ensure that it is not connected

during normal use.

2HDMI In

Connect to HDMI source equipment such as DVD/Blu-ray player.

3RS-232 In

Connect with PC or laptop with D-Sub 9 pin male cable for the

transmission of RS-232 commands.

4DC 5V

This blue LED will illuminate when the 5 V DC power supply is

plugged into the unit and connected the adaptor to an AC outlet.

5IR 1 Blaster

Connect to the supplied IR blaster cables for IR signal transmission.

Place the IR blaster in direct line of sight of the equipment to be

controlled.

6IR 2 Extender

Connect with the supplied IR receiver cables for IR signal

reception. Ensure that remote being used is within the direct line-

of-sight of the IR extender.

7HDCP LED (Red)

The LED will illuminate to indicate the input source signal contains

a valid HDCP data and will blink if the input source signal is without

HDCP data.

8Link LED (Yellow)

The LED will illuminate tio indicate when both the CAT5e/6 input

and output signals are connected.

9Mode LED (Green)

The LED will blink when the device is processing and sending/

receiving data via the CAT5e/6 connection (HDMI, IR and RS232).

10 CAT5e/6 Out

Connect the transmitter and receiver via a single CAT5e/6 cable

for all data transmission.

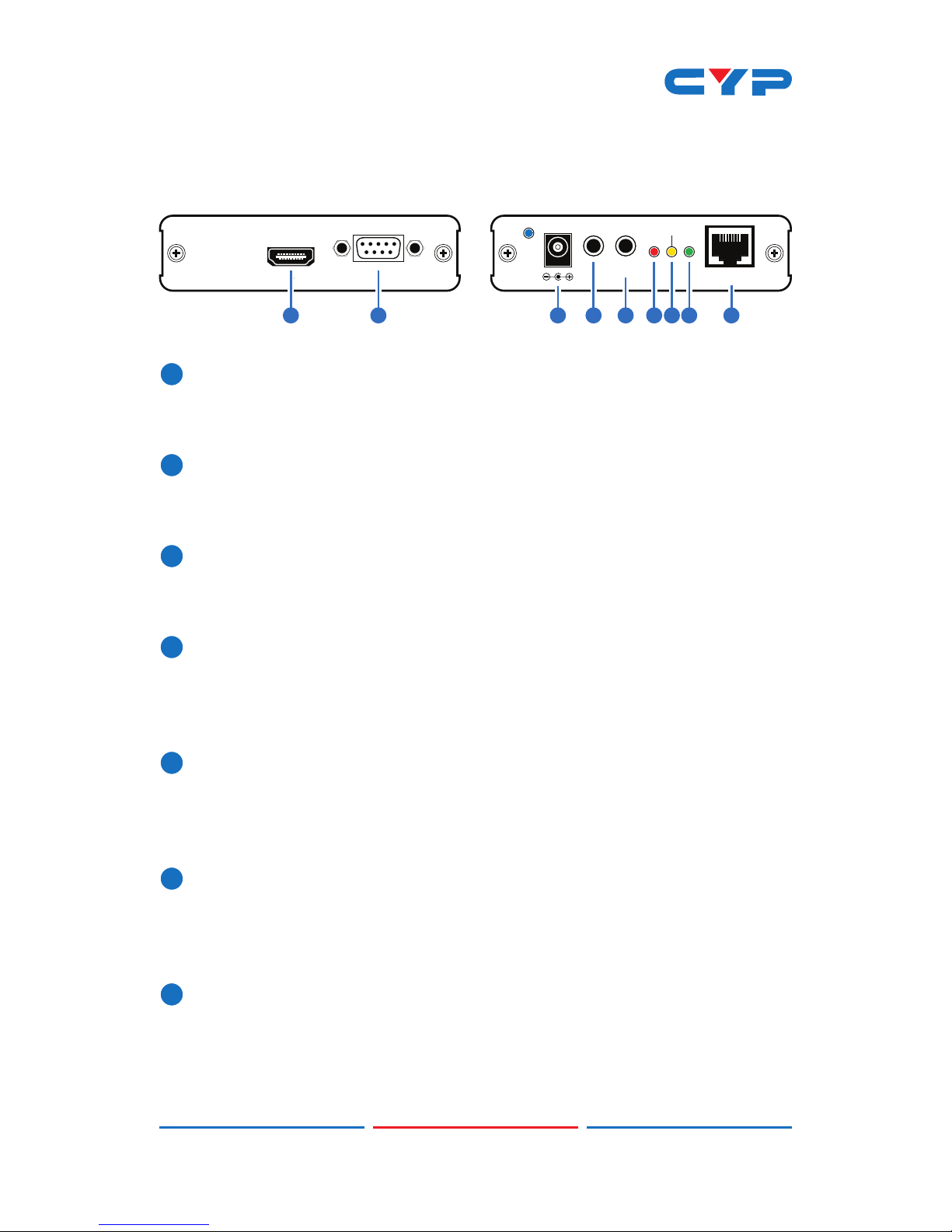

6.2 Reciever Front and Rear Panels

RearFront

HDMI Out RS 232 Out

Receiver

CAT5e/6 to HDMI with IR CH-501RX

Power DC 5V IR 2

Blaster

IR 1

Extender

HDCP

Link

Mode

CAT5e/6 In

1 2 4 5 6 7 8 93

1HDMI Out

Connect to a HDMI equipped TV/monitor for display the HDMI

input source signal.

2RS-232 Out

Connect to the device that is to be controlled (with D-Sub 9 pin

female cable) by RS-232 commands.

3DC 5V

This blue LED will illuminate when the 5 V DC power supply is

plugged into the unit and connected the adaptor to an AC outlet.

4IR 2 Blaster

Connect to the supplied IR blaster cables for IR signal transmission.

Place the IR blaster in direct line of sight of the equipment to be

controlled.

5IR 1 Extender

Connect with the supplied IR receiver cables for IR signal

reception. Ensure that remote being used is within the direct line-

of-sight of the IR extender.

6HDCP LED (Red)

This red LED will illuminate when the input source signal contains

HDCP data and when it blink it means the input source signal is

without HDCP data.

7Link LED (Yellow)

This yellow LED will illuminate when the both CAT5e/6 input and

output signal is connected.
