CYP PU-1107-KIT Manuel utilisateur

OPERATION MANUAL

PU-1107-KIT

Pure Digital v1.3 HDMI over

Single CAT6 Extender Set with

Repeater Function

Disclaimers

The information in this manual has been carefully checked and

is believed to be accurate. Cypress Technology assumes no

responsibility for any infringements of patents or other rights of third

parties which may result from its use.

Cypress Technology assumes no responsibility for any inaccuracies

that may be contained in this document. Cypress also makes

no commitment to update or to keep current the information

contained in this document.

Cypress Technology reserves the right to make improvements to this

document and/or product at any time and without notice.

No part of this document may be reproduced, transmitted,

transcribed, stored in a retrieval system, or any of its part translated

into any language or computer le, in any form or by any means

- electronic, mechanical, magnetic, optical, chemical, manual,

or otherwise - without express written permission and consent from

Cypress Technology.

Version 1.0 August 2010

Trademark Acknowledgments

All products or service names mentioned in this document may be

trademarks of the companies with which they are associated.

Safety Precautions

Please read all instructions before attempting to unpack or install or

operate this equipment, and before connecting the power supply.

Please keep the following in mind as you unpack and install this

equipment:

 Always follow basic safety precautions to reduce the risk of

re, electrical shock and injury to persons.

 To prevent re or shock hazard, do not expose the unit to rain,

moisture or install this product near water.

 Never spill liquid of any kind on or into this product.

 Never push an object of any kind into this product through

module openings or empty slots, as you may damage parts.

 Do not attach the power supply cabling to building surfaces.

 Do not allow anything to rest on the power cabling or allow it to

be abused by persons walking on it.

 To protect the equipment from overheating, do not block the

slots and openings in the module housing that provide

ventilation.

Revision History

Version No Date Summary of Change

V1 20100412 Preliminary release

Table of Contents

1. Introduc tion..................................................................................1

2. Ap plic a tions.................................................................................1

3. Pa c ka geContents......................................................................1

4. SystemReq uirem ents..................................................................1

5. Features........................................................................................2

6. Spec ific a tions..............................................................................3

7. Op erationControlsa nd Func tions.............................................4

7.1 Front Panel .................................................................... 4

7.2 Rear Panel .................................................................... 5

8. Connec tiona ndInstallation..................................................... 6

9. Ac ronym s................................................................................... 7

1. Introduction

The HDMI 1.3 transmitter and receiver over ONE CAT 6 is a tool for extending

your HDMI signal over long distances to a compatible display. Instead of

using expensive HDMI cables, your existing CAT 6 cables/sockets can be

utilized to perform advanced functions like transferring Deep Color (12 bits/

color) video and new lossless compressed (Dolby TrueHD, Dolby Digital Plus

and DTS-HD Master Audio) digital audio, with a bandwidth up to 225MHz. The

HDMI 1.3 Transmitter and receiver, over ONE CAT6 extender is your substantial

HDMI extender tool.

2. Applications

 Distribute HDMI signals over long distances

 Showroom display

 Hypermarket display

 Lecture room display

3. Package Contents

 HDMI v1.3 Transmitter x 1

 HDMI v1.3 Receiver x 1

 5V DC Power Supply adaptor x 2

 Operation Manual x 1

4. System Requirements

Input HDMI source equipment and output HDMI display with connection

cables and one CAT6 cable.

5. Features

 HDMI 1.3, HDCP 1.1 and DVI1.1 compliant.

 Supports digital video formats in Deep Color Mode at up to 36 bits (12bits/

color) and new lossless compressed (Dolby TrueHD, Dolby Digital Plus and

DTS-HD Master Audio) Digital audio .

 Uses one CAT-6 cable for data/DDC transmission.

 Equalizes and recovers incoming TMDS data before re-transmitting it in

optimal quality regardless of the incoming signal quality.

 Cable testing showed that with 1080p 8bit or 12bit resolution the HDMI

input source can be 20meters away.

 Cable testing showed that with 1080p 8bit resolution the HDMI output

device can be 15meters away and with 1080p 12bit resolution it can be

10 meters away.

 When transmitting a signal in 1080p 8bit resolution the CAT6 operating

distance is 45 meters, and when the signal is in 12bit resolution the CAT6

operating distance is 10meters.

 Supports xvYCC

6. Specications

Frequency Bandwidth 2.25Gbps (single link)

Transmitter

Input/Output Ports 1 x HDMI Female port/1 x CAT6

Receiver

Output/Input Ports 1 x HDMI Female port/1 x CAT6

Power Supply 5V/1A DC (US/EU standards, CE/FCC/UL certied)

ESD Protection Human Body Model:  8kV (air-gap discharge)

 4kV (contact discharge)

Dimensions (mm) 78.5 (W) X 102 (d) X 30 (H) / Tx

78.5 (W) x 72 (D) x 30 (H) / Rx

Weight(g) 182 / Tx

90 / Rx

Chassis Material Aluminum

Silkscreen Color Silver

Power Consumption TX: 3.5W RX:2W

Operating Temperature 0C ~ 40C / 32F ~ 104F

Storage Temperature -20C ~ 60C / -4F ~ 140F

Relative Humidity 20~90% RH (non-condensing)

7. Operation Controls and Functions

7.1FrontPanel

CH-1107TX CH-107RX

① ②

DC 5V

HDMI INPUT

② ③

DC 5V HDMI OUT

①HDMI INPUT: This slot is where you connect the HDMI or DVI output

port of your source equipment such as DVD/Blu Ray players or Set-top-

boxes with an HDMI cable or link up with another receiver unit from the

same family to extend a signal over long distances.

②DC 5V: This is where you plug the 5V DC power supply into the unit

and connect the adaptor to an AC outlet.

③HDMI OUTPUT: This slot is where you connect the HDMI or DVI input port of

your display such as an HDTV or HD monitor or link up with another

receiver unit from the same family to extend a signal over long distances.

7.2RearPa nel

CH-1107TX CH-107RX

②

CAT6 IN

②①

TV/STD 10 Bit

CAT6 OUT

EDID

8 Bit 12 Bit

①EDID Control Switcher: Switch the EDID between STD and TV. Switch to

STD to use the built-in EDID or switch to TV to use the TV’s EDID. The default

factory setting is TV, leave as is when the display is working properly.

Note: 1. When EDID is switched to STD the unit will use its built-in EDID which

supports:

Video → 1080p 8-bit, 10-bit or 12-bit (max)

Audio → PCM 2CH

2. The EDID selection will only be activated when the unit is re-plugged

and powered on.

②CAT6 OUT/IN: Connect the CAT6 output of the transmitter with the CAT6

input of the receiver.

Note: A. This system was tested with CAT-6E/23AWG cables, so if using cables

of another type, results may vary.

B. Cable distance tested with PS3 120G & 40" Samsung LED 12 bit LCD

TV.

C.The gures provided in this manual are for reference only; actual

performance may depend on the source and display used along

with the type cable.

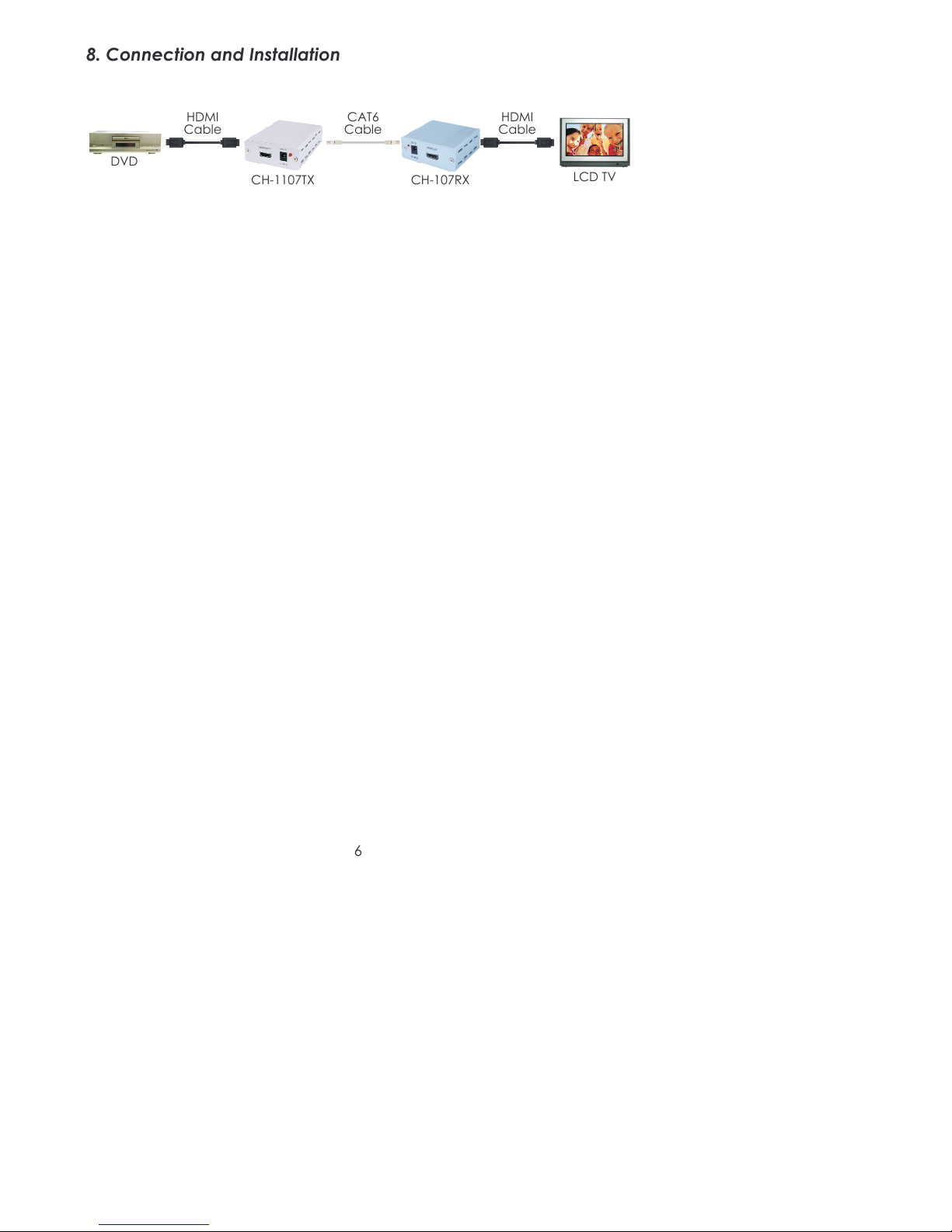

8. Connection and Installation

DVD

HDMI

Cable HDMI

Cable

CAT6

Cable

LCD TV

CH-1107TX CH-107RX

HDMI
