HDMI/IR/RS-232 over Single CAT5e/CAT6 Extender
CH-506TX & RX
CH-506TXL & RXL
SAFETY PRECAUTIONS
Please read all instructions before attempting to unpack, install or operate
this equipment and before connecting the power supply. Please keep the
following in mind as you unpack and install this equipment:
• Always follow basic safety precautions to reduce the risk of fi re,
electrical shock and injury to persons.
• To prevent fi re or shock hazard, do not expose the unit to rain, moisture
or install this product near water.
• Never spill liquid of any kind on or into this product.
• Never push an object of any kind into this product through any openings
or empty slots in the unit, as you may damage parts inside the unit.
• Do not attach the power supply cabling to building surfaces.
• Use only the supplied power supply unit (PSU). Do not use the PSU if it
is damaged.
• Do not allow anything to rest on the power cabling or allow any weight to
be placed upon it or any person walk on it.
• To protect the unit from overheating, do not block any vents or openings
in the unit housing that provide ventilation and allow for suffi cient space
for air to circulate around the unit.
• Please completely disconnect the power when the unit is not in use to
avoid wasting electricity.
VERSION HISTORY
REV. DATE SUMMARY OF CHANGE
VR0 2011/12/12 Preliminary Release
VS1 2012/04/26 Updated format, diagrams and statements
VS2 2012/07/26 IR cable updated
VR3 2012/09/28 Add Lite Version
VR4 2014/01/10 HDMI I/O Cable Distance
VR5 2014/03/13 IR cable quantity
VR6 2015/04/28 Support Resolution
VR7 2019/07/25 Update Format and Cable Distance
VR8 2020/02/21 Revise typo of light to lite and correct the video
bandwidth on specifi cation of page 7
CONTENTS
1. Introduction.............................................1
2. Applications ............................................1
3. Package Contents ..................................1
4. System Requirements............................1
5. Features...................................................2
6. Operation Controls and Functions .......3
6.1 Transmitter Front and Rear Panels ....3
6.2 Receiver Front and Rear Panels ........4
6.3 D-Sub 9-Pin Defi nitions ......................5
6.4 IR Cable Pin Assignment....................5
7. Connection Diagram ..............................6
8. Specifi cations .........................................7
8.1 Cable Specifi cations...........................8
9. Acronyms ................................................9
1
1
1. INTRODUCTION
The HDMI with RS-232 over Single CAT5e/6/7 transmitter and receiver set
can send uncompressed audio/video over a single run of CAT5e/6/7 cable
up to 100m at 1080p and 70m at 4K* and has the added benefi t of control
through the built-in RS-232 and IR ports.
*Lite version can run up to 70m at 1080p and 40m at 4K
2. APPLICATIONS
• Household entertainment sharing and control
• Lecture room display and control
• Showroom display and control
• Meeting room presentation and control
• Classroom display and control
3. PACKAGE CONTENTS
• 1×HDMI & IR over Single CAT5e/CAT6 Transmitter
• 1×HDMI & IR over Single CAT5e/CAT6 Receiver
• 1×IR Blaster
• 1×IR Extender
• 2×3.5 mm Phone Jack to RS-232 Cable
• 2×5 V/2.6A DC Power Adaptor
• Operation Manual
4. SYSTEM REQUIREMENTS
Input HDMI source equipment such as DVD/Blu-ray players and HDMI
equipped output display (TVs or monitors).
2
2
5. FEATURES
• HDMI 1.x and DVI 1.0 compliant
• HDCP compliant
• Supports HDMI 3D and 4K x 2K features
• Supports HDCP repeater and CEC function
• Supports distance up to 100m/328ft at 1080p and 70m/229ft at 4K through
CAT5e/6/7 cable*
• HDMI input resolutions up to 4K@60Hz (YUV 4:2:0, 8-bit) or 4K@30Hz(
YUV 4:4:4, 8-bit)
• Supports pass-through of audio formats including LPCM 2.0/5.1/7.1,
• and Bitstream over HDMI
• 3Play convergence: HDMI & Control (IR & RS-232)
• Installation friendly
Note: This system was tested with CAT6/23AWG cable. Results may vary
with cables of diff erent specifi cations.
*Lite version CAT5e/6/7 cable up to 70m/229ft at 1080p and
40m/131ft at 4K
3
3
6. OPERATION CONTROLS AND FUNCTIONS
6.1 Transmitter Front and Rear Panels
Power
Link
CAT 5e /6 Out
DC 5V
IR2 Extender
RS232 In IR1 Blaster
HDMI In
RearFront
231 5
46 7 8
1RS-232 In: Connect to a PC/laptop or RS-232 enabled device(with
supplied 3.5 mm phone jack to D-Sub 9 pin adaptor) for the transmission
of RS-232 commands.
2IR2 Extender: Connect to the supplied IR extender cable for IR signal
reception. Ensure that remote controller being used is within the direct
line-of-sight of the IR extender.
3IR1 Blaster: Connect to the supplied IR blaster cable for IR signal
transmission. Place the IR blaster in direct line-of-sight of the equipment
to be controlled.
4HDMI In: Connect to HDMI source equipment such as a DVD or Blu-ray
player.
5DC 5V: Plug the 5 V DC power supply into the unit and connect the
adaptor to an AC outlet.
6Link: The yellow LED will illuminate when both the input and output
CAT5e/6/7 signals are connected.
7Power: This green LED will illuminate when the device is connected to a
power supply.
8CAT5e/6 Out: Connect to the receiver unit with a single CAT5e/6/7 cable
for transmission of all data signals.
4
4
6.2 Receiver Front and Rear Panels
Power
Link
CAT 5e /6 In
DC 5V
IR1 Extender
RS232 Out IR2 Blaster
HDMI Out
RearFront
231 5
46 7 8
1RS-232 Out: Connect to the device that is to be controlled (with
the supplied 3.5mm phone jack to D-Sub 9-pin adaptor) by RS-232
commands.
2IR1 Extender: Connect to the supplied IR extender cable for IR signal
reception. Ensure that remote being used is within the direct line-of-sight
of the IR extender.
3IR2 Blaster: Connect to the supplied IR blaster cable for IR signal
transmission. Place the IR blaster in direct line of sight of the equipment
to be controlled.
4HDMI Out: Connect to a HDMI equipped TV/monitor for display of the
HDMI input source signal.
5DC 5V: Plug the 5 V DC power supply into the unit and connect the
adaptor to an AC outlet.
6Link: The yellow LED will illuminate when both the input and output
CAT5e/6/7 signals are connected.
7Power: This green LED will illuminate when the device is connected to a
power supply.
8CAT5e/6 In: Connect to the transmitter unit with a Single CAT5e/6/7
cable for transmission of all data signals.
5
5

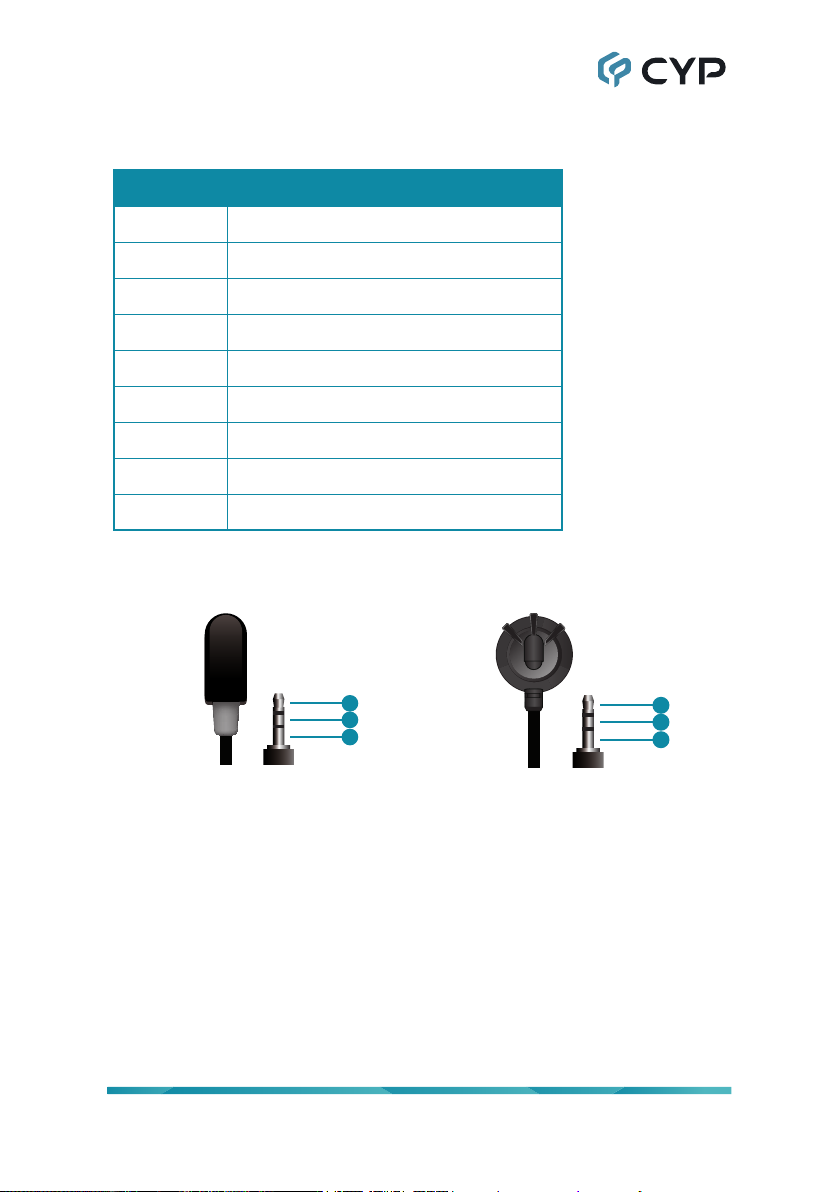

6.3 D-Sub 9-Pin Defi nitions
PIN DEFINE TX/RX
1N/C
2TxD/RxD
3RxD/TxD
4N/C
5GND
6N/C
7N/C
8N/C
9N/C
6.4 IR Cable Pin Assignment
IR Blaster
Cabl
e
1
2
3
Infrared
Power
Not Used
IR Extender
Cabl
e
1
2
3
Infrared
Power
Ground
6
6
7. CONNECTION DIAGRAM
TX
RX
DVD or Blu-ray Player
HDMI
HDMI
Display
Single
CAT5e/6/7
Cable
Power
Supply
Power
Supply
RS-232 Equipped Device
RS-232
Equipped
PC or
Notebook
IR Extender
IR Extender
IR Blaster
IR Blaster
RS-232
Adaptor
RS-232
Adaptor
IR1 Extender
RS232 Out IR2 Blaster
HDMI Out
Power
Link
CAT 5e/6 In
DC 5V
Power
Link
CAT 5e/6 Out
DC 5V
IR2 Extender
RS232 In IR1 Blaster
HDMI In
1.5m
60°
1.5m
60°
7m3m 3m
60°
m
m
m
7m3m 3m
60°
m
m
m
