CYP PU-514L-KIT Manuel utilisateur
PU-514L-KIT
v1.4 HDMI over Single CAT5e/6/7 HDBaseT™ LITE
with 2-Way IR (up to 60m)
OPERATION MANUAL
DISCLAIMERS
The information in this manual has been carefully checked and is
believed to be accurate. CYP (UK) Ltd assumes no responsibility for any
infringements of patents or other rights of third parties which may result
from its use.
CYP (UK) Ltd assumes no responsibility for any inaccuracies that may be
contained in this document. CYP (UK) Ltd also makes no commitment to
update or to keep current the information contained in this document.
CYP (UK) Ltd reserves the right to make improvements to this document
and/or product at any time and without notice.
COPYRIGHT NOTICE
No part of this document may be reproduced, transmitted, transcribed,
stored in a retrieval system, or any of its part translated into any language
or computer le, in any form or by any means—electronic, mechanical,
magnetic, optical, chemical, manual, or otherwise—without express
written permission and consent from CYP (UK) Ltd.
© Copyright 2011 by CYP (UK) Ltd.
All Rights Reserved.
Version 1.1 August 2011
TRADEMARK ACKNOWLEDGMENTS
All products or service names mentioned in this document may be
trademarks of the companies with which they are associated.
SAFETY PRECAUTIONS
Please read all instructions before attempting to unpack, install or operate
this equipment and before connecting the power supply.
Please keep the following in mind as you unpack and install this
equipment:
• Always follow basic safety precautions to reduce the risk of re,
electrical shock and injury to persons.
• To prevent re or shock hazard, do not expose the unit to rain,
moisture or install this product near water.
• Never spill liquid of any kind on or into this product.
• Never push an object of any kind into this product through any
openings or empty slots in the unit, as you may damage parts inside
the unit.
• Do not attach the power supply cabling to building surfaces.
• Use only the supplied power supply unit (PSU). Do not use the PSU if
it is damaged.
• Do not allow anything to rest on the power cabling or allow any
weight to be placed upon it or any person walk on it.
• To protect the unit from overheating, do not block any vents or
openings in the unit housing that provide ventilation and allow for
sucient space for air to circulate around the unit.
REVISION HISTORY
VERSION NO. DATE SUMMARY OF CHANGE
v1.00 15/03/13 First release
CONTENTS
1. Introduction ...........................................6
2. Applications ...........................................6
3. Package Contents ..................................6
4. System Requirements ...........................6
5. Features ..................................................7
6. Operation Controls and Functions .......8
6.1 Transmitter Front and Rear Panels ....... 8
6.2 Receiver Front and Rear Panels ............ 9
6.3 IR Pin Assignment ....................................10
7. Connection Diagram .......................... 11
8. Specications ...................................... 12
8.1 Technical Specications ........................12
8.2 CAT5e/6/7 I/O Cable Distance .............13
9. Acronyms ............................................. 14
6
1. INTRODUCTION
The PU-514-KIT allows uncompressed HDMI, and 2-way IR signals to be
transmitted over a Single CAT5e/6/7 cable.
Uncompressed video and audio can be transmitted to distances of up
to 60 meters (1080p) or up to 35 meters (4K×2K) and supports High
Denition Audio and 3D signals.
Designed with HDBaseT™ Lite technology for greater exibility in custom
installations with full HDMI and 2-way IR control signal transfer over a
single CAT5e/6/7 cable.
2. APPLICATIONS
Residential entertainment sharing and control
University lecture hall display and control
Retail sales display and control
Meeting room presentation and control
Commercial advertising display and control
3. PACKAGE CONTENTS
1×HDMI to CAT5e/6/7 with IR Transmitter
1×CAT5e/6/7 to HDMI with IR Receiver
2×IR Emitter
2×IR Receiver
2×5 V/2.6 A DC Power Adaptor
Operation Manual
4. SYSTEM REQUIREMENTS
HDMI source equipment such as DVD/Blu-ray player/PC and TV/monitor/
projector with HDMI input and HDMI and CAT5e/6/7 cables.
7
5. FEATURES
HDMI 1.4 with 3D, 4K×2K support, HDCP and DVI compliant
Supports HDMI 1.4 (including HDCP) over a single CAT5e/6/7 up to
60m
Complies with HDBaseT™- Lite specications
Full HD resolution support (1080p@60Hz/36-bit), 3D up to 60m, 4Kx2K
up to 35m and PC resolution support (VGA to WUXGA) over CAT5e/6
cable
HDMI input up to 15m with 8-bit deep colour, or 10m with 12-bit deep
colour
Supports HDMI output up to 15m with 8/12-bit deep colour
Supports 2-way IR
Supports High Denition LPCM 7.1CH, Dolby TrueHD, Dolby Digital
Plus and DTS-HD Master Audio transmission
8
6. OPERATION CONTROLS AND FUNCTIONS
6.1 Transmitter Front and Rear Panels
1 IR1 OUT/Emitter: Connect to the supplied IR emitter for IR signal
transmission to the source equipment. Place the IR emitter in direct line-
of-sight of the equipment to be controlled.
2 HDMI IN: Connect to an HDMI source device such as a DVD player or Set-
top Box with HDMI cable or DVI to HDMI cable.
3 IR2 IN/Receiver: Connect to the supplied IR receiver cable for IR
signal reception and transmission to IR2 OUT on the receiver unit.
Ensure that remote being used is within the direct line-of-sight of the
IR receiver.
4 DC 5V: Connect the 5V DC power supply to the unit and plug the
adaptor into an AC outlet.
5 CAT5e/6/7 OUT: Connect to the receiver unit with a single CAT5e/6/7
cable for transmission of all data signals. The yellow LED will illuminate
when both transmitter and receiver are connected together and are
powered. The green LED will illuminate when the device is connected to
the power supply.
9

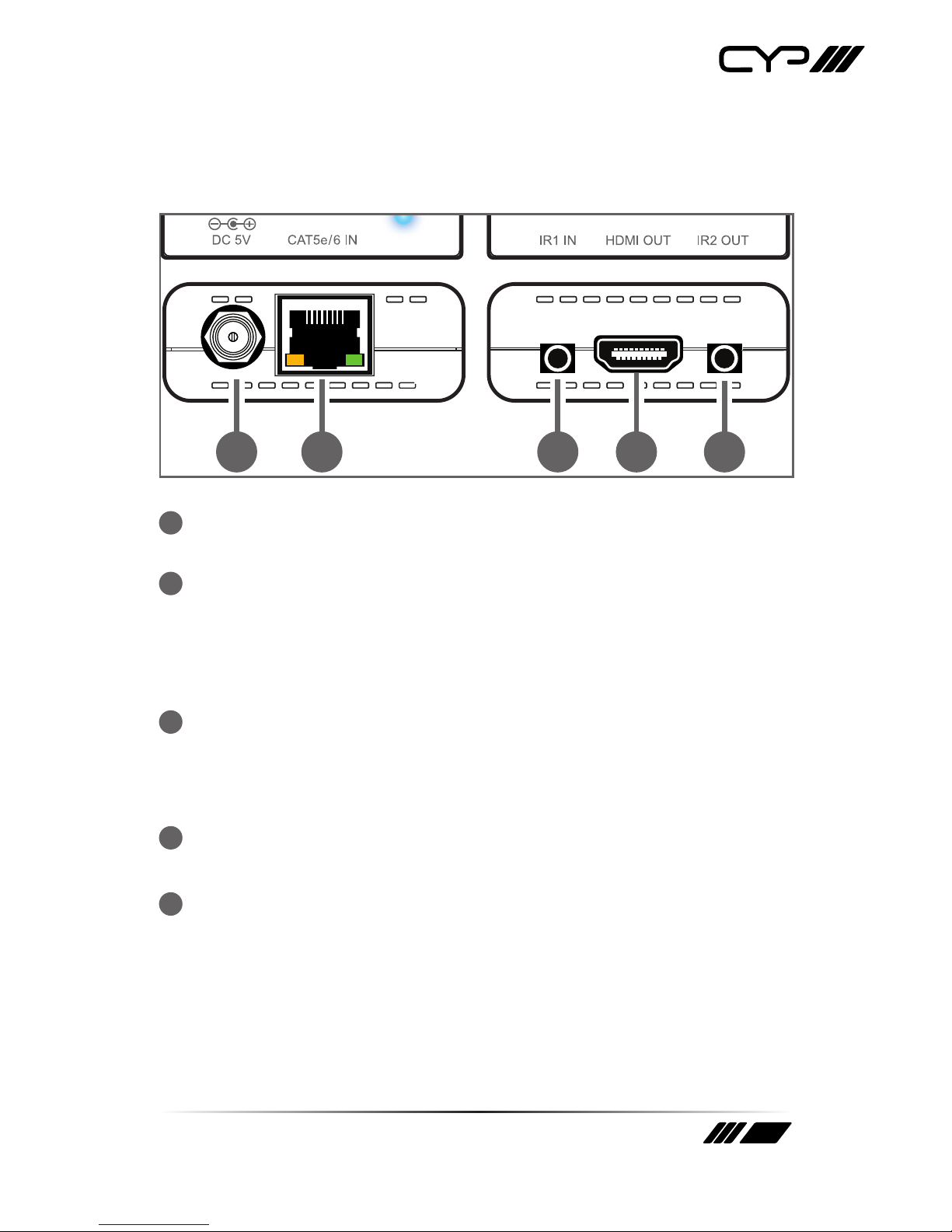

6.2 Receiver Front and Rear Panels
4 51 2 3
1 DC 5V: Connect the 5V DC power supply to the unit and plug the
adaptor into an AC outlet.
2 CAT5e/6/7 IN: Connect to the transmitter unit with a single CAT5e/6/7
cable for transmission of all data signals. The yellow LED will illuminate
when both the transmitter and receiver are connected and are powered.
The green LED will illuminate when the device is connected to the power
supply.
3 IR1 IN/Receiver: Connect the supplied IR receiver cable for IR signal
reception and transmission to IR1 OUT on the transmitter unit. Ensure
that the remote control being used is within the direct line-of-sight of
the IR receiver.
4 HDMI OUT: Connect to a HDMI equipped TV/monitor for display of
the HDMI input source signal.
5 IR2 OUT/Emitter: Connect the supplied IR emitter for IR signal
transmission to the source equipment location from the IR1 OUT on
the transmitter unit. Place the IR emitter in direct line-of-sight of the
equipment to be controlled.
10

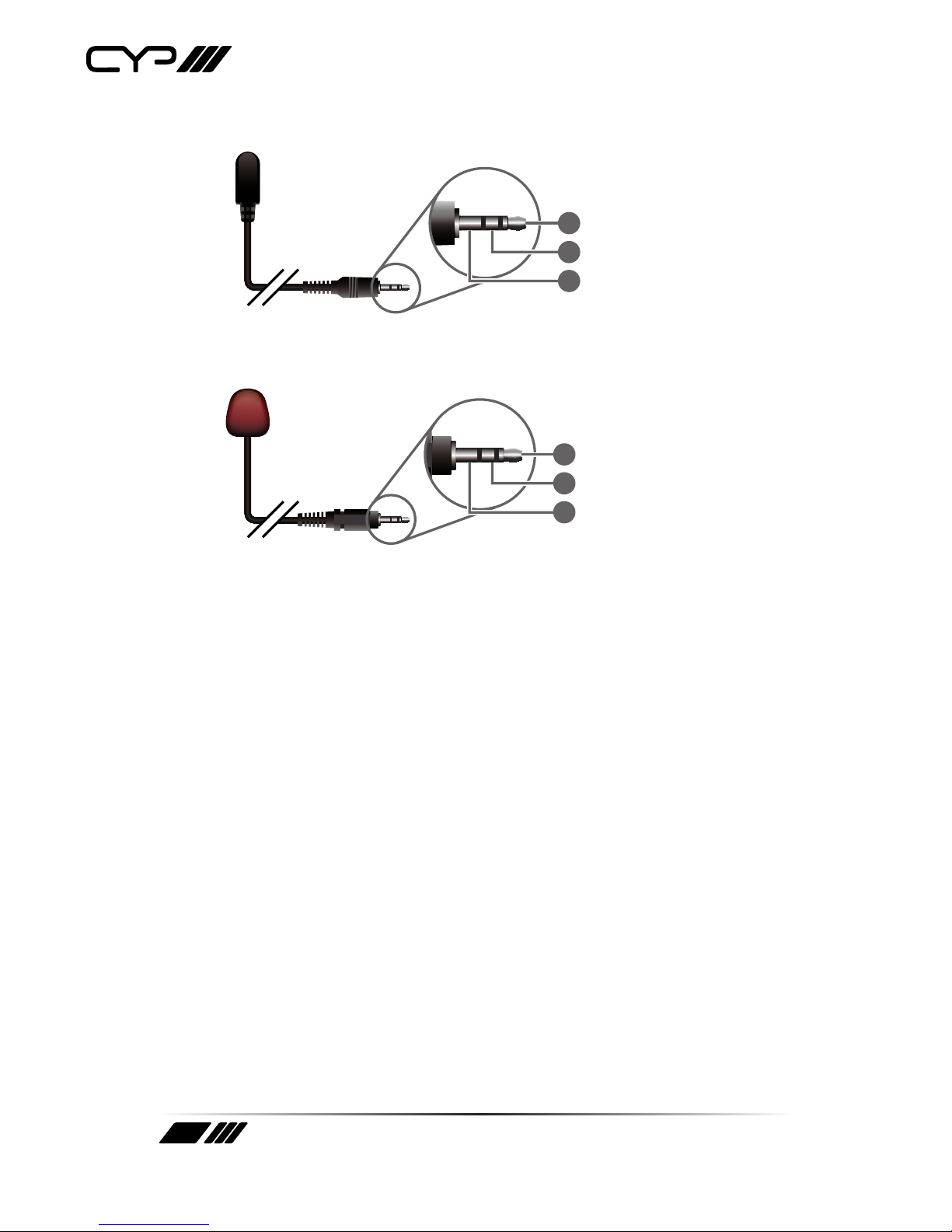

6.3 IR Pin Assignment
3
1
3
2
2
1Power 5 V
IR Emitter Signal
NC
IR Signal
Power 5 V
Ground
IR Receiver
IR Emitter
