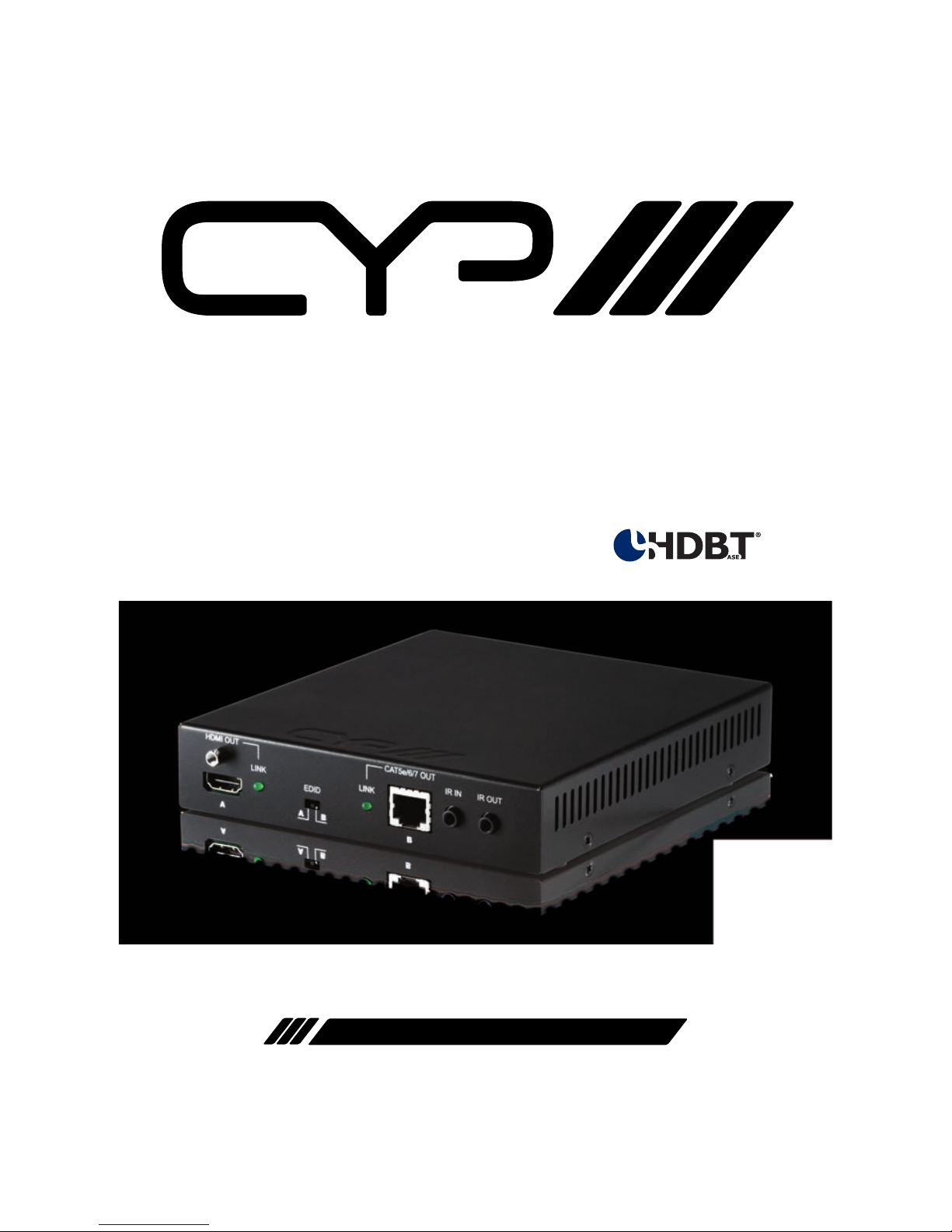

CYP PU-HBTPL-ZE Manuel utilisateur
PU-HBTPL-ZE
HDBaseT™ Lite Zone extender 1 x HDMI / 1 x HDBaseT out
OPERATION MANUAL
SAFETY PRECAUTIONS
Please read all instructions before attempting to unpack, install or
operate this equipment and before connecting the power supply.
Please keep the following in mind as you unpack and install this
equipment:
• Always follow basic safety precautions to reduce the risk of fi re,
electrical shock and injury to persons.
• To prevent fi re or shock hazard, do not expose the unit to rain,
moisture or install this product near water.
• Never spill liquid of any kind on or into this product.
• Never push an object of any kind into this product through any
openings or empty slots in the unit, as you may damage parts
inside the unit.
• Do not attach the power supply cabling to building surfaces.
• Use only the supplied power supply unit (PSU). Do not use the PSU
if it is damaged.
• Do not allow anything to rest on the power cabling or allow any
weight to be placed upon it or any person walk on it.
• To protect the unit from overheating, do not block any vents or
openings in the unit housing that provide ventilation and allow for
suffi cient space for air to circulate around the unit.
REVISION HISTORY
VERSION NO. DATE DD/MM/YY SUMMARY OF CHANGE
RDV1 08/09/14 Preliminary Release
CONTENTS
1. Introduction............................................ 1
2. Applications........................................... 1
3. Package Contents ................................ 1
4. System Requirements............................ 1
5. Features.................................................. 2
6. Operation Controls and Functions....... 3
6.1 Front Panel ........................................3
6.2 Rear Panel.........................................4
6.3 IR Cable Pin Assignment..................5
7. Connection Diagram ........................... 6
8. Specifi cations ........................................ 7
8.1 CAT5e/6/7 Cable Specifi cation .....8
9. Acronyms ............................................... 8
1
1
1. INTRODUCTION
The PU-HBTPL-ZE HDBaseT Lite Zone extender is designed to allow
AV integrators to easily create additional zones for any HDBaseT
distribution system whilst enabling the HDBaseT pass-through signal
to be extended further over CAT5e/6/7 (up to 60m). This device
supports the transmission of video (resolutions up to 1080p Full HD,
plus 4K Ultra High Definition, and 1920x1200@60Hz), multi-channel
digital audio and control via IR, RS-232 or Web GUI/Telnet IP over a
single CAT5e/6/7 cable. The Zone extender allows signals to be
transmitted up to 60m from the transmitter device to the Zone
extender where the signal can be routed to a local display via the
HDMI output. The signal is also transmitted simultaneously via the
HDBaseT output enabling it to be distributed up to 60m over
CAT5e/6/7 from the zone. The PU-HBTPL-ZE Zone extender utilises
PoC (Power over Cable) to provide power to the connected
Receiver unit, thus no requirement for a PSU on the Receiver end.
This device can be cascaded up to five times to create additional
zones.
2. APPLICATIONS
• Household entertainment sharing and control
• Lecture room display and control
• Showroom display and control
• Meeting room presentation and control
• Classroom display and control
3. PACKAGE CONTENTS
• CAT5e/6/7 over HDMI & CAT5e/6/7 with IR Splitter
•IR Blaster x 1
•IR Extender x 1
• 24V DC Power Adaptor
• Operation Manual
4. SYSTEM REQUIREMENTS
• Source equipment with HDMI over CAT5e/6/7 Transmitter
• Display TV/Monitor with HDMI input connector
• HDMI over CAT5e/6/7 Receivers with industry CAT5e/6/7 cables
2
2
5. FEATURES
,
Note:
1. This system was tested with CAT6/23AWG cables, results may vary
with cables of a different specification.
2. Displaying HDMI 4Kx2K resolution require the standard 4Kx2K HDMI
cable and display in order for proper image displaying.
3. This device obtain the last memory function therefore, the device
will use last output port's EDID when the output is not connected to
a display after power cycling.
The unit will detect HDMI output's EDID when it obtain a 4Kx2K
EDID and send out the signal accordingly to other output ports. If
the HDMI output is without a 4Kx2K's EDID the unit will detect
all output's EDID and send out the signal that all outputs can
accept.
• Supports uncompressed video/audio up to 10.2Gbps
• Supports resolutions VGA~WUXGA, 480i~1080p, 4K UHD@24/25/30Hz
(RGB 4:4:4 & YUV 4:2:2), 4K UHD@ 60Hz (YUV 4:2:0), 4K/2K@24/25/30Hz
(RGB 4:4:4 & YUV 4:2:2) and 4K/2K@ 60Hz (YUV 4:2:0) dependent
upon the output display’s EDID settings
• HDMI, HDCP and DVI compliant
• High Definition Audio supported: Dolby TrueHD, Dolby Digital Plus and
DTS-HD Master Audio plus LPCM (up to 192kHz)
• Supports RS-232, 2-Way IR, and HDMI CEC control pass through
• Supports 3D signals
3
3
6. OPERATION CONTROLS AND FUNCTIONS

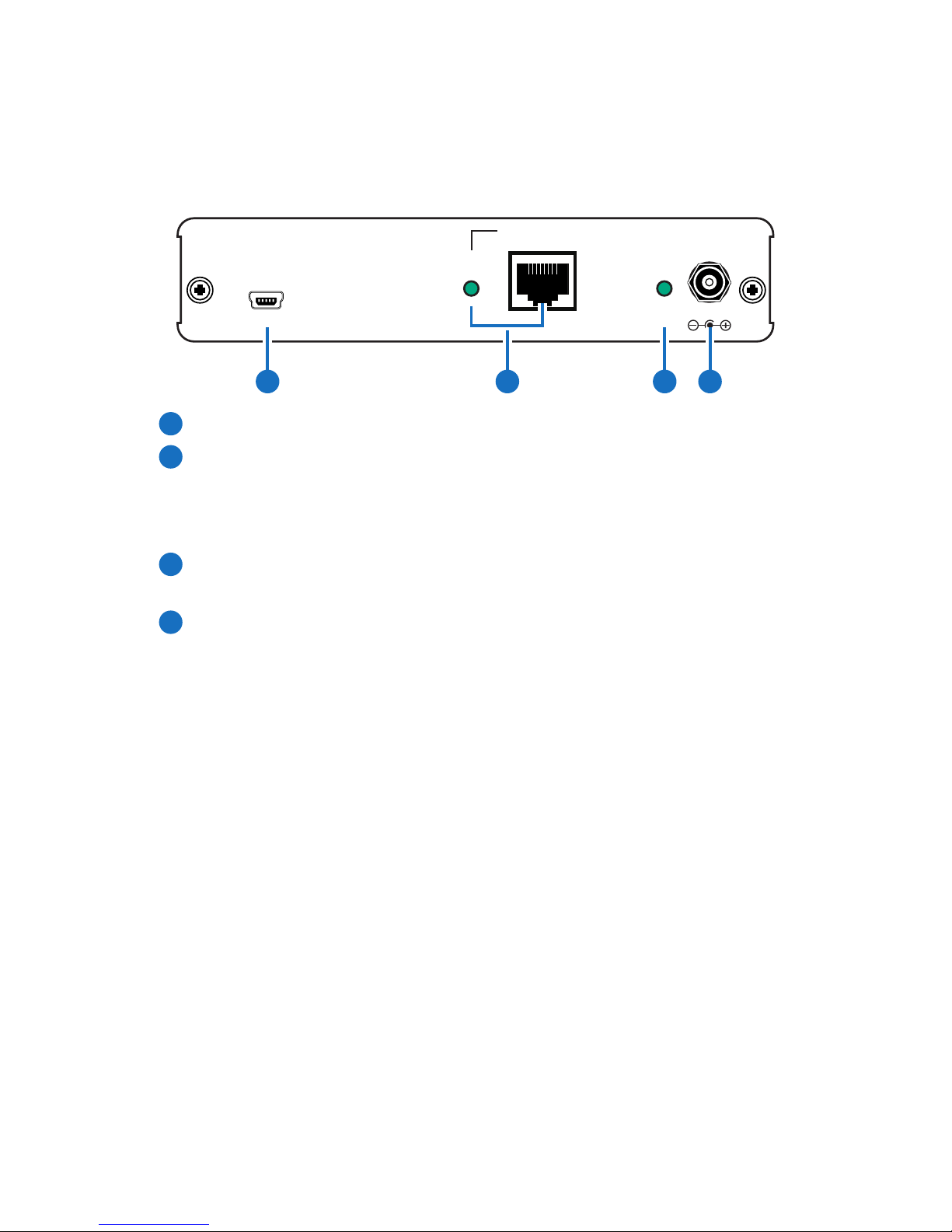

6.1 Front Panel
CAT5e/6/7 IN
LINK POWER
SERVICE
DC 24V
1 2 3 4
1SERVICE: This slot is reserved for fi rmware update only.
2CAT5e/6/7 IN & LINK LED: Connect from HDMI over CAT5e/6/7
Transmitter device along with source device for input signal
distribution up to 60m. Once the connection is made with active
signal the LINK LED will illuminate.
3POWER LED: Once the power supply is connected the LED will
illuminate.
4DC 24V: Plug the 24V DC power supply into the unit and connect
the adaptor to an AC outlet.
4
4
6.2 Rear Panel
HDMI OUTCAT5e/6/7 OUT
LINK LINK
IR IN IR OUT
EDID
A
AB
B
2 4 51 3
1HDMI OUT & LINK LED: Connect to HDMI display for instant image
display or cascade with another family type Transmitter. The LINK
LED will illuminate once and active display signal is detected.
This device obtain the last memory function therefore, the device
will use the last output port's EDID when The output port is not
connected to a display after power cycling.
2EDID: Switch to A/B to allows device to output image according to
output A/B (A: HDMI, B:CAT OUT) port's EDID. For example, switch
to A and both input and output A is connect to 4K2K's equivalence
signal, both output A and B will obtain a 4K2K's signal however
if output B is not connected with 4K2K's display there will be no
image.
3CAT5e/6/7 OUT & LINK LED: Connect this port to CAT5e/6/7 to HDMI
Receiver with CAT5e/6/7 cable along with display to extend the
signal up to 60m. Once the connection is made with active signal
the LINK LED will illuminate.
4IR IN: Connect with the supplied IR Extender to receive IR signal
from Transmitter side and blast out at Receiver side. Ensure that
remote controller being used is within the direct line-of-sight of the
IR Extender.
5IR OUT: Connect with the supplied IR Blaster to blast out the IR
signal received from the Receiver side. Place the IR Blaster in direct
line-of-sight of the equipment to be controlled.
5
5

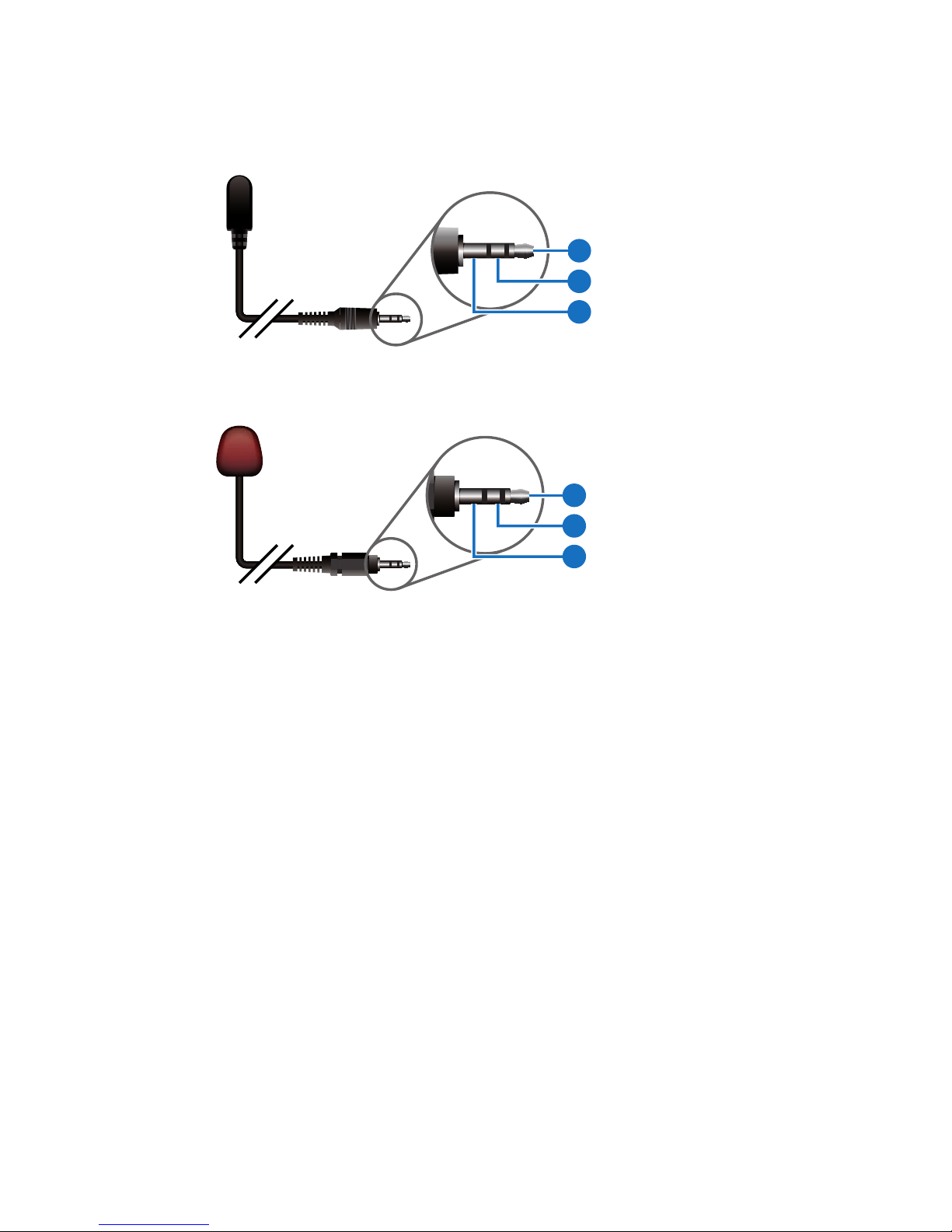

6.3 IR Cable Pin Assignment
3
1
3
1
2
2
Power
IR Blaster Signal
NC
IR Signal
Power
Grounding
IR Extender
IR Blaster
6
6

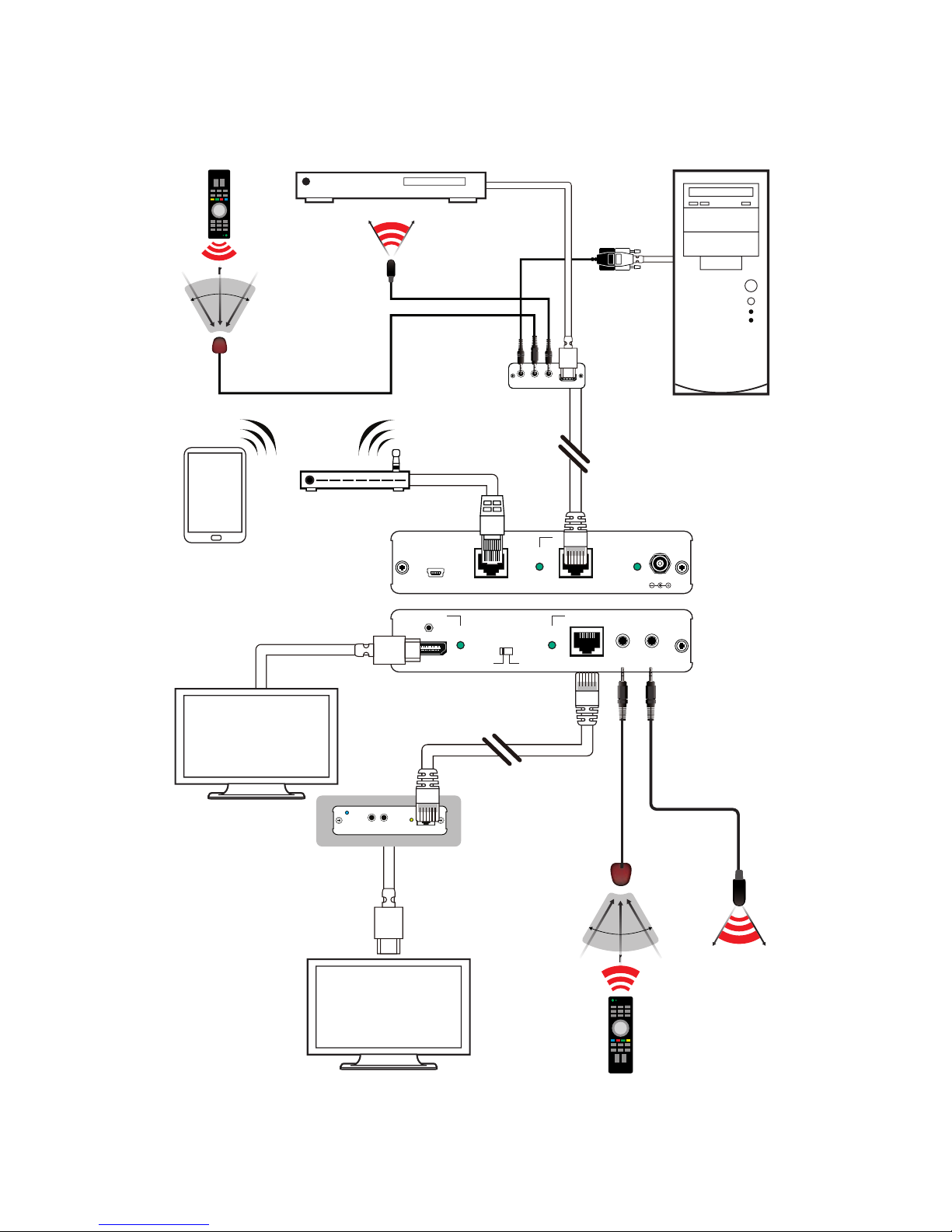

7. CONNECTION DIAGRAM
HDMI OUTCAT5e/6/7 OUT
LINK LINK
IR IN IR OUT
EDID
A
AB
B
LAN CAT5e/6/7 IN
LINK POWER
SERVICE
DC 24V
1.5m
60°
CAT5e/6 In
Link
IR1 Extender
IR2 Blaster
Power
7m
3m 3m
60°
m
IR2 Extender
RS232 In IR1 Blaster
HDMI In
7m
3m
3m
60°
m
1.5m
60°
3D TV/Display
Smartphone
or
Tablet
DVD or Blu-ray Player
3D TV/Display
CAT5e/6/7
Cable
60M
RS-232
Adaptor
HDMI
CAT5/6/7
Cable
60M
HDMI
RS-232
Equipped
PC or
Notebook
TX
Router with
Internet
Connection
IR Blaster
IR Extender
7
7
8. SPECIFICATIONS
Video Bandwidth 340Mbps/10.2Gbps
Input ports 1 x CAT5e/6/7,
1 x IR IN,
1 x USB (Service only)
Output ports 1 x HDMI,
1 x CAT5e/6/7
1 x IR OUT,
Resolution Up to 4Kx2K (3840x2160@24/25/30Hz/
4096x2160@24Hz/4K2K@60Hz YUV_420)
HDMI Input & Output
Cable Distance
Up to 10m@8 or12-bit 1080p
CAT5e/6/7 Output
Cable Distance
Up to 60m
IR Frequency 30~50kHz
Power Supply 24V / 1.25A DC (US/EU standards, CE/FCC/
UL certifi ed)
Dimensions 145 mm(W) x 160 mm(D) x 30 mm(H)/
Jacks Excluded
45 mm(W) x 172.75 mm(D) x 35 mm(H)/
Jacks Included
Weight 662g
Chassis Material Metal
Silkscreen Color Black
ESD Protection Human body model:
±8kV (air-gap discharge)
±4kV (contact discharge)
Operating Temperature 0°C ~ 40°C
Storage Temperature -20˚C ~ 60˚C / -4 ˚F ~ 140 ˚F
Relative Humidity 20 ~ 90% RH (non-condensing)
Power Consumption 22.33W/with Receiver connected
