PRO-3GSDI44
3G-SDI 4 to 4 Switching
Distribution Amplier
OPERATION MANUAL
Safety Precautions
Please read all instructions before attempting to unpack or install or
operate this equipment, and before connecting the power supply.
Please keep the following in mind as you unpack and install this
equipment:
Always follow basic safety precautions to reduce the risk of
fire, electrical shock and injury to persons.
To prevent fire or shock hazard, do not expose the unit to rain,
moisture or install this product near water.
Never spill liquid of any kind on or into this product.
Never push an object of any kind into this product through
module openings or empty slots, as you may damage parts.
Do not attach the power supply cabling to building surfaces.
Do not allow anything to rest on the power cabling or allow it to
be abused by persons walking on it.
To protect the equipment from overheating, do not block the
slots and openings in the module housing that provide
ventilation.
Revision History
Version No Date Summary of Change
VR0 20110103 Preliminary Release
v1.01 20140120 Corrected RS-232
Command
Table of Contents
1
1
1
1
2
3
4
4
4
5
5
5
6
7
8
1. Introduction ……………………..……………………...…........….…….
2. Applications …………………..………………….……...................…..
3. Package Contents ………………………...........……….................…
4. System Requirements ……………..……….........………............…….
5. Features …………………………………………......……........…...……
6. Specications ………………………………...……..........………....….
7. Operation Controls and Functions ……………...……..............……
7.1 Front Panel ..............................................................................
7.2 Rear Panel .…………………………………..…….......…...….…
8. RS-232 Protocols .......................…......……......…..........…..…....…...
8.1 Pin Assignment ..................…......………..……..........…..…....….
8.2 Commands .........…..…........................................................…...
9. Remote Control ................................................................................
10. Connection and Installation ….………………….........…..…..…......
11. Acronyms …......................................................................................
1. Introduction
The 3G-SDI 4 by 4 Switcher allows SD-SDI, HD-SDI and 3G-SDI signals to be
shown on SDI display while ensuring high bit rates of 2.970 Gbit/s to give you
fast signal transmission without signal loss. For professionals this means that
it is now easier to switch four 3G-SDI signals and split it up to four SDI signal
outputs.
2. Applications
Video broadcasting display
Professional video program display
Film studios program monitoring
Video program switching display
3. Package Contents
3G-SDI 4 by 4 Switcher
Remote Control (CR-23)
5V/2.6A DC power adaptor
Operation Manual
4. System Requirements
Input connects with SDI sources and output connects with SDI displays, all
input/output with SDI cables.
5. Features
Four 3G-SDI input sources can selected as the source and split to four
3G-SDI displays simultaneously
Operation at 2.970Gb/s, 2.970/1.001Gb/s, 1.485Gb/s, 1.485/1.001Gb/s
and 270Mb/s
Supports SMPTE 425M (Level A and Level B), SMPTE 424M, SMPTE 292M,
SMPTE 259M-C
Provides the Equalized and re-clocked transmission
Control by RS-232, IR Remote and on panel buttons
Supports signal input and output distance of up to 300M for SD signals,
200M for HD signals and 100M for 3G signals.
Note: Cable tested with Belden 1694A. Operating distances may vary if
used with another type of cable.
1
6. Specications
SMPTE Standard 425M Level A & B, 424M, 292M, 259M-C
SDI Transmit ion Rates 2.970 Gbit/s and 2.970/1.001 Gbit/s
Input/Output Ports 4/4 BNC (SD-SDI/HD-SDI/3G-SDI)
Support Timing SD-SDI: 480i / 576i
HD-SDI: 720p@50/60, 1080i@50/60, 1080p@24/50/60
3G-SDI: 1080p@50/60
Power Supply 5V DC/ 2.6A (US/EU standards, CE/FCC/UL certified)
ESD Protection Human body model: ± 8kV (air-gap discharge)
± 4kV (contact discharge)
SDI Cable Distance 3G-SDI up to 100M (BELDEN 1694A)
HD-SDI up to 200M (BELDEN 1694A)
SD-SDI up to 300M (BELDEN 1694A)
Dimension (mm) 200 (W) x 138 (D) x 30 (H)
Weight (g) 900
Chassis Material Metal
Silkscreen Color Black
Operating Temperature 0˚C ~ 40˚C / 32˚F ~ 104˚F
Storage Temperature -20˚C ~ 60˚C / -4˚F ~ 140˚F
Relative Humidity 20 ~ 90% RH (Non-condensing)
Power Consumption (W) 5W
2
7. Operation Controls and Functions
7.1 Front Panel
POWER
INPUT
1
2
3
4
SDI OUTPUT
PRO-3GSDI44
① ② ③ ④
①Power LED: This green LED will illuminate when the device is connected
with power supply.
②IR receiver: This IR window receives IR signal from the remote control
included in the package.
③3G-SDI Input select/Indicator 1~4: Press the input button sequentially to
switch to your desired SDI input source, the LED will illuminate to indicate
which input source is selected.
④SDI OUTPUT: These slots are to connect to the SDI displays with an SDI
cables for displaying images. Or it can be connect with another SDI
converter/extender to extend the signal.
7.2 Rear Panel
12 3 4
SDI INPUT
RS-232
DC 5V
① ② ③
①SDI INPUT: These slots are to connect to the SDI source equipments such
as video camcorder or SDI player.
②RS-232: Connect with D-Sub 9pin cable from the PC/NB for RS-232 control.
③DC 5V: Plug the 5V DC power supply into the unit and connect the
adaptor to AC wall outlet. Green LED will illuminate when the power is
connected.
3
8. RS-232 Protocols
8.1 Pin Assignment
Pins definition of modem cable
Remote Controller
PIN Definition PIN Definition
1 NC 1 NC
2 TxD 2 RxD
3 RxD 3 TxD
4 NC 4 NC
5 GND 5 GND
6 NC 6 NC
7 NC 7 NC
8 NC 8 NC
9 NC 9 NC
Baud Rate: 19200bps
Data bit: 8 bits
Parity: None
Stop bit: 1 bit
8.2 Commands
Command Action
pc Enter into /exit PC Command
power00 Power OFF
power01 Power ON
input01 Input selction 1
input02 Input selection 2
input03 Input selection3
input04 Input selection4
4
All commands must be followed by a carriage return

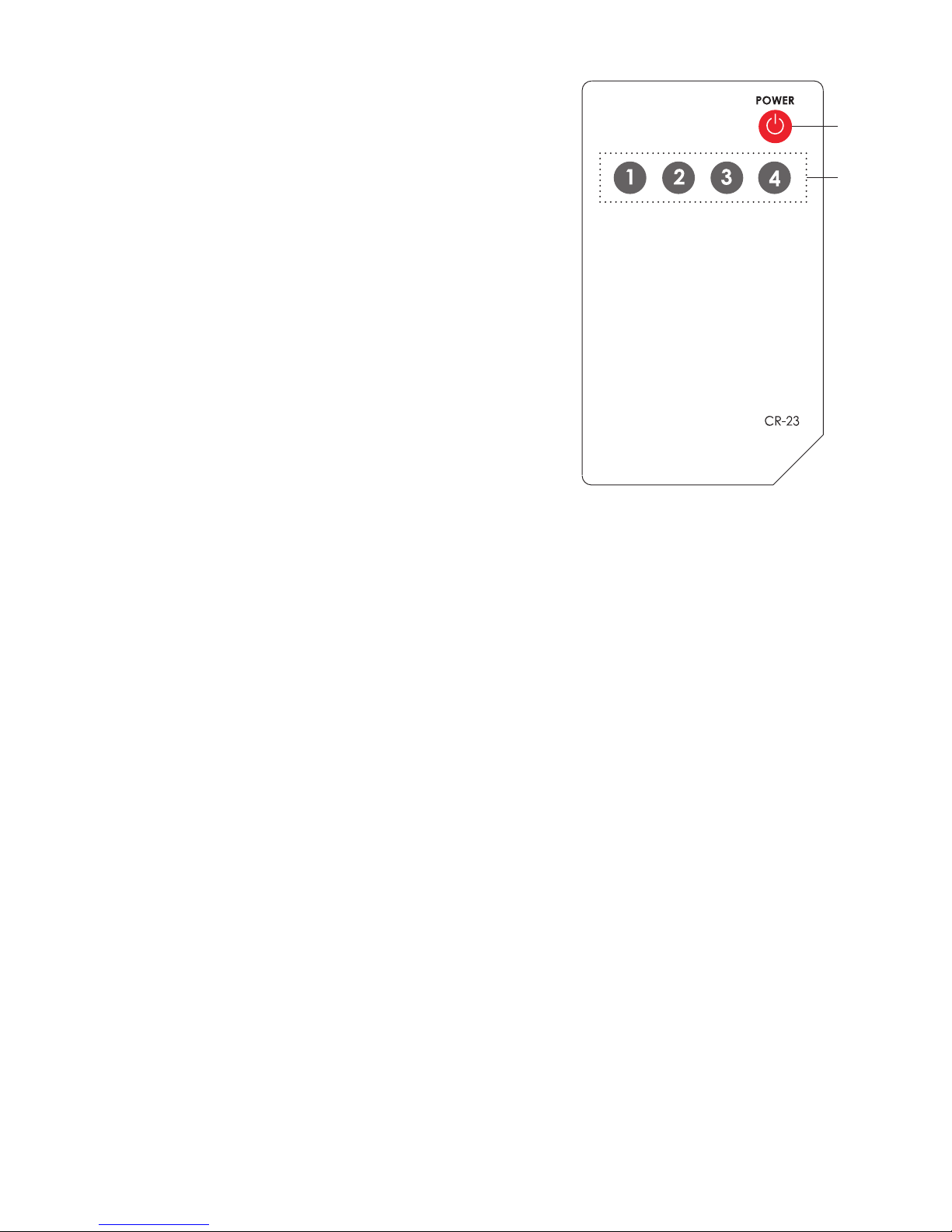

9. Remote Control
①Power: Press the button to turn on/off the
unit.
②Direct input selector: Press 1, 2, 3 or 4 to
select the desired input source.
①
②
5
10. Connection and Installation
Acronyms A
Acronym Complete Term
3G Bandwidth 2.97Gbit/s ≈ 3G
BNC Bayonet Neill-Concelman
SDI Serial Digital Interface
