QU-14S

1 to 4 HDMI Distribution Amplier (4K Resolution)

Operation Manual

SAFETY PRECAUTIONS

Please read all instructions before attempting to unpack, install or

operate this equipment and before connecting the power supply.

Please keep the following in mind as you unpack and install this

equipment:

• Always follow basic safety precautions to reduce the risk of re,

electrical shock and injury to persons.

• To prevent re or shock hazard, do not expose the unit to rain,

moisture or install this product near water.

• Never spill liquid of any kind on or into this product.

• Never push an object of any kind into this product through any

openings or empty slots in the unit, as you may damage parts

inside the unit.

• Do not attach the power supply cabling to building surfaces.

• Use only the supplied power supply unit (PSU). Do not use the PSU

if it is damaged.

• Do not allow anything to rest on the power cabling or allow any

weight to be placed upon it or any person walk on it.

• To protect the unit from overheating, do not block any vents or

openings in the unit housing that provide ventilation and allow for

sufcient space for air to circulate around the unit.

REVISION HISTORY

VERSION NO. DATE DD/MM/YY SUMMARY OF CHANGE

RDV1 22/15/13 Preliminary release

RDV2 08/07/13 EDID behavior

CONTENTS

1. Introduction ............................................ 1

2. Applications ........................................... 1

3. Package Contents ................................ 1

4. System Requirements ............................ 1

5. Features .................................................. 1

6. Operation Controls and Functions ....... 2

6.1 Front Panel ........................................2

6.2 Rear Panel .........................................3

7. Specications ........................................ 4

8. Connection and Installation ................. 5

9. Acronyms ............................................... 6

1. INTRODUCTION

This range of high performance HDMI splitters provide one HDMI in to

four HDMI outputs and support 4Kx2K, 3D, 12-bit Deep Coloer as well

as High denition Lossless Audio. With its 3Gbps bandwidth and the

additional features of the latest HDMI standards you can be sure of

great HDMI distribution.

2. APPLICATIONS

• Simultaneously display one HDMI source on 4 TVs/projectors

• Showroom display

• University lecture hall display

• Retail sales display

• Commercial presentation switcher/scaler

3. PACKAGE CONTENTS

• 1 x 1 by 4 HDMI Splitter

• 1 x 5V DC Power Supply Adaptor

• Operation Manual

4. SYSTEM REQUIREMENTS

• HDMI equipped source devices such as a DVD/Blu-ray play with

HDMI cables or DVI to HDMI cables

• HDMI equipped displays (TV or monitors) with HDMI cables

5. FEATURES

• Supports HDTV resolutions up to 4Kx2K/30Hz

• HDMI and DVI compatible

• Supports 1080p@60Hz, Deep Color 12-bit

• Supports LPCM 7.1CH, Dolby TrueHD and DTS-HD Master Audio

• Supports 3D

• Supports System reset and EDID selection functions

Note: Displaying HDMI 4Kx2K resolution require the standard 4Kx2K

HDMI cable and display in order for proper image displaying.

6. OPERATION CONTROLS AND FUNCTIONS

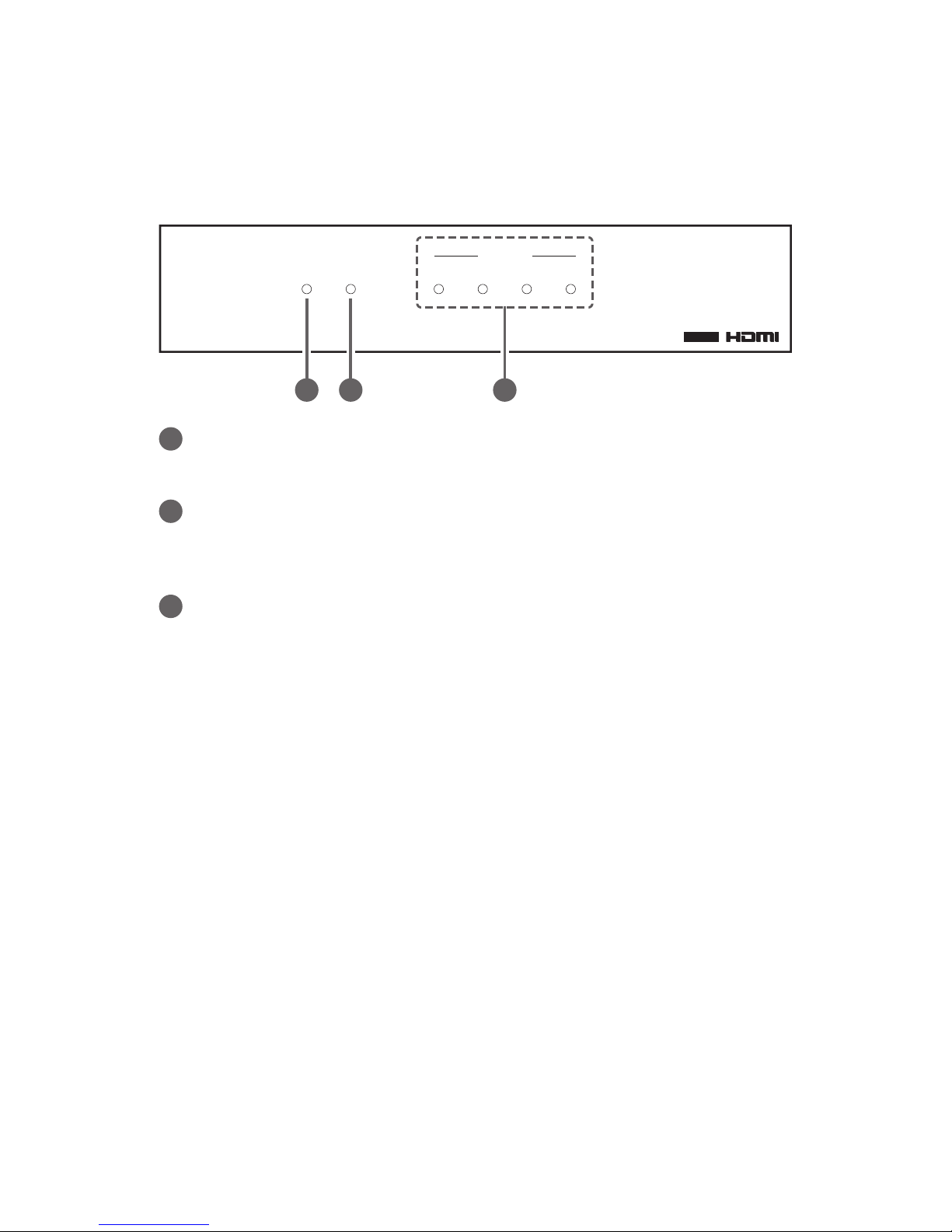

6.1 Front Panel

2 3 4

SYNCPOWER

HDMI OUT

4Kx2K

1 2 3

1 POWER LED

Once the power supply is connected the LED will illuminate.

2 SYNC

This LED will illuminate when the HDMI input port is connected to an

active source.

3 HDMI OUT LEDs

These LEDs will illuminate when HDMI output are connected to TV

or display monitor.

6.2 Rear Panel

DC 5V

HDMI OUT

SYS

RESET

ON OFF

SERVICEEDID

STD TV

1 2 3 4

HDMI IN

4321 65

1 SYS RESET ON/OFF

This switch allows the user to perform a system reset. The default

setting is OFF, leave as it is when in normal use. By switching

ON, the unit will perform a reset every 8~10 minutes, in order to

perfrom this function the displays must have CEC supported.

When performed successfully, the system will automatically switch

the displays to HDMI input 1. They system reset will not perform on

those displays that do not have a CEC function.

2 EDID STD/TV

The default factory setting is on TV, leave as it is when the display

is properly. The unit will detect the 1st HDMI output’s EDID when

it obtain a 4Kx2K EDID and send out the signal accordingly to all

other output ports.

If the 1st HDMI output is without a 4Kx2K's EDID the unit will detect all

output's EDID and send out the signal that all outputs can accept.

This device obtain the last memory function therefore, the device

will use the last output port 1's EDID when output port 1 is not

connected to a display after every power cycling or switch in

between the EDID setting.

Switch to STD to use build-in EDID if the display has problem. STD

EDID’s video at 1080p@60Hz and audio at LPCM 2CH.

3 SERVICE

This slot is reserved for factory service only.

4 HDMI IN

Connect with source equipment such as DVD/Blu-ray or PS3

player.

5 HDMI OUT

Connect to HDMI display for instant image display or cascade with

another family type transmitter.

6 DC 5V

Plug the 5V DC power supply into the unit and connected the

adaptor to an AC outlet.

7. SPECIFICATIONS

Video Bandwidth 300Mbps/9Gbps

Input ports 1 x HDMI,

1 x USB (Service only)

Output ports 4 x HDMI

Resolution Up to 4kx2k (3840x2160@24/25/30Hz/4096x

2160@24Hz)

Power Supply 5V / 2.6 A DC (US/EU standards, CE/FCC/

UL certied)

Dimensions 215mm(W) x 140mm(D) x 48mm(H)

Weight 858 g

Chassis Material Metal

Silkscreen Color Black

ESD Protection Human Body Model: ±8kV (air-gap

discharge)

±4kV (contact

discharge)

Operating Temperature 0˚C ~ 40˚C / 32 ˚F ~ 104 ˚F

Storage Temperature -20˚C ~ 60˚C / -4 ˚F ~ 140 ˚F

Relative Humidity 20~90% RH (non-condensing)

Power Consumption 4W

8. CONNECTION AND INSTALLATION

TV/Monitors

Blu-ray Player

HDMI Input

Simultaneous

HDMI Outputs

Power

Supply

Example Shown:

1 to 4 HDMI Splitter

9. ACRONYMS

ACRONYM COMPLETE TERM

DTS Digital Theater System

EDID Extended Display Identication Data

HDCP High-bandwidth Digital Content Protection

HDMI High-Denition Multimedia Interface

HDTV High-Denition Television
