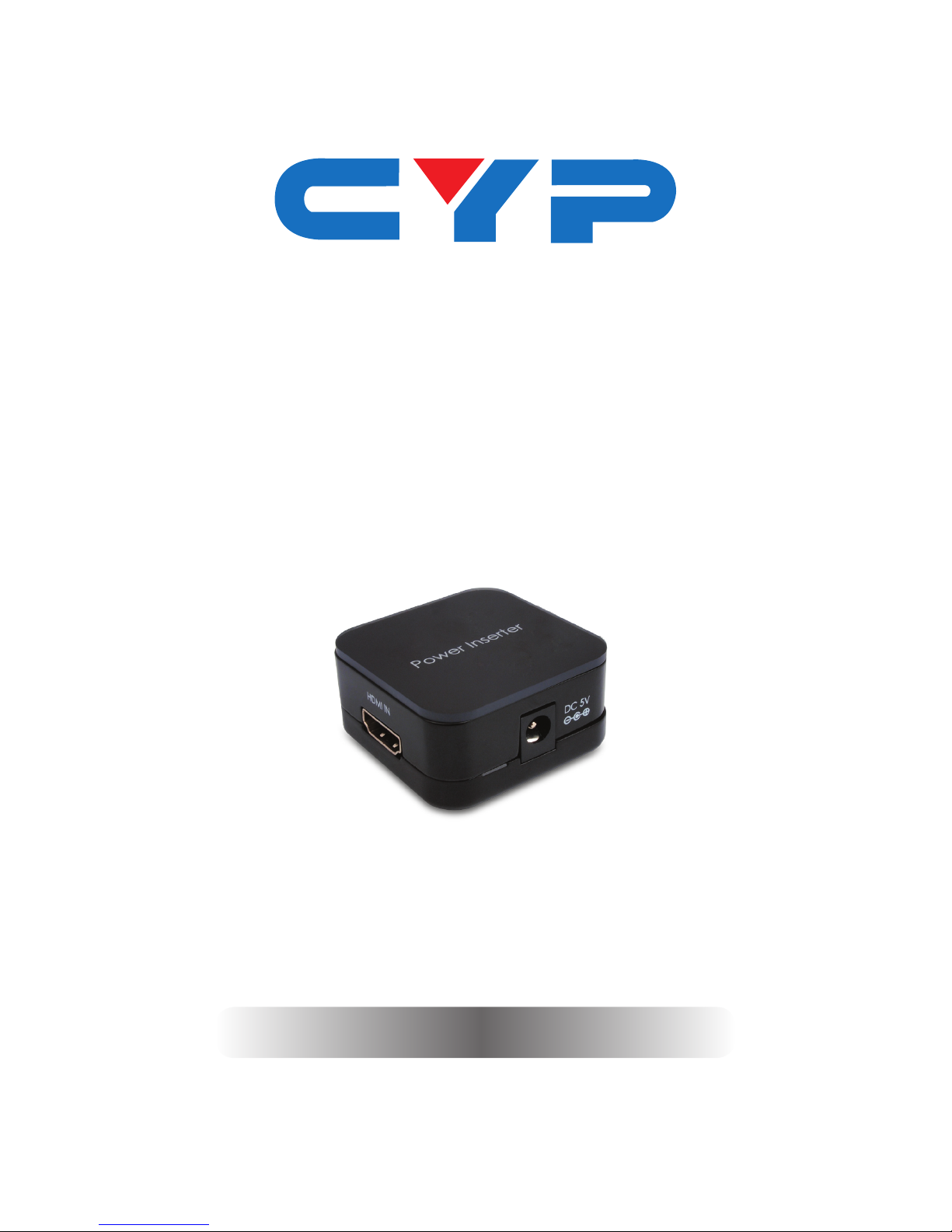

CYP CS-PM Manuel utilisateur
CS-PM
HDMI Power Inserter
Operation Manual
Operation Manual
DISCLAIMERS
The information in this manual has been carefully checked and
is believed to be accurate. Cypress Technology assumes no
responsibility for any infringements of patents or other rights of third
parties which may result from its use.
Cypress Technology assumes no responsibility for any inaccuracies
that may be contained in this document. Cypress also makes no
commitment to update or to keep current the information contained
in this document.
Cypress Technology reserves the right to make improvements to this
document and/or product at any time and without notice.
COPYRIGHT NOTICE
No part of this document may be reproduced, transmitted,
transcribed, stored in a retrieval system, or any of its part translated
into any language or computer le, in any form or by any means—
electronic, mechanical, magnetic, optical, chemical, manual, or
otherwise—without express written permission and consent from
Cypress Technology.
© Copyright 2011 by Cypress Technology.
All Rights Reserved.
Version 1.1 August 2011
TRADEMARK ACKNOWLEDGMENTS
All products or service names mentioned in this document may be
trademarks of the companies with which they are associated.
SAFETY PRECAUTIONS
Please read all instructions before attempting to unpack, install or
operate this equipment and before connecting the power supply.
Please keep the following in mind as you unpack and install this
equipment:
• Always follow basic safety precautions to reduce the risk of re,
electrical shock and injury to persons.
• To prevent re or shock hazard, do not expose the unit to rain,
moisture or install this product near water.
• Never spill liquid of any kind on or into this product.
• Never push an object of any kind into this product through any
openings or empty slots in the unit, as you may damage parts
inside the unit.
• Do not attach the power supply cabling to building surfaces.
• Use only the supplied power supply unit (PSU). Do not use the PSU
if it is damaged.
• Do not allow anything to rest on the power cabling or allow any
weight to be placed upon it or any person walk on it.
• To protect the unit from overheating, do not block any vents or
openings in the unit housing that provide ventilation and allow for
sufcient space for air to circulate around the unit.
REVISION HISTORY
VERSION NO. DATE DD/MM/YY SUMMARY OF CHANGE
VR0 18/07/11 Preliminary Release
VR1 12/10/11 Added the reference to CS-HH
HDMI Enhancer
VS1 12/10/12 Updated format/diagrams
CONTENTS
1. Introduction............................................ 1
2. Applications........................................... 1
3. Package Contents ................................ 1
4. System Requirements............................ 1
5. Features.................................................. 2
6. Operation Controls and Functions....... 3
6.1 Left Panel ..........................................3
6.2 Right Panel........................................3
6.3 Front Panel ........................................3
7. Connection Diagram ............................ 4
8. Specications ........................................ 5
9. Acronyms ............................................... 5
1
1. INTRODUCTION
The HDMI Power Inserter allows users to add extra power to HDMI
connections. When cascading video over long distances, or when the
source device (such as a DVD/Blu-ray player or Set-top Box) cannot
provide enough power, you are often left with a degraded signal
because, without enough power, your video signal will not be stable
and you cannot increase your operating distance. The HDMI Power
Inserter can solve this by providing up to 5 V/2 A of power to HDMI
devices like scalers, splitters or it can power an HDMI Enhancer (with
built-in HDMI CDR and equalizer) to stabilize the signal and help to
solve HDMI power issues.
2. APPLICATIONS
• Installation usage
• HDMI signal cascading
• Extending HDMI cable distance
• HDMI signal stabilization
3. PACKAGE CONTENTS
• HDMI Power Inserter
• 5 V/2.6 A Power adaptor
• Operation Manual
4. SYSTEM REQUIREMENTS
HDMI equipped source device and an HDMI equipped display (TV
or monitor) or cascade with another HDMI device to extend the
distance.
2
5. FEATURES
• Provides extra power to an HDMI output while safely disconnecting
the original power supply from the HDMI input without interrupting
the original HDMI signal
• Supports up to 5 V/2 A
• Over current protection
• Compact and easy to use
• Maximum total input and output cable lengths supported are 16
meter at 8-bit and 10 meter at 12-bit color depth
Note: Cable distances may vary according to the quality of the
source equipment's HDMI signal.
3
6. OPERATION CONTROLS AND FUNCTIONS
6.1 Left Panel
HDMI IN
1
1
HDMI IN: Connect to the HDMI source equipment such as a Blu-ray
player or an HDMI switcher/HDMI Splitter/HDMI Matrix.
6.2 Right Panel
HDMI OUT
1
1
HDMI OUT: Connect to your HDMI transmitter box or display to
overcome the shortage of the power from the source.
6.3 Front Panel
DC 5V
1
1
DC 5V: Connect to the 5V DC power supply into the unit and plug
the adaptor to an AC wall outlet.
4
7. CONNECTION DIAGRAM
HDMI OUT
HDMI IN
HDMI Input
HDMI Source
(DVD/Blu-ray Player)
HDMI
Cable (15m)
HDMI
Cable (15m)
HDMI
Enhancer
(Optional)
HDMI
Power
Inserter
HDMI Display
5
8. SPECIFICATIONS
Input Port 1×HDMI (Female connector)
Output Port 1×HDMI (Female connector)
Input Cable Distance 8 m/1080p@8-bit
5 m/1080p@12-bit
Output Cable Distance 8 m/1080p@8-bit
5 m/1080p@12-bit
ESD Protection Human Body model:
±8 kV (air-gap discharge)
±4 kV (contact discharge)
Dimensions 46 mm (W)×45.5 mm (D)×23.5 mm (H)
Weight 30 g
Chassis Material Plastic
Silkscreen Color Black
Operating Temperature 0 ˚C~40 ˚C/32 ˚F~104 ˚F
Storage temperature −20 ˚C~60 ˚C/−4 ˚F~140 ˚F
Relative Humidity 20~90% RH (no condensation)
Power Consumption 0.25 W~10 W (Max)
Output Total Power 12 W (Max)
9. ACRONYMS
ACRONYM COMPLETE TERM
HDMI High Denition Multimedia Interface
