PRO-3GSDI14

3G-SDI 1 to 4 Distribution

Amplier

OPERATION MANUAL

Safety Precautions

Please read all instructions before attempting to unpack or install or

operate this equipment, and before connecting the power supply.

Please keep the following in mind as you unpack and install this

equipment:

 Always follow basic safety precautions to reduce the risk of

ﬁre, electrical shock and injury to persons.

 To prevent ﬁre or shock hazard, do not expose the unit to rain,

moisture or install this product near water.

 Never spill liquid of any kind on or into this product.

 Never push an object of any kind into this product through

module openings or empty slots, as you may damage parts.

 Do not attach the power supply cabling to building surfaces.

 Do not allow anything to rest on the power cabling or allow it to

be abused by persons walking on it.

 To protect the equipment from overheating, do not block the

slots and openings in the module housing that provide

ventilation.

Revision History

Version No Date Summary of Change

RDV1 20110315 Preliminary Release

Table of Contents

1

1

1

1

1

2

3

3

3

4

5

1. Introduction ……………………..……………………...…........….…….

2. Applications …………………..………………….……...................…..

3. Package Contents ………………………...........……….................…

4. System Requirements ……………..……….........………............…….

5. Features …………………………………………......……........…...……

6. Specications ………………………………...……..........………....….

7. Operation Controls and Functions ……………...……..............……

7.1 Front Panel ..............................................................................

7.2 Rear Panel .…………………………………..…….......…...….…

8. Connection and Installation ….………………….........…..…..…......

9. Acronyms …......................................................................................

1. Introduction

The 3G-SDI 1 by 4 Splitter allows SD-SDI, HD-SDI and 3G-SDI signals to be

shown on SDI display while ensuring high bit rates of 2.970 Gbit/s to give you

fast signal transmission without signal loss. For professionals this means that it

is now easier to Splitter a 3G-SDI signals up to four SDI signal outputs.

2. Applications



Video broadcasting display



Professional video program display



Film studios program monitoring



Video program switching display

3. Package Contents



3G-SDI 1 by 4 Splitter



5V/2.6A DC power adaptor



Operation Manual

4. System Requirements

Input connects with SDI sources and output connects with SDI displays, all

input/output with SDI cables.

5. Features



One 3G-SDI input sources can selected as the source and split to four

3G-SDI displays simultaneously



Operation at 2.970Gb/s, 2.970/1.001Gb/s, 1.485Gb/s, 1.485/1.001Gb/s

and 270Mb/s



Supports SMPTE 425M (Level A and Level B), SMPTE 424M, SMPTE 292M,

SMPTE 259M-C



Provides the Equalized and re-clocked transmission



Supports signal input and output distance of up to 300M for SD signals,

200M for HD signals and 100M for 3G signals.

Note: Cable tested with Belden 1694A. Operating distances may vary if

used with another type of cable.

1

6. Specications

SMPTE Standard 425M Level A & B, 424M, 292M, 259M-C

SDI Transmit ion Rates 2.970 Gbit/s and 2.970/1.001 Gbit/s

Input/Output Ports 1/4 BNC (SD-SDI/HD-SDI/3G-SDI)

Support Timing SD-SDI: 480i / 576i

HD-SDI: 720p@50/60, 1080i@50/60, 1080p@24/50/60

3G-SDI: 1080p@50/60

Power Supply 5V DC/ 2.6A (US/EU standards, CE/FCC/UL certiﬁed)

ESD Protection Human body model: ± 8kV (air-gap discharge)

± 4kV (contact discharge)

SDI Cable Distance 3G-SDI up to 100M (BELDEN 1694A)

HD-SDI up to 200M (BELDEN 1694A)

SD-SDI up to 300M (BELDEN 1694A)

Dimension (mm) 200 (W) x 138 (D) x 30 (H)

Weight (g) 900

Chassis Material Metal

Silkscreen Color Black

Operating Temperature 0˚C ~ 40˚C / 32˚F ~ 104˚F

Storage Temperature -20˚C ~ 60˚C / -4˚F ~ 140˚F

Relative Humidity 20 ~ 90% RH (Non-condensing)

Power Consumption (W) 5W

2

7. Operation Controls and Functions

7.1 Front Panel

POWER SDI OUTPUT

PRO-3GSDI14

① ②

①Power LED: This green LED will illuminate when the device is connected

with power supply.

②SDI OUTPUT: These slots are to connect to the SDI displays with an SDI

cables for displaying images. Or it can be connect with another SDI

converter/extender to extend the signal.

7.2 Rear Panel

DC 5V

SDI INPUT

②①

①SDI INPUT: This slot is to connect to the SDI source equipment such as video

camcorder or SDI player.

②DC 5V: Plug the 5V DC power supply into the unit and connect the

adaptor to AC wall outlet. Green LED will illuminate when the power is

connected.

3

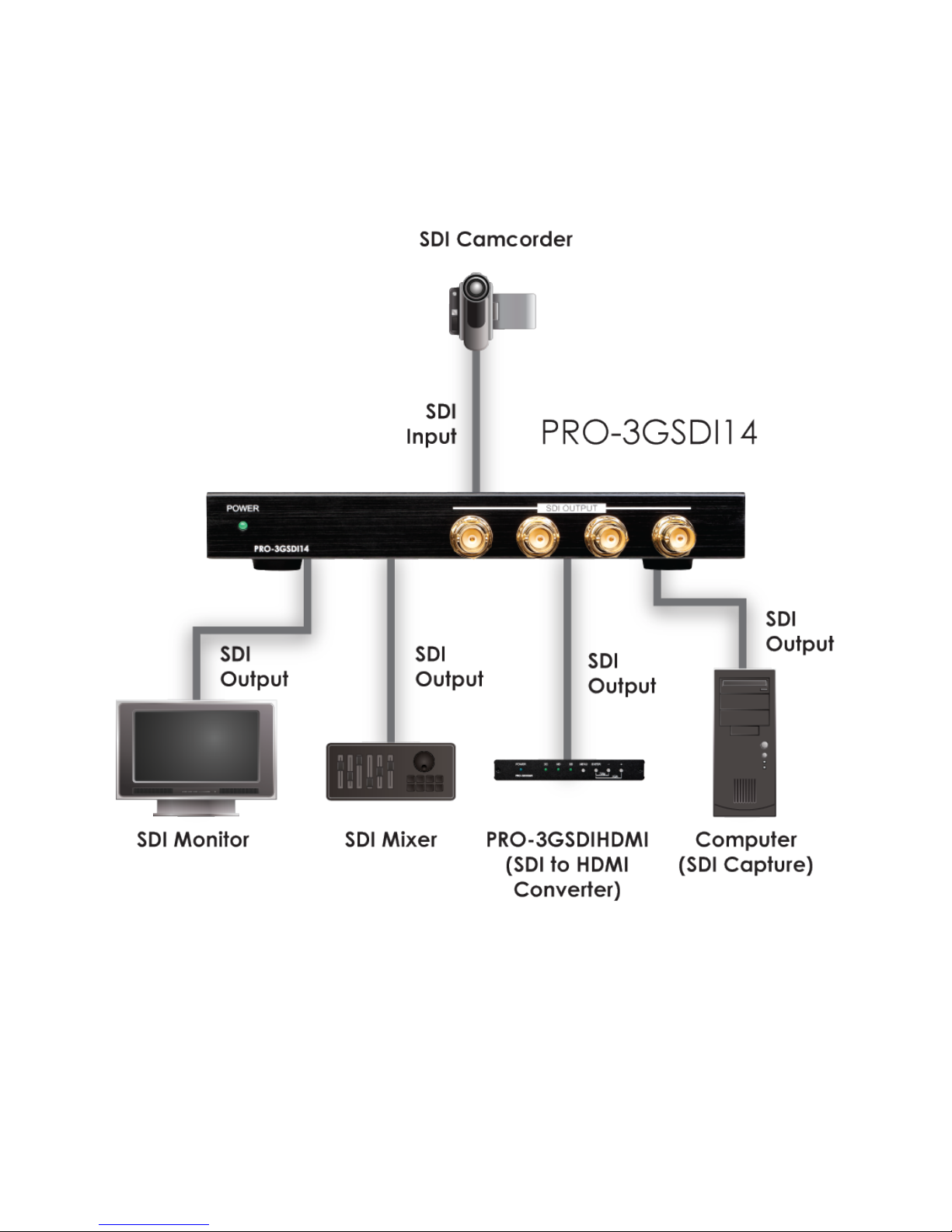

8. Connection and Installation

Acronyms A

Acronym Complete Term

3G Bandwidth 2.97Gbit/s ≈ 3G

BNC Bayonet Neill-Concelman

SDI Serial Digital Interface
