CYP QU-210S Manuel utilisateur
QU-210S
v1.3 HDMI 2 to 10 Rack
Mountable Distribution
Amplier
OPERATION MANUAL
1. Introduction 1
2. Features 1
3. Operation Controls and Functions 2
3.1 Front Panel Diagram 2
4. Connection Diagram 4
5. Specications 5
Table of Contents
1. Introduction
The QU-210S HDMI Distribution Amplier has a Two HDMI inputs and 10 HDMI
outputs. The Silicon Image chipset based splitter is compatible with both Deep
Colour and High Denition Audio, with EDID selection. It boasts an extended HDMI
output range of up to 20 metres. EDID management is handled by a simple switch.
A common application of this product is in commercial and residential installations
where either one of two HDMI source is required at multiple HDTV’s.
2. Features
• Compliant with v1.3 HDMI, HDCP 1.1 and DVI 1.1 standards.
• HDMI 2 to 10 Distribution Amplier (Splitter).
• Resolutions Supported:
• PC: VGA to UXGA
• HDTV: 480i to 1080p, plus 1080p24fps.
• High Denition Audio supported: Dolby TrueHD, Dolby Digital Plus and DTS-HD
Master Audio, plus LPCM (32-192KHz sample rate).
• Auto signal amplication & equalisation improves signal transmission
distances.
• Support CEC bypass.
• Supports ‘Deep Colour’ (10 & 12 bit).
• Selectable EDID settings - TV (downstream) and STD (xed).
• HDCP Keysets allows each output to work independently when connecting
different colour depth HDMI displays.
• Supports xvYCC.
Page 1
Page 2
3. Operation Controls and Functions
3.1 Front Panel
1. Remote Control Sensor.
2. Key Lock: Press and hold the ‘Key Lock’ button for 5 seconds. The system will
enter Key Lock mode and the LED indicator will illuminate. When the system is
in Key Lock Mode, all functionality of the buttons will be disabled.
3. HDMI/DVI Indicator: The LED will illuminate when the selected HDMI input is
connected to a HDMI source. The LED will not illuminate when the HDMI input
is connected to a DVI source.
4. HDCP Indicator: The LED indicator will illuminate when the HDMI input source
is HDCP protected.
5. SYNC Indicator: The LED indicator will illuminate when the selected HDMI
Input successfully connects to an HDMI or DVI source.
6. HDMI Output Indicator: The LED will illuminate when the output sources are
connected.
7. HDMI Input Indicator: Press the ‘INPUT’ button repeatedly to switch your
desired Input (HDMI 1 or HDMI 2). The LED indicator will illuminate to indicate
which input source is selected.
8. POWER Indicator: The Power LED will illuminate in Green when the power is
On, and Red when in Standby Mode.
8
POWERINPUTKEY LOCK SYNC
HDCPHDMI / DVI 1212345
678
OUTPUT
910
QU-210S
1 2 3 5 6 7
4
Page 3
3.2 Rear Panel
1. EDID Control Switch: Default setting is TV (downstream). In this mode the
QU-210S will search all output ports (starting at output 1) for the highest
video/audio settings connected to each of the outputs.
The detection priority
of the matrix is v1.3 HDMI, v1.2 HDMI, DVI.
Switch to STD (xed EDID) if
you have any issues with the default setting (TV). When switching to STD,
please ensure that the unit is powered OFF, then ON again, for the setting to
be made. By changing to STD, this will force the source to be congured as
standard stereo (PCM) Audio and initiate a search for a common compatible
video resolution.
2. RS-232: 9-Pin D-sub connection for connecting your PC or other RS-232
Control based console for remote operation.
3. HDMI Inputs 1 and 2: Connect input ports to the HDMI or DVI output of your
source equipment such as a Blu-Ray player or set-top box.
4. HDMI Outputs 1 to 10: Connect each of the output ports to the HDMI display.
When more than one output is connected, the HDMI outputs play an identical
video signal simultaniously.
5. POWER: Plug the 5V DC power supply into the splitter and connect the
adaptor to the AC wall socket.
DC 5V
RS-232
1 2 1 2 3 4 5 6 7 8 9 10
EDID
STD TV
HDMI OUT
HDMI IN
1 3 4 5
2
Page 4

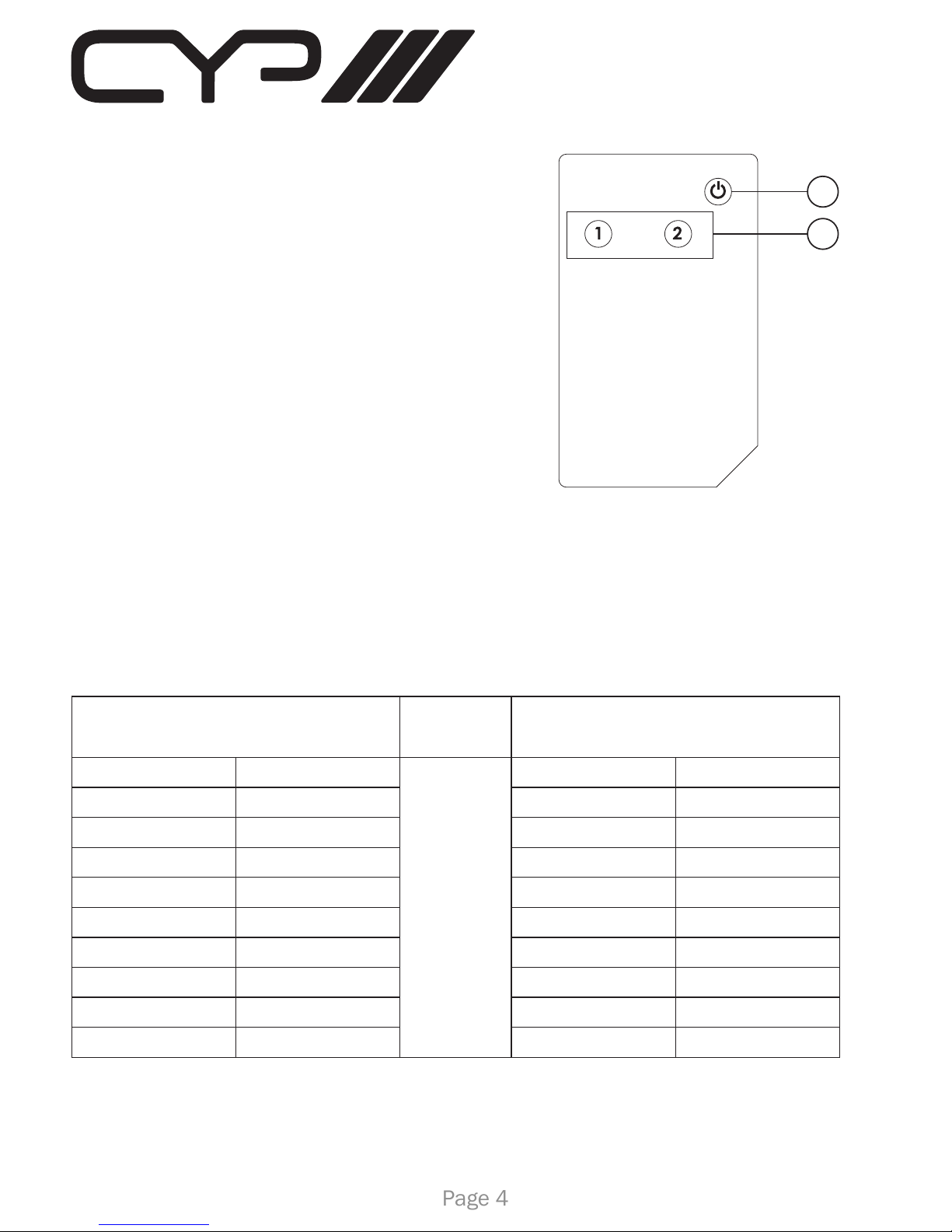

4. Remote Control
1. Power: Press the button to turn the unit ON
or OFF.
2. Input Select for HDMI: Press ‘1’ to select
HDMI Input 1, or Press ‘2’ to select HDMI
Input 2.
POWER
CR-37
1
2
5. RS-232 Protocol
5.1 Pin Denitions
The connection between the Splitter and Remote Controller with RS-232 Cable.
OR-HD44E Remote Control Console
PIN Denition
→
←
PIN Denition
1 NC 1 NC
2TxD 2RxD
3RxD 3TxD
4 NC 4 NC
5GND 5GND
6 NC 6 NC
7 NC 7 NC
8NC 8NC
9NC 9NC
* RS-232 transmission format:
Baud Rate: 19200bps
Data Bit: 8 bits
Parity: None
Stop Bit: 1 bit
Flow Control: None
Page 5
5.2 Commands
COMMAND ACTION
Power 00 Power OFF (Standby)
Power 01 Power ON
Port 01 Select Input 1
Port 02 Select Input 2
4. Connection Diagram
Page 6
Input 2 x HDMI
Output 10 x HDMI
Power Supply 5V/6A DC (US/EU standards, CE/FCC/UL certied)
Dimensions (mm) 435(W) x 160(D) x 45(H)
Gross Weight (g) 2120
Net. Weight (g) 1760
Chassis Material Aluminium
Colour Black
Operating Temperature Operating from 0°C ~ 40°C
5. Specications
Page 7
www.cypeurope.com
