Creality CR-10S Pro Manuel utilisateur

CR-10S Pro 3D Printer User Manual

This User Manual is for standard CR-10S Pro.

Please plug the power cord into a three-hole power jack.

Detailed instructions for use are available on the TF card.

V.1.3

Notes

1. Do not use the printer any way other than described herein in order to avoid

personal injury or property damage.

2. Do not place the printer near any heat source or flammable or explosive objects.

We suggest placing it in a well-ventilated, low-dust environment.

3. Do not expose the printer to violent vibration or any unstable environment, as this

may cause poor print quality.

4. Before using experimental or exotic filaments, we suggest using standard

filaments such as PLA to calibrate and test the machine.

5. Do not use any other power cable except the one supplied. Always use a

grounded three-prong power outlet.

6. Do not touch the nozzle or printing surface during operation as they may be hot.

Keep hands away from machine while in use to avoid burns or personal injury.

7. Do not wear gloves or loose clothing when operating the printer. Such cloths may

become tangled in the printers moving parts leading to burns, possible bodily

injury, or printer damage.

8. When cleaning debris from the printer hotend, always use the provided tools. Do

not touch the nozzle directly when heated. This can cause personal injury.

9. Clean the printer frequently. Always turn the power off when cleaning, and wipe

with a dry cloth to remove dust, adhered printing plastics or any other material

off the frame, guide rails, or wheels . Use glass cleaner or isopropyl alcohol to

clean the print surface before every print for consistent results.

10. Children under 10 years of age should not use the printer without supervision.

CONTENTS

Dear Consumers,

Thank you for choosing our products. For the best experience, please read the

instructions before operating the Printer. Our 3D team will always be ready to give

you the best service. Please contact us via the phone number or e-mail address

provided at the end when you encounter any problem with the Printer.

For a better experience in using our product, you may learn how to use the

Printer in the following ways:

1. View the accompanied instructions and videos on the TF card.

2. Visit our official website at www.creality3d.cn You will find relevant

software/hardware information, contact details and operation and maintenance

instructions on the website.

Introduction......................................1

General List......................................2

Device Installation..........................3

Cable Connection.............................4

Screen Information.........................5

Loading Filament.............................6

Bed Leveling.................................7

Software Installation.........................8

First Printing.................................9

Circuit Wiring...................................10

1. X Limit Switch

2. Nozzle Kit

3. Hot Bed

4. Touch Screen

5. TF slot & USB Port

6. Z-axis Motor (Z2)

7. Coupling (Z2)

8. Power Switch & Socket

9. Filament Holder

10. Y Limit Switch

11. Z-axis Motor (Z1)

12. Coupling (Z1)

13. XL Bed-leveling Nut

14. Extruder (E) Motor

15. Filament Detector

16. X-axis Motor

Parameters

Model

CR-10S Pro

Printing Size

300*300*400mm

Molding Tech.

FDM

Nozzle Number

Slice Thickness

0.1mm-0.4mm

Nozzle Diameter

Standard 0.4mm

Precision

±0.1mm

Fliament

φ1.75mm PLA

File Format

STL/OBJ/AMF

Working Mode

Online or TF Card Offline

Slice Software

Cura/Repetier-Host/Simplify3D

Power Supply

Input:AC 100-240V 50/60Hz

Output:DC 24V

Total Power

480W

Bed Temp.

≤100℃

Nozzle Temp.

≤250℃

Resume Print

Yes

Filament Detector

Yes

Daul Z-Axis

Yes

Auto Leveing

Yes

language Selection

EN/CN

Operating System

Windows XP/Vista//7/8/10

MAC/Linux

Printing Speed

≤180mm/s，Normal 30-

60mm/s

01/

Introduction

Base FrameGantry Frame

Tool Box

u Tool List

Filament(200g)

No.


Name

Qty

Wrench & Screw

driver

1set

TF Card & Reader

1set

Spatula

Pliers

0.4mm

Nozzle Cleaner

No.


Name

Qty

Filament Holder

Bracket

Filament Holder

Tube

Filament Holder

Tube Nuts

Power Cable

USB Cable

No.


Name

Qty

PTFE Tube

X-Axis Spacer

Feeler

Spare Parts

1set

M5X25 black Hex-Bolt

and Lock Washer

4set

M4X8 Screw and

M4 T- nut

2set

02/

General List

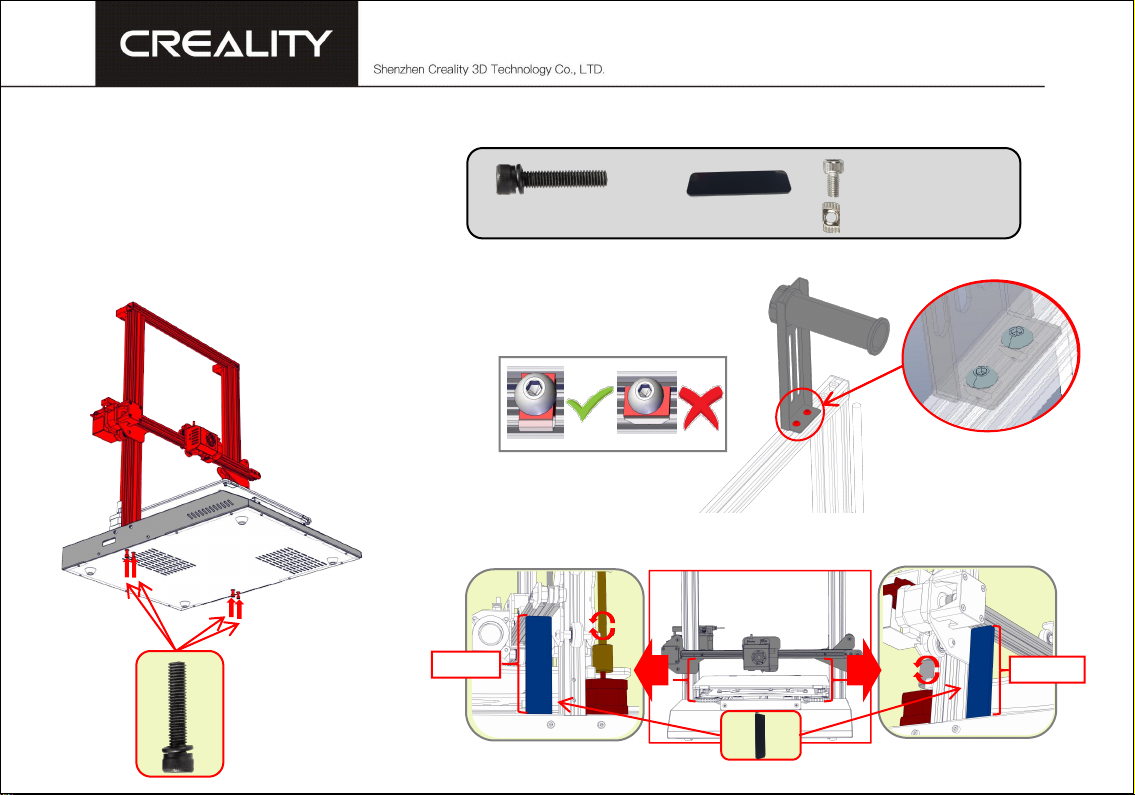

uFilament Holder Installation uGantry Frame Installation

M5X25

4pcs 2pcs

M4X8

M4 T-nut

M5X25

4pcs

2pcs

M4X8 & T-nut

X-Axis Spacer

uX axis adjustment

100mm 100mm

03/

Device Installtion

Ribbon Cable

*Plug the power cord into a

three-hole power jack.

04/

Cable Connection

Fan

Manual

Cooling

Automatic

Levelling

Refuel

Motor

Printer info

Moving

Language

Choose to Print

Set temperature of

the Hot Bed

Set temperature of

Nozzle

Current temperature

of Nozzle

Current temperature

of the Hot Bed

Screen Information

Main

Sub Menu

Explanation

TF card

Selected file

Stop

Pause/Continue

Adjust

Print speed

Nozzle temp.

Hot-bed temp

Z offset

fan

Temp

Automatic

PLA\ABS（195°\240°）

Manual

Nozzle preheat

Hot-bed preheat

Cooling

Cool down? Yes\No

Fan

Turn on\Shut down

Setting

Levelling

Z-axis：Z home，+0.1mm,-0.1mm

AUX

leveling

Please click numbers to assist

levelling（①~⑤）

AUTO

leveling

Auto leveling, please wait...

Check level（Measurement parameters）

Refuel

Withdraw

Feed

Moving

X-axis

Y- axis

Z-axis

Z home

Motor off

yes\no

Language

English\Chinese

Printer

info

Machine type、Firmware version、Printing

size、website

05/

Screen Information

Method 1、

Method 2、

Press and hold the extruder lever and insert the 1.75mm

filament through the filament detector and through the

extruder motor. Continue feeding until you see filament

extrude from the nozzle.

Replacing Filament During Printing:

1、Cutting the previous filament near the extruder and slowly

feed new filament though the filament sensor and extruder, until

the new filament is fed into the PTFE tube.

(Or)

2、Preheat the nozzle and withdraw the used filament. Feed the

new filament as pictured above.

uFeeding

uPreheat

200

06/

Loading Filament

3. Adjust the platform height by turning the knob underneath. Use a

piece of A4 paper (standard printer paper) to assist with the

adjustment, making sure that the nozzle lightly presses on the paper.

4. Complete the adjustment on all 4 corners.

5. Click the number ① to test the platform height in the middle.

6. Repeat above steps one or two times if necessary.

1. Slightly tighten the four levelling nuts at the bottom of the platform before initial levelling.

2. Select "Settings" → “Level mode” , click on the number ②.

07/

Bed Levelling 1

1111111

11111

The nozzle is too far away from the

platform, so the consumables can not

adhere to the platform.

Filament are extruded evenly, just

sticking on the platform.

The nozzle is too close to the platform,

and the filament are not extruded

enough, even scraping the platform.
