Cisco Aironet 1430 Series Wireless Bridge

1About this Guide

2Safety Instructions

3Unpacking

4Overview

5Configuring the Bridge for the First Time

6Mounting the Bridge

7Troubleshooting

8Declarations of Conformity and Regulatory Information

9Bridge Specifications

br1430gsg.fm Page 1 Thursday, November 20, 2008 1:59 PM

THIRD FCC DRAFT (CISCO CONFIDENTIAL)

Revised October 2008 P/N 78-18922-01

1 About this Guide

This Guide provides instructions on how to install and configure your Cisco Aironet 1430 Series

Wireless Bridge (hereafter called the bridge). This guide also provides bridge alignment instructions

and limited troubleshooting procedures.

The Cisco Aironet 1430 Series Wireless bridge is an updated replacement for the Cisco Aironet 1400

Series Wireless Bridge. The 1430 series is a 802.11a wireless bridge supporting point-to-point and

point-to-multipoint applications operating in the 4.9-, 5.6-, and 5.8-GHz spectrum. The bridge

delivers long-range, high capacity, and is easy to deploy. The bridge supports 40 MHz channelization

in the 5.6- and 5.8-GHz bands to deliver data rates at or above 130 Mbps. The bridge also supports

external and integrated antenna configurations for various deployment scenarios for enterprise and

commercial customer applications.

The bridge is deployed as an autonomous point-to-point bridge, providing intelligent network services

in a simple autonomous environment. Cisco’s wireless controller software (WCS) management

provides centralized management and monitoring services for the bridge.

2 Safety Instructions

Translated versions of the following safety warnings are provided in the translated safety warnings

document that is shipped with your bridge. The translated warnings are also in the Translated Safety

Warnings for Cisco Aironet 1430 Series Wireless Bridges, which is available on your documentation

CD and cisco.com.

Warning

This warning symbol means danger. You are in a situation that could cause bodily injury.

Before you work on any equipment, be aware of the hazards involved with electrical

circuitry and be familiar with standard practices for preventing accidents. (To see

translations of the warnings that appear in this publication, refer to the appendix

“Translated Safety Warnings.”)

Statement 1071

Warning

Only trained and qualified personnel should be allowed to install, replace, or service

this equipment.

Statement 1030

br1430gsg.fm Page 2 Thursday, November 20, 2008 1:59 PM

THIRD FCC DRAFT (CISCO CONFIDENTIAL)

Warning

Do not locate the antenna near overhead power lines or other electric light or power

circuits, or where it can come into contact with such circuits. When installing the

antenna, take extreme care not to come into contact with such circuits, because they

may cause serious injury or death. For proper installation and grounding of the antenna,

please refer to national and local codes (for example, U.S.:NFPA 70, National Electrical

Code, Article 810, Canada: Canadian Electrical Code, Section 54).

Statement 1052

Warning

This product relies on the building’s installation for short-circuit (overcurrent)

protection. Ensure that the protective device is rated not greater than:

120 VAC, 15A U.S. (240 VAC, 10A International)

Statement 1005

Warning

This equipment must be grounded. Never defeat the ground conductor or operate the

equipment in the absence of a suitably installed ground conductor. Contact the

appropriate electrical inspection authority or an electrician if you are uncertain that

suitable grounding is available.

Statement 366

Warning

Read the installation instructions before connecting the system to the power source.

Statement 1004

Warning

Do not work on the system or connect or disconnect cables during periods of lightning

activity.

Statement 1001

Warning

Do not operate your wireless network device near unshielded blasting

caps or in an

explosive environment unless the device has been modified to be especially qualified for

such use.

Statement 245B

br1430gsg.fm Page 3 Thursday, November 20, 2008 1:59 PM

THIRD FCC DRAFT (CISCO CONFIDENTIAL)

Warning

In order to comply with radio frequency (RF) exposure limits, the antennas for this

product should be positioned no less than 6.56 ft (2 m) from your body or nearby persons.

Statement 332

Warning

This unit is intended for installation in restricted access areas. A restricted access area

can be accessed only through the use of a special tool, lock and key, or other means of

security and is controlled by the authority responsible for the location.

Statement 37

3 Unpacking

Figure 1 shows the typical contents of the shipping container. The contents of your shipping container

may be different depending on what you ordered. Follow these steps to unpack the shipping container.

Step 1 Unpack and remove the bridge and the accessory kit from the shipping box.

Step 2 Return any packing material to the shipping container and save it for future use.

Step 3 Verify that you have received the items shown in Figure 1. If any item is missing or damaged,

contact your Cisco representative or reseller for instructions.

br1430gsg.fm Page 4 Thursday, November 20, 2008 1:59 PM

THIRD FCC DRAFT (CISCO CONFIDENTIAL)

Figure 1 Shipping Box Contents

11430 series wireless bridge 4

2 5

3 6 Documentation CD

br1430gsg.fm Page 5 Thursday, November 20, 2008 1:59 PM

THIRD FCC DRAFT (CISCO CONFIDENTIAL)

4 Overview

The following illustrations show the bridge connections and features.

Figure 2 Bridge Connections and Features

1 4

2 5

3 6

br1430gsg.fm Page 6 Thursday, November 20, 2008 1:59 PM

THIRD FCC DRAFT (CISCO CONFIDENTIAL)

5 Configuring the Bridge for the First Time

This chapter describes how to configure basic settings on your bridge for the first time. The contents

of this chapter are similar to the instructions in the quick start guide that shipped with your bridge.

You can configure all the settings described in this chapter using the command-line interface (CLI), but

it might be simplest to browse to the bridge’s web-browser interface to complete the initial

configuration and then use the CLI to enter additional settings for a more detailed configuration.

This chapter contains these sections:

• Before You Start, page 7

• Obtaining and Assigning an IP Address, page 8

• Connecting to the Bridge Locally, page 9

• Assigning Basic Settings, page 10

• What To Do Next, page 14

• Assigning an IP Address Using the CLI, page 15

• Using a Telnet Session to Access the CLI, page 15

Before You Start

Before you install the bridge, make sure you are using a computer connected to the same network as

the bridge, and obtain the following information:

• From your network system administrator:

–

A system name

–

The case-sensitive wireless service set identifier (SSID) for your radio network

–

If not connected to a DHCP server, a unique IP address for your bridge (such as

172.17.255.115)

–

If the bridge is not on the same subnet as your PC, a default gateway address and subnet mask

–

A Simple Network Management Protocol (SNMP) community name and the SNMP file

attribute (if SNMP is in use)

Resetting the Bridge to Default Settings

If you need to start over during the initial setup process, follow these steps to reset the bridge to factory

default settings using the power injector’s Mode button:

Step 1 Disconnect the power jack from the power injector.

br1430gsg.fm Page 7 Thursday, November 20, 2008 1:59 PM

THIRD FCC DRAFT (CISCO CONFIDENTIAL)

Step 2 Press and hold the power injector’s MODE button while you reconnect the power jack.

Step 3 Hold the MODEbutton until the Status LED turns amber (approximately 1 to 3 seconds) and

wait until the bridge boots up (Status LED turns green). All bridge settings return to factory

defaults.

You can also use the web-browser interface to reset the bridge to defaults. Follow these steps to return

to default settings using the web-browser interface:

Step 1 Open your Internet browser. You must use Microsoft Internet Explorer (version 5.x or later)

or Netscape Navigator (version 4.x).

Step 2 Enter the bridge’s IP address in the browser address line and press Enter. An Enter Network

Password window appears.

Step 3 Enter your username in the User Name field. The default username is Cisco.

Step 4 Enter the bridge password in the Password field and press Enter. The default password is

Cisco. The Summary Status page appears.

Step 5 Click System Software and the System Software screen appears.

Step 6 Click System Configuration and the System Configuration screen appears.

Step 7 Click Default.

Note If the bridge is configured with a static IP address, the IP address is not changed.

Obtaining and Assigning an IP Address

To browse to the bridge’s Express Setup page, you must either obtain or assign the bridge’s IP address

using one of the following methods:

• Use default address 10.0.0.1 when you connect to the bridge locally. For detailed instructions, see

the “Connecting to the Bridge Locally” section on page 9.

• Use a DHCP server (if available) to automatically assign an IP address. You can find the

DHCP-assigned IP address using one of the following methods:

–

Provide your organization’s network administrator with your bridge’s Media Access Control

(MAC) address. Your network administrator will query the DHCP server using the MAC

address to identify the IP address. The bridge’s MAC address is on label attached to the

bottom of the bridge.

br1430gsg.fm Page 8 Thursday, November 20, 2008 1:59 PM

THIRD FCC DRAFT (CISCO CONFIDENTIAL)

Connecting to the Bridge Locally

If you need to configure the bridge locally (without connecting the bridge’s power injector to a wired

LAN), you can connect a PC to the power injector’s Ethernet port using a Category 5 Ethernet cable.

You can use a local connection to the Ethernet port much as you would use a serial port connection.

Note You do not need a special crossover cable to connect your PC to the bridge’s power injector;

you can use either a straight-through cable or a crossover cable.

If the bridge is configured with default values and not connected to a DHCP server or cannot obtain

an IP address, it defaults to IP address 10.0.0.1 and becomes a mini-DHCP server. In that capacity, the

bridge provides up to twenty IP addresses between 10.0.0.11 and 10.0.0.30 to an Ethernet-capable PC

connected to the power injector’s Ethernet port.

The mini-DHCP server feature is disabled automatically when you assign a static IP address to the

bridge.

Caution When a bridge with default settings is connected on a wired LAN and does not receive an

IP address from a DHCP server, the bridge provides an IP address to any DHCP requests

it receives.

Follow these steps to connect to the bridge locally:

Step 1 Make sure that the PC you intend to use is configured to obtain an IP address automatically,

or manually assign it an IP address from 10.0.0.31 to 10.0.0.40. Connect your PC to the

power injector using a Category 5 Ethernet cable. You can use either a crossover cable or a

straight-through cable.

Note When you connect your PC to the bridge’s power injector or reconnect your PC to the wired

LAN, you might need to release and renew the IP address on the PC. On most PCs, you can

perform a release and renew by rebooting your PC or by entering ipconfig /release and

ipconfig /renew commands in a command prompt window. Consult your PC operating

instructions for detailed instructions.

Step 2 Power up the power injector.

Step 3 Follow the steps in the “Assigning Basic Settings” section on page 10. If you make a mistake

and need to start over, follow the steps in the “Resetting the Bridge to Default Settings”

section on page 7.

br1430gsg.fm Page 9 Thursday, November 20, 2008 1:59 PM

THIRD FCC DRAFT (CISCO CONFIDENTIAL)

Step 4 After configuring the bridge, remove the Ethernet cable from your PC and connect the power

injector to your wired LAN.

Assigning Basic Settings

After you determine or assign the bridge’s IP address, you can browse to the bridge’s Express Setup

page and perform an initial configuration. Follow these steps:

Step 1 Open your Internet browser. You must use Microsoft Internet Explorer (version 5.x or later)

or Netscape Navigator (version 4.x).

Step 2 Enter the bridge’s IP address in the browser address line and press Enter. An Enter Network

Password screen appears.

Step 3 Press Tabto bypass the Username field and advance to the Password field.

Step 4 Enter the case-sensitive password Cisco and press Enter. The Summary Status page appears.

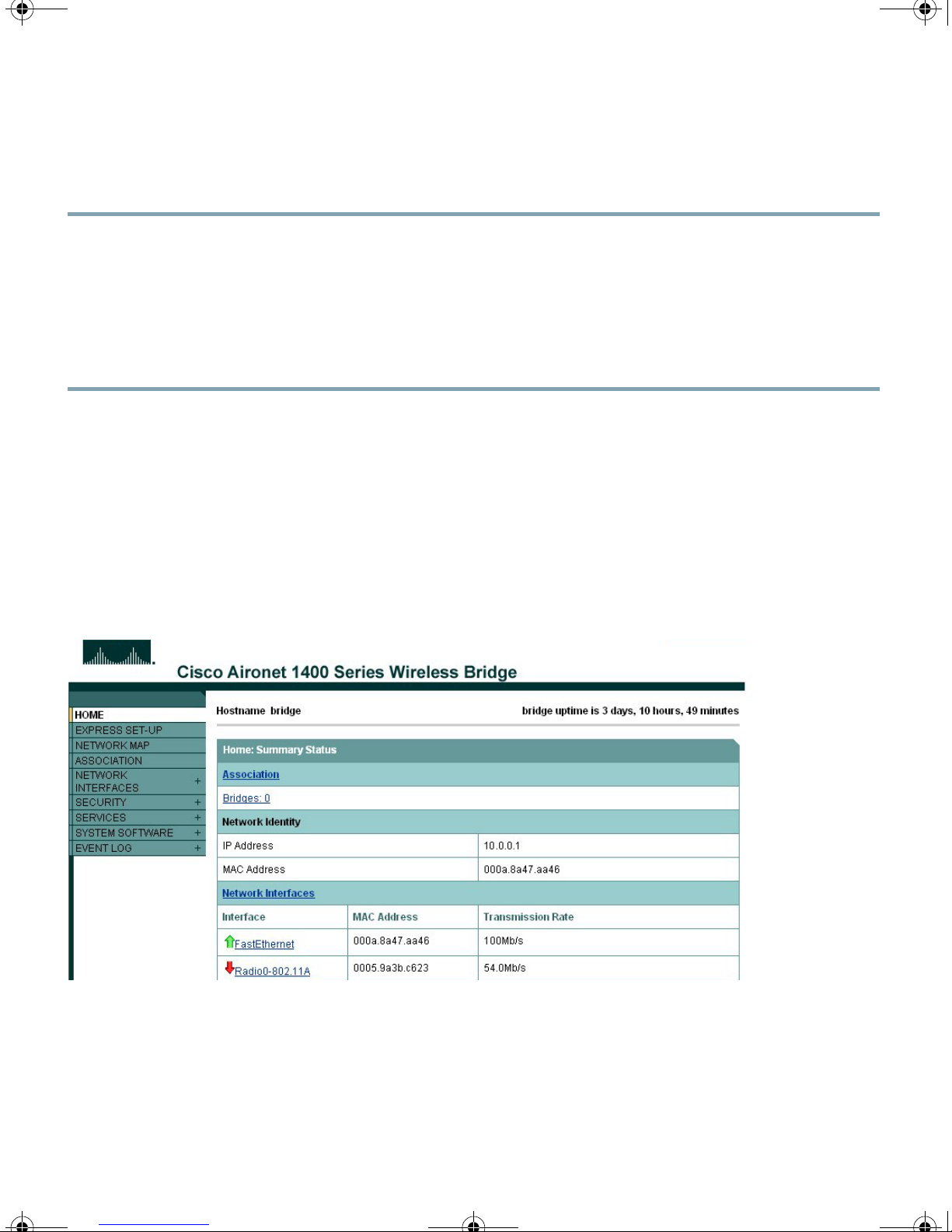

Figure 3 shows the Summary Status page.

Figure 3SummaryStatusPage

Step 5 Click Express Setup. The Express Setup screen appears. Figure 4 shows the Express Setup

page.

br1430gsg.fm Page 10 Thursday, November 20, 2008 1:59 PM

Table des matières

Autres manuels Cisco Matériel réseau

Cisco

Cisco 3600 Series Instructions d'utilisation et de sécurité

Cisco

Cisco ONS 15327 Manuel

Cisco

Cisco 5400 Series Mode d’emploi

Cisco

Cisco Content Delivery Engine 100/200/300/400 Manuel

Cisco

Cisco ONS 15600 Manuel utilisateur

Cisco

Cisco GS7000 Manuel utilisateur

Cisco

Cisco ONS 15454 SDH E1-75 Manuel utilisateur

Cisco

Cisco DS-X9530-SF1-K9 - Supervisor-1 Module - Control... Manuel utilisateur

Cisco

Cisco Catalyst 8300 Series Manuel

Cisco

Cisco SCE 2000 4/8xFE Manuel utilisateur

Cisco

Cisco NSS2000 - Gigabit Storage System Chassis Comment utiliser

Cisco

Cisco Catalyst X6148 Manuel utilisateur

Cisco

Cisco ONS 15216-MD-40-ODD Manuel utilisateur

Cisco

Cisco 8011-2X2XP4L Manuel

Cisco

Cisco Cisco ONS 15600 SDH Manuel utilisateur

Cisco

Cisco ISA500 Series Manuel utilisateur

Cisco

Cisco OL-6109-01 Manuel utilisateur

Cisco

Cisco WAE-674-K9 - Wide Area Application Engine... Manuel

Cisco

Cisco WBPN Manuel utilisateur

Cisco

Cisco CTE 1400 Series Manuel utilisateur

Cisco

Cisco Firepower 1100 Series Manuel

Cisco

Cisco ONS 15454 Manuel utilisateur

Cisco

Cisco Physical Access 1125 Appliance Manuel utilisateur

Cisco

Cisco ONS 15540 ESP Manuel

Manuels Matériel réseau populaires d'autres marques

Matrix Switch Corporation

Matrix Switch Corporation MSC-HD161DEL Manuel utilisateur

B&B Electronics

B&B Electronics ZXT9-IO-222R2 Manuel utilisateur

Yudor

Yudor YDS-16 Manuel utilisateur

D-Link

D-Link ShareCenter DNS-320L Manuel utilisateur

Samsung

Samsung ES1642dc Instructions d'utilisation

Honeywell Home

Honeywell Home LTEM-PV Instructions de montage

evertz

evertz 7700 Series Manuel utilisateur

D-Link

D-Link ShareCenter DNS-343 Manuel utilisateur

Asante

Asante AsanteBridge 1012 Manuel utilisateur

FireBrick

FireBrick FB2700 Manuel utilisateur

Audiovox Electronics

Audiovox Electronics ARWH2T Manuel utilisateur

ADC

ADC DSX-1 Manuel

NetComm

NetComm NF2 Manuel utilisateur

Alcatel-Lucent

Alcatel-Lucent 5620 Manuel utilisateur

Dell EMC

Dell EMC XC6420 Series Manuel utilisateur

Lanner

Lanner NCA-1020A Manuel utilisateur

Allied Telesis

Allied Telesis AT-TN121-A Manuel utilisateur

Arista

Arista CCA-ETM-Q12 Manuel utilisateur
