3U10 Extractor

Installation, Use and Maintenance

Important

The CDA Group Ltd cannot be held responsible for injuries or losses

caused by incorrect use or installation of this product. Please note

that CDA reserve the right to invalidate the guarantee supplied with

this product following incorrect installation or misuse of the appliance

or use in a commercial environment.

This appliance is not designed to be used by people (including

children) with reduced physical, sensorial or mental capacity, or

who lack experience or knowledge about it, unless they have had

supervision or instructions on how to use the appliance by someone

who is responsible for their safety.

Under no circumstances should any external covers be removed for

servicing or maintenance except by suitably qualiﬁed personnel.

Appliance information:

Please enter the details on the appliance rating plate below for

reference, to assist CDA Customer Care in the event of a fault with

your appliance and to register your appliance for guarantee purposes.

Appliance Model

Serial Number

CE Declarations of Conformity:

This appliance has been manufactured to the strictest standards and

complies with all applicable legislation, including Gas safety, Electrical

safety (LVD) and Electromagnetic Interference Compatibility (EMC).

IMPORTANT INFORMATION FOR CORRECT DISPOSAL OF THE

PRODUCT IN ACCORDANCE WITH EC DIRECTIVE 2002/96/EC.

At the end of its working life, the product must be taken to a special

local authority waste collection centre or to a dealer providing

appliance recycling services.

Disposing of a household appliance separately avoids possible

negative consequences for the environment and health. It also

enables the constituent materials to be recovered, saving both energy

and resources. As a reminder of the need to dispose of household

appliances separately, the product is marked with a crossed-out

wheeled dustbin .

Please note:

•Under no circumstances should the extractor be

connected to any gas ventilation system, ﬂue system or

hot air ducting system.

• Do not vent the extractor into an attic or loft space.

•Only install the extractor in rooms with adequate

ventilation. Remember that the extractor is powerful and

whatever air is extracted needs to be replaced.

•Do not tile the extractor in. It should be removable for

service or maintenance.

•Do not use silicone sealant to secure the extractor to the

wall.

•You must be able to isolate the extractor from the mains

electrical supply after installation.

•Steam cleaners must not be used when cleaning this

appliance.

•The performance of your extractor will vary depending

on a number of factors, such as supply voltage and

cleanliness of the ﬁlters.

Note:

For best performance, you should switch on the extractor 15 minutes

before starting to cook and leave it to run for approximately 15

minutes after the end of cooking.

Using Your Extractor

A - Light key

B - Minus key

C - Speed indicator

D - Plus key

E - Timer key

Fig. 1

A EDCB

To switch the extractor on:

• Touch the “Plus” key (D) to start the extractor running at the lowest

speed.

Setting the extractor speed when it is running:

The extractor may run at a choice of 4 speeds, indicated by the

“Speed indicator” lights (C) on the control panel.

• To increase the speed touch the “Plus” key (D). The speed will

increase by one increment for each touch of this key.

• To decrease the speed touch the “Minus” key (B). The speed will

decrease by one increment for each touch of this key.

Energy saving functions:

To help save energy:

• After 5 minutes of running at the 4th (highest) speed the motor

automatically reduces to the 2nd speed.

• After 7 minutes of running at the 3rd speed the motor automatically

reduces to the 2nd speed.

To switch the extractor o:

• Touch the “Minus” key (B) several times to turn the extractor to its

lowest speed setting, then once more to turn it o.

To switch the light on or o:

• Touch the “Light” key (A).

The timer function:

The timer function sets the extractor to switch itself o after ten

minutes have passed. This is ideal when you leave the kitchen after

cooking as the extractor can be left to clear the air then switch o to

save power, without you disturbing your meal to switch it o.

• To set this function, touch the “Timer” key “E”. The “Speed

indicator” will start to ﬂash to show this function has been activated.

• To cancel this function, press either the “Plus” or “Minus” button (D)

or (B).

Care and Maintenance

IMPORTANT : DO NOT PERFORM MAINTENANCE OR CLEANING

OF THE EXTRACTOR WITHOUT FIRST SWITCHING OFF THE

ELECTRICITY SUPPLY.

Cleaning

You should use a nonabrasive cleaner. Any abrasive cleaner

(including Cif) will scratch the surface.

You can clean your extractor eectively by simply using a dilute

solution of water and mild detergent and drying to a shine with a clean

cloth, for example the CDA E-Cloth.

Cleaning the grease ﬁlters

The grease ﬁlters should be kept clean to minimise the risk of ﬁre.

The grease ﬁlters may be removed then cleaned with hot soapy

water. You can also wash the grease ﬁlters in a dishwasher, ensuring

that you place them in an upright position to prevent damage from

other items in the dishwasher.

Please note:

Cleaning the grease ﬁlters in the

dishwasher may lead to discolouration.

This is normal and does not constitute a

fault with the appliance.

To remove the aluminium grease

ﬁlters for cleaning

• With the electricity supply still switched on, touch the “Plus” key

once to lower the moving panel and start the motor at its lowest

speed.

• Switch o the electricity supply to the extractor.

• Pull the lower edge of the ﬁlter panel toward you slightly to release

it from its lower retaining magnets (Fig. 2).

• Slide the ﬁlter panel to the right to release its upper locating tabs in

their slots (Fig. 2).

• Carefully lower the ﬁlter panel from the extractor.

• The grease ﬁlters may be removed from the ﬁlter panel (for

cleaning) by ﬁrst sliding the black plastic locating pillars aside: This

releases the ﬁlters so they can be slid out.

To re-ﬁt the aluminium grease ﬁlter after cleaning

• With the electricity supply still switched o, reverse the removal

process to ﬁt the ﬁlters into the ﬁlter panel, then the panel to the

extractor.

• Switch the electricity supply to the extractor back on.

• Touch the “Plus” key once to start the motor at its lowest speed.

• Touch the “Minus” key once to stop the motor and retract the

moving panel back to its rest position.

Fig. 2

Changing the charcoal ﬁlters (re-circulating only)

To ensure best performance of your extractor, you should replace the

charcoal ﬁlters every four to six months, depending on use.

To attach the charcoal ﬁlters:

• Remove the grease ﬁlter panel as described above.

• Position the charcoal ﬁlters in the slots at the rear of the ﬁlter panel.

• Replace the grease ﬁlter panel as described above.

IMPORTANT: Steam cleaners must not be used to clean this

appliance.

If your extractor is not working:

1. Check that the mains supply has not been switched o.

2. Check that the fuse in the spur has not blown.

If the speed drops without you touching a button:

This is likely to be the energy saving feature described above: The

fan speed automatically reduces from the higher speeds after a pre-

set running time, to save power.

The LED Lamps

The LED lamps are long-life items that are not designed to be

replaced by the user. In the unlikely event of a lamp failure, contact

CDA Customer Care for assistance.

Mains Electricity Connection

THIS APPLIANCE MUST BE CONNECTED TO THE MAINS SUPPLY

BY A COMPETENT PERSON, USING FIXED WIRING VIA A DOUBLE

POLE SWITCHED FUSED SPUR OUTLET AND PROTECTED BY A

3A FUSE.

We recommend that the appliance is connected by a qualiﬁed

electrician, who is a member of the N.I.C.E.I.C. and who will comply

with the I.E.T. and local regulations.

The wires in the mains lead of this appliance are coloured in

accordance with the following code:

Green & Yellow = Earth

Blue = Neutral

Brown = Live

As the colours of the wires in the

mains lead for the appliance may not

correspond with the coloured markings

identifying the terminals connecting to

the fused spur, proceed as follows:

•The wire which is coloured green

and yellow must be connected to the terminal marked “E” (Earth) or

coloured green.

•The wire which is coloured blue must be connected to the terminal

marked “N” (Neutral) or coloured black.

•The wire which is coloured brown must be connected to the

terminal marked “L” (Live) or coloured red.

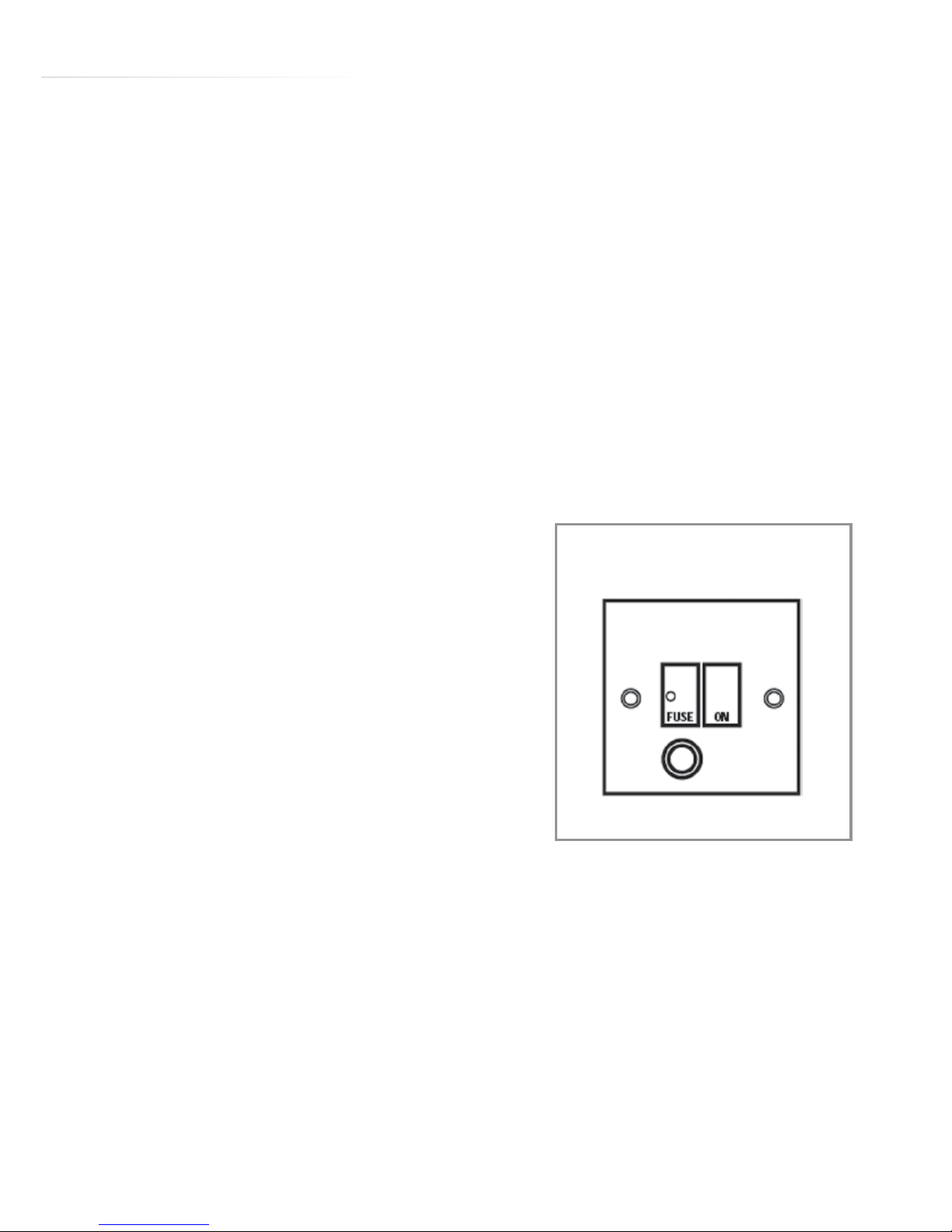

DOUBLE POLE

SWITCHED

FUSED SPUR OUTLET

USE A 3 AMP FUSE

Fig. 3

Note: Use a 3A Fuse.

Assembly and electrical connection should be carried out by

specialised personnel.

When installing this product we recommend you seek the help of

another individual.

Do not mount the isolation switch behind the chimney section. It is a

requirement that you must be able to isolate the extractor from the

mains electrical supply after installation.

This appliance is intended to be connected to the mains electrical

supply by means of an isolation switch and fused spur and is intended

to be protected by a 3A fuse. The use of a 13A fuse can cause

damage to the internal wiring in the event of a fault, and may also

invalidate the warranty.

Electrical Information

Mains electrical voltage: 230Vac

Total rated power consumption: 90W
