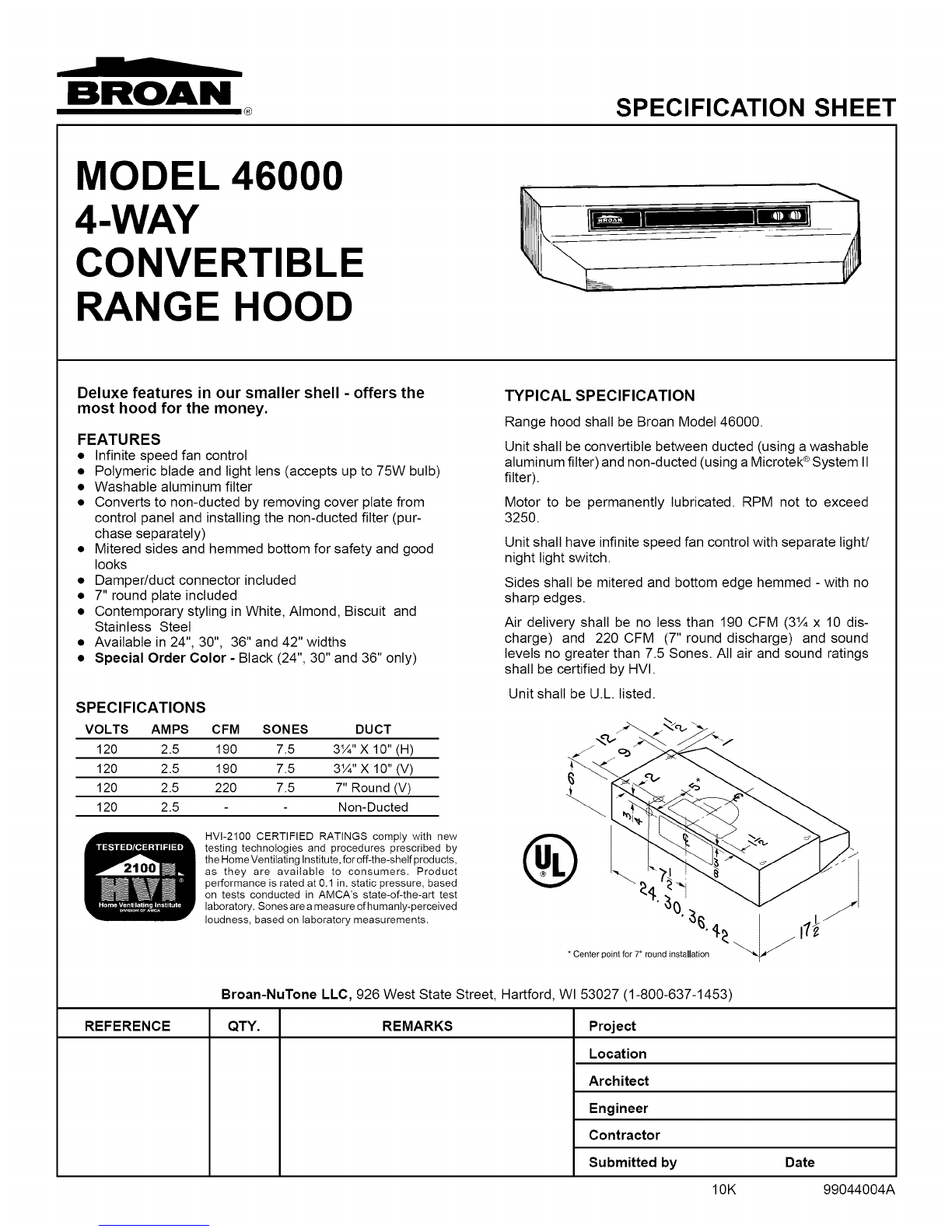

BROAN ®SPECIFICATION SHEET

MODEL 46000

4-WAY

CONVERTIBLE

RANGE HOOD

Deluxe features in our smaller shell - offers the

most hood for the money.

FEATURES

•Infinite speed fan control

•Polymeric blade and light lens (accepts up to 75W bulb)

• Washable aluminum filter

• Converts to non-ducted by removing cover plate from

control panel and installing the non-ducted filter (pur-

chase separately)

• Mitered sides and hemmed bottom for safety and good

looks

• Damper/duct connector included

• 7" round plate included

• Contemporary styling in White, Almond, Biscuit and

Stainless Steel

• Available in 24", 30", 36" and 42" widths

• Special Order Color - Black (24", 30" and 36" only)

SPECIFICATIONS

VOLTS AMPS CFM SONES DUCT

120 2.5 190 7.5 31¼"X 10" (H)

120 2.5 190 7.5 31/4'' X 10" (V)

120 2.5 220 7.5 7" Round (V)

120 2.5 Non-Ducted

_! HVl-2100 CERTIFIED RATINGS comply with new

testing technologies and procedures prescribed by

the Home Ventilating Institute, for off-the-shelf products,

as they are available to consumers. Product

performance is rated at 0.1 in. static pressure, based

on tests conducted in AMCA's state-of-the-art test

• laboratory. Sones are ameasure ofhumanly-perceived

loudness, based on laboratory measurements.

TYPICAL SPECIFICATION

Range hood shall be Broan Model 46000.

Unit shall be convertible between ducted (using a washable

aluminum filter) and non-ducted (using a Microtek _System II

filter).

Motor to be permanently lubricated. RPM not to exceed

3250.

Unit shall have infinite speed fan control with separate light/

night light switch.

Sides shall be mitered and bottom edge hemmed - with no

sharp edges.

Air delivery shall be no less than 190 CFM (3¼ x 10 dis-

charge) and 220 CFM (7" round discharge) and sound

levels no greater than 7.5 Sones. All air and sound ratings

shall be certified by HVI.

Unit shall be U.L. listed.

* Center point for 7" round installation

REFERENCE

Broan-NuTone LLC, 926 West State Street, Hartford, Wl 53027 (1-800-637-1453)

QTY. REMARKS Project

Location

Architect

Engineer

Contractor

Submitted by Date

10K 99044004A
