CDA CST62 Instructions d'installation et d'utilisation

CST62

Standard extractors

Installation, use and maintenance

Contents

Important

Declaration of Conformity & product disposal

Notes

Using your extractor

Care and maintenance

Removing and cleaning the grease ﬁlters

Changing a charcoal ﬁlter

Extractor lighting

Notes on operating modes

Mains electrical connection

Electrical information

Troubleshooting

Determining the position of your extractor

Fixings provided

Product dimensions

Installation steps

Energy Eciency Information (product ﬁche)

10.

11.

12.

13.

14.

15.

2|Instruction Manual

Important

The CDA Group Ltd cannot be held responsible for injuries or losses

caused by incorrect use or installation of this product. Please note that

CDA reserves the right to invalidate the guarantee supplied with this

product following incorrect installation or misuse of the appliance or use

in a commercial environment.

This appliance is not designed to be used by people (including children)

with reduced physical, sensory or mental capacity, or who lack experience

or knowledge about it, unless they have had supervision or instructions on

how to use the appliance by someone who is responsible for their safety.

Under no circumstances should any external covers be removed for

servicing or maintenance except by suitably qualiﬁed personnel.

Please enter the details on the appliance rating plate below for reference,

to assist CDA Customer Care in the event of a fault with your appliance

and to register your appliance warranty.

Appliance information

Appliance model

Serial number

Instruction Manual |3

This appliance has been designed and manufactured to comply with all

applicable UK and EU legislation,

Low voltage Directive, 2014/35/EU

Electromagnetic compatibility Directive, 2014/30/EU

ErP Directive, 2009/125/EC

RoHS Directive, 2011/65/EU

and has been marked with the following symbols.

EU Declarations of Conformity

IMPORTANT INFORMATION FOR CORRECT DISPOSAL OF THE

PRODUCT IN ACCORDANCE WITH EU DIRECTIVE 2012/19/EU.

At the end of its working life, the product must be taken to a special

local authority waste collection site, or to a dealer providing appliance

recycling services.

Disposing of a household appliance separately avoids possible

negative consequences for the environment and health. It also

enables the constituent materials to be recovered, saving both

energy and resources. As a reminder of the need to dispose of

household appliances separately, the product is marked with a

crossed-out wheeled dustbin.

4|Instruction Manual

Under no circumstances should the extractor be connected to any gas

ventilation system, ﬂue system or hot air ducting system.

Do not vent the extractor into an attic or loft space.

Only house the extractor in rooms with adequate ventilation. Remember

that the extractor is powerful and whatever air is extracted needs to be

replaced.

Do not tile the extractor in. It should be removable for service or

maintenance.

Do not use silicone sealant to secure the hood to the wall.

You must be able to isolate the extractor from the mains electrical

supply after installation.

This extractor has been designed to be used in a room with a volume

of less than 36m3.

Steam cleaners must not be used when cleaning this appliance.

The performance of your extractor will vary depending on several

factors. These include type of extraction, length of ducting, room

volume, ventilation available and cleanliness of the ﬁlters.

The extractor should be cleaned regularly to prevent build-up of

grease. We recommend cleaning both inside and outside the appliance

monthly. Failure to observe the requirements speciﬁed in this manual

can result in a ﬁre risk.

■

Please note

Instruction Manual |5

Please enter the details on the appliance rating plate below for reference,

to assist CDA Customer Care in the event of a fault with your appliance

and to register your appliance warranty.

Control Panel

Using your extractor

For best performance, you should switch on the extractor 15 minutes

before starting to cook and leave it to run for approximately 15 minutes

after the end of cooking.

Press the “Lamp” indicator button.

To switch the extractor light on or o

Press the “O” button.

To switch the extractor o

IMPORTANT: THE LIGHTS ON YOUR EXTRACTOR ARE TO BE USED

ONLY FOR THE DURATION OF COOKING. THEY ARE NOT FOR USE

AS AMBIENT LIGHTING.

IMPORTANT: DO NOT PERFORM MAINTENANCE OR CLEANING OF

THE EXTRACTOR WITHOUT FIRST SWITCHING OFF THE ELECTRICI-

TY SUPPLY.

Press the relevant button for the “Low”, “Mid” or “Max” speed level as

required.

To switch on the extractor or to change the speed at any time

when the extractor is running

Fig 1.

6|Instruction Manual

You should use a non-abrasive cleaner. Any abrasive cleaner (including

Cif) will scratch the surface and could erase the control panel markings.

You can clean your extractor eectively by simply using a dilute solution

of water and mild detergent and drying to a shine with a clean cloth.

Ensure that the extractor is dry after cleaning.

Cleaning

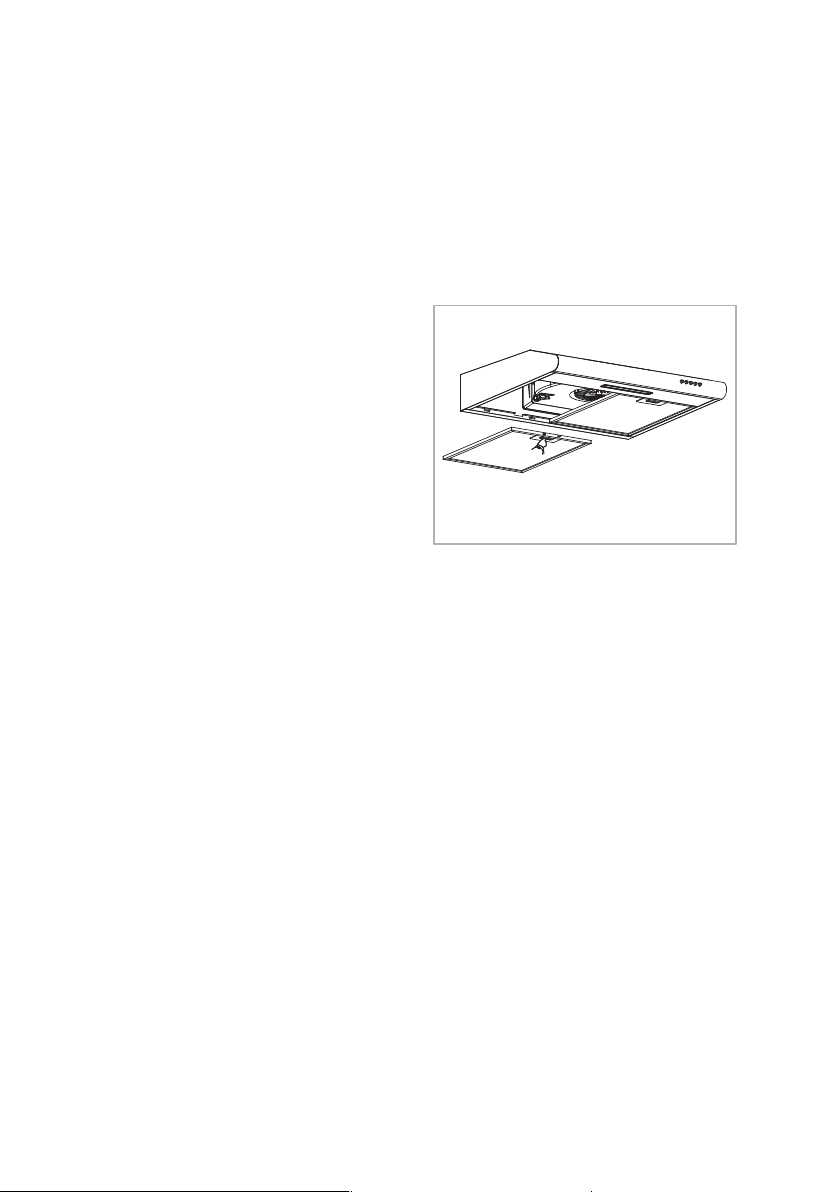

To remove the grease ﬁlter,

pushing the button on the

handle and then pull down on

the ﬁlter at the front, as shown in

ﬁgure 2. Once released at the

front it can be pulled completely

away.

Removing the grease ﬁlter

The grease ﬁlter should be kept clean to minimise the risk of ﬁre. At

least once a month you should remove and clean the grease ﬁlter with

hot soapy water. You can also wash the grease ﬁlter in a dishwasher,

ensuring that you place it in an upright position to prevent damage from

other items in the dishwasher. After rinsing and drying, replace the ﬁlter.

Please note that cleaning the grease ﬁlter(s) in a dishwasher may cause

the ﬁlters to discolour. This is normal and does not constitute a fault with

the appliance.

Cleaning the grease ﬁlter

Fig 2.

Instruction Manual |7

To ensure the best performance of your extractor, you should replace

the charcoal ﬁlter every three to six months, depending on the frequency

of use and the style of cooking. To attach new charcoal ﬁlters, ﬁrst

remove the grease ﬁlter(s) as described on the previous page. Fix the

three charcoal ﬁlter holders with screws as shown in ﬁgure 3, turning it

clockwise until it locks in place.

Please note that charcoal ﬁlters are only required when the extractor is

being used in recirculation mode. Charcoal ﬁlters are not supplied and

are available to purchase from our Customer Care team.

Changing the charcoal ﬁlter

The lighting on your extractor uses energy ecient LED technology

and is designed to last the lifetime of the product. If the LED system

malfunctions, please contact CDA Customer Care.

The LED units must only be replaced by a

competent appliance service engineer.

Extractor lighting

LED LED

Fig 3.

8|Instruction Manual

Your extractor can be used in either of two modes - recirculation or

extraction. The choice often depends on the speciﬁc installation

requirements. Your installer will be able to advise which is best for you.

Operating modes

Fig 5.

Extraction mode

(ducted outside)

Fig 4.

Recirculation mode

(no ducting)

Instruction Manual |9
