Installing Your Multifunction to Your

Network for the First Time

PIXMA MX350 / PIXMA MX870

Windows OS

Next >>

Installing Your Multifunction

to Your Network for the First Time

Preparing to Connect My Multifunction to My Network 3

Network Requirements 3

Important Information You Need Before Adding Your Multifunction 4

Adding Your Multifunction to the Network 5

Confirm Connection Status 9

Downloading & Installing the Drivers 11

Download the Driver 11

Installing the Driver 14

PIXMA MX350 / PIXMA MX870

Windows OS

<< Previous Next >>

Preparing to Connect My Multifunction

To My Network

Network Requirements

Before connecting the machine to the network, make sure that configuration of the computer and access point or router is

complete, and that the computer is connected to the network.

Notes on Network Connection

•The configuration, router functions, setup procedures and security settings of the network device vary depending on your

system environment. For details, refer to your device's instruction manual or contact its manufacturer.

•The machine cannot be used over a wireless and wired connection at the same time.

Wireless Connection

Connect to your network environment over a wireless connection.

<< Previous Next >>

Preparing to Connect My Multifunction

To My Network << Previous Next >>

An "Ad-hoc connection," which establishes a direct

connection to the computer over a wireless connection

without using an access point, is not supported.

Be sure to prepare an access point.

Important InformationYou Need BeforeAddingYour Multifunction

The following information is required to connect to your access point or router.

•Access Point Name/Network Name:

Also referred to as SSID. A name to identify the specific access point.

•Network Key:

Also referred to as encryption key, WEP key or WPA/WPA2 passphrase, Pre-Shared key.

A password required to set to prevent unauthorized access to communication.

Check your access point or router for the following information, and then write it down.

NOTE: For details on how to check the following information, refer to the manual of your access point or router, or contact its manufacturer.

Adding Your Multifunction to Your Network << Previous Next >>

Step One

Press the Setup button (A)

Step Two

Select Wireless LAN setup, and then press the OK button.

Adding Your Multifunction to Your Network

Adding Your Multifunction to Your Network << Previous Next >>

Step Three

Select Yes, then press the OK button.

When wireless connection is enabled, the Wi-Fi lamp (D)

lights blue.

Step Four

Select Easy setup, and then press the OK button.

Adding Your Multifunction to Your Network << Previous Next >>

Step Five

Select the access point name, then press the OK button.

NOTE: If you are living in an apartment, nearby access

points in use may be detected.

Step Six

When one of the following screens is displayed, enter the network

key using the Numeric buttons (E), then press the OK button.

If the following screen is not displayed, go to step 8

Press the button to switch character entry modes.

Enter upper and lower case letters of the alphabet correctly

Adding Your Multifunction to Your Network << Previous Next >>

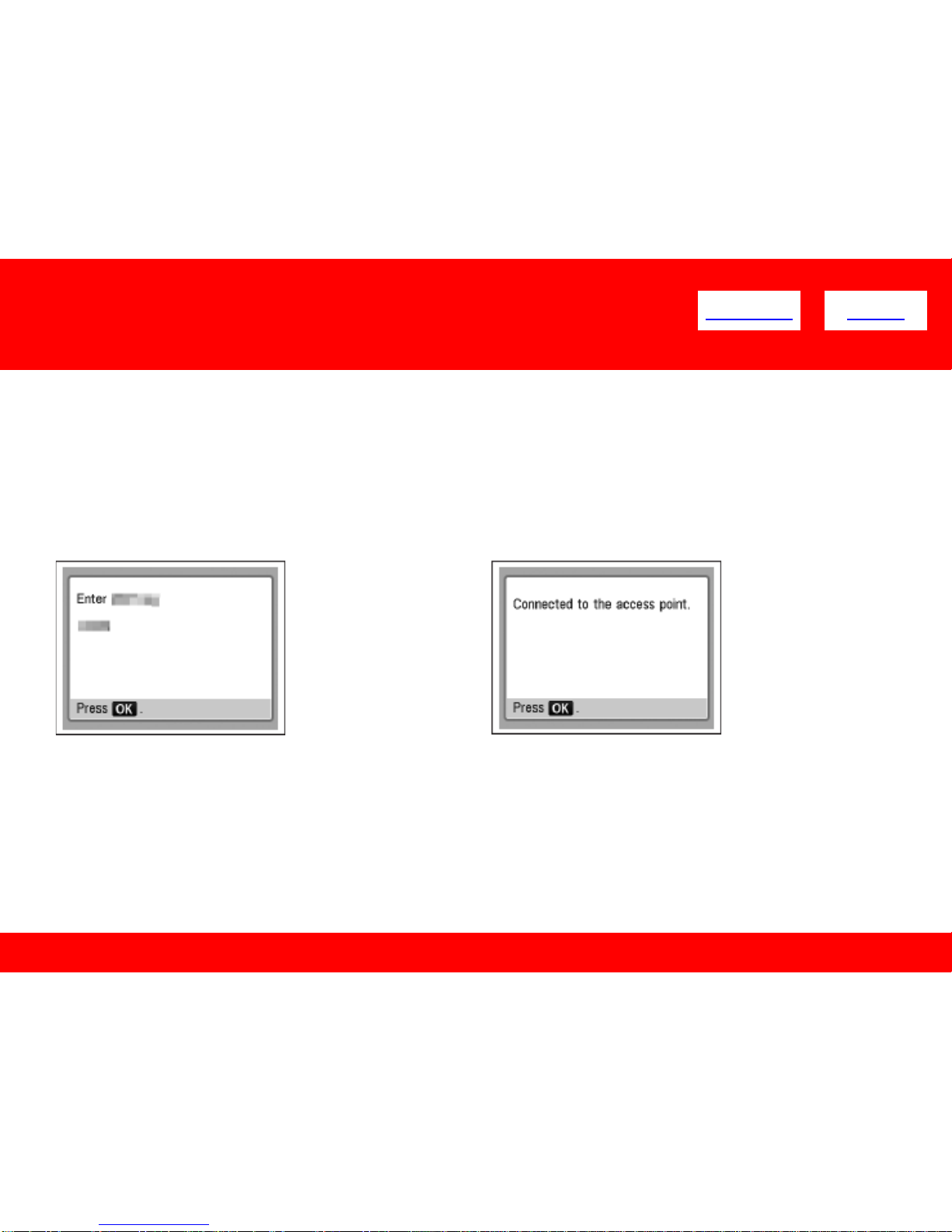

Step Seven

Make sure that the network key is correct, and then press

the OK button.

Step Eight

When the connected to the access point screen appears, press the

OK button.

The Setup menu screen returns.

NOTE: If Failed to connect to the access point. appears, press the OK

button, make sure that the network key is correct, then enter it again. If a

connection still cannot be established, refer to the printed manual:

Network Setup Troubleshooting

Adding Your Multifunction to Your Network << Previous Next >>

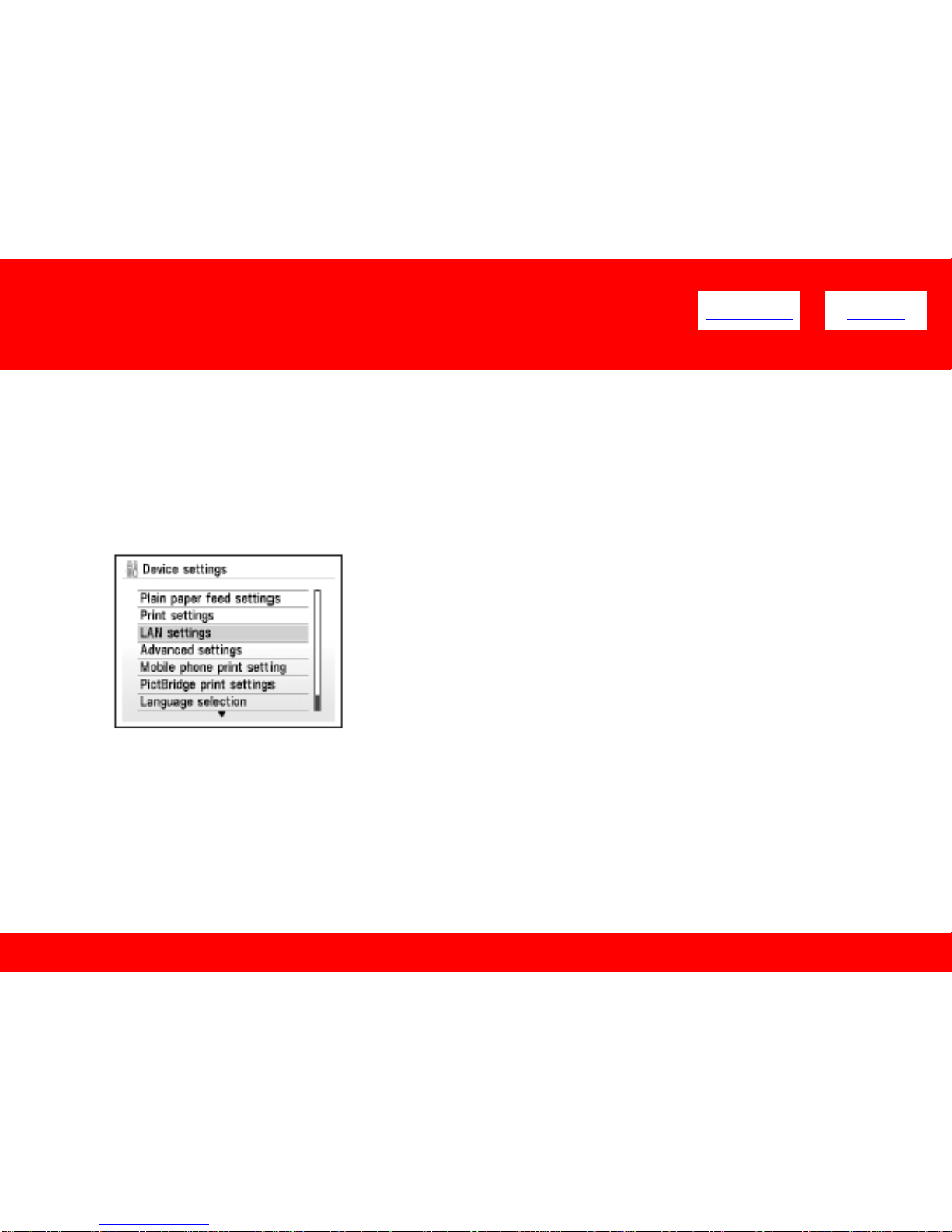

Step One

On the Setup menu, select Device Settings , and

then press the OK button.

IMPORTANT: Confirm connection status after installing the

machine in the target location.

Step Two

Select LAN settings, and then press the OK button.

Confirm Connection Status

Adding Your Multifunction to Your Network << Previous Next >>

Step Three

Select Confirm LAN settings, then press the OK button.

Step Four

Select WLAN setting list, then press the OK button.

Make sure that Connection is set to Active, and then press the

Copy button to return to standby.

It may take a while before the connection is complete. In this

case, press the Back* button and wait for about a minute, then

display the Wireless LAN setting list screen again.

*Back button location varies depending on model.

NOTE: If the communication status does not improve, make

sure of the following.

•The machine and network device are turned on.

•There is no obstacle between the machine and access point,

and wireless communication is possible.

•There is no microwave, refrigerator or any other object that

may cause radio interference nearby.
