Canon ImageCLASS MF4890dw Guide de sécurité

Starter Guide

Read this guide ﬁrst.

Please read this guide before operating this product. The remarks for important safety instructions are described in the Basic

Operation Guide. After you ﬁnish reading the Starter Guide, store it in a safe place for future reference.

Preface

P.2

Installing the Machine

P.4

Conﬁguring and

Connecting the Fax

P.20

Connecting to a Computer

and Installing the Drivers

P.14

Downloaded from ManualsPrinter.com Manuals

Checking the Supplied Accessories

Conﬁrm that all the supplied accessories are contained in the box. If an item is missing or damaged, please contact the Canon

Authorized Service Facilities or the Canon Customer Care Center.

About the LAN and USB cable

The machine does not come with a LAN cable or a hub.

Have a LAN cable or a hub ready as needed.

• Please use LAN Cable of Category 5 twisted pair cable or

higher for support.

• When connecting the machine to a 100BASE-TX Ethernet

network, all the devices on the LAN must be compatible

with 100BASE-TX.

Supplied Toner Cartridge

• The included "Canon Cartridge 328 Starter" can print an

average yield of 1,000 sheets*.The average yield of the

replacement toner cartridge diﬀers from the supplied toner

cartridge.

• To purchase replacement toner cartridges:

"Replacement Toner Cartridges" in the e-Manual

* The average yield is based on "ISO/IEC 19752" when printing A4

size paper with the default printing density.

User Software CD-ROM

The User Software CD-ROM contains the MF Drivers, MF

Toolbox, various software, and the e-Manual.*¹

MF Drivers

The MF Driver contains the Network Scan Utility*² (to use

to scan over a network) as well as printer, fax, and scanner

drivers.

MF Toolbox

The MF Toolbox provides a group of commands for you,

such as to open a scanned image in an application, send it

as an e-mail attachment ﬁle, and store it on the hard disk.

Miscellaneous Software

The User Software CD-ROM contains Presto! PageManager.

Install it from the [Custom Installation] option.

*1 See "Using the e-Manual" (P.26).

*2 Windows 7/8/Vista/XP only.

USB Cable*

Starter Guide

Power Cord

User Software CD-ROM

Speed Dial Label

(MF4890dw/MF4870dn/

MF4750 Only)

Handset Clamp

(MF4890dw/MF4870dn/

MF4750 Only)

Telephone Cable

Machine Unit

Limited Warranty Notice

The toner cartridge is already installed.

Wireless LAN Setting Guide

(MF4890dw/MF4720w Only)

Sta

* The USB cable may not be supplied depending on the country where you purchased the machine.

Downloaded from ManualsPrinter.com Manuals

Checking the Supplied Accessories

Included Documents

Printed Manuals

Sta

This manual

Starter Guide

This manual describes the conﬁguration

and software installation.

Wireless LAN Setting Guide

(MF4890dw/MF4720w Only)

This manual explains the wireless LAN

setup procedures and troubleshooting

during the setup.

Manuals Included in the CD-ROM

e-Manual

This manual explains all the features of the machine,

and is categorized by subject. For details about using the

e-Manual, see “Using the e-Manual” (P.26).

MF Driver Installation Guide

This manual describes software installation.

Preface Installing the Machine

Connecting to a Computer and Installing the Drivers

Configuring and Connecting the Fax

Downloaded from ManualsPrinter.com Manuals

Removing the Packing Materials

Remove all the packing materials, such as orange tape. Packing materials may change in form or placement, or may be added or

removed without prior notice.

Establishing an Installation Site

2 3

★

MF4890dw: 793 mm / 626 mm / 741 mm

★

★★

2 3

MF4870dn: 793 mm / 626 mm / 723 mm

★

★★

MF4820d: 793 mm / 590 mm / 696 mm

= 100 mm

★

2 3

MF4750: 755 mm / 626 mm / 723 mm

★

★★

MF4720w: 727 mm / 590 mm / 696 mm

123

Downloaded from ManualsPrinter.com Manuals

Removing the Packing Materials

Proper Handling

Hold here.

Preface Installing the Machine

Connecting to a Computer and Installing the Drivers

Configuring and Connecting the Fax

Do not place the machine near the following:

• Alcohol, paint thinner, or other ﬂammable substances ▶If ﬂammable substances come into contact with electrical

parts inside the machine, this may result in a ﬁre or electrical shock.

• Any medical equipment ▶Radio wave emitted from this machine may interfere with medical equipment.

• Surfaces that are unstable, subject to excessive vibration, objects that could block the ventilation slot, dampness

or dust, in direct sunlight or exposed to the elements, subject to high temperatures, open ﬂames, and poor

ventilation ▶Installing the machine in locations with these characteristics may result in personal injury, ﬁre, or

electric shock.

Ozone from the Unit

Although ozone is generated from the machine during operation, it does not have any aﬀect on the human body.

However, if you intend to use the machine for long periods of time, ensure that the installation location is well

ventilated for a comfortable working environment.

Do not remove

this packing

material yet.

• MF4890dw/MF4870dn/MF4750 • MF4820d/MF4720w

Downloaded from ManualsPrinter.com Manuals

Preparing the Toner Cartridge

Protrusions

Left Side

Right Side

The plastic part

is also a packing

material. Be sure

to remove it.

The length of the tape is

approximately 50 cm.

910

Protrusions

Fit the protrusions on each side of the toner cartridge,

and then slide the toner cartridge into the machine.

Downloaded from ManualsPrinter.com Manuals

Preparing the Toner Cartridge

Preface Installing the Machine

Connecting to a Computer and Installing the Drivers

Configuring and Connecting the Fax

Shake 5 to 6 times.

Place on a ﬂat surface.

Check!

Are all the packing materials removed?

Packing materials

Sealing tape

Packing material

with a sheet

Downloaded from ManualsPrinter.com Manuals

Loading Paper

Loading Paper Other than A4 Size

The procedure here is for loading A4 size paper.To load paper other than A4 size, such as A5 or B5, see “Loading

Paper Other than A4 Size” (P.25) after ﬁnishing the initial settings.

Adjust the paper guides tightly to

the width and length of the paper.

Spread the paper guides a little wider

than the width and length of the paper.

Downloaded from ManualsPrinter.com Manuals

Loading Paper

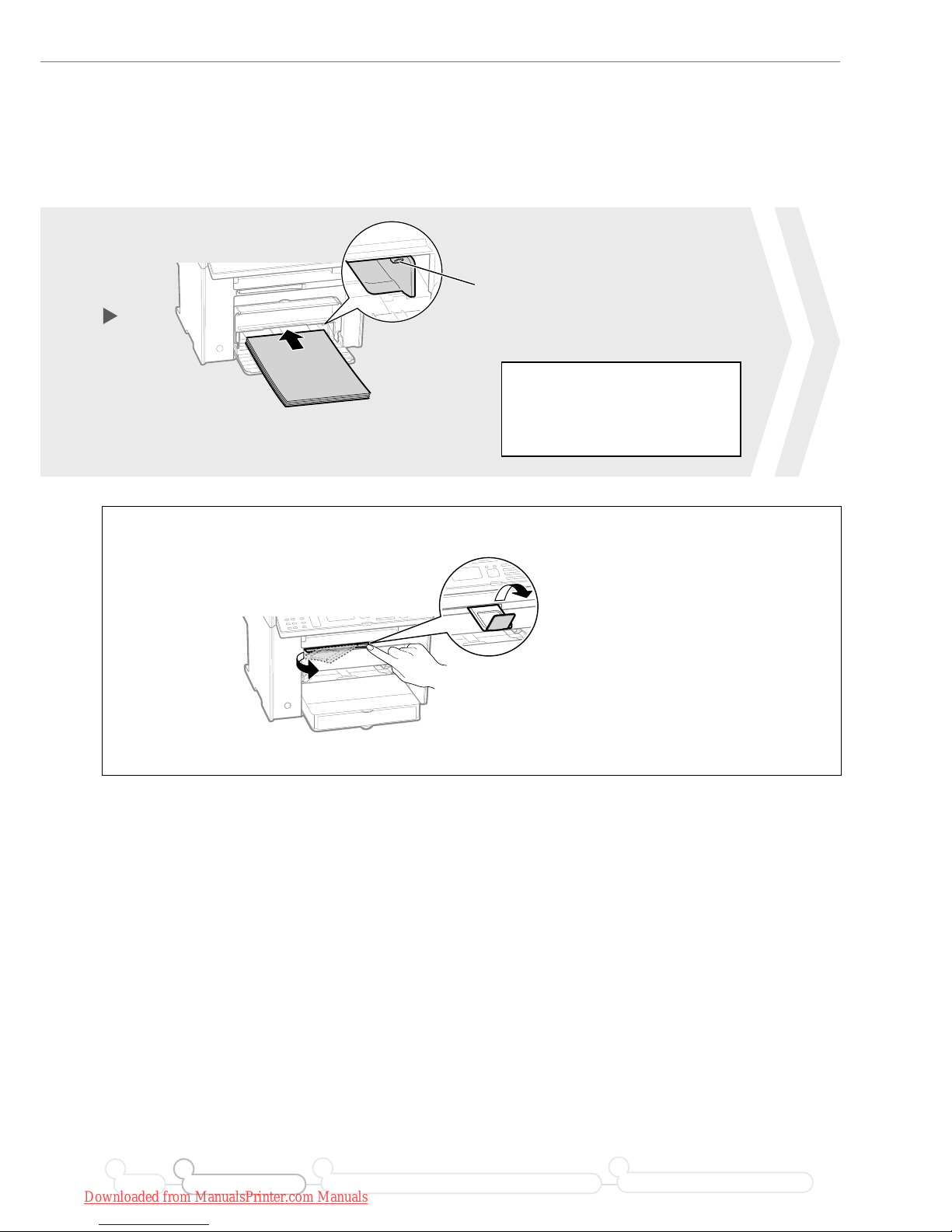

Use the paper stopper when printing.

Pull out the paper stopper to prevent the paper

from falling out of the output tray.

Preface Installing the Machine

Connecting to a Computer and Installing the Drivers

Configuring and Connecting the Fax

Push out the output tray extension, and then pull it out.

Lift the paper stopper.

Check!

Make sure that the paper

stack does not exceed the

load limit guide.

Load Limit Guide

Push until the edge of the paper stack meets

the back of the paper cassette.

Downloaded from ManualsPrinter.com Manuals

Connecting the Handset (Option)

• MF4890dw • MF4870dn/MF4750

Push the pins in

only up to here.

Downloaded from ManualsPrinter.com Manuals
