S65EA

Service Manual V0.9

All manuals and user guides at all-guides.com

CONTENT

Safety instructions..................................................................................................................3

Product Basic Specifications ................................................................................................5

Electrical Diagram ..................................................................................................................7

Key Parts List (For reference only)......................................................................................9

Disassembly guide...............................................................................................................10

Main Parts of Product..........................................................................................................25

All manuals and user guides at all-guides.com

Safety instructions

Please read the safety information carefully before installing, maintaining,

or disassembling this product.

I. Notice

The current of power supply, telephone and communication cable is

dangerous and the on/off button, power switch on the device do not cut off the

current completely. To avoid the danger of electric shock:

Be aware that the device may have several power supply cable at the

same time. To cut off the power, make sure all power supply cables

are disconnected.

Do not connect or disconnect any cables, install, maintain, or reset the

product during thunderstorm.

Connect all power cables to the right and use the well grounding power

supply socket.

Connect all devices to the proper connecter.

Connect or disconnect cables with one hand is recommended.

Do not turn on any device when there is a fire, flood, or collapse of a

house.

Please disconnect the power cable, remote communication system,

network, modem, and other devices before opening the screen, unless

otherwise specified in the installation and configuration process.

When the product is installed, moved or opened, the step of cable

connection or disconnection is provided as below.

To connect cables：

1. Turn off all devices.

2. Connect power cords to

devices.

3. Connect signal/

communication cables to devices.

4. Connect the power cord to

power supply socket.

To disconnect cables：

1. Turn off all devices.

2. Unplug power cords from

the socket.

3. Disconnect signal

/communication cables from

connector.

4. Disconnect the power cords

All manuals and user guides at all-guides.com

5. Turn on devices。

from devices

II. Battery maintenance

1. When replacing the system battery, please use the same kind of

battery.

2. Battery containing lithium, improper operation or handling will cause

explode.

Please DO NOT：

Put the battery into water

Heat the battery to more than 100 degrees C (212 degrees F)

Repair or disassemble the battery without authorization

3. Please deal with the battery according to the requirements of local laws

and regulations.

III. Do not remove any cover of power modules and the

parts which danger label is on.

All manuals and user guides at all-guides.com

Product Basic Specifications

I. Product Appearance

➢Front view

➢Back view

All manuals and user guides at all-guides.com

➢Side view

TV module bottom port

PC module port

TV module side port

All manuals and user guides at all-guides.com

Electrical Diagram

I. System block diagram

Peripheral module

T.MS6369.71L

Power supply module

Touch frame（FB65WHD-SW-A2）

AC IN

Remote control board

IR.EM29A

LVDS/12V

Key

KY.CV30B/C

MCU AMP

MSD6369IV-Z1

MAIN POWER

5VSB/5V/12V/24V

PSON/PWM/BL_ON

R&L LINE

IO/USB

HDMI

Plug board

CN.CV58B

PC module

MT11

USB/UART

Constant-current source output

AC controlled

PC_PW_CTL

OpenCell

（LC650DUY-SGM2）

Backlight module

（SWV6541 ）

T-CON board

（LC650DUY-

SGM2 ）

Power supply 1

P.SWP.250HT.1D

Relay

USB/IO/IR/5V IO

PC_USB/5V

Front USB platelet

CN.CV29E

All manuals and user guides at all-guides.com

II. Back view of the screen

TV POWER

BOARD

TV MAIN

BOARD

MCU BOARD

T-CON

KEYS&IR BOARD

USB BOARD

All manuals and user guides at all-guides.com

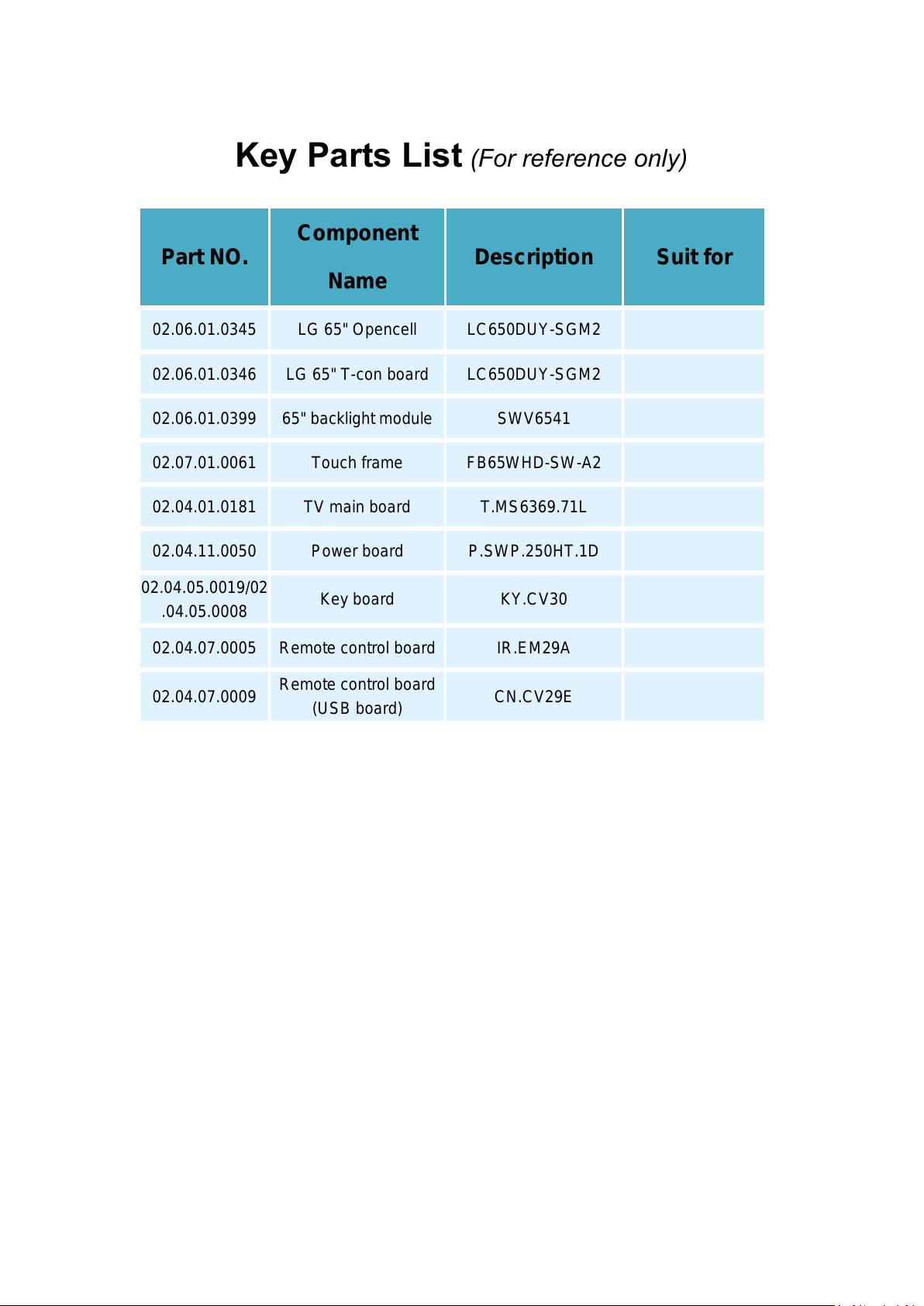

Key Parts List (For reference only)

Part NO.

Component

Name

Description

Suit for

02.06.01.0345

LG 65" Opencell

LC650DUY-SGM2

02.06.01.0346

LG 65" T-con board

LC650DUY-SGM2

02.06.01.0399

65" backlight module

SWV6541

02.07.01.0061

Touch frame

FB65WHD-SW-A2

02.04.01.0181

TV main board

T.MS6369.71L

02.04.11.0050

Power board

P.SWP.250HT.1D

02.04.05.0019/02

.04.05.0008

Key board

KY.CV30

02.04.07.0005

Remote control board

IR.EM29A

02.04.07.0009

Remote control board

(USB board)

CN.CV29E

All manuals and user guides at all-guides.com

Disassembly guide

I. Exploded Views

Parts Name

Quantity

Parts Name

Quantity

NO.

Parts Name

Quantity

Front frame

assembly

Glass pressing

block

USB assembly

Touch frame

PCB

PC assembly

Module

Middle frame

assembly

Bottom terminal

bracket

Double

frequency

board

Key assembly

TV main board

Power board

Speaker

assembly

Panel pressing

block

Large rear shell

Side terminal

bracket

Glass pressing

block

Large rear shell
