BOXLIGHT ProjectoWrite2 Manuel utilisateur

NE 151 Highway 300, Suite A

PO Box 2609

Belfair, WA 98528

360.464.2119

www.boxlight.com

ProjectoWrite2

About the Owner’s Manual

Features

Please read the owner’s manual thoroughly to ensure correct usage of the projector and its

features.

After reading, store the owner’s manual in a safe place for future reference.

1. Dress up Design

2. Designed for tough environment

3. Side change lamp

4. Side change ﬁlter

5. Quick off

6. Advanced Anti-theft features

7. Five auto features (Auto Search, Auto Sync, Auto Ceiling, Auto Keystone and Auto

Filter Alert)

8. Seven display modes (Natural, Cinema, Daylight, Green board, White Board, Black

Board and User)

9. Built-in 8W speaker

10. Logo capture

11. Image freeze function

12. Digital zoom adjustment

13. Extreme Short Throw Distance.

The content of this manual is subject to change without previous notice.

Issue of edition 0809.10_01

Projector

(Please click here if your projector is with high efﬁciency ﬁlter.)

Contents

About Owner’s Manual

Contents .....................................................................................................................1

Contents of Your Box ............................................................................................3-A

Safety Instructions ....................................................................................................4

Safety Labels..............................................................................................................5

Part Names ................................................................................................................6

Projector.................................................................................................................. 6

Control Panel .......................................................................................................... 7

Rear......................................................................................................................... 8

Setting Up ..................................................................................................................9

Arrangement ............................................................................................................9

Power ON / OFF....................................................................................................10

Setting Up The Projector ....................................................................................... 11

Ceiling Mounted Installation Guide ......................................................................12

Adjusting The Projector’s Elevation .....................................................................13

How To Connect ....................................................................................................14

Remote Control .......................................................................................................16

Remote Control (Optional) ....................................................................................19

Menu Operation......................................................................................................23

How To Operate On-Screen Display ......................................................................23

MENU (PC Mode)...................................................................................................24

Picture Menu (PC Mode)........................................................................................ 24

Audio Menu (PC Mode)......................................................................................... 25

Setting Menu (PC Mode)........................................................................................ 26

MENU (Video Mode) ..............................................................................................27

Picture Menu (Video Mode).................................................................................... 27

Audio Menu (Video Mode) ..................................................................................... 28

Setting Menu (Video Mode).................................................................................... 29

Contents

MENU ......................................................................................................................30

Advanced Menu.....................................................................................................30

Presentation Menu .................................................................................................33

Security Menu........................................................................................................35

PIN Key In Operation............................................................................................38

Network Control Software Application ................................................................39

Before Use ................................................................................................................40

Before To Use Network Control Software ............................................................40

Projector Auto Search............................................................................................41

Modify the Projector Setting .................................................................................43

Registering And Conﬁguring the Projector..........................................................44

Delete..................................................................................................................... 44

Projector Setting .................................................................................................... 45

System Setting / Monitor / Default Setting / Auto Detect Optimal Setting........... 47

Link........................................................................................................................ 48

Control Panel Window Introduction.....................................................................49

Power Control / Input Source / Function Key ........................................................49

Function Key / Projector Status..............................................................................50

Network Control Window Introduction..................................................................51

Maintenance Of Projector......................................................................................52

Air Filter / Replacing the Air Filter ........................................................................ 52

Lamp / Replacing New Lamp................................................................................. 53

Other Care / Cleaning the Lens .............................................................................. 55

Troubleshooting.......................................................................................................56

Indicator.................................................................................................................. 56

Error For Machine Defects ..................................................................................... 57

List of Supported Monitor Displays ....................................................................... 59

Appendix

Interactive Function Operation(Optional)

Contents of Your Box

Safety InstructionsContents of Your Box

- VOL +

INPUT

ESC

Auto

Still Blank

Check-list of your accessories

Please make sure that following items are included in the box,

along with the main.

If any items missing, contact your dealer.

1. Projector

7. Remote control

6. Convergence Lens

2. Computer cable

3. Power cord 4. Quick Start Guide

5. Owner’s Manual CD

3-A

(Please click here if your projector

is with high efﬁciency ﬁlter.)

Safety InstructionsContents of Your Box

Optional

cRemote control cRemote control

c USB Cable (1.5M)

c Soft Bag

c RS232 Cable

POWER

LASER

MOUSE-L

AUTO BLANK

MOUSE-R

MUTE

INPUT

LASER

INDICATOR

3-B

Safety Instructions

The projector is designed and tested to meet the latest standards for safety of information technology

equipment. However, to ensure safe use of this product, it is important that you follow the

instructions mentioned in this manual and marked on the product.

WARNING / CAUTION

1. If a problem occurs

-If smoke or trange odors arise, continued use

could result in ﬁre or electrical shock.

-If there is no image or sound, or the sound

is distorted in the projector. In some cases,

immediately remove the power cable from the

power outlet. After making sure that the unit has

stopped, contact your dealer for repairs.

Never attempt to repair by yourself because this

is dangerous.

2. Do....

-Place the projector in a stable horizontal

position.

-Put the projector in a cool place, and ensure that

there is sufﬁcient ventilation.

-To consult with your dealer before a special

installation such as suspending from a ceiling.

3. Do not....

-Do not place the projector on an unstable,

slanted or vibrating surface such as a wobbly or

inclined stand.

-Do not cover the projector's vents. Keep a space

of 20 cm or more between the projector and

other objects such as walls.

-Do not place the projector on metallic goods.

-Do not place the projector on carpet, cushions

or bedding. Do not place the projector in direct

sunlight or near hot objects such as heaters.

-Do not place anything near the projector lens or

vents, or on top of the projector.

-Do not place anything that may be sucked into

or stick to the vents beside of the projector.

-Do not use this projector if there is no image or

sound, or if the sound is distorted.

-Do not place this projector in a container

containing liquid.

4. While connecting, make sure that the shape

of the cable’s connector ﬁts the port to

connect with. Be sure to tighten the screws

on connectors with screws.

5. Do not disassemble or modify the projector

and accessories.

6. Be careful not to damage the cables, and do

not use damaged cables.

7. Use appropriate accessories or otherwise

designed cables. Ask your dealer about non-

accessory cables that may have other lengths.

8. Make sure that devices are connected to the

correct ports. An incorrect connection may

result in malfunction or damage to the device

and the projector.

9. Do not look through the lens when the lamp

is on.

Do not look through the lens when the lamp is

on. The powerful light could adversely affect

vision. Use special caution in households where

children are present.

10. A strong light is emitted when the projector’

s power on. Do not look into the lens of the

projector or look inside of the projector.

Do not place the projector upon either

side to project an image.

NO SIDEWARD

Do not point the projector down to

project an image.

NO DOWNWARD

Safety Labels

Safety labels are used on or within the projector to

alert you to items or areas requiring your attention.

WARNING LABEL

EMI LABEL

LAMP DOOR WARNING LABEL

(Please click here if your projector

is with high efﬁciency ﬁlter.)

Part Names

Projector

Control panel

Operating system.

Lens cover

Attach when not using to protect the lens

from becoming dirty or damaged.

Filter cover

Prevents dust and other foreign particles

from being drawn into projector.

Remove the ﬁlter cover to clean the air

ﬁlter.

Focus ring

Use the focus ring to focus the projector

image.

Rotate the focus ring until the image is

clear.

Zoom ring

Use the zoom ring to adjust the size of the

projected image.

Rotate the zoom ring until the image is the

desired size.

Lamp door

The lamp unit is inside.

Foot adjust button

Lock / unlock the adjustable foot.

Front adjustable foot

Extend and retract to adjust the projection

angle.

Front IR

receiver

Outlet ventilation

(Please click here if your projector is

with high efﬁciency ﬁlter.)

Part Names

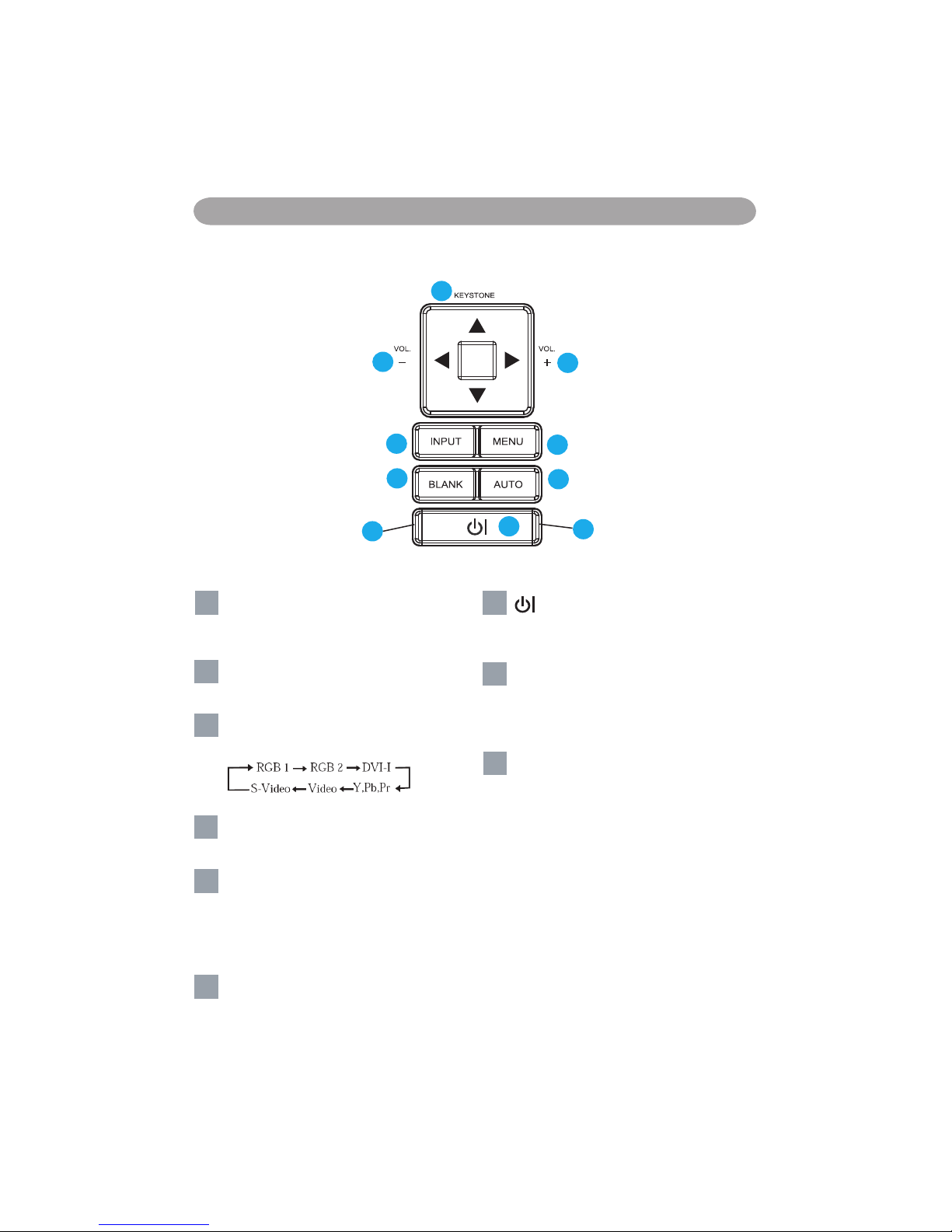

Control Panel

10 10

16 17

LAMP INDICATOR POWER INDICATOR

KEYSTONE

Adjust the vertical keystone with menu-up,

menu-down.

110

VOLUME + / -

Sound louder or lower.

INPUT

Select input source:

112

Display or hide the OSD main menu page.

113

BLANK

Blanks the projected image. If the

projector is left in blank mode for more

than 15/30/60 minutes, the projector will

automatically shut down.

AUTO

Automatically adjust the setting to match

the current input.

115

(POWER)

Power on / operation mode, Standby mode,

Cooling-down mode.

116

LAMP INDICATOR

Indicates a status in the internal projector

temperature, lamp door properly closed or

cooling down.

POWER INDICATOR

Light on or ﬂash to indicate the operating

status of the projector.

Table des matières

Autres manuels BOXLIGHT Projecteur

BOXLIGHT

BOXLIGHT CP-7t Manuel utilisateur

BOXLIGHT

BOXLIGHT MCP-305t Manuel utilisateur

BOXLIGHT

BOXLIGHT MP-45 Manuel utilisateur

BOXLIGHT

BOXLIGHT Studio Experience Matinee 2HD Manuel utilisateur

BOXLIGHT

BOXLIGHT CP-12tA Manuel utilisateur

BOXLIGHT

BOXLIGHT CP-300t Manuel utilisateur

BOXLIGHT

BOXLIGHT CD737x Manuel utilisateur

BOXLIGHT

BOXLIGHT CD-750m Manuel utilisateur

BOXLIGHT

BOXLIGHT P12 Manuel d'instructions d'installation

BOXLIGHT

BOXLIGHT Seattle X30N/W Manuel utilisateur

BOXLIGHT

BOXLIGHT CP-300t Manuel utilisateur

BOXLIGHT

BOXLIGHT CP-305t Manuel utilisateur

BOXLIGHT

BOXLIGHT ProjectoWrite8 WX35NXT Manuel utilisateur

BOXLIGHT

BOXLIGHT KVU600 Manuel utilisateur

BOXLIGHT

BOXLIGHT XP-8t Manuel utilisateur

BOXLIGHT

BOXLIGHT ProjectoWrite7 P7 WX32N Manuel utilisateur

BOXLIGHT

BOXLIGHT MP-56t Manuel utilisateur

BOXLIGHT

BOXLIGHT ProjectoWrite DX25N-U Manuel utilisateur

BOXLIGHT

BOXLIGHT CP-11t Manuel utilisateur

BOXLIGHT

BOXLIGHT CP-320tA Manuel utilisateur

BOXLIGHT

BOXLIGHT MP-25t Manuel utilisateur

BOXLIGHT

BOXLIGHT CP-12tA Manuel utilisateur

BOXLIGHT

BOXLIGHT CP-12t Manuel utilisateur

BOXLIGHT

BOXLIGHT Beacon CP720e Manuel utilisateur

Manuels Projecteur populaires d'autres marques

iEmmet

iEmmet MP-312 Manuel utilisateur

Epson

Epson VS400 Manuel utilisateur

Sony

Sony VPL-HS10 Marketing Specifications & Features Manuel utilisateur

Sony

Sony VPL-HW65ES Manuel de service

Toshiba

Toshiba TLP-791U Manuel utilisateur

Philips

Philips LC1341 Guide de référence

Panasonic

Panasonic PTL735NTU - LCD PROJECTOR-NETWORK IB Manuel utilisateur

NEC

NEC NP600S EDU Manuel utilisateur

BenQ

BenQ SH753P Manuel utilisateur

Eiki

Eiki EK-623U series Manuel utilisateur

Epson

Epson PowerLite Pro Cinema 6020UB Manuel utilisateur

Epson

Epson PowerLite Home Cinema 705HD Manuel utilisateur

Christie

Christie LHD700 Manuel utilisateur

Navitar

Navitar FX Manuel utilisateur

InFocus

InFocus LitePro 560 Manuel utilisateur

Sony

Sony SRX-R815P Manuel utilisateur

Vivitar

Vivitar DP1500 X Manuel utilisateur

Acer

Acer C20 Series Manuel utilisateur
