BOXLIGHT ProjectoWrite8 WX35NXT Manuel utilisateur

1... English

Table of Contents

Table of Contents 1

Usage Notice 2

Precautions ............................................ 2

Regulation & Safety Notices................... 4

Introduction 6

Package Overview ................................. 6

Product Overview ................................... 7

Main Unit............................................ 7

Control Panel ..................................... 8

Connection Ports ............................... 9

Remote Control................................ 10

Installation 11

Connecting to Computer/Notebook .......11

Connecting to Video Sources............... 12

Powering On/Off the Projector ............. 13

Powering On the Projector............... 13

Powering Off the Projector............... 14

LED Indicator Messages.................. 14

Adjusting the Projected Image ............. 15

Adjusting the Projector’s Height....... 15

Adjusting the Projector’s Focus ....... 16

Adjusting Projection Image Size ...... 16

User Controls 17

Using the Control Panel ....................... 17

Using the Remote Control .................... 18

Remote Control Battery Installation . 18

On-screen Display Menus .................... 20

How to operate ................................ 20

Structure .......................................... 21

Picture.............................................. 23

Screen ............................................. 25

Setting.............................................. 27

Setting | Security.............................. 29

Volume............................................. 31

Options ............................................ 32

Options | Lamp Settings................... 34

3D .................................................... 35

Interactive ........................................ 36

LAN.................................................. 37

Web Management............................ 38

Appendices 44

Troubleshooting.................................... 44

Image Problems............................... 44

Projector Problems .......................... 47

Remote Control Problems ............... 47

Sound Problems .............................. 47

3D Problems .................................... 47

On Screen Messages ...................... 48

Compatibility Modes ............................. 49

Replacing the lamp............................... 53

Replacing and cleaning the optional

dust lter............................................... 54

Ceiling Mount Installation ..................... 55

Specications ....................................... 56

English ...

Precautions

Please follow all warnings, precautions and maintenance as

recommended in this user’s guide.

▀■Warning- Do not look into the projector’s lens when the lamp is on. The bright

light may hurt and damage your eyes.

▀■Warning- To avoid the risk of re or electric shock, do not expose this projector

to rain or moisture.

▀■Warning- Please do not open or disassemble the projector as this may cause

electric shock.

▀■Warning- When replacing the lamp, please allow the unit to cool down. Follow

instructions as described on pages 53.

▀■Warning- This projector will detect the life of the lamp itself. Please be sure to

change the lamp when it shows warning messages.

▀■Warning- When the lamp is approaching the end of its lifetime, the message

“Lamp Warning: Lamp life exceeded.” will show on the screen.

Please contact your local reseller or service center to change the

lamp as soon as possible.

▀■Warning- Reset the “Clear Lamp Hours” function from the on-screen display

“Options | Lamp Settings” menu after replacing the lamp module

(refer to page 34).

▀■Warning- When switching the projector off, please ensure the cooling cycle

has been completed before disconnecting power. Allow 90 seconds

for the projector to cool down.

▀■Warning- Do not block the light path between the light source and the lens with

any objects. Doing so could cause the object to catch on re.

Usage Notice

3... English

Do:

Turn off and unplug the power plug from the AC outlet before cleaning the

product.

Use a soft dry cloth with mild detergent to clean the display housing.

Disconnect the power plug from AC outlet if the product is not being used for a

long period of time.

Do not:

Clean the lens.

When the PJ-lens is dirty, please contact the service center. Do not own wipe to avoid scratching the lens.

Block the slots and openings on the unit provided for ventilation.

Use abrasive cleaners, waxes or solvents to clean the unit.

Use under the following conditions:

- In extremely hot, cold or humid environments.

Ensure that the ambient room temperature is within 5 - 40°C.

 Relative Humidity is 5 - 40°C, 80% (Max.), non-condensing.

- In areas susceptible to excessive dust and dirt.

- Near any appliance generating a strong magnetic eld.

- In direct sunlight.

English ...

Regulation & Safety Notices

This appendix lists the general notices of your projector.

FCC notice

This device has been tested and found to comply with the limits for a Class

B digital device pursuant to Part 15 of the FCC rules. These limits are

designed to provide reasonable protection against harmful interference in

a residential installation. This device generates, uses and can radiate radio

frequency energy and, if not installed and used in accordance with the

instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a

particular installation. If this device does cause harmful interference to radio

or television reception, which can be determined by turning the device off

and on, the user is encouraged to try to correct the interference by one or

more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the device and receiver.

• Connect the device into an outlet on a circuit different from that to

which the receiver is connected.

• Consult the dealer or an experienced radio/television technician for

help.

Notice: Shielded cables

All connections to other computing devices must be made using

shielded cables to maintain compliance with FCC regulations.

Caution

Changes or modications not expressly approved by the

manufacturer could void the user’s authority, which is granted by the

Federal Communications Commission, to operate this projector.

5... English

Disposal instructions

Do not throw this electronic device into the trash when

discarding. To minimize pollution and ensure utmost

protection of the global environment, please recycle it.

Operation conditions

This device complies with Part 15 of the FCC Rules. Operation is subject to

the following two conditions:

1. This device may not cause harmful interference and

2. This device must accept any interference received, including

interference that may cause undesired operation.

Notice: Canadian users

This Class B digital apparatus complies with Canadian ICES-003.

Remarque à l’intention des utilisateurs canadiens

Cet appareil numerique de la classe B est conforme a la norme NMB-003

du Canada.

Declaration of Conformity for EU countries

• EMC Directive 2004/108/EC (including amendments)

• Low Voltage Directive 2006/95/EC

• R & TTE Directive 1999/5/EC (if product has RF function)

English ...

Due to different applications in each Country, some regions may have different accessories.

AC Power Cord

Unpack and inspect the box contents to ensure all parts listed below are in

the box. If something is missing, please contact our customer service.

Documentation:

User’s Guide (CD)y

BatteryProjector Remote Control

Introduction

Package Overview

Note

VGA Cable

CR2025

7... English

Product Overview

Focus Ring1.

Lens2.

IR Receiver3.

Control Panel4.

Lamp Cover5.

Main Unit

Input / Output Connection Ports6.

Power Socket7.

Elevator Feet8.

Elevator Feet9.

Elevator Feet Spacer10.

(Front View)

(Rear View)

(Bottom View)

English ...

Control Panel

Power LED1.

Power2.

Menu / Exit3.

Lamp LED4.

Temp (Temperature) LED5.

Source6.

Resync7.

Four Directional Select Keys8.

IR Receiver9.

POWER TEMP LAMP

RESYNC SOURCE

1 4

9... English

Connection Ports

LAN

321 5 6 8

9 10

11 12 13 14 15 16 17

Mini USB Connector1.

HDMI Connector2.

VGA Output Connector3.

LAN Connector (WXGA)4.

Audio In 1 Connector (For VGA In 1 Connector)5.

S-Video Connector6.

Left/Right RCA Audio Input Connector (For S-Video Connector)7.

Audio Output Connector8.

LIGHT CURTAIN9.

RS232 Connector10.

VGA In 1 Connector11.

VGA In 2 Connector12.

Audio In 2 Connector (For VGA In 2 Connector)13.

Composite Video Input Connector14.

Left/Right RCA Audio Input Connector (For Composite Video Input Connector)15.

3.5mm Microphone Input Connector16.

Power Socket17.

English ...

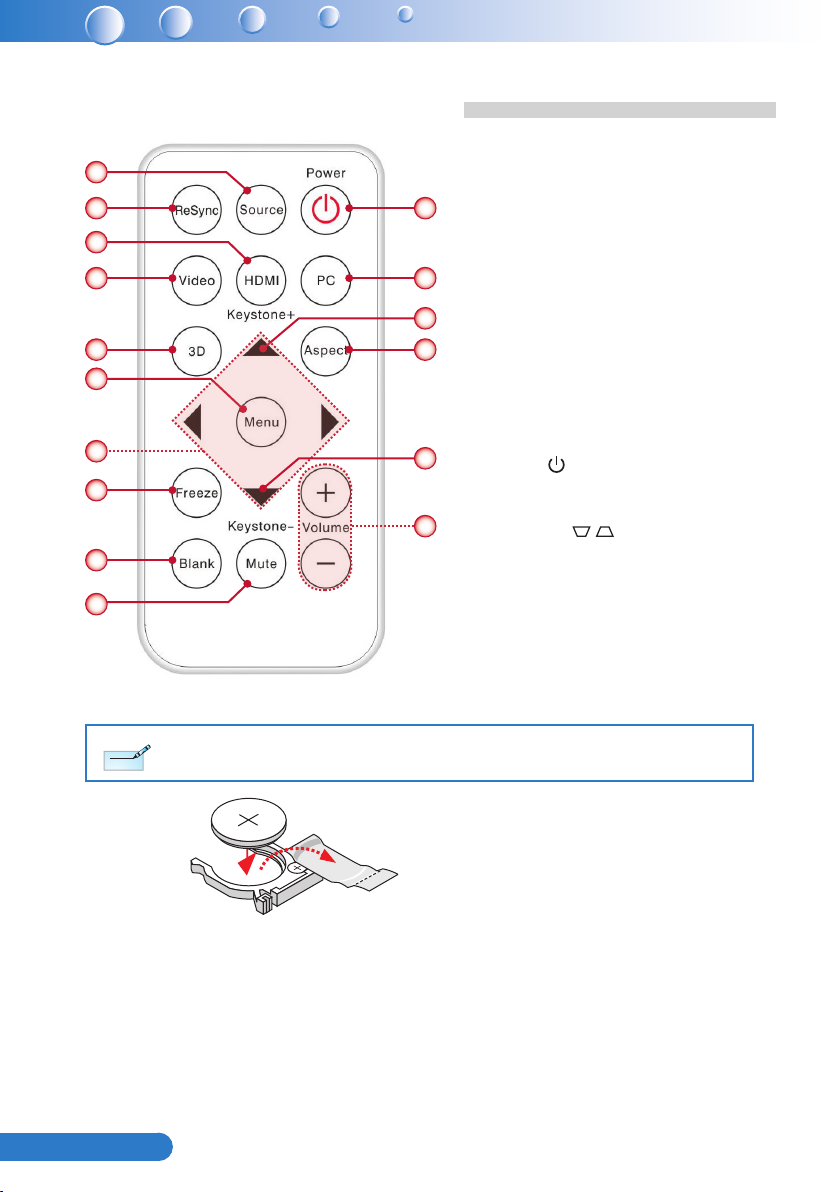

Source1.

ReSync2.

HDMI3.

Video4.

3D5.

Menu6.

Four Directional Select Keys7.

Freeze8.

Blank9.

Mute10.

Power11.

PC12.

Keystone13. /

Aspect14.

Volume +/-15.

Remote Control

4 12

CR2025

Before using the remote control for the rst time, remove the transparent insulation tape. See page 18 for 

battery installation.

Note
