Billion BiPAC 7800(N) (802.11n) Dual WAN ADSL2+ Firewall Router

-1-

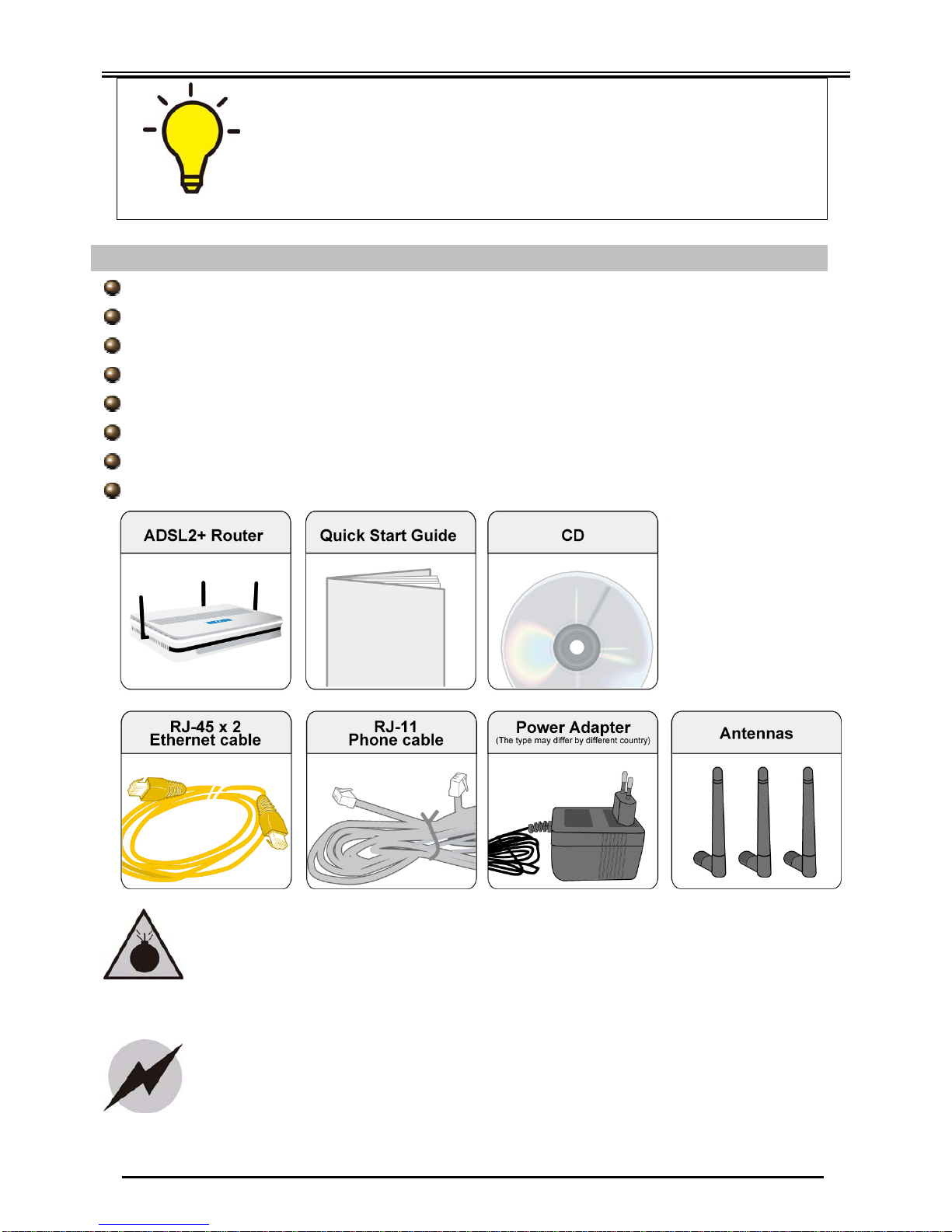

Package Contents

BiPAC 7800(N) (802.11n) Dual WAN ADSL2+ Firewall Router

CD containing the on-line manual

RJ-11 ADSL/telephone cable

Ethernet (RJ-45) cable

Three 2dBi detachable antennas (Wireless model only)

Power adapter

This Quick Start Guide

Splitter/ Micro-filter (Option)

Warning

PLEASE READ THE QUICK START GUIDE AND FOLLOW THE

STEPS CAREFULLY. THIS QUICK START GUIDE WILL HELP YOU

INSTALL THE DEVICE PROPERLY AND AVOID IMPROPER USAGE.

IF YOU NEED MORE INFORMATION ON THIS SOFTWARE

CONFIGURATION, PLEASE REFER TO THE USER’S MANUAL ON

CD-ROM.

 Do not use the router in high humidity or high temperatures.

 Do not use the same power source for the router as other

equipment.

 Do not open or repair the case yourself. If the router is too hot,

turn off the power immediately and have it repaired at a qualified

service center.

 Avoid usin

this

roduct and all accessories outdoors.

 Place the router on a stable surface.

 Only use the power adapter that comes with the package. Using a

different voltage rating power adaptor may damage the router.

ttention

Quick Start Guide

-2-

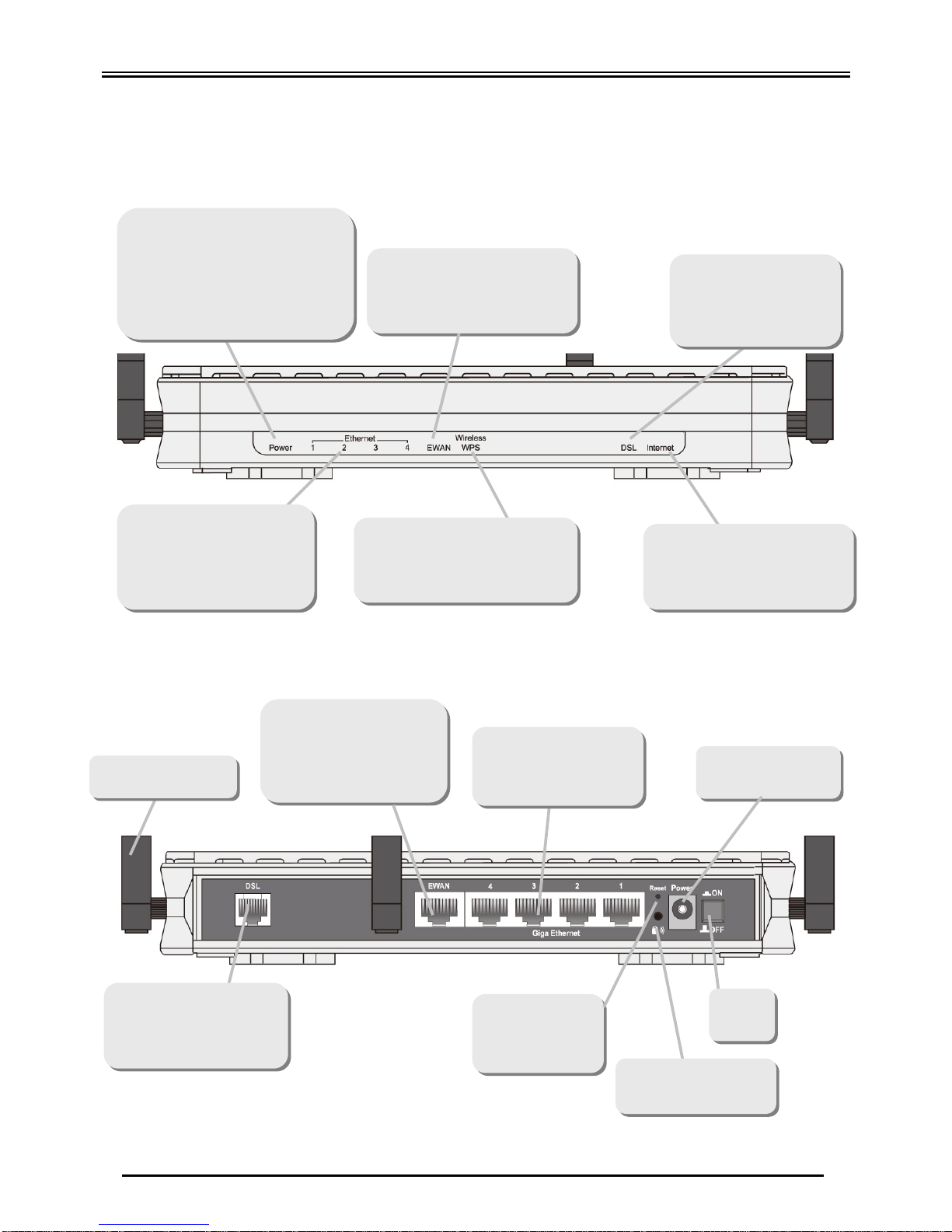

Hardware Overview

The Front LEDs

The Rear Ports

Connect the

supplied power

adapter to this jack

Connect the supplied

RJ-11 cable to this port

when connecting to the

ADSL/telephone

network

Press it to reset

the device or

restore to factory

default settings

Connect your computer

to a LAN port, using the

included Ethernet cable

(with RJ-45 cable)

When power on, it will lit green.

When the system is booting, it

will blink orange at the same

time. While the system is ready,

it will only lit green. When

system booting failed or in the

emergency mode, it will only lit

orange.

WAN 10/100M Ethernet port

(with auto crossover

support); connect Cable

Modem, VDSL, and Fiber

Modem or PON optic lines

with your RJ-45 cable

Lit when connected to an

Ethernet device.

Lit green for 1000Mbps;

Lit orange for 10/100Mbps.

Blinking when data is being

Transmitted / Received.

Lit Green when

successfully connected

to an ADSL DSLAM,

(“line sync”).

Lit when connected to a

broadband connection device.

Lit orange for 10/100Mbps.

Blinking when data is

transmitted / received.

Power

ON/OFF

switch

Lit green when a wireless

connection is established. Lit

orange when WPS is enabled.

Flash green when data is sent /

received.

Connect the

detachable antenna

Push WPS button to

trigger Wi-Fi Protected

Setup

Lit orange when WAN port

fails to get IP address. Flash

green when WAN port gets IP

ad dress successfully and

when data is transmitted.

Billion BiPAC 7800(N) (802.11n) Dual WAN ADSL2+ Firewall Router

-3-

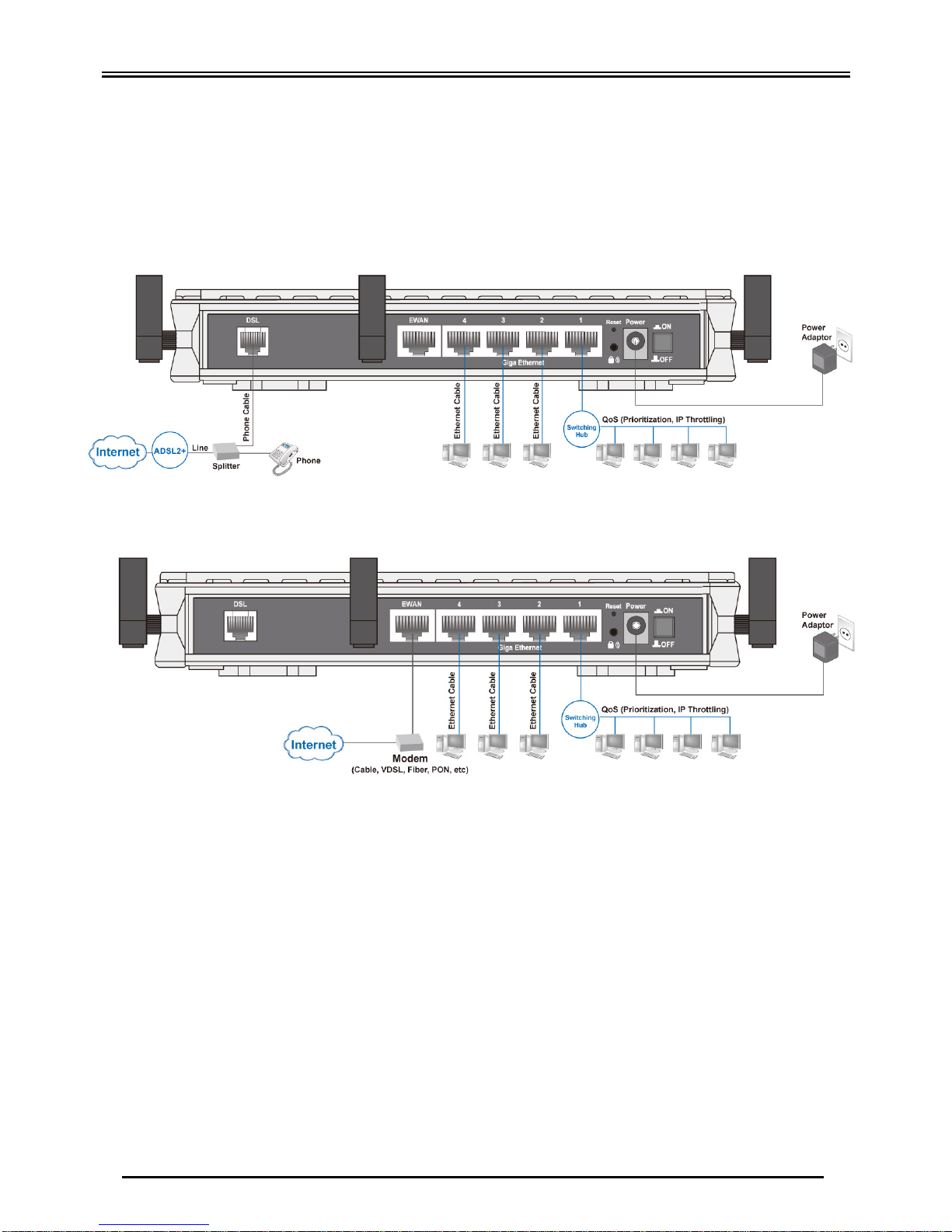

Hardware Connection

Users will not be able to connect to the internet through EWAN if DSL is already connected to

the internet. Only one connection type (EWAN or DSL) is allowed to connect to the internet at

one time.

ADSL Router Mode

Broadband Router Mode

Hardware Installation

Quick Start Guide

-4-

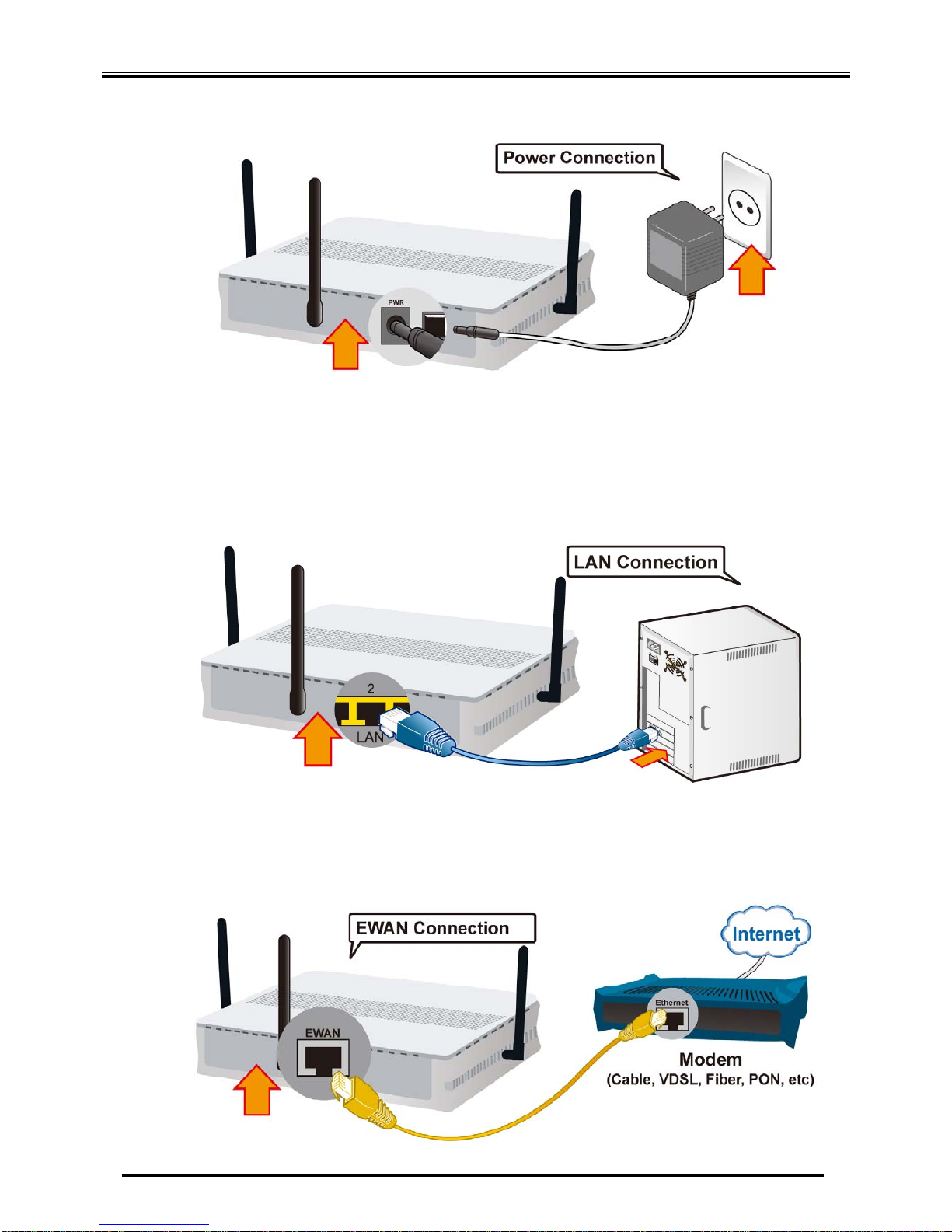

1. Power Connection

Plug the supplied power adapter to the wall jack and the other side to the router.

Please note that the plug type may differ according to different countries.

2. LAN Connection

Connect the supplied RJ-45 Ethernet cable to one of the Giga Ethernet ports, and

the other side to the PC’s Ethernet interface.

3. EWAN Connection

Connect the supplied RJ-45 Ethernet cable to the Ethernet WAN port (EWAN), and

connect the other side to another alternative broadband device, such as Cable

Modem, VDSL, Fiber Modem or PON optic lines.

Billion BiPAC 7800(N) (802.11n) Dual WAN ADSL2+ Firewall Router

-5-

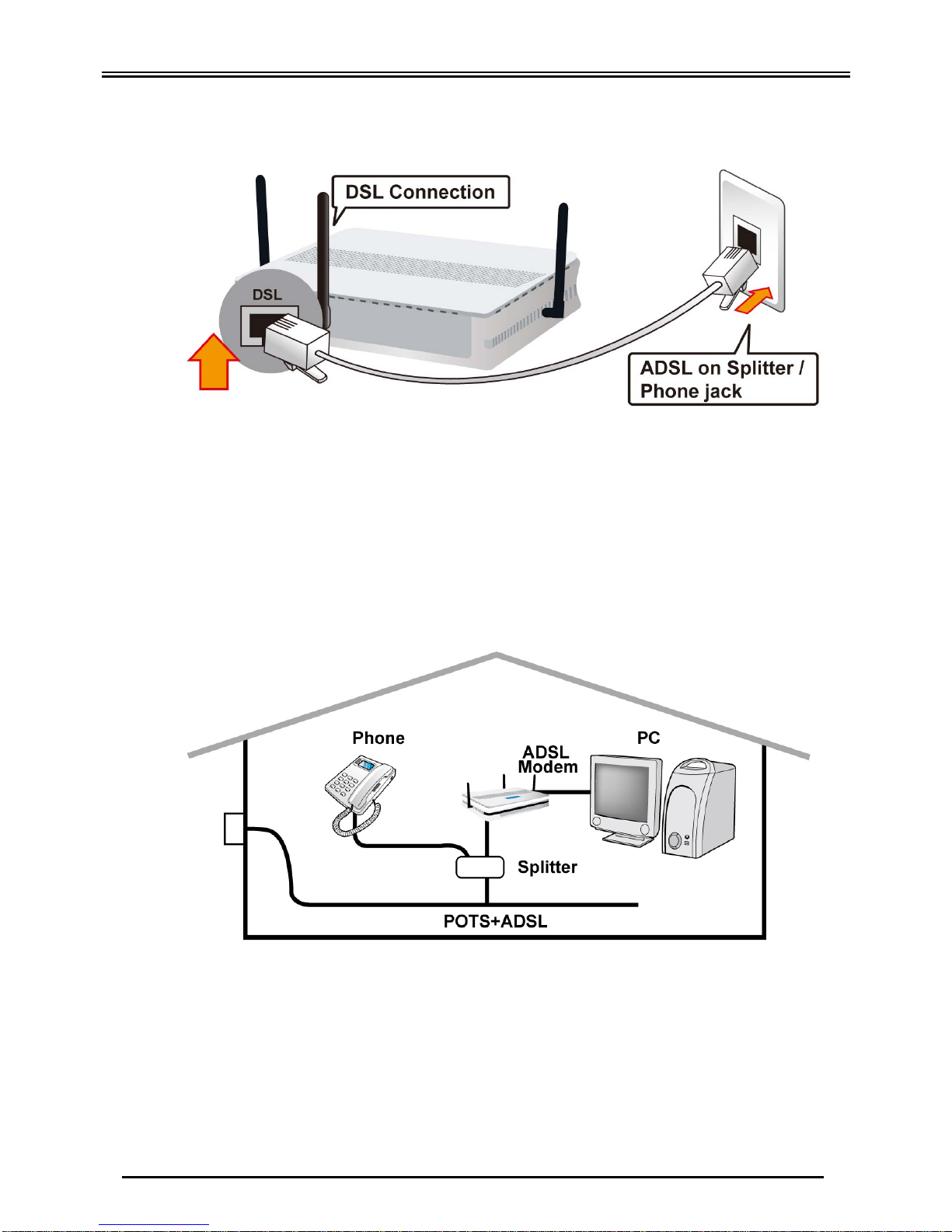

4. ADSL Connection

Connect the supplied RJ-11 phone cable to the router’s ADSL port, and the other

side to the phone jack on the wall.

5. Splitter/ Micro-filter Connection

Splitter / Micro-filter are important for ADSL installation. It helps high-frequency

signals are directed to the ADSL modem, and low-frequency signals are directed to

the telephone or other analog voice-channel device to prevent inter-modulation

distortion and get good speed and stable ADSL sync rate.

a) Splitter connection

If the installation has only a single telephone and a single ADSL modem, then a

splitter can be employed.

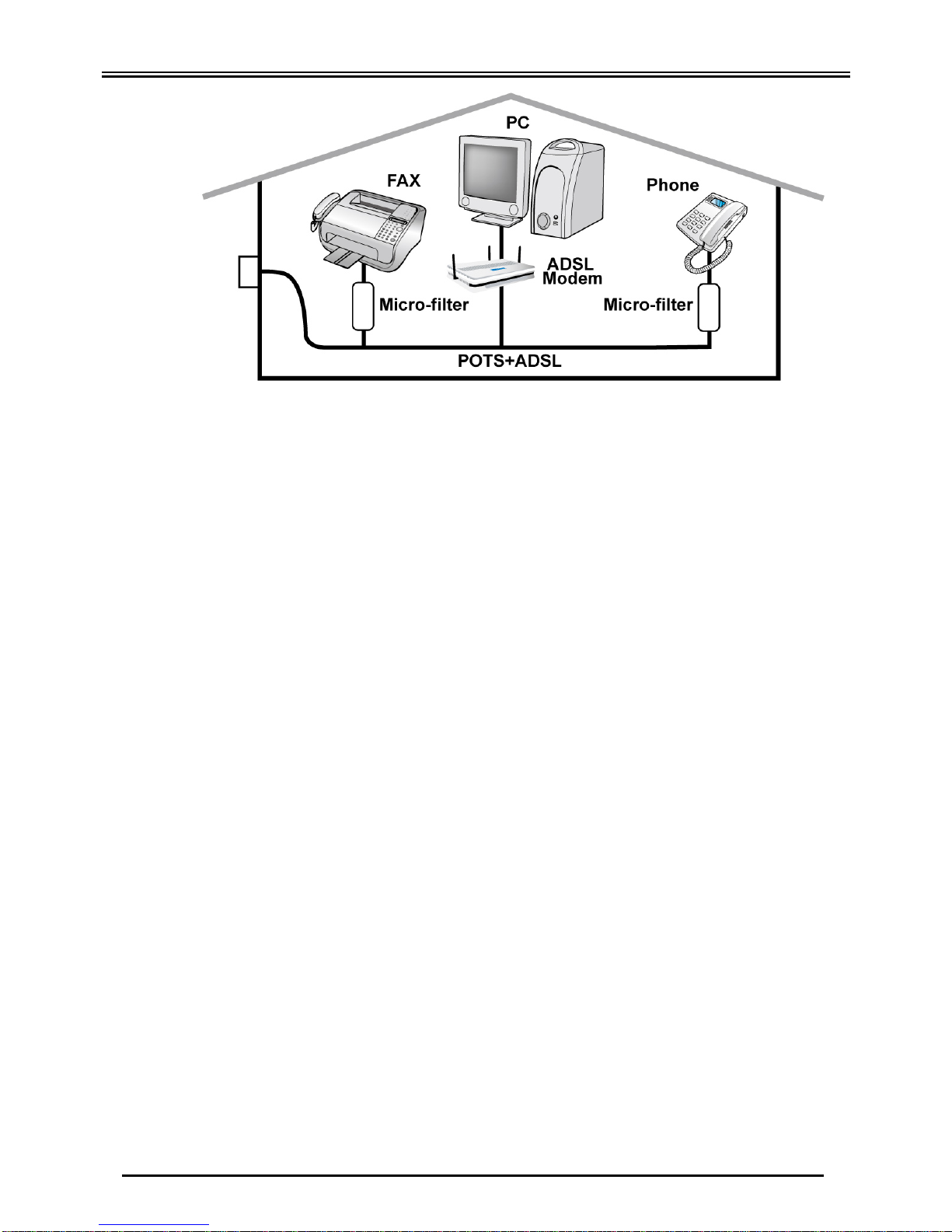

b) Micro-filter connection

If the installation has several telephones or other analog devices, then an internal

micro-filter can be employed at each analog device.

Quick Start Guide

-6-

Troubleshooting

1. None of the LEDs are on when you turn on the router.

Check the connection between the adapter and the router. If the error persists, you may have

a hardware problem. In this case you should contact technical support.

2. You have forgotten your router login and/or password.

Try the default login and password, please refer to Chapter 3 of the User’s Manual. If this fails,

you can restore your router to its factory settings by holding the Reset button on the back of

your router for 1~2 seconds.

3. Can’t ping any PCs on the LAN.

Check the Ethernet LEDs on the front panel. The LED should be on for a port that has a PC

connected. If it is off, check the cables between your router and the PC. Make sure you have

uninstalled any software firewall for troubleshooting. Verify that the IP address and the subnet

mask are consistent between the router and the workstations.

4. Frequent loss of ADSL linesync (disconnections).

Ensure that all other devices connected to the same telephone line as your router (e.g.

telephones, fax machines, analogue modems) have a line filter connected between them and

the wall socket (unless you are using a Central Splitter or Central Filter installed by a qualified

and licensed electrician), and ensure that all line filters are correctly installed and the right

way around. Missing line filters or line filters installed the wrong way around can cause

problems with your ADSL connection, including causing frequent disconnections. If you have

a back-to-base alarm system you should contact your security provider for a technician to

make any necessary changes.

Product Support and Contact Information

Most problems can be solved by referring to the Troubleshooting section in the User’s Manual.

If you cannot resolve the problem with the Troubleshooting chapter, please contact the dealer

where you purchased this product.

Billion BiPAC 7800(N) (802.11n) Dual WAN ADSL2+ Firewall Router

-7-

Contact Billion

WORLDWIDE

http://www.billion.com

Billion Product Registration

Billion is committed to before and after sales customer services. You will get the most out of your Billion's products

after registration. Please register online at www.billion.com/register to receive valuable services and support from

us.

BiPAC 7800

(

)

: V1.00EN
