Belden HIRSCHMANN GREYHOUND GRM Series Manuel utilisateur

Installation GRS1020/1120/1030/1130

Release

01/2020

Technical support

https://hirschmann-support.belden.com

User Manual

Installation

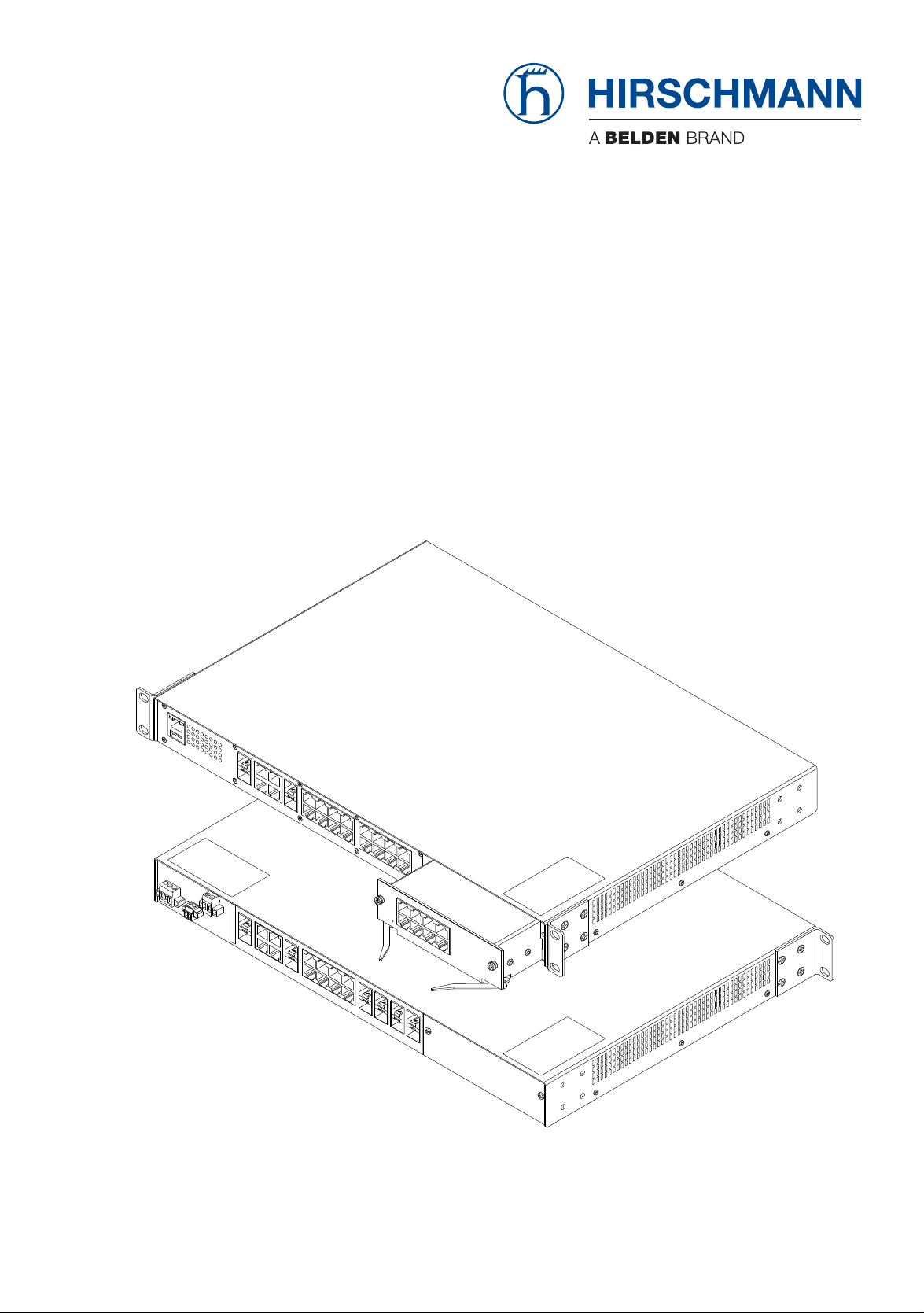

GREYHOUND Switch

Hirschmann Switch GREYHOUND

GRS1020/1120/1030/1130/GRM

27.01.2020 Installation GRS1020/1120/1030/1130

Release

01/2020

The naming of copyrighted trademarks in this manual, even when not specially indicated, should

not be taken to mean that these names may be considered as free in the sense of the trademark

and tradename protection law and hence that they may be freely used by anyone.

translation, conversion into any electronic medium or machine scannable form is not permitted,

either in whole or in part. An exception is the preparation of a backup copy of the software for

your own use.

The performance features described here are binding only if they have been expressly agreed

when the contract was made. This document was produced by Hirschmann Automation and

Control GmbH according to the best of the company's knowledge. Hirschmann reserves the right

to change the contents of this document without prior notice. Hirschmann can give no guarantee

in respect of the correctness or accuracy of the information in this document.

Hirschmann can accept no responsibility for damages, resulting from the use of the network

components or the associated operating software. In addition, we refer to the conditions of use

specified in the license contract.

You can get the latest version of this manual on the Internet at the Hirschmann product site

(www.hirschmann.com).

Hirschmann Automation and Control GmbH

Stuttgarter Str. 45-51

72654 Neckartenzlingen

Germany

Installation GRS1020/1120/1030/1130

Release

01/2020 3

Contents

Safety instructions 6

About this Manual 17

Legend 18

1 Description 19

1.1 General device description 19

1.2 Device name and product code 21

1.2.1 Basic device 21

1.2.2 Media modules 24

1.3 Combination options 25

1.3.1 Basic device 25

1.3.2 Media modules 26

1.4 Device views 28

1.4.1 Basic device 28

1.4.2 Port assingment 30

1.4.3 Media modules 31

1.5 Power supply 33

1.5.1 Supply voltage with characteristic value C 33

1.5.2 Supply voltage with characteristic value M 33

1.6 Ethernet ports 34

1.6.1 Basic device 34

1.6.2 Media modules 36

1.7 Display elements 37

1.7.1 Device Status 37

1.7.2 Port status 38

1.7.3 Media module status 39

1.8 Management interfaces 40

1.8.1 V.24 interface (external management) 40

1.8.2 USB interface 41

1.9 Signal contact 42

2 Installation 43

2.1 Checking the package contents 43

4Installation GRS1020/1120/1030/1130

Release

01/2020

2.2 Installing and grounding the device 43

2.3 Mounting a media module (optional) 48

2.4 Installing an SFP transceiver (optional) 49

2.5 Connecting the terminal blocks 50

2.5.1 Supply voltage with characteristic value C 50

2.5.2 Supply voltage with characteristic value M 51

2.5.3 Signal contact 52

2.6 Operating the device 53

2.7 Connecting data cables 53

2.8 Filling out the inscription label 53

3 Making basic settings 54

3.1 Default settings 54

3.2 First login (Password change) 55

4 Monitoring the ambient air temperature 56

5 Maintenance and service 57

6Disassembly 58

6.1 Removing a media module (optional) 58

6.2 Removing an SFP transceiver (optional) 59

6.3 Removing the device 59

7 Technical data 60

7.1 General technical data 60

7.2 Supply voltage 61

7.3 Power consumption/power output 62

7.4 Signal contact 63

7.5 Climatic conditions during operation 63

7.6 Climatic conditions during storage 64

7.7 Dimension drawings 65

7.8 EMC and immunity 67

7.9 Network range 70

Installation GRS1020/1120/1030/1130

Release

01/2020 5

8 Scope of delivery 73

8.1 Basic device 73

8.2 Media modules 73

9 Accessories 74

9.1 General accessories 74

9.2 Order numbers 74

9.3 Fast Ethernet SFP transceiver 75

9.4 Gigabit Ethernet SFP transceiver 75

9.5 Bidirectional Gigabit Ethernet SFP transceiver 77

10 Underlying technical standards 78

A Further support 79

6Installation GRS1020/1120/1030/1130

Release

01/2020

Safety instructions

General safety instructions

You operate this device with electricity. Improper usage of the device

entails the risk of physical injury or significant property damage. The

proper and safe operation of this device depends on proper handling

during transportation, proper storage and installation, and careful

operation and maintenance procedures.

Before connecting any cable, read this document, and the safety

instructions and warnings.

Operate the device with undamaged components exclusively.

The device is free of any service components. In case of a damaged

or malfunctioning device, turn off the supply voltage and return the

device to Hirschmann for inspection.

Qualification requirements for personnel

Only allow qualified personnel to work on the device.

Qualified personnel have the following characteristics:

Qualified personnel are properly trained. Training as well as practical

knowledge and experience make up their qualifications. This is the

prerequisite for grounding and labeling circuits, devices, and systems

in accordance with current standards in safety technology.

Qualified personnel are aware of the dangers that exist in their work.

Qualified personnel are familiar with appropriate measures against

these hazards in order to reduce the risk for themselves and others.

Qualified personnel receive training on a regular basis.

WARNING

UNCONTROLLED MACHINE ACTIONS

To avoid uncontrolled machine actions caused by data loss, configure all

the data transmission devices individually.

Before you start any machine which is controlled via data transmission, be

sure to complete the configuration of all data transmission devices.

Failure to follow these instructions can result in death, serious injury,

or equipment damage.

Installation GRS1020/1120/1030/1130

Release

01/2020 7

Certified usage

Use the product only for the application cases described in the

Hirschmann product information, including this manual.

Operate the product only according to the technical specifications.

See “Technical data” on page 60.

Connect to the product only components suitable for the requirements

of the specific application case.

National and international safety regulations

Verify that the electrical installation meets local or nationally applicable

safety regulations.

Requirements for connecting electrical wires

Before connecting the electrical wires, always verify that the

requirements listed are complied with.

Requirements for connecting the signal contact

Before connecting the signal contact, always verify that the requirements

listed are complied with.

The following requirements apply without restrictions:

The electrical wires are voltage-free.

The cables used are permitted for the temperature range of the application case.

Relevant for North America:

Exclusively use 60/75 °C (140/167 °F) or 75 °C (167 °F) copper (Cu) wire.

The voltage connected complies with the requirements for a safety extra-low voltage

(SELV) as per IEC/EN 60950-1.

Table 1: General requirements for connecting electrical wires

The following requirements apply without restrictions:

The voltage connected complies with the requirements for a safety extra-low voltage

(SELV) as per IEC/EN 60950-1.

The connected voltage is limited by a current limitation device or a fuse.

Observe the electrical threshold values for the signal contact.

See “General technical data” on page 60.

8Installation GRS1020/1120/1030/1130

Release

01/2020

Requirements for connecting the supply voltage

Before connecting the supply voltage, always verify that the requirements

listed are complied with.

Prerequisites:

All of the following requirements are complied with:

The supply voltage corresponds to the voltage specified on the type plate of the device.

The power supply conforms to overvoltage category I or II.

The power supply has an easily accessible disconnecting device (for example a switch or

a plug). This disconnecting device is clearly identified. So in the case of an emergency, it is

clear which disconnecting device belongs to which power supply cable.

The ground screw on the back of the device is connected to the protective conductor.

The cross-section of the ground conductor is the same size as or bigger than the cross-

section of the power supply cables.

The following requirements apply alternatively:

Relevant when the device is supplied via 1 voltage input:

Alternative 1 The power supply complies with the requirements for a limited power source

(LPS) as per EN 60950-1.

Alternative 2 Relevant for North America:

The power supply complies with the requirements according to NEC Class 2.

Alternative 3 All of the following requirements are complied with:

The power supply complies with the requirements for a safety extra-low

voltage (SELV) as per IEC/EN 60950-1.

Supply with DC voltage:

The wire diameter of the power supply cable is at least 1 mm² (North

America: AWG16) on the supply voltage input.

A fuse suitable for DC voltage is located in the plus conductor of the power

supply.

The minus conductor is on ground potential. Otherwise, a fuse is also

located in the minus conductor.

Regarding the properties of this fuse:

See “Technical data” on page 60.

Supply with AC voltage:

The wire diameter of the power supply cable is at least 0.75 mm² (North

America: AWG18) on the supply voltage input.

A fuse is located in the outer conductor of the power supply.

The neutral conductor is on ground potential at both voltage inputs.

Otherwise, a fuse is also located in the neutral conductor.

Regarding the properties of this fuse:

See “Technical data” on page 60.

Relevant when the device is supplied via 2 voltage inputs:

Alternative 1 The total voltage supply meets the requirements for a limited power source

(LPS) as per EN 60950-1.

Alternative 2 Relevant for North America:

The total voltage supply complies with the requirements as per NEC Class 2.

Installation GRS1020/1120/1030/1130

Release

01/2020 9

The supply voltage is electrically isolated from the casing.

For supply voltage connections with protective conductor connection:

First connect the protective conductor before connecting the wires for the

supply voltage.

If your device comprises a 2nd supply voltage connection of this type:

First connect the protective conductor before connecting the wires for the

supply voltages.

Shielded ground

The shielded ground wire of the twisted pairs cables is connected to the

front panel as a conductor.

Beware of possible short circuits when connecting a cable section with

conductive shield braiding.

Alternative 3 All of the following requirements are complied with:

The power supply complies with the requirements for a safety extra-low

voltage (SELV) as per IEC/EN 60950-1.

Supply with DC voltage:

The wire diameter of the power supply cable is at least 1 mm² (North

America: AWG16) on the supply voltage input.

A fuse suitable for DC voltage is located at both voltage inputs in the plus

conductor of the power supply.

The minus conductor is on ground potential at both voltage inputs.

Otherwise, a fuse is also located in the minus conductor.

Regarding the properties of this fuse:

See “Technical data” on page 60.

Supply with AC voltage:

The wire diameter of the power supply cable is at least 0.75 mm² (North

America: AWG18) on the supply voltage input.

A fuse is located at both voltage inputs in the outer conductor of the power

supply.

The neutral conductor is on ground potential at both voltage inputs.

Otherwise, a fuse is also located in the neutral conductor.

Regarding the properties of this fuse:

See “Technical data” on page 60.

Prerequisites:

10 Installation GRS1020/1120/1030/1130

Release

01/2020

Device casing

Only technicians authorized by the manufacturer are permitted to open

the casing.

Keep the ventilation slits free to ensure good air circulation.

Make sure there is at least 3.94 in (10 cm) of space in front of the

ventilation slits of the casing.

Do not touch the housing during operation or shortly after switching off

the device. Hot surfaces can cause injury.

Mount the device horizontally in a cabinet or vertically on a flat surface.

Operating the device as a table unit is inadmissible.

See “Installing and grounding the device” on page 43.

Operating the device in the maximum surrounding air temperature and

stacking devices: When installing the device, make sure there is at

least one free rack space (approx. 5 cm) above the device, because

heat is discharged via the housing of the device.

If you are operating the device in a 19" switch cabinet: install sliding/

mounting rails for supporting the weight of the device.

Only switch on the device when the housing is closed.

Installation site requirements

Operate the device at the specified ambient temperature (temperature of

the ambient air at a distance of 2 in (5 cm) from the device) and at the

specified relative humidity exclusively.

When you are selecting the installation location, make sure you

observe the climatic threshold values specified in the technical data.

Use the device in an environment with a maximum pollution degree

that complies with the specifications in the technical data.

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Belden Changer

Belden

Belden grass valley GV FABRIC Manuel utilisateur

Belden

Belden MAMMUTHUS MTM2800-PSU120 Manuel utilisateur

Belden

Belden lumberg automation 0960 IOL 3816-001 Manuel utilisateur

Belden

Belden HIRSCHMANN MSP30 Manuel utilisateur

Belden

Belden HIRSCHMANN HiOS-2A Manuel utilisateur

Belden

Belden Hirschmann RS20 Series Manuel utilisateur

Belden

Belden Hirschmann MACH1000 Series Manuel utilisateur

Belden

Belden HIRSCHMANN RSP20 Manuel utilisateur

Belden

Belden Hirschmann DRAGON MACH Series Manuel utilisateur

Belden

Belden HIRSCHMANN SPIDER II 16TX EEC Manuel utilisateur

Belden

Belden Hirschmann MACH104-PoEP Series Manuel utilisateur

Belden

Belden Hirschmann MACH104-PoEP Series Manuel utilisateur

Belden

Belden HIRSCHMANN MACH 4000 Series Manuel utilisateur

Belden

Belden Hirschmann RS20 Series Manuel utilisateur

Belden

Belden Grass Valley Kayenne Supplément

Belden

Belden Telecast Fiber Systems THOR-SLG Manuel utilisateur

Belden

Belden Hirschmann HiOS-2S Manuel utilisateur

Belden

Belden HIRSCHMANN IT MAMMUTHUS MTM8000 Series Manuel utilisateur

Belden

Belden HIRSCHMANN Octopus II Manuel utilisateur

Belden

Belden Hirschmann GREYHOUND GRS1042 Manuel utilisateur

Belden

Belden Hirschmann SPIDER-SL-20-08T1999999SY9HHHH Manuel utilisateur

Belden

Belden HIRSCHMANN IT MAMMUTHUS MTS2948X-6Q-A Manuel utilisateur

Belden

Belden Hirschmann MACH1040 Series Manuel utilisateur

Belden

Belden Hirschmann GREYHOUND GRS1042 Manuel utilisateur

Manuels Changer populaires d'autres marques

URC

URC Total Control MFS-8 Manuel utilisateur

Azbil

Azbil HPQ-D11 Manuel utilisateur

Sony

Sony DFS-900M Manuel utilisateur

SICK

SICK i17S Manuel utilisateur

F&F

F&F SZR-277 Manuel utilisateur

Shure

Shure UAMS/BK Manuel utilisateur

Dräger

Dräger X-zone Switch Off Manuel utilisateur

Asco

Asco Joucomatic 349 Series Manuel utilisateur

BT Mini Hub Manuel utilisateur

D-Link

D-Link DES-1226G Manuel utilisateur

Johnson Controls

Johnson Controls FS80-C Manuel utilisateur

Alcatel-Lucent

Alcatel-Lucent 7450 ESS-12 Manuel utilisateur

MicroNet

MicroNet SP1200A Manuel utilisateur

Ruijie

Ruijie RG-PF2920 Series Manuel d'installation et d'exploitation

Altinex

Altinex DA1914SX Manuel utilisateur

MiLAN

MiLAN MIL-SM2401M Manuel utilisateur

RJM

RJM MASTERMIND PBC/6X Manuel utilisateur

Atlas

Atlas MMK-KVM8 Manuel utilisateur
