AVF CML8360-F Manuel utilisateur
CML8360-F Leaflet No. 464513 rev00
English Language
##
32"
81cm
STOP
Read through ALL instructions before commencing installation.
If you have any questions about this product or issues with installation
contact the customer services help line before returning this product to
the store. See www.cus.avfgroup.com/p/CML8360-A
AVF Incorporated. 3187, Cornerstone Drive, Eastvale, CA 91752, USA
88lbs
40kg
80"
203cm 121lbs
55kg
TVs up to
TVs up to
CUSTOMER SERVICES HELP LINE NUMBER:
1-800 667 0808 (USA)
=
=

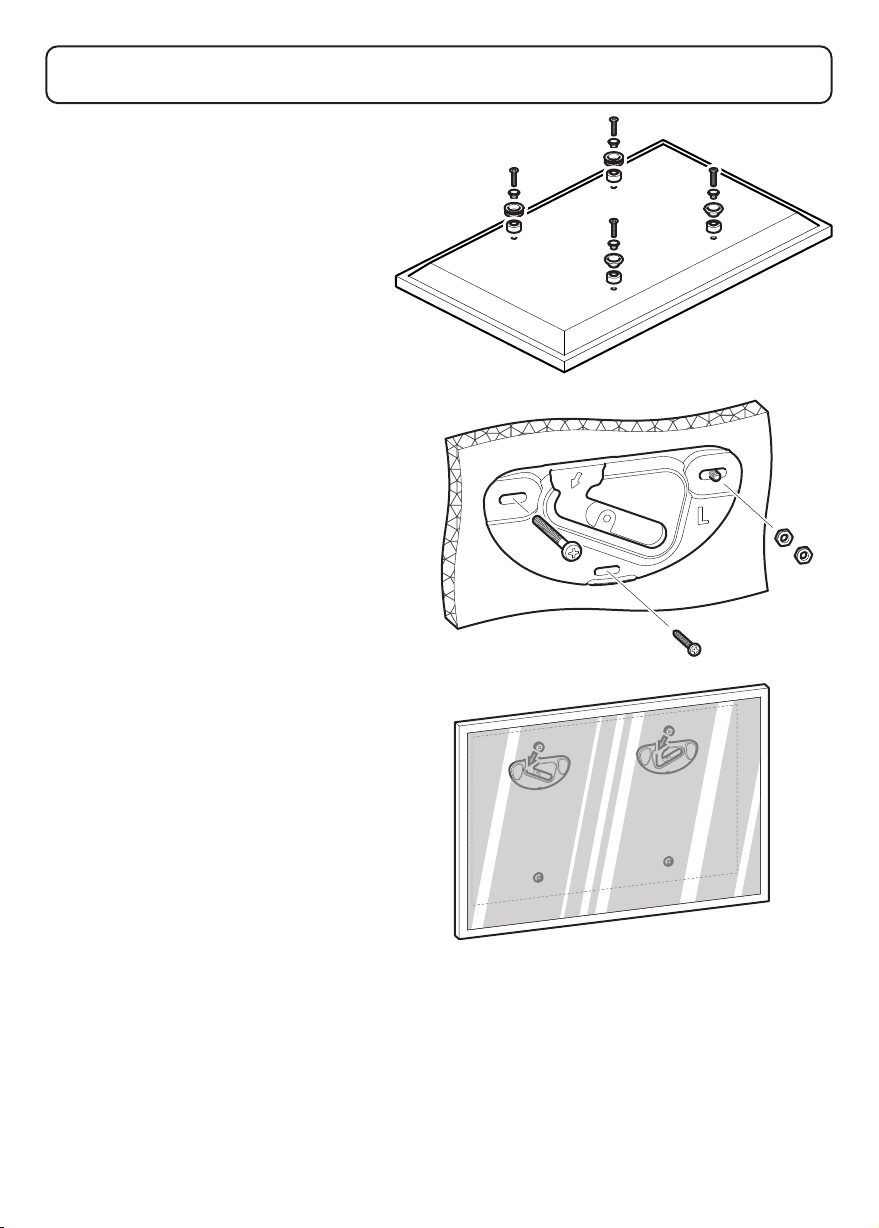

Assembly Overview
Fit Screen Adaptor / Hangers to TV
Fitting the Wall Bracket
Hanging the TV
Retain all packaging in case the bracket needs to be returned.
Contents may vary from photography/ Illustrations.
You will not need all these parts, so expect there to be some left over depending upon the
specification of your TV.
This product is intended for indoor use only. Use of this product outdoors could lead to
failure and personal injury.
It is the responsibility of the installer to ensure that the mounting wall is of a suitable
standard and void of any services (eg gas, electricity, water etc).
AVF accept no responsibility for any damage or loss caused by installing this product in a
sub standard wall.
Index
Marking Wall For Drill Points
5
Assemble Positioning Template
3
Fit Adaptor to TV
2
Measure the TV fixing holes Width and Height
1
Determine Bracket Hole Centers
4
Fitting the Wall Bracket
6
Fitting the Wall Bracket Covers
7
Hanging the TV
8
No Adaptor Required
Adaptor Required
Marking Wall For Drill Points
Assemble Positioning Template
Fit Screen Hangers to TV
Determine Bracket Hole Centers
Fitting the Wall Bracket
Fitting the Wall Bracket Covers
Hanging the TV
13
10
12
11
14
15
9
Boxed Parts
Tools Recommended
Stud Finder
Ø3mm (1/8") Wood
Ø10mm (25/64") Masonry
Ø5.5mm (7/32") Masonry
Ø3.5mm (9/64") Metal
A1
A
U2
U1
B1
B
Dx2
Cx2
V
TV Screws, Reducers and Spacers
F1x4
F2x4
F3x4
E1x12
E2x4
Hx4 Jx8
Lx2 Mx4 Nx4 Ox2
Px2
Qx2 R T
S
16mm
M5
25mm
M5
45mm
M5
16mm
25mm
45mm
M6 M6 M6
M8 M8 M8
16mm
25mm
45mm
G4x4 G5x4 G6x4
G7x4
G10 x4
G8x4
G11 x4
G9x4
G12 x4
25mm
M4
45mm
M4
16mm
M4
G1x4 G2x4 G3x4
You can only
use these
screws with
Adaptor V
!
Take Care
Remove the Wall Bracket Covers and keep for step 7 or 14
i
ii
Wall bracket covers A1 & B1 are removed in the same way.
Measure the TV fixing holes Width and Height
1
TV Fixing
Holes
75 or
100mm
75 or 100mm
X
Y
If width X and height Y are not equal to 75mm or 100mm and
are less than 200mm, STOP installation now and contact the
customer help line
!
You are provided with 4 diameters of TV fixing screws, M4, M5, M6 and
M8. Determine the screw diameter that fits and remember for step 2 or 9.
G7-G9M8 =M6 =
M4 =
G10-G12
X = 75 or 100mm
Adaptor
Required Y = 75 or 100mm
X = 200mm to infinity
No Adaptor
Required Y = 200mm to infinity
TV Fixing
Holes
200mm
to infinity
200mm to infinity
X
Y
G1-G3G4-G6
M5 =
With or Without Adaptor
The width and height of your TV fixing holes will determine if you need to
use the adaptor supplied.
With Adaptor
Follow steps 2 - 8
Without Adaptor
Follow steps 9 - 15
88lbs
40kg
121lbs
55kg
Fit Screen Hangers to TV
2
Once you have established which screw diameter you need for your TV you will need to choose
which wall spacing you require. Check the back of your TV and use the OPTION that fits your TV.
Please see page opposite for more details.
OPTION 1
20mm Wall Space
OPTION 2
30mm Wall Space
OPTION 3
50mm Wall Space
Suitable for TVs with a flat
back and no obstructions
Suitable for TVs with small
to medium obstructions eg
power supply, mouldings etc
Suitable for TVs with large
obstructions eg power
supply, mouldings etc
20mm 30mm 50mm
TV TV TV
Top
Bottom Fixings
If required
Top Fixings
F1-F3
G1-G12 G1-G12
If required
F1-F3
E2
TV
TV
Problem
Not enough screw
engagement
Solution
Red spacer
has replaced
spacer
E2
E1
E1
In certain circumstances it may be necessary to use
red spacer E2 as either a replacement or addition to
spacer E1.
When is it necessary to use red spacers E2?
It is recommended that when fitting Adaptor V to your
TV you have at least 5-10mm of screw engagement.
In certain circumstances you may need to use red
spacers E2 as either a replacement, or together with
spacers E1 to achieve this. Whenever you use red
spacers E2 you must use all 4 provided.
If required E1
If required
E1
V
With Adaptor
E1E1E1E1E1E1E1E1
E1E1E1E1E1E1E1E1
E1E1E1E1E1E1E1E1
F1F2F3F1F2F3
G3G3
G6G6G9G9G12 G12
E1E1E1E1
E1E1E1E1
F1F2F3
G2G5G8G11
F1F2F3
G2G5G8G11
V
F1F1F2F2F3F3
G1G1G4G4G7G7G10 G10
Top Fixings
M4 M5 M6 M8
Bottom Fixings
M4 M5 M6 M8
Top Fixings
M4 M5 M6 M8
Bottom Fixings
M5 M6 M8
Top Fixings
M5 M6 M8
Bottom Fixings
M5 M6 M8
V V V V V V V
V V V V V V V V
V V V V V V V V
M4
M4 M4
OPTION 1
20mm Wall Space
OPTION 2
30mm Wall Space
OPTION 3
50mm Wall Space
Assemble Positioning Template
3
U2
U1
Determine Bracket Hole Centers
4
Top
Lay the template on the back of the TV and follow the instructions below.
Cut the template U2 so it is flush with
the bottom of your TV so that when the
template is on the wall you can see
exactly where your TV will be vertically
(distance from the floor and ceiling).
U1
U2
Place the top row of holes on
template U1 over adaptor V.
Mark off the 200 centers Top row holes
V
The center line of the
template U2 represents
the center of your TV.
Line up with top
of the screen.
With Adaptor
With Adaptor
