AVF CML8350-E Manuel utilisateur

CML8350-E Leaflet No. 464397 rev00

80"

203cm

121lbs

55kg

STOP

Read through ALL instructions before commencing installation.

If you have any questions about this product or issues with installation

contact the customer services help line before returning this product to

the store. See www.cus.avfgroup.com/p/CML8350-A

AVF Incorporated. 3187, Cornerstone Drive, Eastvale, CA 91752, USA

CUSTOMER SERVICES HELP LINE NUMBER:

1-800 667 0808 (USA)

English Language

Assembly Overview

Fit Screen Hangers to TV

Fitting the Wall Bracket

Hanging the TV

Index

Retain all packaging in case the bracket needs to be returned.

Contents may vary from photography / Illustrations.

You will not need all these parts, so expect there to be some left over depending upon the

specification of your TV.

This product is intended for indoor use only. Use of this product outdoors could lead to

failure and personal injury.

It is the responsibility of the installer to ensure that the mounting wall is of a suitable

standard and void of any services (eg gas, electricity, water etc).

AVF accept no responsibility for any damage or loss caused by installing this product in a

sub standard wall.

Marking Wall For Drill Points

Assemble Positioning Template

Fit Screen Hangers to TV

Measure the TV fixing holes Width and Height

Determine Bracket Hole Centers

Fitting the Wall Bracket

Fitting the Wall Bracket Covers

Hanging the TV

Boxed Parts

Tools Recommended

Stud Finder

Ø3mm (1/8") Wood

Ø10mm (25/64") Masonry

Ø5.5mm (7/32") Masonry

Ø3.5mm (9/64") Metal

Dx2

Cx2

TV Screws, Reducers and Spacers

F1x4

F2x4

F3x4

E1x12

E2x4

Hx4 Jx8

Lx2 Mx4 Nx4 Ox2

Px2

Qx2 R T

16mm

25mm

45mm

16mm

25mm

45mm

M6 M6 M6

M8 M8 M8

16mm

25mm

45mm

16mm

G1x4

G4x4 G5x4 G6x4

G7x4

G10 x4

G8x4

G11 x4

G9x4

G12 x4

Take Care

Remove the Wall Bracket Covers and keep for step 7

Wall bracket covers A1 & B1 are removed in the same way.

Measure the TV fixing holes Width and Height

TV Fixing Holes

200mm to infinity

100mm to infinity

If width X is less than 200mm or height Y is

STOP installation now and contact the customer help line

less than 100mm

You are provided with 4 diameters of TV fixing screws, M4, M5, M6 and

M8. Determine the screw diameter that fits and remember for step 2.

After completing step 2 you will have TV fixing screws left over,

please keep for future reference

G7-G9

G4-G6

M8 =

M6 =

M4 =

M5 =

G10-G12

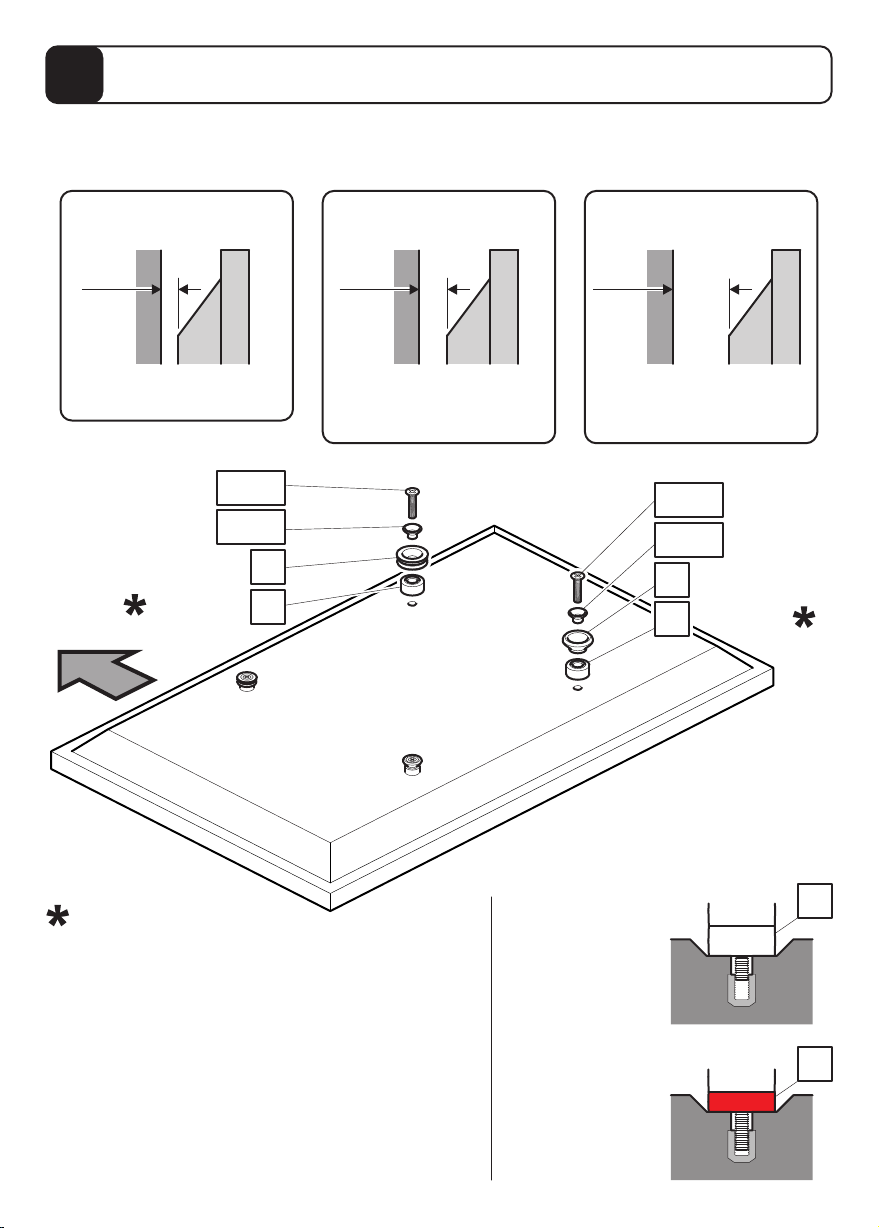

Fit Screen Hangers to TV

Once you have established which screw diameter you need for your TV you will need to choose

which wall spacing you require. Check the back of your TV and use the OPTION that fits your TV.

Please see page opposite for more details.

OPTION 1

12mm Wall Space

OPTION 2

20mm Wall Space

OPTION 3

40mm Wall Space

Suitable for TVs with a flat

back and no obstructions

Suitable for TVs with small

to medium obstructions eg

power supply, mouldings etc

Suitable for TVs with large

obstructions eg power

supply, mouldings etc

12mm 20mm 40mm

TV TV TV

Problem

Not enough screw

engagement

Solution

Red spacer

has replaced

spacer

Top

Bottom Fixings

If required

Top Fixings

F1-F3

G1-G12

If required E1

G1-G12

If required

F1-F3

If required

In certain circumstances it may be necessary to use

red spacer E2 as either a replacement or addition to

spacer E1.

When is it necessary to use red spacers E2?

It is recommended that when fitting Hangers C and

Stand-offs D to your TV you have at least 5-10mm of

screw engagement. In certain circumstances you may

need to use red spacers E2 as either a replacement,

or together with spacers E1 to achieve this. Whenever

you use red spacers E2 you must use all 4 provided.

C C CDD D

E1E1E1E1E1E1

F2F3F2F3

G6G6G9G9G12 G12

C D

C DC D

E1E1

E1E1E1E1

F2F3

G5G8G11

F2F3

G5G8G11

C DC DC DC D

F1F1F2F2F3F3

G1G1G4G4G7G7G10 G10

OPTION 1

12mm Wall Space

Top Fixings

M4 M5 M6 M8

Bottom Fixings

M4 M5 M6 M8

TopFixings

M5 M6 M8

Bottom Fixings

M5 M6 M8

Top Fixings

M5 M6 M8

Bottom Fixings

M5 M6 M8

OPTION 2

20mm Wall Space. Not applicable for M4 fixings G1

OPTION 3

40mm Wall Space. Not applicable for M4 fixings G1

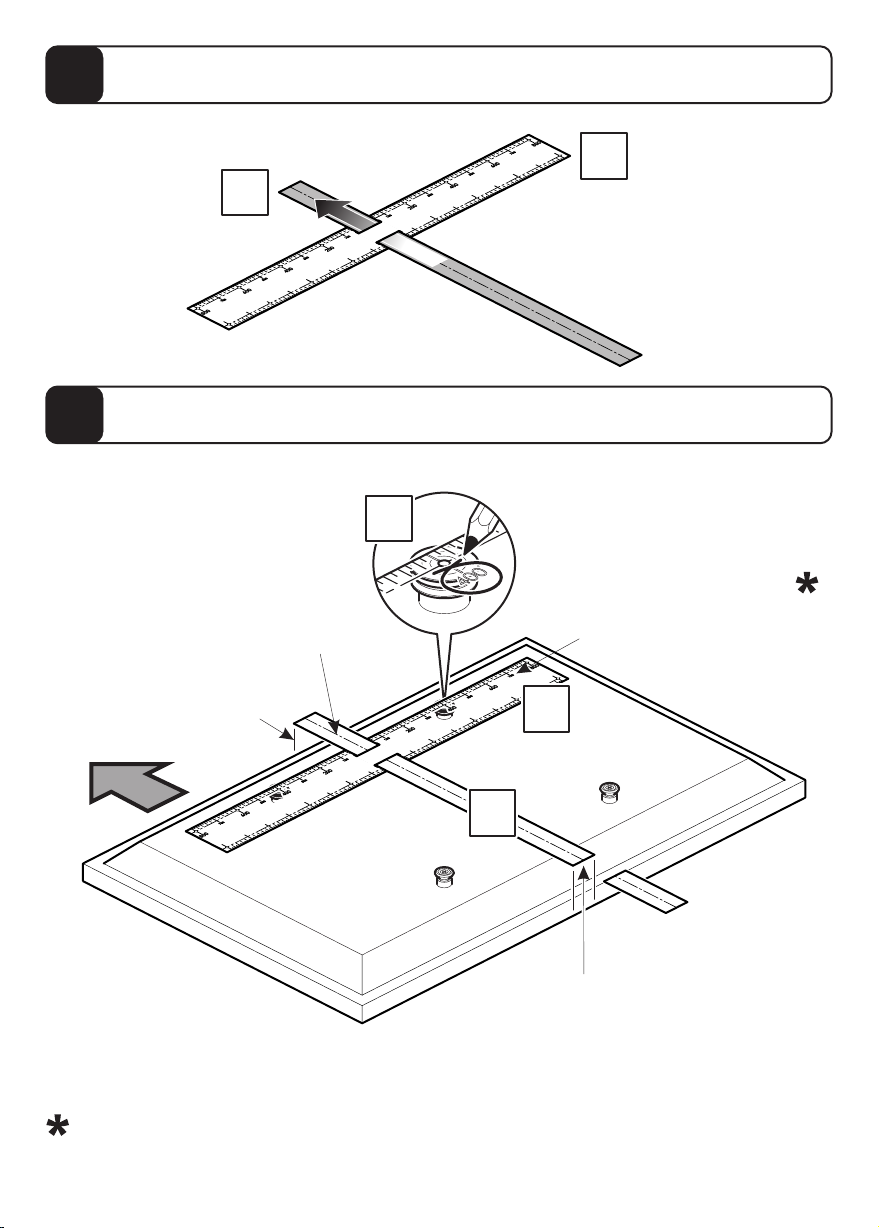

Assemble Positioning Template

Top

The center line of the

template represents

the center of your TV.

Lay the template on the back of the TV and follow the instructions below.

Line up with top

of the screen.

Cut the template so it is flush with

the bottom of your TV so that when the

template is on the wall you can see

exactly where your TV will be vertically

(distance from the floor and ceiling).

Determine Bracket Hole Centers

Top row holes

If hangers C do not line up with any holes on the template then ensure template is

firmly in position and punch 2 holes to match your top fixing centres with a pencil or

sharp object.

Place the top row of holes on

template U1 over hangers C.

Mark off the top fixing centres
