AVF JML8651 Manuel utilisateur
0333 320 0463
CUSTOMER SERVICES HELPLINE NUMBER:
AVF Group Ltd. Hortonwood 30, Telford, Shropshire, TF1 7YE, England
JML8651
jl.avfgroup.com
471688 rev00
55kg
120lb
If you have any questions or need
spare parts don’t worry, we’re happy to help.
Please read these instructions thoroughly
before installation.
Assembly Overview
Fitting the Wall Brackets
Fit Screen Hangers or
Tilt Brackets to TV
Hanging the TV
Your TV can be mounted either flat to wall, or with 4°
or 8° of fixed downward tilt. Decide how you want to
mount your TV and follow the corresponding steps.
This product comes with screws to fit a huge range
of TVs. You will have a lot of screws left over. We
recommend keeping them in a safe place in case you
change your TV in the future.
The JML8651 is suitable for attaching to plasterboard,
wood and metal stud, brick, dot and dab, concrete, or
any combination of these wall types. Establish which
wall type you are mounting to and follow the
corresponding steps.
This product comes with fixings for all the wall types
mentioned above. You will have lots of wall fixings
left over. We recommend keeping them in a safe
place in case you want to move your TV to a different
wall type in future.
The procedure for hanging the TV is exactly the
same for Flat to Wall or either Tilt option.
Retain all packaging in case the product needs to be returned.
Contents may vary from photography / illustrations.
You will not need all these parts, so expect there to be some left over depending upon the
specification of your TV.
This product is intended for indoor use only. Use of this product outdoors could lead to
failure and personal injury.
It is the responsibility of the installer to ensure that the mounting wall is of a suitable
standard and void of any services (eg gas, electricity, water etc).
AVF accept no responsibility for any damage or loss caused by installing this product in a
substandard wall.
Index
Measure the TV fixing holes Width and Height
1

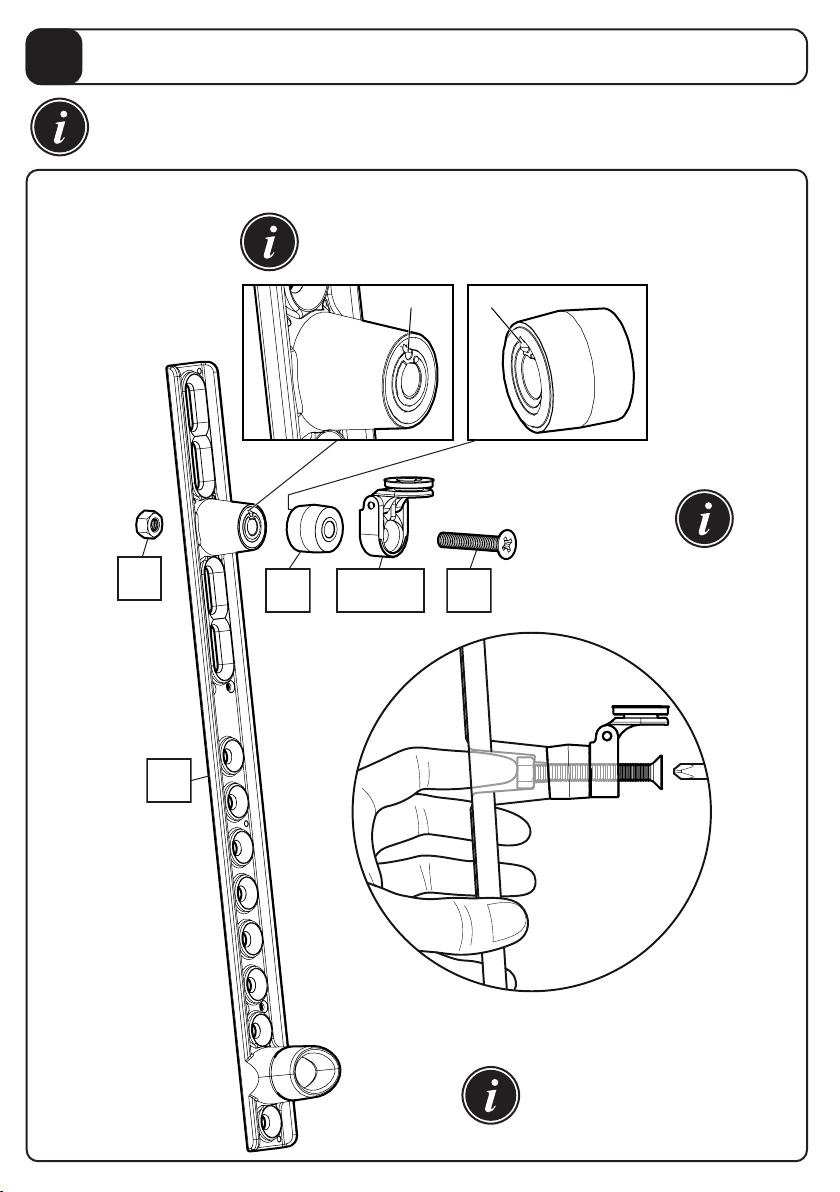

Prepare Tilt Brackets - Skip this step if mounting Flat to Wall
2
Fit Screen Hangers to TV - Flat to Wall Option
3a
Fit Tilt Brackets to TV - 4° or 8° Fixed Tilt Option
3b
Marking Wall for Drill Points
4
Fitting the Wall Brackets
5
Hanging the TV
6
You Will Need
Stud Finder
Ø3mm (1/8”) Wood
Ø10mm (25/64”) Masonry
Ø
5.5mm (7/32”) Masonry
Ø
3.5mm (9/64”) Metal
Boxed Parts
A1
A
B1
B
M8
45mm
V1x2
M8
V2x2
Wx2
C2C1Dx2
Xx2
Hx4
Ix4 Kx4
Jx8
T
R
3mm
SQ x2
Ox2 Px2
Mx4 Nx4
Lx2
G1
x4
G2
x4
G3
x4
G4
x4
G5
x4
G6
x4
G7
x4
G8
x4
F1
x4
F2
x4
E1
x12
E2
x4
E3
x4
55mm
40mm
20mm
M4’s M6’s M8’s
TV Screws, Reducers and Spacers
U1
U2
Measure the TV fixing holes Width and Height
1
Determine which diameter TV Screws
fit your TV and put them to one side.
M4, M6 or M8
We will select the correct length later.
If width ais less than 200mm or height bless than 100mm
STOP installation now and contact the customer helpline.
200mm to infinity
a
b
100mm to infinity
PipNotch
X
V2V1
C1/C2
W
8° Tilt
x2
Prepare Tilt Brackets - Skip this step if mounting Flat to Wall
2
Make sure Screen Hangers
C1and C2are fully closed
after assembly is complete.
Ensure a flush fit between tilt bracket W and
spacer Xby lining up the notch and pip correctly.
Use your fingertip
to hold nut V2
steady while you
tighten screw V1.
You can choose between two different fixed tilt positions, either 8° or 4°.
V2V1
C1/C2
W
4° Tilt
x2
Check to see if your TV will clash with the wall. If a clash occurs it will be necessary to
add E1spacers to prevent this. If a clash occurs even after using all the E1spacers you
will have to change the tilt. Please see below for an example.
Clash
No Clash
Spacers E1are used between tilt bracket W
and TV to prevent clash with wall.
Use your fingertip
to hold nut V2
steady while you
tighten screw V1.
Make sure Screen Hangers
C1and C2are fully closed
after assembly is complete.
F1
G1- G2
G3- G5
F2
G6- G8
D
C1
C2
Do you need F1 or F2?
G1- G8
TV TV TV
Select the correct length TV screw.
E1
E2
TV
You may need to use Spacers E1 or E2
if the screws are too long or the back of
your TV is not flat.
You can also use longer screws and the
spacers to help avoid cabling or plug
sockets on your wall.
If required
Fit Screen Hangers to TV - Flat to Wall Option
3a
Top
