AVF 469097 Manuel utilisateur
469097 rev00
www.avfgroup.com
STOP
Read through
ALL instructions before commencing installation.
If you have any questions about this product or issues with installation, contact
the customer services helpline before returning this product to the store.
50kg
110lbs
Tools Recommended
Assembly Overview
Ø10mm (25/64”)
Masonry
Connect the TV
Fit the TV Mounting Plate
Stud Finder
Ø3mm (1/8”)
Wood
Fit the Wall Bracket
Suitable Wall Types
Solid Wall Wood Stud
Index
Measure the TV fixing holes Width and Height
1
Retain all packaging in case the product needs to be returned.
Contents may vary from photography / illustrations.
You will not need all these parts, so expect there to be some left over depending upon the
specification of your TV.
This product is intended for indoor use only. Use of this product outdoors could lead to
failure and personal injury.
It is the responsibility of the installer to ensure that the mounting wall is of a suitable
standard and void of any services (eg gas, electricity, water etc).
AVF accept no responsibility for any damage or loss caused by installing this product in a
substandard wall.

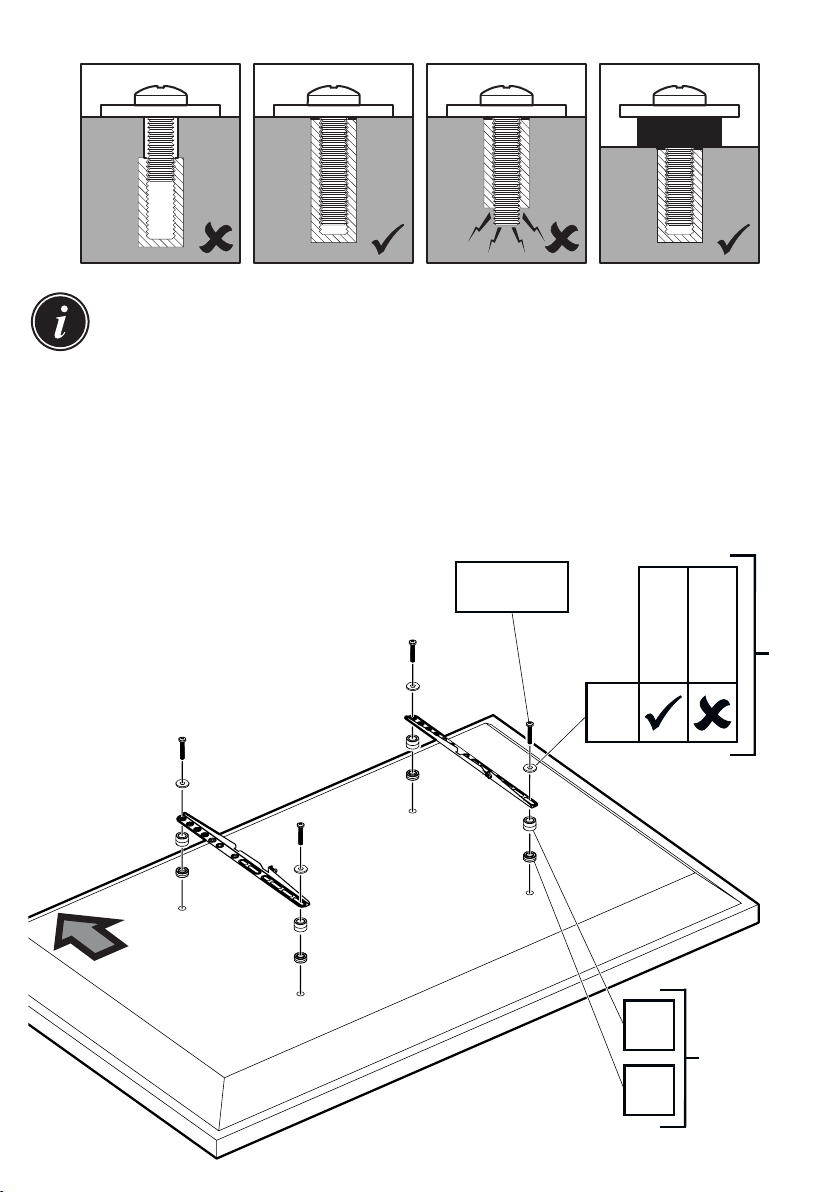

Fitting the TV Brackets
3
Fitting the Wall Bracket Covers
5
Connecting the TV
6
Fitting the Wall Bracket
4
Preparing the Wall Bracket
2
Tilt Adjustment
7
Boxed Parts
M6
16mm
T1x4
M6
30mm
T2x4
M8
25mm
T3x4
T6x4
T5x4
U1x4
C1
M8
45mm
T4x4
C2
TV Screws, Reducers and Spacers
C1
B1
B2
W1x3 W2x3
M5
S2x3
M5
S1x3
A1
A2
Xx1
WT
Measure the TV fixing holes Width and Height
1
X75 - 600mm
Y75 - 400mm
TV Fixing Holes
If width X is greater than mm or height Y greater than mm
STOP installation now and contact the customer help line.
600 400
T1/T2
M6 =
M8 = T3/T4
You are provided with diameters of TV fixing screws
Determine the screw diameter that fits and remember for step .
3
3
, M6 and M8.
Fitting the TV Brackets
3
No Spacers Spacers
For TVs with irregular / obstructed back.
For TVs with flat / unobstructed back.
T5/T6
Preparing the Wall Bracket
2
A1
A2S1S2
X
Attach the bracket to the back of your TV using suitable screw, reducer and spacer
combinations.
TV TV TVTV
WARNING
After completing step you will have fittings left over, please keep for
future reference.
3
T
1
- T
4
U
T
3
-T
4
T
1
-T
2
1
T
6
T
5
Top
Do you need
U1?
If required
Fitting the Wall Bracket
4
Solid Wall
Wood Stud
Remove Dust from Hole.
10mm (25/64")
75mm (3")
Ensure drill marks are in the centre of the wood stud.
3mm (1/8")
75mm (3")
WT
WT
DO NOT overtighten screws.
Tighten screws by hand only.
12.5mm (½”)
MAX
W1
W2
W1x3 W2x3
Lubricate screw thread with soap.
DO NOT overtighten screws.
Tighten screws by hand only.
W1
W1x3
Lubricate screw thread with soap.
Fitting the Wall Bracket Covers
5
C2
C1
C1
Connecting the TV
6
Hanging the TV
