Avenview W-HD3DIR-50M Manuel utilisateur

VIDEO WALLS VIDEO PROCESSORS

VIDEO MATRIX SWITCHES

EXTENDERS SPLITTERS WIRELESS

CABLES & ACCESSORIES

Control Your Video

Wireless 5G HDMI Extender with IR

Support up to 50 Meters

The contents of this document are provided in connection with Avenview Inc. (“Avenview”) products. Avenview makes no representations or

warranties with respect to the accuracy or completeness of the contents of this publication and reserves the right to make changes to specifications

and product descriptions at any time without notice. No license, whether express, implied, or otherwise, to any intellectual property rights is granted

by this publication. Except as set forth in Avenview Standard Terms and Conditions of Sale, Avenview assumes no liability whatsoever, and disclaims

any express or implied warranty, relating to its products of Avenview Inc. is strictly prohibited.

Model #: W-HD3DIR-50M

www.avenview.com Page

TABLE OF CONTENTS

1 GETTING STARTED ..........................................................................................................................1

1.1 IMPORTANT SAFEGUARDS..............................................................................................................1

1.2 SAFETY INSTRUCTIONS ..................................................................................................................1

1.3 REGULATORY NOTICES FEDERAL COMMUNICATIONS COMMISSION (FCC) ........................... 2

2. INTRODUCTION ..............................................................................................................................3

2.1 PACKAGE CONTENTS .....................................................................................................................4

2.2 BEFORE INSTALLATION...................................................................................................................4

2.3 APPLICATION DIAGRAM..................................................................................................................5

3. PANEL DESCRIPTION.......................................................................................................................6

INPUT PANEL (Transmitter, W-HD3DIR-50M-S)............................................................................6

INPUT PANEL (Receiver, W-HD3DIR-50M-R) ................................................................................6

4. INSTALLATION (W-HD3DIR-50M) .................................................................................................7

5.GENERAL TROUBLESHOOTING....................................................................................................8

6.SPECIFICATIONS..............................................................................................................................9

www.avenview.com Page

SECTION 1: GETTING STARTED

1.1 IMPORTANT SAFEGUARDS

Please read all of these instructions carefully before you use the device. Save this manual for future reference.

What the warranty does not cover

•Any product, on which the serial number has been defaced, modified or removed.

•Damage, deterioration or malfunction resulting from:

•Accident, misuse, neglect, fire, water, lightning, or other acts of nature, unauthorized product modification, or failure

to follow instructions supplied with the product.

•Repair or attempted repair by anyone not authorized by us.

•Any damage of the product due to shipment.

•Removal or installation of the product.

•Causes external to the product, such as electric power fluctuation or failure.

•Use of supplies or parts not meeting our specifications.

•Normal wear and tear.

•Any other causes which does not relate to a product defect.

•Removal, installation, and set-up service charges.

1.2 SAFETY INSTRUCTIONS

The Avenview W-HD3DIR-50M, Wireless Extender has been tested for conformity to safety regulations and requirements,

and has been certified for international use. However, like all electronic equipment’s, the W-HD3DIR-50M should be used

with care. Read the following safety instructions to protect yourself from possible injury and to minimize the risk of damage to

the unit.

!Do not dismantle the housing or modify the module.

!Dismantling the housing or modifying the module may result in electrical shock or burn.

!Refer all servicing to qualified service personnel.

!Do not attempt to service this product yourself as opening or removing housing may expose you to dangerous

voltage or other hazards

!Keep the module away from liquids.

!Spillage into the housing may result in fire, electrical shock, or equipment damage. If an object or liquid falls or spills

on to the housing, unplug the module immediately.

!Have the module checked by a qualified service engineer before using it again.

!Do not use liquid or aerosol cleaners to clean this unit. Always unplug the power to the device before cleaning.

1GETTING STARTED

www.avenview.com Page

1.3 REGULATORY NOTICES FEDERAL COMMUNICATIONS COMMISSION (FCC)

This equipment has been tested and found to comply with Part 15 of the FCC rules. These limits are designed to provide

reasonable protection against harmful interference in a residential installation.

Any changes or modifications made to this equipment may void the user’s authority to operate this equipment.

Warning symbols Description

ONLY USE THE PROVIDED POWER CABLE OR POWER

ADAPTER SUPPLIED. DO NOT TAMPER WITH THE

ELECTRICAL PARTS. THIS MAY RESULT IN ELECTRICAL

SHOCK OR BURN.

DO NOT TAMPER WITH THE UNIT. DOING SO WILL

VOID THE WARRANTY AND CONTINUED USE OF THE

PRODUCT.

THE VIDEO BOARDS ARE VERY SENSITIVE TO STATIC.

PLEASE ENSURE IF RACK MOUNTED OR INSTALLED ON A

SURFACE, IT SHOULD BE IN A GROUNDED ENVIROMENT.

www.avenview.com Page

2. INTRODUCTION

W-HD3DIR-50M, wireless extender set runs at 5GHz operation frequency to deliver HD video/audio 50 meters. This

device kit make wireless connection by using WHDI Technology from HD media Source Devices such as HD Disc or

content player, PC, Game Console or Set-Top-Box to any display Device for example LCD, Plasma or LED TV or projector.

Providing outstanding and consistent picture quality equivalent to wired HDMI™ cable, with low latency, multi-room connection

and low power consumption.

-WHDI Technology with less than 1 frame latency

- Transmits through obstacles

-2.4G 7dBi antenna

- Supports resolutions up to 1080p Full HD, up to 7.1 channels of LPCM digital audio, and up to 5.1 channels of

Dolby® and DTS® formats

-Extends HDMI video and audio up to 50M

-Supports HDMI, EDID 1.1, Support HDCP 2.0

-Secured wireless signal supporting AES 128 image encryption

-Real time audio compression

-Suitable for use with Residential, PC presentations

-Extends IR and CEC Signals for remote control of AV Equipment

-Support point-to-point and point-to-multi-point transmission

- Plug and play; no software or wifi configuration required on multiple OS platforms.

www.avenview.com Page

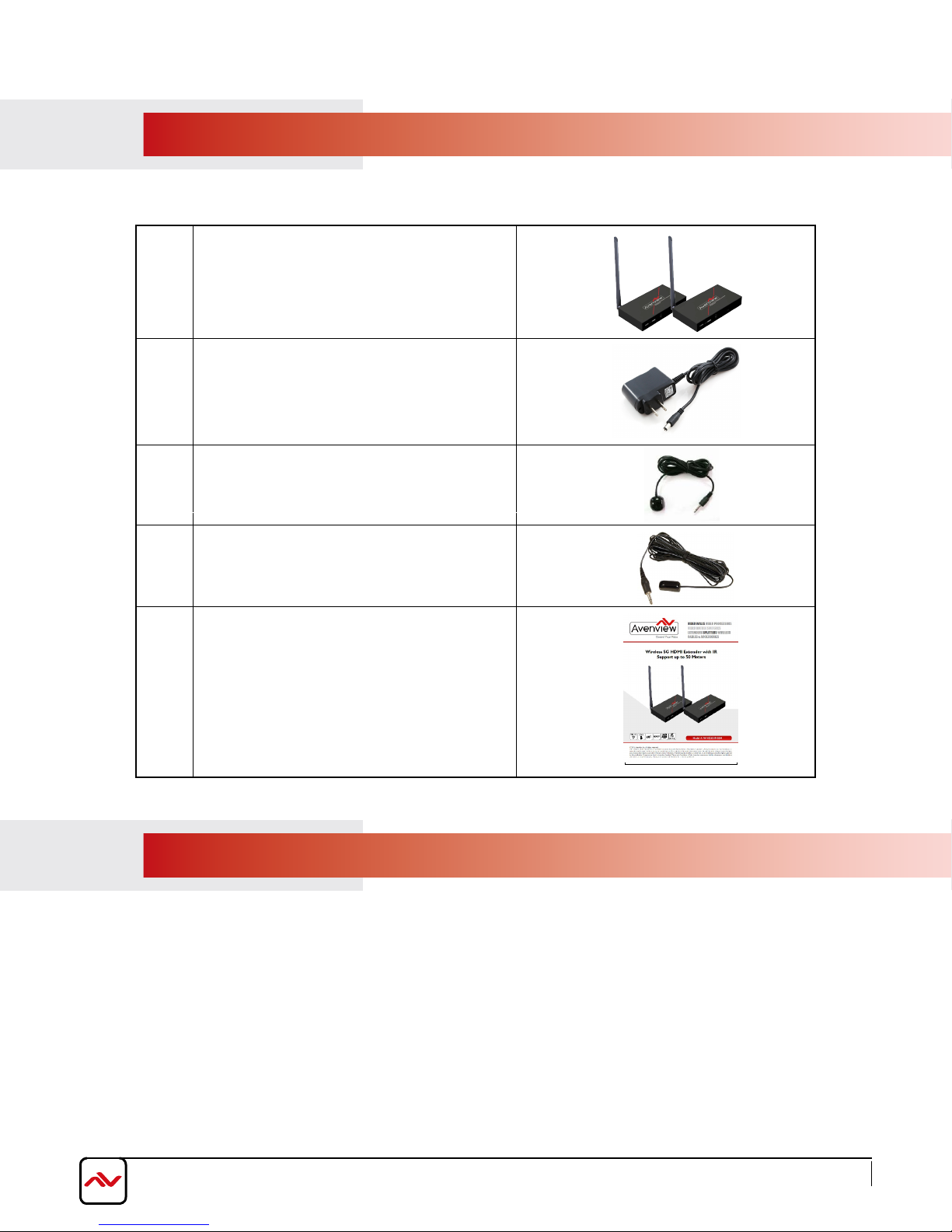

2.1 PACKAGE CONTENTS

Before you start the installation of W-HD3DIR-50M, please check package contents.

1WIRELESS TRANSMITTER X 1

WIRELESS RECEIVER X 1

2POWER ADAPTER (5VDC/2A) X 2

3IR BLASTER EXTNSION X 1

4IR RECEIVER EXTENSION

5USER’S MANUAL X 1

2.2 BEFORE INSTALLATION

•Put the product in an even and stable location. If the product falls down or drops, it may cause an injury or malfunction.

•Don’t place the product in too high temperature (over 50°C), too low temperature (under 0°C) or high humidity.

•Use the DC power adapter with correct specifications. If inappropriate power supply is used then it may cause a fire.

•Do not twist or pull by force ends of the HDMI cable. It can cause malfunction.

X 1

www.avenview.com Page

2.3 APPLICATION DIAGRAM

It is ideal when your media player is located in your living room, while you want to watch your Full HD Movies on Your LCD,

Plasma or LED display device in your bedroom. You can install the Wireless HD Transmitter and Receiver Kit and let the wireless

transmission do the work via the WHDI Technology. Furthermore, you can operate the media player with the original remote

control in your bedroom.

The W-HD3DIR-50M is capable of wireless signal broadcasting for up to 3 receivers on the same sender over WHDI signal, this

feature will allow signal broadcasting wirelessly to three different displays from the same sender source.

eforestartingthei

nstallation

pleaseensurealldevicesarepoweredoff

www.avenview.com Page

3. PANEL DESCRIPTION

INPUT PANEL (Transmitter, W-HD3DIR-50M-S)

INPUT PANEL (Receiver, W-HD3DIR-50M-R)

234

1.POWER DC IN: Connect to power adapter provided in package

2.RESET: Press RESET to refresh the link/connection between a sender and a receiver

3.HDMI INPUT: Connect to source equipment such Blu-ray/Set Top Box players with HDMI cable

4.IR OUT: Connect IR Receiver to control source

5.ANTENNA INTERFACE: Antenna connection for range extension

1.POWER DC IN: Connect to power adapter provided in package

2.RESET: Press RESET to refresh the link/connection between a sender and a receiver

3.HDMI OUT: Connect to display or monitor with HDMI cable.

4.IR IN: Connect IR Blaster to control source

5.ANTENNA INTERFACE: Antenna connection for range extension

www.avenview.com Page

4. INSTALLATION (W-HD3DIR-50M)

To setup Avenview W-HD3DIR-50M please follow these steps for connecting to a device:

1. Place the Transmitter unit in close proximity to the HDMI source device.

2. Connect the HDMI source device to HDMI IN port of the Transmitter by using a standard HDMI cable.

3. Connect the IR Extension cable to the port on the transmitter unit.

4. Place the other end of the IR Extension cable near the IR port on the HDMI source device.

5. Place the Receiver unit near your HDMI display/projector, Connect the HDMI display /projector to the HDMI Output

port of the Receiver unit.

6. Connect the power adapter (included) to the DC IN ports of the Transmitter and Receiver.

Once these steps have been completed the Extender is ready to use, simply power on all devices to begin operation.

Once all equipments are powered on, it is shown by the blue link LED (refer to table below). Then system will initiate a wireless

link, successful connection of the link will be shown by the Amber link LED (refer to table below). This may take short

time depending on the distance between the units and other environmental factors.

When the initial wireless link has been established, the system will establish a video link between the transmitter and

receiver. Once it has been completed, the green video LED will be lit on both units. If your HDMI source and display

devices support CEC then your source device can simply be controlled using the display's remote control.

LED STATUS Description

LED Steady Blue (TX, RX) Power on

LED Slow Blink Amber (TX, RX) Establishing video link

LED Fast Blink Amber (TX, RX) Established video link

LED Steady Green (TX, RX) Established TX/RX link

www.avenview.com Page

5.GENERAL TROUBLESHOOTING

PROBLEM POSSIBLE SOLUTION

THE WIRELESS OR VIDEO

LINK LED IS NOT LIT

•Make sure the units are within the recommended distance (50

meters) (OFF 30 sec then ON).

•Reduce the distance between the Transmitter and Receiver units.

Power cycle both extender units

(OFF 30 sec then ON).

NO POWER •Re-check all connections and verify they are in the correct

positions and verify the units are powered with the provided

adapter.

IR NOT RESPONDING •Check the IR Extender cable is connected to the Transmitter unit

•Check that the IR window is visible and not being obstructed

and the transmission of IR from the remote can be sent.

•Reposition the IR Flasher to another location near the IR port of

your source device

NO IMAGE

IMAGE INTERFERENCE

IMAGE NOT CLEAR

•Reduce the distance (less than 1 meter) between the transmitter

and receiver units and then reconnect power adapter.

•If no picture after Step 1, press RESET button on EITHER the

TX or RX

•If no picture after Step 1 and step 2, power off units for 2 minutes,

reconnect power and press RESET on BOTH TX and RX.
