Audiovox D1817PKG Manuel utilisateur

D1817PKG

PORTABLE 8" LCD MONITOR AND DVD PLAYER IN A BAG

Notice:

This Product incorporates copyright protection technology that is pro-

tected by method claims of certain U.S. Patents and other intellectual

propertyrightsownedbyMacrovisionCorporationandotherrightsown-

ers. Use of this copyright protection technology must be authorized by

MacrovisionCorporation,andisintendedforhomeandotherlimitedview-

ing uses only unless otherwise authorized by Macrovision Corporation.

Reverse engineering or disassembly is prohibited.

An LCD panel and/or video monitor may be installed in a motor vehicle

and visible to the driver if the LCD panel or video monitor is used for

vehicle information, system control, rear or side observation or

navigation. If the LCD panel or video monitor is used for television

reception, video or DVD play, the LCD panel or video monitor must be

installed so that these features will only function when the vehicle is in

“park” or when the vehicle’s parking brake is applied.

An LCD panel or video monitor used for television reception, video or

DVD play that operates when the vehicle is in gear or when the parking

brake is not applied must be installed to the rear of the driver’s seat

where it will not be visible, directly or indirectly, to the operator of the

motor vehicle.

Content

A.Introduction..........................................................................4

B.CautionsandWarnings......................................................4

C. Contents.............................................................................6

D. PoweringandInstallation....................................................6

E.VehicleInstallation..........................................................7

F. Controls, Indicators, and Connectors ................................. 8

G. Loading and Playing a Disc ................................................ 9

H.Setup....................................................................................10

I.BasicOperation................................................................18

J.Menu.................................................................................19

K.Display...............................................................................19

L.PlayingAudioCDS.............................................................25

M. PlayingMP3Discs............................................................27

N.PlayingJPEGfiles...............................................................29

O. ConnectingtoaTVoranothermonitor............................31

P. Rechargeable Battery Installation and Use ...................... 32

Q. Troubleshooting................................................................34

R. Game Controller Installation and Use................................ 36

S.Specifications................................................................46

A. Introduction

Thank you for choosing the D1817PKG. The main features include a

8" Wide Screen (16:9 Aspect Ratio) Liquid Crystal Display (LCD)

monitor, DVD player and a game controller with 31 built-in games.

The unit applies the latest state of the art electronics and is de-

signed for use in hotels, offices, vehicles or your home. The unit is

constructed to provide years of reliable, trouble-free service, and is

compact so that you can take it with you anywhere and is designed

for quick and easy installation. Please read the entire instruction

manual supplied with this product prior to use. The documentation

will assist you in installing the system properly to obtain the best equip-

ment performance. Please save this manual for later use.

B. Cautions and Warnings

1. Placement

To prevent fire or electric shock, do not expose this appliance to

rain or moisture. Do not place the set on an unstable cart, stand,

tripod, bracket or table to prevent it from falling. Keep the unit away

from strong magnets, heat sources, direct sunlight, excessive dust.

If the unit is brought directly from a cold to a warm location, mois-

ture may condense inside the unit. When you move it from a cold

to a warm location, wait for about one hour before operating the

unit, or remove the disc and leave the unit turned on until the mois-

ture evaporates.

2. Installation

Ensure that the D1817PKG is used in accordance with the in-

structions and illustrations provided in this manual.

3. Caution

Do not push objects of any kind into the unit through openings; do

not spill or spray liquid of any kind on or in the system (this may

result in a fire or electric shock). Do not place anything heavy on

the unit. To ensure proper ventilation and proper operation, never

cover or block the slots and openings with a cloth or other material.

Keep the unit away from an open flame such as fire, candle etc.

Replace the battery only with the same or equivalent type to pre-

vent damage to the unit. In order to protect the environment please

dispose of the battery properly. Do not use the unit in temperatures

higher than 104 degrees Fahrenheit or 40 degrees Celsius.

4. Disassembly

Do not attempt to disassemble the cabinet. There is a risk of elec-

tric shock and/or exposure to Laser Radiation. Contact qualified

service personnel if your system needs repair.

5. Cleaning

When cleaning, make sure the system is unplugged from the power

source. Do not use liquid cleaners or aerosol cleaners. Use a cloth

lightly dampened with water for cleaning the exterior of the system

only.

6. Disc

Do not use irregularly shaped discs such as heart or star-shaped

discs as they may cause the unit to malfunction. Do not stick pa-

per, tape or glue on the disc. Do not expose the disc to direct sun-

light or heat sources. Do not touch the surface of disc. Handle the

disc by its edge. Clean the disc by wiping the disc from the center

out with a cleaning cloth. Remove the disc from the unit and store

it in its case after playing. Some playback operations of discs may

be intentionally fixed by software producers. Since this unit plays

discs according to the disc contents the software producers de-

signed, some playback features may not be available. Also refer to

the instructions supplied with the discs.

7. Regional Coding

Both the DVD player and disc are coded by region. These

regional codes must match in order for the disc to play. If the

codes don’t match, the disc won’t play. This unit’s code is region

1. DVD’s with other regional codes cannot be played in this unit.

C. Contents

1. 1 x 8’’ LCD Monitor & DVD Player

2. 1 x AC to DC Adapter

3. 1 x Remote Control with battery (CR2025)

4. 1 x Instruction Manual

5. 1 x Audio/Video Adapter Cable

6. 1 x DC Power Adapter

7. 1 x Rechargeable Battery

8. 1 x Carry Bag With Straps

9. 2 x Foldable Headphones

10. 1 x Game Controller

D. Powering and installation

1. Powering the system indoors

(Refer to Figure 1)

Plug one end of the AC to DC adapter into the DC 9-12V jack on

the right side of the main unit, then plug the other end into the 120V

AC power outlet.

2. Powering the system in a car

(refer to Figure 1)

Plug one end of the DC Power adapter into the DC 9-12V jack on

the unit, then plug the other end into the vehicle power outlet.

Figure 1

HeadrestStrap

Seat Back

Strap

E. Vehicle Installation

Installing the DVD Player onto the seat back in a car

(Refer to Figure 2)

1). Unfold the carry bag, and place the DVD player on the bag

beneath the elastic straps. Ensure that the unit’s corners are

secured by the elastic straps.

2). Secure the upper portion of the carry bag to headrest support

barsusingtheheadreststrap.Adjust theheadreststrapuntilthe

bag is firmly secured.

3). Secure the lower portion of the carry bag to the vehicle seat back

using the seat back strap. Adjust the seat back strap until the

bag is firmly secured.

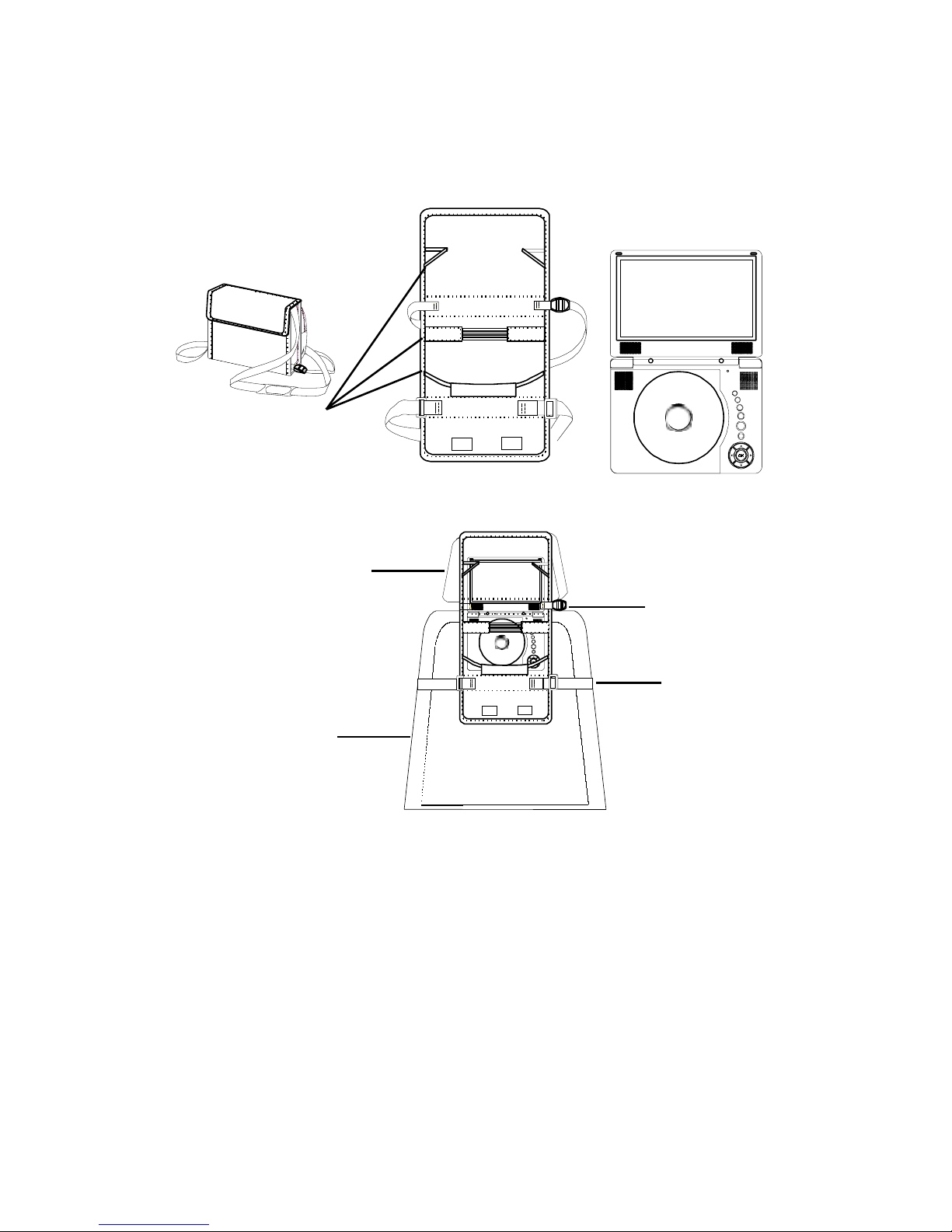

Elastic Straps

Carry Bag Opened

Carry Bag Closed

Vehicle Seat

Back

Vehicle Headrest

Figure 2

F. Controls, Indicators, and Connectors

1. Unit View

(Refer to Figure 3)

Figure 3

*Using headphone jack 1 will disable the internal speakers

1) LCD Panel Shut Off Switch

2) Wide Button

3) Stop Button

4) Previous Button

5) Next Button

6) Play Button

7) Menu Button

8) Up Button

9) Right Button

10) OK Button

11) Down Button

12) Left Button

13) Open Door Switch

14) IR Sensor

15) Power LED

16) Power on/off Switch

17) Brightness Up/Down Control

18) Volume Up/Down Control

19) Headphone 1*

20) Headphone 2

21) E-Port

22) AV IN/OUT Switch

23) AV Jack

24) DC 9-12V Input Jack

2. Remote Control View

(Refer to Figure 4)

1) Setup Button

2) Up Button

3) Previous Button

4) Enter Button

5) Left/Reverse Button

6) Down Button

7) Numeric Buttons

8) Display Button

9) Zoom Button

10) Subtitle Button

11) Next Button

12) A-B Repeat Button

13) Right/Forward Button

14) 1/ALL Repeat Button

15) Stop Button

16) Menu Button

17) Audio Button

18) Angle Button

19) Play/Pause Button

G. Loading and Playing a Disc

a. After connecting power to the unit, turn the DVD player on with the

power switch. The power indicator will light.

b. Open the disc tray by sliding the OPEN switch in the direction of

the arrow and place a disc into the tray with the label side facing

up.

c. Close the tray by pressing the area marked “PRESS” on the disc

door. The unit will read the disc and start playing.

d. Rotate the BRIGHTNESS and VOLUME controls to adjust the

brightness and the volume to the desired levels.

e. To stop playing a disc, press STOP.

f. To turn off the DVD player, slide the POWER ON/OFF to OFF.

The DVD player’s POWER indicator will turn off.

Figure 4

H. Setup

Press ‘SETUP’ to display the Main screen of the Setup Menu on the

screen. Press ‘SETUP’ again to exit the Setup Menu and the unit will

resume it’s last playback mode.

Main Setup Menu Screen

1) Press “SETUP”, the ‘General Setup Page’ will display on screen.

a).Select ‘TV Display’ using the UP/DOWN button, and then press

RIGHT to enter the submenu. Select the TV display mode on the

screen using UP/DOWN, and press ENTER to confirm the set-

ting. Press LEFT to return.

* Normal/PS: When the player is connected to a normal TV, and

a wide picture is shown on the full screen.

* Normal/LB: When the player is connected to a normal TV, and

a wide picture is shown on the screen with a black strip at both

the top and bottom of the screen.

* Wide: When the player is connected to a wide screen TV, a

wide picture is shown on the full screen.

TV Display Screen Display

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Audiovox Lecteur DVD portable

Audiovox

Audiovox D1718ES - DVD Player - 7 Manuel utilisateur

Audiovox

Audiovox D1800 Manuel utilisateur

Audiovox

Audiovox D1998PK - 9" Slim Line Portable DVD Player Manuel utilisateur

Audiovox

Audiovox FLO TV DFL710 Manuel utilisateur

Audiovox

Audiovox D1917ES Manuel utilisateur

Audiovox

Audiovox D1915 Manuel utilisateur

Audiovox

Audiovox D1917PK Manuel utilisateur

Audiovox

Audiovox D1817PK - DVD Player - 8 Manuel utilisateur

Audiovox

Audiovox D1809 - DVD Player - 8 Manuel utilisateur

Audiovox

Audiovox D1708ES Manuel utilisateur

Audiovox

Audiovox D1788ES Manuel utilisateur

Audiovox

Audiovox D1988 Manuel utilisateur

Audiovox

Audiovox DS2058 A Manuel utilisateur

Audiovox

Audiovox D8000XP Manuel utilisateur

Audiovox

Audiovox D1888PK Manuel utilisateur

Audiovox

Audiovox AVXMTG10U Manuel utilisateur

Audiovox

Audiovox D1812PK - DVD Player - 8 Manuel utilisateur

Audiovox

Audiovox D7000XP - DVD Player - 7 Manuel utilisateur

Audiovox

Audiovox D1718 - DVD Player - 7 Manuel utilisateur

Audiovox

Audiovox D710 Manuel utilisateur

Audiovox

Audiovox DS9341 Manuel utilisateur

Audiovox

Audiovox D1805 Manuel utilisateur

Audiovox

Audiovox FLO TV DFL710PK Manuel utilisateur

Audiovox

Audiovox DVD1500 Manuel utilisateur

Manuels Lecteur DVD portable populaires d'autres marques

Philips

Philips PET718/77 Manuel utilisateur

Impecca

Impecca DVP775 Manuel utilisateur

NextBase

NextBase MULTI-VISION SET PRO Manuel utilisateur

Impecca

Impecca DVP-1017 Manuel utilisateur

Akura

Akura APDVD6008 Manuel utilisateur

TV Star

TV Star TD3 LCD COMBO Manuel utilisateur

LENCO

LENCO MES-202 Manuel utilisateur

Philips

Philips PET940/98 Manuel utilisateur

Philips

Philips PET702P Manuel utilisateur

Philips

Philips PD7016 Manuel utilisateur

Logik

Logik L7SPDVD11 Manuel utilisateur

LG DP650 Manuel utilisateur

Mustek

Mustek MVP850B Manuel utilisateur

Insignia

Insignia NS-MDDVD10 Manuel utilisateur

Philips

Philips PD9000/12 Manuel utilisateur

LENCO

LENCO DVP-1027 Manuel utilisateur

Philips

Philips PD7010/05 Manuel utilisateur

Technika

Technika PDVDTWINSS10 Guide de l'utilisateur
