Audiovox DV 1680 Manuel utilisateur

DV 1680

128-6000A

Revision A: Changed Warranty from 12 months to 90 Days

LaserWarnings

This product is equipped with a laser device. Be sure to observe the following

precautions when operating. Failure to observe these precautions could result in fire,

bodily injury and damage to the equipment.

1. Do not operate the controls, make any adjustments, or perform any procedures other

than as specified in this manual or in the DVD Player installation guide.

2. Allow only authorized service technicians to repair the laser equipment.

All of the DVD Player's systems comply with the appropriate safety standards,including

IEC 825. The laser itself complies with laser product performance standards set by

government agencies for a Class 1 laser product. The DVD Player does not emit

hazardous light.The beam is totally enclosed at all time.

BEFORE USINGTHE DVD PLAYER

Important! Please read the following instructions before

attempting to operate the DVD Player

Types ofWarning Signs

There are two types of warnings in this manual, indicated by the

following symbols:

Indicates aWarning or caution for operation.

Indicates aWarning or caution for safety.

Rain and MoistureWarning

To reduce the risk of fire or electric shock, do not expose this appliance to rain or moisture.

Battery Warning

The DVD Player comes with a Li-ion battery pack. There is a risk of fire and burns if the

battery pack is handled improperly.

- Do not disassemble, crush, or puncture the battery pack.

- Do not short the battery pack's external contacts.

- Do not expose the battery pack to fire or water.

- Do not attempt to open or service the battery pack.

- Replace only with the battery pack designated for this product.

- Discard used batteries according to the manufacturer's instructions.

Power Cord Warnings

If operating the DVD Player from battery power, refer to Chapter 10 of this manual.

Use an approved power cord.

If the original power cord is missing or lost, purchase a power cord:

- That is approved for use in your country.

- That is rated for the product and for the voltage and current marked on the product's

electrical ratings label.

- That has a voltage and current rating greater than the voltage and current rating

marked on the product.

- With a minimum wire diameter of 0.75 mm2/18AWG.

- That is between 5 and 6.5 feet (1.5 and 2 meters) long.

If you have questions about the type of power cord to use, contact your authorized

service provider.

CAUTION

Visible Laser Radiation When Open. Do Not Stare Into Beam

or View Directly With Optical Instruments.

CAUTION

Use of controls, adjustments, and procedures other than those

specified herein may result in hazardous radiation exposure.

Selecting theVideo System

The video system of the DVD Player can be set

automatically according to the contents of the DVD or

VCD titles.

In general, the NTSC system, used by the USA, is also

used in most Asian countries.

The PAL system, used by most European countries, is

used in China and Hong Kong.

The DVD Player is compatible with both the NTSC and

PAL systems.

Thank you for purchasing Audiovox's portable DVD

Player.

Before using the DVD Player, we strongly recommend that

you to read the instructions in this manual. They will help

you to operate and maintain the product. Please keep this

manual for future reference. To get started quickly using

the DVD Player, see Chapter 2, Quick User Guide.

DPL

Note:

Copy Guard Protection:

When the DVD player audio/video output is plugged into

the A/V input jacks of a Video Cassette Recorder (VCR)

using the audio/video cables, (red, white and yellow RCA

jacks) poor picture quality may result (i.e. screen on TV

getting brighter and dimmer) due to Macrovision copy

guard protection contained on some DVD discs.

Table of Contents

1. Accessories List......................................

2. Quick User Guide....................................

3. Features of the DVD Player.......................

4. Parts of DVD Player....................................

5. Remote Control........................................

6. Initial Setup..............................................

7. Basic System Operation.........................

8. External Connection................................

9. Battery Installation and Use...................

10. Cautions and Maintenance...................

11.Warranty..................................................

12.Troubleshooting....................................

13. Product Specifications..........................

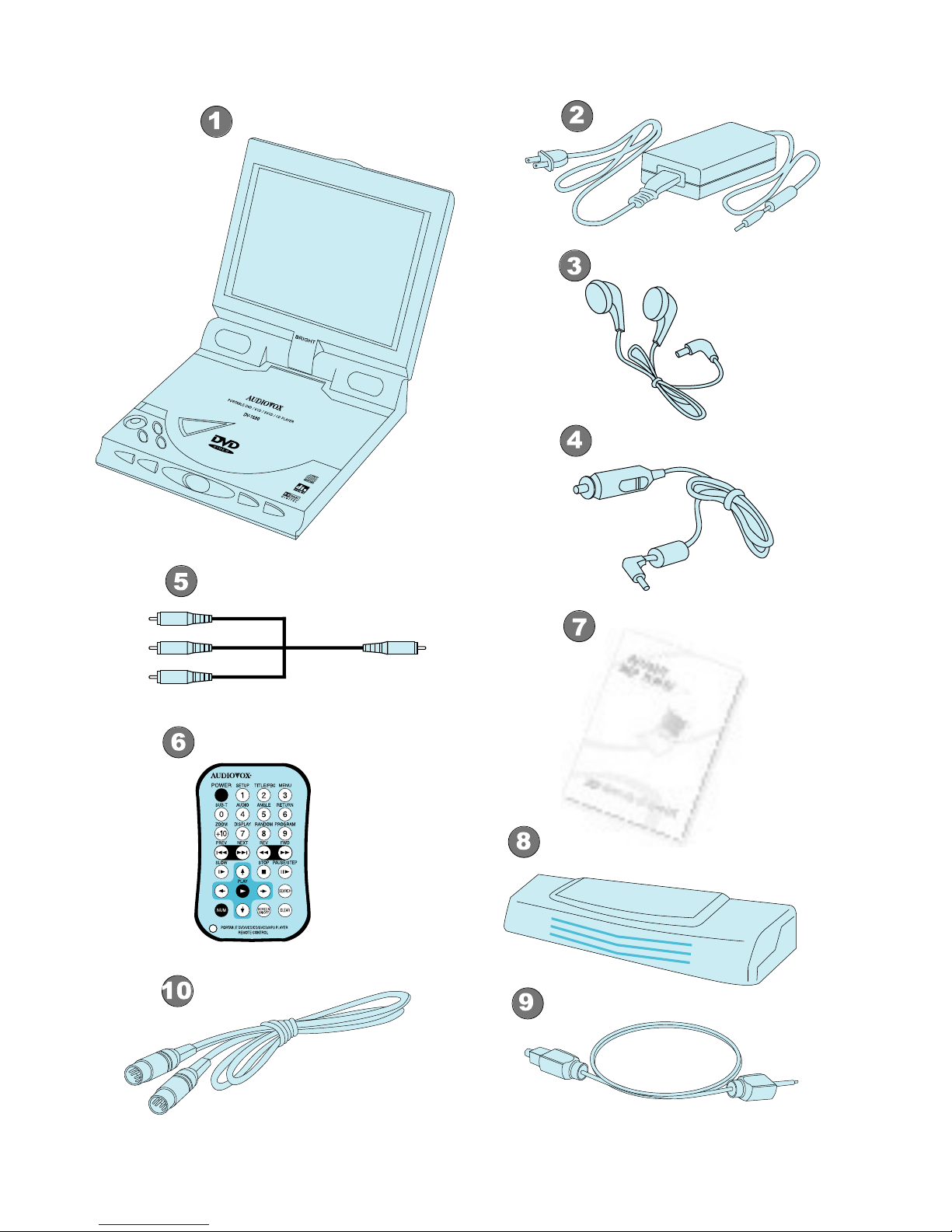

11. Accessories List/Option List

Check the contents of the package to make sure

nothing is missing or damaged. Some parts may be

optional. Contact your dealer with any questions.

1. DVD Player

2. AC Adapter

3. Stereo Headphone

4. Car Cigarette Lighter Adapter

5. Audiovisual Cable

6. Remote Control

7. One User's Manual

8. Li-ion Battery Pack

10. S-Video Signal Cable

9. Optical Cable

Accessories List

Option List

22. Quick User Guide

2.1 Connecting the Power

Refer to Chapter 10 for instructions on how to install

and use the battery pack.

1. Connect the power cord to the AC adapter.

2. Connect the power cord to a power source.

3. Connect the AC adapter to the DC IN 12V jack on

the right side of the DVD Player.

Use only the AC adapter that was shipped with the

DVD Player. Using substitutes may result in damage to

the DVD Player. Do not use the DVD Player's adapter

with other equipment.

It is normal for the AC adapter to feel warm when it is

connected to a power source. Please disconnect the AC

adapter from the source when the DVD Player is not in

use.

2.2 Opening the LCD screen

The LCD screen is on the inside of the cover.

To open the screen:

1. Slide the cover lock on the front of the screen cover

to the right.

2. GENTLY lift the cover to the position.

DO NOT TOUCH THE SCREEN WITH SHARP

OBJECTS. ALW

AYS CLOSE THE COVER WHEN THE

DVD PLAYER IS NOT IN USE.

2.3 Opening the Disc Cover

The disc cover inside the DVD Player protects the disc

while it is being played.The cover should be closed at all

times except when changing discs.

To open the disc cover, press the OPEN button at the

bottom left of the cover.The cover will be open.

PLA

Even though the laser beam will stop emitting

when the cover is opened, DO NOT LOOK AT THE

LASER HEAD.The laser beam could still damage your

eyes.

2.4 Removing the safety card

Before inserting a disc and turning on the power for

the first time, be sure to remove the cardboard safety

card.

2.5 Placing a Disc in the DVD Player

To place a disc in the DVD Player:

1. Open the disc cover.

2. Align the disc on the DVD Player.

3. Gently press the disc into place.

4. Close the disc cover.

DO NOT TOUCH THE LASER HEAD AND AVOID

DUST OR DIRT ON THE LASER HEAD. Keep the disc

cover closed at all times to prevent dust or dirt from

collecting on the laser head.

2.6Turning the power ON

To turn the power on, press the POWER ON/OFF

button on the right front side of the DVD Player.

2.7 Playing a Disc

To play a disc, press the button on the front of the

DVD Player.

2.8 Stopping Disc Play

To stop the disc play, press the [ ] button on the

front of the DVD Player.

2.9Turning the power off

To turn off the DVD Player, press the POWER ON/OFF

button on the right side of the DVD Player.
