Asus Wireless-N300 Manuel utilisateur

User Guide

Wireless-N300

Wireless N300 Router

No part of this manual, including the products and software described

in it, may be reproduced, transmitted, transcribed, stored in a retrieval

system, or translated into any language in any form or by any means, except

documentation kept by the purchaser for backup purposes, without the

express written permission of ASUSTeK Computer Inc. (“ASUS”).

Product warranty or service will not be extended if: (1) the product is repaired,

modiﬁed or altered, unless such repair, modiﬁcation of alteration is authorized

in writing by ASUS; or (2) the serial number of the product is defaced or

missing.

ASUS PROVIDES THIS MANUAL “AS IS”WITHOUT WARRANTY OF ANY KIND,

EITHER EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE IMPLIED

WARRANTIES OR CONDITIONS OF MERCHANTABILITY OR FITNESS FOR A

PARTICULAR PURPOSE. IN NO EVENT SHALL ASUS, ITS DIRECTORS, OFFICERS,

EMPLOYEES OR AGENTS BE LIABLE FOR ANY INDIRECT, SPECIAL, INCIDENTAL,

OR CONSEQUENTIAL DAMAGES (INCLUDING DAMAGES FOR LOSS OF PROFITS,

LOSS OF BUSINESS, LOSS OF USE OR DATA, INTERRUPTION OF BUSINESS

AND THE LIKE), EVEN IF ASUS HAS BEEN ADVISED OF THE POSSIBILITY OF

SUCH DAMAGES ARISING FROM ANY DEFECT OR ERROR IN THIS MANUAL OR

PRODUCT.

SPECIFICATIONS AND INFORMATION CONTAINED IN THIS MANUAL ARE

FURNISHED FOR INFORMATIONAL USE ONLY, AND ARE SUBJECT TO CHANGE

AT ANY TIME WITHOUT NOTICE, AND SHOULD NOT BE CONSTRUED AS A

COMMITMENT BY ASUS. ASUS ASSUMES NO RESPONSIBILITY OR LIABILITY

FOR ANY ERRORS OR INACCURACIES THAT MAY APPEAR IN THIS MANUAL,

INCLUDING THE PRODUCTS AND SOFTWARE DESCRIBED IN IT.

Products and corporate names appearing in this manual may or may not be

registered trademarks or copyrights of their respective companies, and are used

only for identiﬁcation or explanation and to the owners’beneﬁt, without intent

to infringe.

E10377

First Edition

May 2015

Table of contents

1 Getting to know your wireless router 6

1.1 Package contents.........................................................................6

1.2 Your wireless router.....................................................................7

1.4 Positioning your router..............................................................9

1.5 Setup Requirements ................................................................ 10

1.6 Router Setup............................................................................... 11

1.6.1 Wired connection..................................................................11

1.6.2 Wireless connection.............................................................12

2 Getting started 14

2.1 Logging into the Web GUI ..................................................... 14

2.2 Quick Internet Setup (QIS) with Auto-detection ........... 15

2.3 Connecting to your wireless network................................ 19

3 Conﬁguring the General settings 20

3.1 Using the Network Map ......................................................... 20

3.1.1 Setting up the wireless security settings......................21

3.1.2 Managing your network clients.......................................22

3.2 Creating a Guest Network...................................................... 23

3.3 Using the Traﬃc Manager ...................................................... 25

3.3.1 Managing QoS (Quality of Service) Bandwidth..........25

3.3.2 Monitoring Traﬃc .................................................................28

3.4 Setting up Parental Control................................................... 29

4 Conﬁguring the Advanced Settings 30

4.1 Wireless......................................................................................... 30

4.1.1 General......................................................................................30

4.1.2 WPS ............................................................................................33

4.1.3 WDS............................................................................................35

4.1.4 Wireless MAC Filter...............................................................37

Table of contents

4.1.5 RADIUS Setting ......................................................................38

4.1.6 Professional.............................................................................39

4.2 LAN................................................................................................. 41

4.2.1 LAN IP ........................................................................................41

4.2.2 DHCP Server............................................................................42

4.2.3 Route .........................................................................................44

4.2.4 IPTV ...............................................................................................45

4.3 WAN ............................................................................................... 46

4.3.1 Internet Connection.............................................................46

4.3.2 Port Trigger..............................................................................49

4.3.3 Virtual Server/Port Forwarding........................................51

4.3.4 DMZ............................................................................................54

4.3.5 DDNS .........................................................................................55

4.3.6 NAT Passthrough...................................................................56

4.4 IPv6................................................................................................. 57

4.5 VPN Server................................................................................... 58

4.6 Firewall.......................................................................................... 59

4.6.1 General......................................................................................59

4.6.2 URL Filter ..................................................................................59

4.6.3 Keyword ﬁlter .........................................................................60

4.6.4 Network Services Filter .......................................................61

4.7 Administration ........................................................................... 63

4.7.1 Operation Mode ....................................................................63

4.7.2 System.......................................................................................64

4.7.3 Firmware Upgrade................................................................65

4.7.4 Restore/Save/Upload Setting ...........................................65

Table of contents

4.8 System Log .................................................................................. 66

5 Utilities 67

5.1 Device Discovery....................................................................... 67

5.2 Firmware Restoration .............................................................. 68

6 Troubleshooting 70

6.1 Basic Troubleshooting............................................................. 70

6.2 Frequently Asked Questions (FAQs) .................................. 73

Appendices 83

Notices ....................................................................................................... 83

ASUS Contact information.................................................................... 97

Networks Global Hotline Information............................................... 98

1 Getting to know your wireless

router

NOTES:

• Ifanyoftheitemsaredamagedormissing,contactASUSfor

technical inquiries and support, Refer to the ASUS Support Hotline

list at the back of this user manual.

• Keeptheoriginalpackagingmaterialincaseyouwouldneedfuture

warranty services such as repair or replacement.

Wireless-N300 Router Network cable (RJ-45)

Power adapter Quick Start Guide

1.1 Package contents

1.2 Your wireless router

Wireless-N300 300Mbps Wireless N Router

Power LED

Oﬀ: No power.

On: Device is ready.

2.4GHz LED

Oﬀ:No 2.4GHz signal.

On:Wireless system is ready.

Flashing:Transmitting or receiving data via wireless connection.

WAN (Internet) LED

Oﬀ:No power or no physical connection.

On: Has physical connection to a wide area network (WAN).

LAN 1~4 LED

Oﬀ:No power or no physical connection.

On: Has physical connection to a local area network (LAN).

WPS / Reset button (2-in-1)

This button launches the WPS Wizard or resets / restores the system to its factory

default settings.

LAN 1 ~ 4 ports

Connect network cables into these ports to establish LAN connection.

NOTES:

• Useonlytheadapterthatcamewithyourpackage.Usingother

adapters may damage the device.

• Specifications:

DC Power adapter DC Output: +19V with max 1.75A current;

Operating

Temperature 0~40oCStorage 0~70oC

Operating Humidity 50~90% Storage 20~90%

WAN (Internet) port

Connect a network cable into this port to establish WAN connection.

Power (DC-IN) port

Insert the bundled AC adapter into this port and connect your router to a power source.

Power button

Press this button to power on or off the stystem.

Off

Bottom panel

NOTE: Mounting the wireless router to a wall is not recommended as it

reduces wireless performance.

Item Description

Mounting hooks

Use the mounting hooks to mount your router on concrete

or wooden surfaces using two round head screws.

Air vents

These vents provide ventilation to your router.

1.4 Positioning your router

For the best wireless signal transmission between the wireless

router and the network devices connected to it, ensure that you:

• Placethewirelessrouterinacentralizedareaforamaximum

wireless coverage for the network devices.

• Keepthedeviceawayfrommetalobstructionsandawayfrom

direct sunlight.

• Keepthedeviceawayfrom802.11gor20MHzonlyWi-Fi

devices, 2.4GHz computer peripherals, Bluetooth devices,

cordlessphones,transformers,heavy-dutymotors,fluorescent

lights, microwave ovens, refrigerators, and other industrial

equipment to prevent signal interference or loss.

• Alwaysupdatetothelatestfirmware.VisittheASUSwebsiteat

http://www.asus.com to get the latest firmware updates.

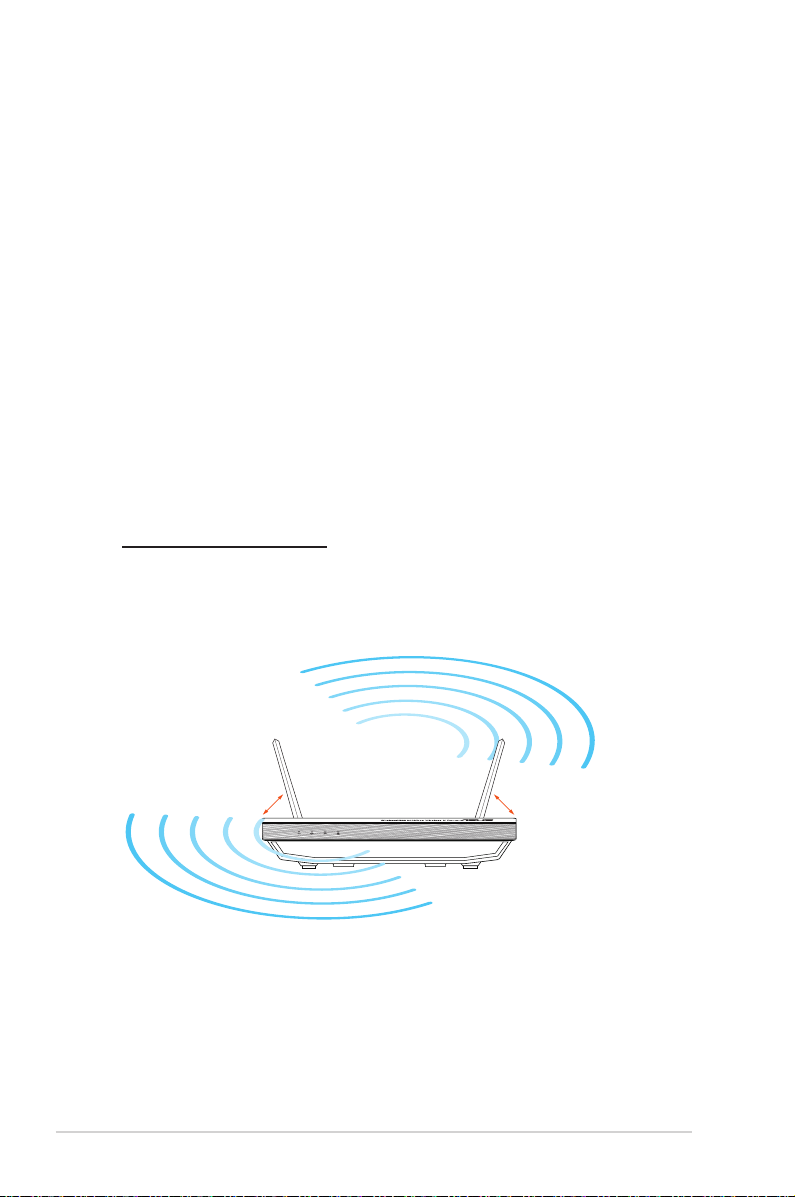

• Toensurethebestwirelesssignal,orientthethreedetachable

antennas as shown in the drawing below.

45°45°
